Ciclop (Kit) bq - 3D scanner

Compare
Comments

Basic specs

Manufacturer bq
Status Available
Category Desktop
Technology Laser triangulation
Output formats OBJ
Max. resolution -
Features Texture/Colors
€ 249 ¥ 33,885 £ 182 $ 281
See offers

Ciclop (Kit) review

Rating : 2.5/5

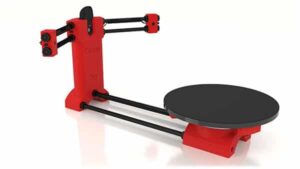

The bq Ciclop (Kit) is a desktop 3D scanner in kit designed by bq, a manufacturer based in Spain. bq is known for its range of electronics products, from smartphone and tablets to 3D printers and 3D scanners.

The bq Ciclop (Kit) 3D scanner was designed to be open source and affordable. Both the hardware and it operating software called Horus are under a CC-BY-SA and GPL licence.

The bq Ciclop is delivered as a Kit which takes approx. 1 hour to be assembled. This low cost 3D scanner uses the laser triangulation technology to 3D scan objects positioned on its automatic rotating table. The frame of the Ciclop is made from 3D printed PLA parts, produced by bq 3D printers (such as the Witbox and/or Hephestos).

A cheaper version of the bq Ciclop is available with electronic parts only. Also note that several maker's project reused this 3D scanner components and/or design for developing their own hardware.
General
Model Ciclop (Kit)
Manufacturer Bq
Price € 249 ¥ 33,885 £ 182 $ 281
Status available
Category Desktop
Technology Laser triangulation
Output formats OBJ
OS compatibility Windows, Linux
Performance
Max. resolution -
Max. accuracy 0.5 mm 0.01969 in
Acquisition speed -
Camera resolution -
Working range -
Scanning area (near) 250 x 205 mm 9.843 x 8.071 in
Scanning area (far) -
Hardware
Dimensions 450 x 330 x 230 mm 17.72 x 12.99 x 9.06 in
Weight 2.25 kg 4.96 lbs
Power input 12 V 1.5 A
Features
Texture/Colors
Wireless
Tripod
Rotating table
Robotic arm
3D printer
Connectivity
USB
Wifi
Bluetooth
SD card
Ethernet
