Basic specs

Metascore -/5
Manufacturer THOR3D
Category Handheld
Technology Structured light
Output formats OBJ
Max. resolution 0.15 mm0.006 in
$ 10,000 - $ 20,00010 000 € - 20 000 €7,647 £ - 15,294 £1,130,160 ¥ - 2,260,320 ¥ See offers

THOR3D Drake review

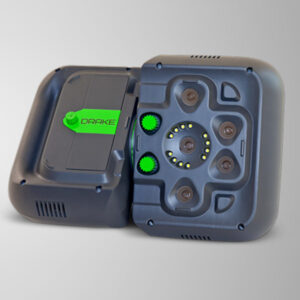

The THOR3D Drake portable 3D scanner made by THOR3D, a manufacturer based in Russia.

The THOR3D Drake uses the white structured light technology (LED) to 3D scan a wide variety of subjects (from jewelry to oil pipes) and their textures (colors). The THOR3D Drake is entirely wireless, autonomous and simple to use with its large touch screen and onboard computer. The data can be transferred to another computer through Wifi or via a provided USB key.

The Drake main competitive advantage is its set of three interchangeable sets of lenses, each with a different Field of View (FoV). Each set can be used to scan different sized objects; from big to very small. The lenses are labeled “heads” by THOR3D and can be purchased separately, in order fit a specific range of 3D scans. The THOR3D Drake lenses are called Maxi (suited to big objects such as cars), Midi (fitted for humans or a whole desktop) and Midi (perfect for small objects such as jewelry).

The Drake 3D scanner price list is as follow:

  • Body + 1 head: $16,800
  • Body + 2 heads: $22,800
  • Body + 3 heads: $28,800
  • 1 head only: $8,400

General

Model Drake
Manufacturer THOR3D
Price $ 10,000 - $ 20,00010 000 € - 20 000 €7,647 £ - 15,294 £1,130,160 ¥ - 2,260,320 ¥
Status Available
Category Handheld
Technology Structured light
Output formats OBJ
OS compatibility Microsoft Windows

Performance

Max. resolution 0.15 mm0.006 in
Max. accuracy 0.04 mm0.002 in
Acquisition speed
Camera resolution
Working range
Scanning area (near)
Scanning area (far)

Hardware

Dimension
Weight 2.2 kg4.85 lb
Power input

Features

Texture/Colors
Wireless
Tripod
Rotating table
Robotic arm
3D printer

Connectivity

USB
Wifi
Bluetooth
SD card
Ethernet
