The 10 best 3D scanners in 2020
[/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="off" specialty="off" transparent_background="off" background_color="#ffffff" allow_player_pause="off" inner_shadow="off" parallax="off" parallax_method="off"][et_pb_row][et_pb_column type="2_3"][et_pb_text admin_label="Chapeau" background_layout="light" text_orientation="left"]Finding the best 3D scanner for your needs can be challenging. In this product roundup, we provide a hand-picked selection of some of the best and top-rated 3D scanners on the market, with both handheld and desktop solutions. If you'd like custom advice (free!), please reach out via our quote form and we'll do our best to guide you.[/et_pb_text][/et_pb_column][et_pb_column type="1_3"][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_3"][et_pb_text admin_label="TOC" background_layout="light" text_orientation="left"][toc][/et_pb_text][/et_pb_column][et_pb_column type="2_3"][et_pb_text admin_label="H2: What is the best 3D scanner on the market?" background_layout="light" text_orientation="left"]
What is the best 3D scanner?
3D scanners are less popular than 3D printers, but they are an important part of the 3D printing ecosystem. Many different types of 3D scanners exist, from desktop 3D scanners to handheld 3D scanners and advanced metrology systems.
3D scanners can be used for an extremely wide range of applications, from reverse engineering to 3D body scanning or even online retail. They are becoming much easier to use and are available at much lower prices than ever before.
However, given the low number of reliable 3D scanner reviews, it can be challenging to find the best 3D scanner.
With this selection of the best 3D scanners, our goal is to cut through the clutter and offer a short overview of what’s available on the market this year.
We also run through different 3D scanning applications (reverse engineering, 3D inspection, architecture, etc.) and provide concise explanations of the various 3D scanning technologies that exist.[/et_pb_text][et_pb_text admin_label="Quote button" background_layout="light" text_orientation="left"]Ask us for quotes and advice[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="3_4"][et_pb_text admin_label="Table" background_layout="light" text_orientation="left"][table id=best-3D-scanner responsive=scroll responsive_breakpoint=tablet /][/et_pb_text][et_pb_text admin_label="Methodology/disclaimer" background_layout="light" text_orientation="left"]Methodology/disclaimer: we haven't tested all of the 3D scanners on this list. Our selection is based on overall feedback from specialized, trusted sources in addition to our experience when possible. Read more about how we work. For a larger view of the 3D scanner market, you can use our 3D scanner comparison engine.[/et_pb_text][/et_pb_column][et_pb_column type="1_4"][et_pb_text admin_label="AdSense (new responsive auto)" background_layout="light" text_orientation="left"][/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off" transparent_background="off" background_color="#f1f1f1" allow_player_pause="off" inner_shadow="off" parallax="off" parallax_method="off"][et_pb_fullwidth_header admin_label="H2: Overview of the best 3D scanners" title="Overview of the best 3D scanners" background_layout="light" text_orientation="left" subhead="We have divided the 3D scanners into two categories: handheld 3D scanners and desktop 3D scanners." /][/et_pb_section][et_pb_section fullwidth="off" specialty="off" transparent_background="off" background_color="#ffffff" allow_player_pause="off" inner_shadow="off" parallax="off" parallax_method="off"][et_pb_row][et_pb_column type="4_4"][et_pb_text admin_label="H3: Best portable and handheld 3D scanners" background_layout="light" text_orientation="left"]
Best portable and handheld 3D scanners
[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_4"][et_pb_image admin_label="Artec Eva" src="https://www.aniwaa.com/wp-content/uploads/2019/06/Best-handheld-3D-scanner-Artec-Eva.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="off" url="https://www.aniwaa.com/product/3d-scanners/artec-eva/" alt="Artec Eva best 3D scanner selection" title_text="Artec Eva best 3D scanner selection" /][/et_pb_column][et_pb_column type="1_4"][et_pb_text admin_label="Features: Artec Eva" background_layout="light" text_orientation="left"]
Artec Eva
- Technology: Structured light
- Category: Handheld
- Country: Luxembourg
- Price: $19,800
Creaform Go!SCAN SPARK
- Technology: Structured light
- Category: Handheld
- Country: Canada
- Price: $39,900
Shining 3D EinScan Pro 2X Plus
- Technology: Structured light
- Category: Handheld
- Country: China
- Price: $6,899
Best desktop 3D scanners
[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_4"][et_pb_image admin_label="Matter and Form V2" src="https://www.aniwaa.com/wp-content/uploads/2019/06/Low-cost-3D-scanner-Matter-and-Form-3D-Scanner-V2.jpg" alt="Matter and Form V2 3D scanner low-cost" title_text="Matter and Form V2 3D scanner low-cost" show_in_lightbox="off" url_new_window="on" animation="off" sticky="off" url="https://www.aniwaa.com/product/3d-scanners/matter-and-form-scanner-v2/" /][/et_pb_column][et_pb_column type="1_4"][et_pb_text admin_label="Features: Matter and Form V2" background_layout="light" text_orientation="left"]Matter and Form 3D Scanner V2 (MFS1V2)
- Technology: Laser triangulation
- Category: Desktop
- Country: Canada
- Price: $749
Shining 3D EinScan-SP (Platinum)
- Technology: Structured light
- Category: Desktop
- Country: China
- Price: $2,299
NextEngine 3D Scanner ULTRA HD
- Technology: Laser triangulation
- Category: Desktop
- Country: United States
- Price: $2,995
Open Technologies Scan In a Box FX
- Technology: Structured light
- Category: Desktop
- Country: Italy
- Price: $5,100
Polyga HDI Compact C504
- Technology: Structured light
- Category: Desktop
- Country: Canada
- Price: $19,990
HP PRO S3 Structured Light 3D Scanner
- Technology: Structured light
- Category: Desktop
- Country: United States
- Price: $3,400
Evatronix eviXmatic
- Technology: Structured light
- Category: Desktop
- Country: Poland
- Price: $10K - $50K
Best 3D scanner special mention: Scan Dimension SOL
[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_4"][et_pb_image admin_label="Scan Dimension SOL" src="https://www.aniwaa.com/wp-content/uploads/2019/07/Best-3d-scanner-special-mention-Scan-Dimension-SOL.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="off" alt="Scan Dimension SOL best 3D scanner special mention" title_text="Scan Dimension SOL best 3D scanner special mention" url="https://www.aniwaa.com/product/3d-scanners/scan-dimension-sol/" /][/et_pb_column][et_pb_column type="1_4"][et_pb_text admin_label="Features: Scan Dimension SOL" background_layout="light" text_orientation="left"]Scan Dimension SOL
- Technology: Laser triangulation
- Category: Desktop
- Country: Denmark
- Price: $599
Best 3D scanner special mention: Kinect sensor
[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_4"][et_pb_image admin_label="Kinect" src="https://www.aniwaa.com/wp-content/uploads/2019/06/3D-scan-with-a-Kinect.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="off" alt="3D scan with a Kinect sensor (Microsoft, XBox)" title_text="3D scan with a Kinect sensor (Microsoft, XBox)" /][/et_pb_column][et_pb_column type="3_4"][et_pb_text admin_label="Text: Kinect" background_layout="light" text_orientation="left"]Both professionals and hobbyists have already been using Kinect sensors to 3D scan objects. Microsoft is now releasing a new and improved version of their Kinect sensor, called the Azure Kinect DK (developer kit, for developers and businesses). It is equipped with various AI sensors, and various SDKs will be made available (e.g. body tracking SDK), including an open source SDK.[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="4_4"][et_pb_text admin_label="AdSense (new responsive auto)" background_layout="light" text_orientation="left"][/et_pb_text][et_pb_text admin_label="Quote button" background_layout="light" text_orientation="left"]Ask us for quotes and advice[/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off" transparent_background="off" background_color="#f1f1f1" allow_player_pause="off" inner_shadow="off" parallax="off" parallax_method="off"][et_pb_fullwidth_header admin_label="H2: 3D scanner buying guide" title="3D scanner buying guide " background_layout="light" text_orientation="left" subhead="There are various elements to take into account before deciding which product is the best 3D scanner for you." /][/et_pb_section][et_pb_section fullwidth="off" specialty="off" transparent_background="off" background_color="#ffffff" allow_player_pause="off" inner_shadow="off" parallax="off" parallax_method="off"][et_pb_row][et_pb_column type="2_3"][et_pb_text admin_label="H3: Which 3D scanner is the best for me?" background_layout="light" text_orientation="left"]Which 3D scanner is the best for me?
3D scanning can be used in a large variety of fields. For every application, the features necessary to generate a great 3D model are different. The 3D scanner must be chosen according to your desired use and results. What the best 3D scanner for you will depend on many factors, detailed below.3D scanning field of application
First thing to take into consideration is the field in which the 3D scanner will be used. It could be for example:Professional use
- 3D scanning small objects: dentists, jewelers and other professionals can use 3D scanning to capture small pieces.
- 3D scanning big objects: professionals such as architects and archeologists might need to 3D scan large objects such as statues, archeological fields or buildings.
- 3D body scanning, is getting increasingly used in various professional fields such as healthcare and 3D figurines.
Personal use
- 3D scanning objects occasionally: a person might need to use 3D scanning on rare occasions or maybe just one time.
- 3D scanning objects on a regular basis: you can use 3D scanning for various things from making personalized objects to making a replica of yourself, friends, or family members.
3D scanned ring (source: protoforming).
[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="2_3"][et_pb_text admin_label="H3: Type of 3D scanned object" background_layout="light" text_orientation="left"]Type of 3D scanned object
Dimensions and distance of the object (scan area and scanning range)
The recommended 3D scanner will change depending on the dimensions and the distance of the object to be 3D scanned. A desktop 3D scanner can’t 3D scan a 2-meter-tall statue, and a handheld 3D scanner might not be the best option to 3D scan a very small and precise piece.Surface of the object
Not every 3D scanner is able to capture the attributes of an object's surface, such as color and texture. It can also be challenging to capture objects with black, shiny, or reflective surfaces.Desired resolution
Not all 3D scanners offer the same level of resolution. Therefore, depending the quality you need, some 3D scanner models are more adapted than others. High resolution is required for reverse engineering, for example. For further insights into how to choose a 3D scanner, check out Polyga's guest post on Aniwaa: 3D scanner buying guide: what's in a datasheet?[/et_pb_text][/et_pb_column][et_pb_column type="1_3"][et_pb_text admin_label="YouTube video" background_layout="light" text_orientation="left"][/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="4_4"][et_pb_text admin_label="AdSense (new responsive auto)" background_layout="light" text_orientation="left"][/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="2_3"][et_pb_text admin_label="H3: 3D scanner recommendations" background_layout="light" text_orientation="left"]3D scanner recommendations
Desktop 3D scanners
Desktop 3D scanners can be ideal for both professionals and hobbyists that need to scan small parts. They tend to be more accurate since you aren't holding and moving the 3D scanner around yourself. Also, many desktop 3D scanners come with (or at least optionally) an automatic turntable, which makes it much easier to get clean 3D scans.Handheld 3D scanners

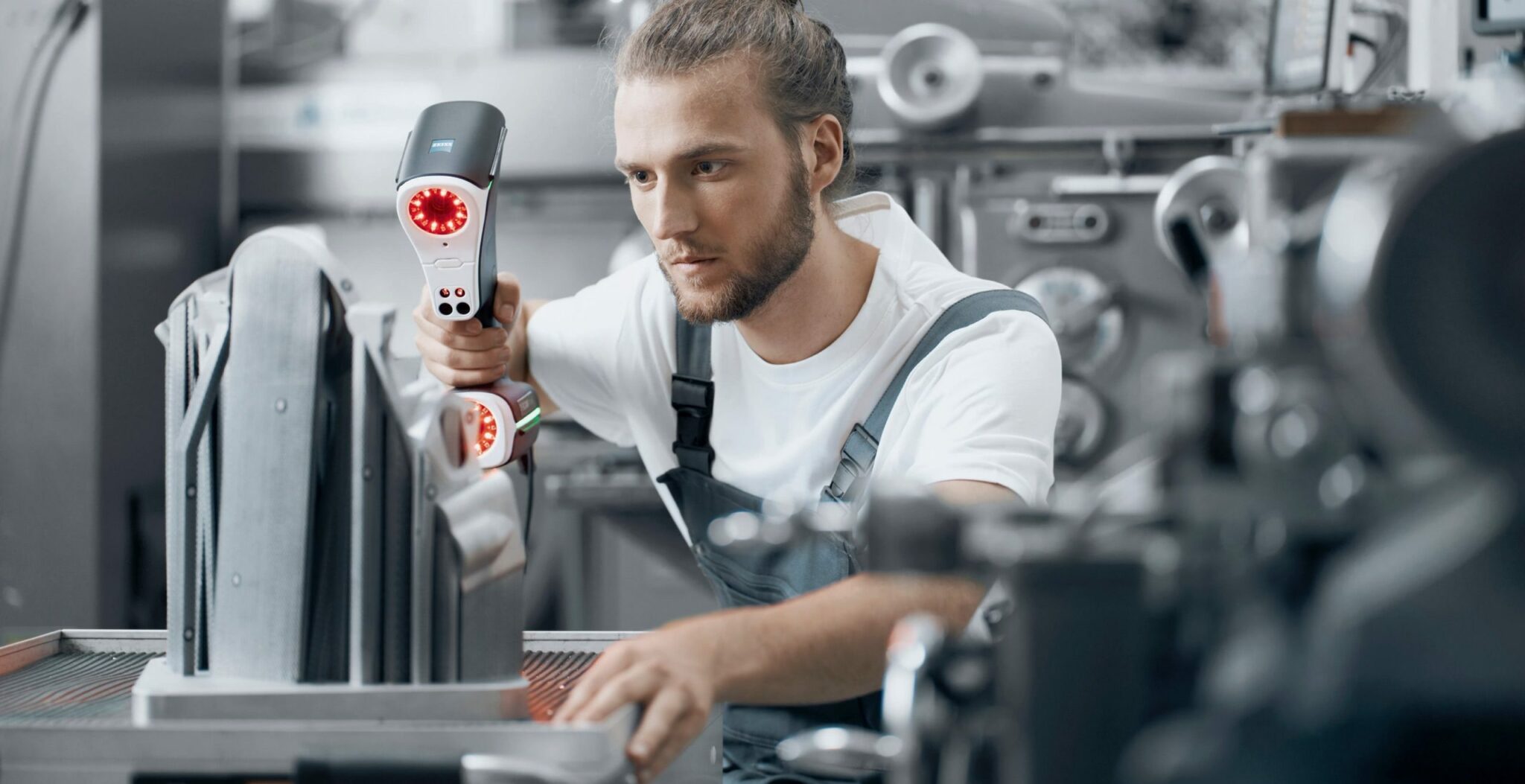

Handheld 3D scanners, sometimes called portable 3D scanners, can be used to 3D scan small to very large objects. These 3D scanners can also be used to reach hard-to-reach places. The precision and the ability to capture color and texture will depend on the 3D scanner model.3D body scanners
3D body scanners can be used in very various fields.- Professionals: professionals might want to 3D scan a person to make a 3D figurine, prepare for a surgical intervention, follow-up on a pregnancy or skin conditions, etc.
- Individuals: 3D body scanners can be used to help with fitness goals and personal shape. These 3D scanners usually can’t capture color and texture but offer a high resolution.
3D scanning mobile apps
3D scanning mobile apps are designed for occasional users that are not willing to or are unable to invest in a 3D scanner. They are not as precise as most 3D scanners, but mobile apps are a great way to get initiated to 3D scanning. Check out our list of the best 3D scanning apps for more information.[/et_pb_text][et_pb_text admin_label="Quote button" background_layout="light" text_orientation="left"]Ask us for quotes and advice[/et_pb_text][/et_pb_column][et_pb_column type="1_3"][et_pb_image admin_label="Image: Desktop vs handheld" src="https://www.aniwaa.com/wp-content/uploads/2019/06/Desktop-vs-handheld-3D-scanners.jpg" alt="Desktop 3D scanner or handheld 3D scanner?" title_text="Desktop 3D scanner or handheld 3D scanner?" show_in_lightbox="off" url_new_window="on" animation="off" sticky="off" /][et_pb_text admin_label="AdSense (new responsive rectangle)" background_layout="light" text_orientation="left"][/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off" transparent_background="off" background_color="#f1f1f1" allow_player_pause="off" inner_shadow="off" parallax="off" parallax_method="off"][et_pb_fullwidth_header admin_label="H2: 3D scanner price" title="3D scanner price" background_layout="light" text_orientation="left" subhead="Here are a few insights on 3D scanner pricing." /][/et_pb_section][et_pb_section fullwidth="off" specialty="off" transparent_background="off" background_color="#ffffff" allow_player_pause="off" inner_shadow="off" parallax="off" parallax_method="off"][et_pb_row][et_pb_column type="3_4"][et_pb_text admin_label="H3: Prices" background_layout="light" text_orientation="left"]Desktop 3D scanner price
Desktop 3D scanner prices vary a lot from one model to another. It can go from a few hundreds dollars, such as the bq Ciclop at $240, and can top out at around $50,000 for the more advanced 3D scanners.Handheld 3D scanner price
The handheld 3D scanner price range is very wide. A handheld 3D scanner can cost less than $200 (XYZprinting's 3D scanner, for example), and can reach up to over $100,000 for very high-end and advanced 3D scanners. There are plenty of great entry-level options for a couple thousand dollars. Mid-range handheld 3D scanners tend to cost between $10,000 and $40,000.Industrial 3D scanner price
Industrial 3D scanners generally offer more cutting-edge features and higher precision. Hence, their prices can be pretty high, ranging from $1,000 for the simplest ones to more than $100,000 for the most evolved ones.[/et_pb_text][/et_pb_column][et_pb_column type="1_4"][et_pb_text admin_label="AdSense (new responsive rectangle)" background_layout="light" text_orientation="left"][/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off" transparent_background="off" background_color="#f1f1f1" allow_player_pause="off" inner_shadow="off" parallax="off" parallax_method="off"][et_pb_fullwidth_header admin_label="H2: 3D scanning applications (3D scanner use cases)" title="3D scanning applications" background_layout="light" text_orientation="left" subhead="There are many reasons to buy a 3D scanner, for various industries and applications." /][/et_pb_section][et_pb_section fullwidth="off" specialty="off" transparent_background="off" background_color="#ffffff" allow_player_pause="off" inner_shadow="off" parallax="off" parallax_method="off"][et_pb_row][et_pb_column type="1_2"][et_pb_text admin_label="H3: Jewelry/Dental/Medical" background_layout="light" text_orientation="left"]Jewelry
Jewelers are starting to use 3D printing and 3D scanning to build casts in order to create amazing jewels. Read more on our 3D printing and 3D scanning for jewelry page.Dental

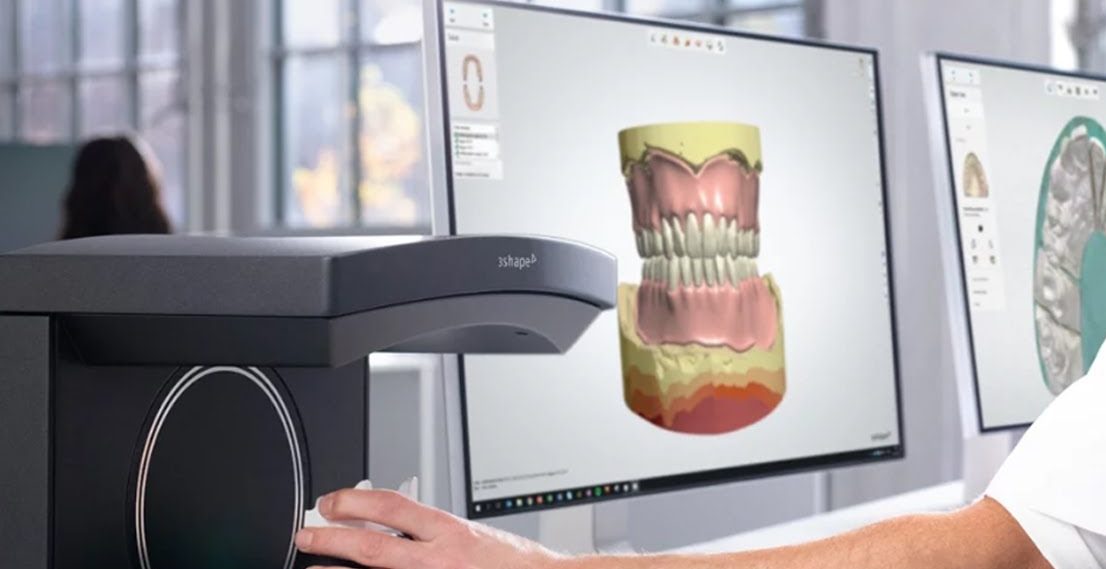

Dentists and dental labs are using 3D printing to build and create various dental appliances. Find more information on our 3D printing and 3D scanning for the dental industry.Medical
3D scanners are very versatile and can be used in many different ways in healthcare, from studies to making prosthetics or studying a person's posture. Find more information on our 3D scanning and 3D printing for the medical industry page.[/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_image admin_label="Image: Dental" src="https://www.aniwaa.com/wp-content/uploads/2019/06/Aniwaa-dental-3D-scan.jpg" alt="Dental scan" title_text="Dental scan" show_in_lightbox="off" url_new_window="on" animation="off" sticky="off" /][et_pb_text admin_label="Caption" background_layout="light" text_orientation="left"]A dental 3D scan by our co-founder Pierre-Antoine.
[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_2"][et_pb_text admin_label="H3: 3D selfies" background_layout="light" text_orientation="left"]3D figurines and 3D selfies
3D portraits or mini-me are increasingly popular! To make one, you get 3D scanned, and you can print your mini lookalike. To learn more about the subject, you can visit our 3D printed figurines, 3D selfies and 3D portraits page. Note: interested in opening a 3D selfie business? Contact-us to receive more information and a free quote.[/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2016/11/Best-3D-scanners-figurines.jpg" alt="realistic 3D figurines from a 3D scan" title_text="realistic 3D figurines from a 3D scan" show_in_lightbox="off" url_new_window="off" animation="off" sticky="on" /][et_pb_text admin_label="Caption" background_layout="light" text_orientation="left"]3D scanners can be used to make 3D figurines. Source: 3Dprinting.com
[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="4_4"][et_pb_text admin_label="Quote button" background_layout="light" text_orientation="left"]Ask us for quotes and advice[/et_pb_text][et_pb_text admin_label="AdSense (new responsive auto)" background_layout="light" text_orientation="left"][/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_2"][et_pb_text admin_label="H3: Architecture/Archeology" background_layout="light" text_orientation="left"]Architecture
Architects can use 3D scanning to capture an area, building or habitation and present it in a more efficient way to their clients. If you are interested, you’ll find more information on our 3D scanning and 3D printing for architects page.Archeology and museums
Archaeologists, museum curators and researchers are starting to use 3D scanning to get a better view and capture ancient pieces. To read more about this topic, you can visit our 3D printing and 3D scanning in archeology and cultural preservation page.[/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_image admin_label="Image: Notre Dame 3D scan" src="https://www.aniwaa.com/wp-content/uploads/2019/06/Notre-Dame-3D-scan.jpg" alt="3D scan of Notre Dame 3d scanning for architecture" title_text="3D scan of Notre Dame 3d scanning for architecture" show_in_lightbox="off" url_new_window="on" animation="off" sticky="off" /][et_pb_text admin_label="Caption" background_layout="light" text_orientation="left"]A dot cloud of Notre Dame. Source: engadget
[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_2"][et_pb_text admin_label="H3: Reverse engineering/Metrology" background_layout="light" text_orientation="left"]Reverse engineering
Reverse engineering, also known as back engineering, is the process of extracting information of anything man-made and studying it. 3D scanners can be used to capture all the parts of a disassembled object to create a 3D model. The user will then be able to digitally study it in 3D afterwards.Metrology/inspection
Industries need to make sure their factories are producing perfect products that are perfectly in line with the products' reference dimensions. 3D scanners can be used to efficiently measure potential discrepancies.[/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_image admin_label="Image: A high-quality 3D scan by Creaform." src="https://www.aniwaa.com/wp-content/uploads/2019/06/Reverse-engineering-inspection-metrology-3d-scanning.jpg" alt="A high-quality 3D scan by Creaform." title_text="A high-quality 3D scan by Creaform." show_in_lightbox="off" url_new_window="on" animation="off" sticky="off" /][et_pb_text admin_label="Caption" background_layout="light" text_orientation="left"]A high-quality 3D scan of an industrial part by Creaform. Source: Creaform/Ametek
[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="4_4"][et_pb_text admin_label="Quote button" background_layout="light" text_orientation="left"]Ask us for quotes and advice[/et_pb_text][et_pb_text admin_label="AdSense (new responsive auto)" background_layout="light" text_orientation="left"][/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off" transparent_background="off" background_color="#f1f1f1" allow_player_pause="off" inner_shadow="off" parallax="off" parallax_method="off"][et_pb_fullwidth_header admin_label="H2: Overview of 3D scanning technologies" title="Overview of 3D scanning technologies" background_layout="light" text_orientation="left" subhead="If you're unsure of how 3D scanning works, take a look below at our technology definitions." /][/et_pb_section][et_pb_section fullwidth="off" specialty="off" transparent_background="off" background_color="#ffffff" allow_player_pause="off" inner_shadow="off" parallax="off" parallax_method="off"][et_pb_row][et_pb_column type="1_2"][et_pb_text admin_label="H3: Photogrammetry/Structured light" background_layout="light" text_orientation="left"]Photogrammetry
Photogrammetry consists of taking measurements from photographs to recover the exact positions of surface points. The principle of photogrammetry is to analyze several photographs of a static subject, taken from different viewpoints, and to automatically detect pixels corresponding to a same physical point.Structured light
3D scanners using structured light projects a series of linear light patterns onto an object. The system is then able to examine the deformations of each line and to calculate the distance between the 3D scanner and the object’s surface. With this data, the software is able to build an accurate 3D model of the object.[/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2016/11/Best-3D-scanner-Structured-Light.jpg" alt="Structured Light infographique. One of the most used 3D scanning technologies. " title_text="Structured Light infographique. One of the most used 3D scanning technologies. " show_in_lightbox="off" url_new_window="off" animation="off" sticky="on" /][et_pb_text admin_label="Caption" background_layout="light" text_orientation="left"]Structured light 3D scanning technology. Source: Depth Biomecanics
[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_2"][et_pb_text admin_label="H3: Triangulation/Contact" background_layout="light" text_orientation="left"]Triangulation
A 3D scanner using triangulation technology will project a laser beam on the object’s surface and measure the deformation of the laser ray (similar to structured light, but with one or more lasers).Contact
Contact 3D scanners probe the subject via physical touch. While the object is firmly held in place, a touch probe moves along its surface to record 3D information. For more precise and detailed explanations, you can visit our 3D scanning technologies page.[/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2016/11/3D-scanning-laser-triangulation.jpg" alt="3D scanning laser triangulation is a very used 3D scanning technology. " title_text="3D scanning laser triangulation is a very used 3D scanning technology. " show_in_lightbox="off" url_new_window="off" animation="off" sticky="on" /][et_pb_text admin_label="Caption" background_layout="light" text_orientation="left"]3D scanning laser triangulation technology. Source: NeoMetrix
[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="4_4"][et_pb_text admin_label="AdSense (new responsive auto)" background_layout="light" text_orientation="left"][/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off"][et_pb_fullwidth_header admin_label="H2: FAQ" title="FAQ" background_layout="light" text_orientation="left" /][/et_pb_section][et_pb_section fullwidth="off" specialty="off" transparent_background="off" background_color="#f1f1f1" allow_player_pause="off" inner_shadow="off" parallax="off" parallax_method="off"][et_pb_row][et_pb_column type="3_4"][et_pb_text admin_label="Text" background_layout="light" text_orientation="left"]What is the best 3D scanner under $1000?
The best 3D scanner under $1000 is the Matter and Form 3D Scanner V2. Read our 3D Scanner V2 product page for more information.Which are the most affordable 3D scanners?
The most affordable 3D scanners, excluding DIY kits, can be found from Shining 3D or peel 3d (Creaform subsidiary).Where can I get the best 3D body scanner?
There are various 3D body scanner manufacturers. You can check out our full list here: best 3D body scanners.What are the fastest commercially available 3D scanners?
One of the fastest 3D scanners available right now is the Creaform Go!SCAN SPARK.[/et_pb_text][et_pb_text admin_label="More resources" background_layout="light" text_orientation="left"]More resources
- Do you want to compare all existing 3D scanners? Check out our 3D scanner comparison engine, we have more than 250 3D scanners listed.
- Check out our 3D scanner buying guide by guest author Thomas Tong of Polyga.
- Overall, what’s the best 3D printer on the market? Find out with out ranking of the best 3D printers.
- If you're looking to 3D print photorealistic parts, you can read our full-color 3D printing guide.
The 10 best 3D body scanners in 2020
[/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="off" specialty="off" transparent_background="off" background_color="#ffffff" allow_player_pause="off" inner_shadow="off" parallax="off" parallax_method="off"][et_pb_row][et_pb_column type="4_4"][et_pb_text admin_label="Chapo" background_layout="light" text_orientation="left"]3D body scanners are very popular for fitness and healthcare applications. This guide lists the best body scanners available this year. Please contact us for more information.[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_3"][et_pb_text admin_label="TOC" background_layout="light" text_orientation="left"][toc label='Table of contents'][/et_pb_text][/et_pb_column][et_pb_column type="2_3"][et_pb_text admin_label="H2: What is a 3D body scanner?" background_layout="light" text_orientation="left"]What is a 3D body scanner?
3D body scanners are designed to capture your full body in 3D. The result is a 3D model (also called 3D avatar) of your exact body shape with accurate data such as body measurements, posture analysis, etc. Originally developed for the fashion industry as fast and accurate 3D measurement solutions, 3D body scanners are now used in various other fields such as healthcare, 3D figurines and 3D photos, fitness, and entertainment. We've selected some of the best body 3D scanners available and listed them here in this guide. The list focuses on 3D scanning systems that are exclusively designed for 3D body scanning (no handheld 3D scanners).[/et_pb_text][et_pb_text admin_label="Quote CTA" background_layout="light" text_orientation="left"]Need a free quote or advice? Contact us[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="4_4"][et_pb_text admin_label="AdSense (automatic)" background_layout="light" text_orientation="left"] [/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="off" specialty="off" transparent_background="off" background_color="#ffffff" allow_player_pause="off" inner_shadow="off" parallax="off" parallax_method="off"][et_pb_row][et_pb_column type="3_4"][et_pb_text admin_label="Table" background_layout="light" text_orientation="left"][table id=3d-body-scanners responsive=scroll responsive_breakpoint=tablet /][/et_pb_text][et_pb_text admin_label="Quote CTA" background_layout="light" text_orientation="left"]Need a free quote or advice? Contact us[/et_pb_text][/et_pb_column][et_pb_column type="1_4"][et_pb_text admin_label="AdSense (automatic)" background_layout="light" text_orientation="left"] [/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off" transparent_background="off" background_color="#f1f1f1" allow_player_pause="off" inner_shadow="off" parallax="off" parallax_method="off"][et_pb_fullwidth_header admin_label="Overview of the best 3D full body scanners " title="Overview of the best 3D full body scanners " background_layout="light" text_orientation="left" /][/et_pb_section][et_pb_section fullwidth="off" specialty="off" transparent_background="off" background_color="#ffffff" allow_player_pause="off" inner_shadow="off" parallax="off" parallax_method="off"][et_pb_row][et_pb_column type="1_4"][et_pb_image admin_label="Image: TC2 Labs TC2-21B" src="https://www.aniwaa.com/wp-content/uploads/2020/02/3D-scanner-TC2-Labs-TC2-19B-cabin-booth-510x510.jpg" alt="TC2 Labs TC2-21B" title_text="TC2 Labs TC2-21B" show_in_lightbox="off" url_new_window="on" animation="off" sticky="off" /][/et_pb_column][et_pb_column type="1_4"][et_pb_text admin_label="Features: TC2 Labs TC2-21B" background_layout="light" text_orientation="left"]TC2 Labs TC2-21B
- Technology: Photogrammetry
- Price: $30,000
3dMD 3dMDbody System
- Technology: Photogrammetry
- Price: -
botspot botscan NEO
- Technology: Photogrammetry
- Price: -
Canfield Vectra XT
- Technology: Near-IR Structured light
- Price: -
ESUN Display Twinlike 3D Body Scanner
- Technology: Photogrammetry
- Price: -
Fit3D Proscanner
- Technology: Structured light
- Price: $10,000
Size Stream SS20 3D Body Scanner
- Technology: Structured light
- Price: $15,000
TELMAT Industrie SYMCAD III
- Technology: Near-IR Structured light
- Price: $15,900
Texel Portal MX
- Technology: Structured light
- Price: $25,000
TG3D Studio Scanatic 360 Body Scanner
- Technology: Photogrammetry
- Price: $15,000
3D printed figurines and 3D photo
Also known as 3D selfies or 3D portraits, these miniature figurines of people are typically 3D printed from a 3D body scan. If you want to learn more about this application, you can visit our article dedicated to 3D printed figurines. Here are a few body scanners that are designed for 3D figurines:- Artec Shapify Booth
- Doob Dooblicator
- KODAK Full Body 3D Scanner
- Picanova 3D.me
- Pics3D Cobra
- Scanologics ScanLounge v2.5
- Twindom Twinstant Mobile
Fitness and personal health
Fitness body scanners
Body scanners can be used in fitness clubs, gyms, and healthcare facilities. Fitness body scanners allow you to track the evolution of a person’s body through various 3D measurements such as body shape and posture. Visualizing these evolutions on a 3D avatar is a strong motivational boost which can help increase gym members' engagement and improve patient recovery processes.Home body scanners
These 3D body scanners are consumer appliances made to monitor personal health and body shape as well as posture evolution, among other data points. Home body scanners usually have a 360° rotating platform on which the user stands. These 3D body scanners typically work with a smartphone app acting as a personal trainer, so users can track all their data and reach their fitness goals easily.[/et_pb_text][/et_pb_column][et_pb_column type="1_3"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2015/05/3D-body-scanning-for-fitness-3D-scanning.jpg" alt="3D body scanners are getting hot in fitness. They can help sports clubs to retain better their clients. " title_text="3D body scanners are getting hot in fitness. They can help sports clubs to retain better their clients. " show_in_lightbox="off" url_new_window="off" animation="off" sticky="on" /][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="2_3"][et_pb_text admin_label="3D measurement and Fashion" background_layout="light" text_orientation="left"]Fashion and made-to-measure clothing
The fashion industry was among the first to embrace 3D body scanning for several applications:- Fast and accurate 3D measurements
- Made-to-measure clothing (custom clothing)
- Highly personalized recommendations
- Measurement surveys and anthropometric characterization
- Virtual fitting rooms
Healthcare
Healthcare and medical sectors are filled with opportunities for 3D body scanning. From monitoring body shape and posture during a pregnancy, to making custom 3D printed prosthetics and more, body scanners are increasingly used for use in the medical field. Body scanning can also be used to accurately monitor skin recovery in the case of burns or to detect skin diseases at an early stage, thanks to specific 3D imaging systems.[/et_pb_text][/et_pb_column][et_pb_column type="1_3"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2015/05/3D-body-scaner-Medical-applications-3D-scanning.jpg" alt="3D body scanning booth can help monitor a pregnancy making sure the evolution is good. " title_text="3D body scanning booth can help monitor a pregnancy making sure the evolution is good. " show_in_lightbox="off" url_new_window="off" animation="off" sticky="on" /][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="4_4"][et_pb_text admin_label="AdSense (automatic)" background_layout="light" text_orientation="left"] [/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off" transparent_background="off" background_color="#f1f1f1" allow_player_pause="off" inner_shadow="off" parallax="off" parallax_method="off"][et_pb_fullwidth_header admin_label="H2: How do 3D body scanners work?" title="How do 3D body scanners work?" background_layout="light" text_orientation="left" /][/et_pb_section][et_pb_section fullwidth="off" specialty="off" transparent_background="off" background_color="#ffffff" allow_player_pause="off" inner_shadow="off" parallax="off" parallax_method="off"][et_pb_row][et_pb_column type="2_3"][et_pb_text admin_label="H3: 3D scanning booth or turntable" background_layout="light" text_orientation="left"]To obtain a full body scan, the person holds a pose for a few seconds, which is the time it takes for the 3D scanner to capture images from all angles. The 3D software then reconstructs the final 3D model of the body by "stitching" all of the images together, generating a highly detailed 3D model. Models can have colors and textures depending on the type of body scanner that's used. During the 3D capture process, the subject can either stand on a rotating turntable facing a fixed 3D body scanner, or stand still while the sensors located all around the body scanning booth capture images from all angles.Closed 3D body scanning booth (or body scanning cabin)
A body scanning booth is a closed cabin that is rigged with cameras or 3D scanners. These full body 3D scanners look a bit like regular fitting rooms.Full body scanners with rotating platform or turntable
To use these body scanners, the person stands on a rotating table facing a 3D body scanner, typically a vertical unit. During the scanning process, the turntable rotates 360°, allowing the subject to be captured from all angles. The 3D model is generated once the full rotation is complete.[/et_pb_text][/et_pb_column][et_pb_column type="1_3"][et_pb_text admin_label="AdSense (rectangle)" background_layout="light" text_orientation="left"] [/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="4_4"][et_pb_text admin_label="Quote CTA" background_layout="light" text_orientation="left"]Need a free quote or advice? Contact us[/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="off" specialty="off" transparent_background="off" background_color="#f1f1f1" allow_player_pause="off" inner_shadow="off" parallax="off" parallax_method="off"][et_pb_row][et_pb_column type="3_4"][et_pb_text admin_label="More resources" background_layout="light" text_orientation="left"]More resources
- Compare all existing 3D scanners with our 3D scanner comparison engine.
- Overall, what is the best 3D scanner? Here is our definitive list of the best 3D scanners on the market.
- Some handheld 3D scanners are also options for 3D body scanning.
- Try out 3D scanning for free with some of these 3D scanner apps for smartphones.
The 9 best portable and handheld 3D scanners in 2020
[/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="off" specialty="off" transparent_background="off" background_color="#ffffff" allow_player_pause="off" inner_shadow="off" parallax="off" parallax_method="off"][et_pb_row][et_pb_column type="2_3"][et_pb_text admin_label="Chapeau" background_layout="light" text_orientation="left"]Looking for the best handheld 3D scanner? Check out our hand-picked selection of handheld and portable 3D scanners based on our own experience as well as feedback from reputable sources and partners. We also provide a useful buying guide to help you make the right choice.[/et_pb_text][/et_pb_column][et_pb_column type="1_3"][et_pb_text admin_label="Quote CTA" background_layout="light" text_orientation="left"]Need a free quote or advice?[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_2"][et_pb_text admin_label="TOC" background_layout="light" text_orientation="left"][toc][/et_pb_text][et_pb_text admin_label="New responsive AdSense (rectangle)" background_layout="light" text_orientation="left"] [/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_text admin_label="H2: What is the best handheld 3D scanner on the market?" background_layout="light" text_orientation="left"]What is the best handheld 3D scanner on the market?
There are hundreds of 3D scanners available on the market, from desktop 3D scanners to advanced metrology systems. However, handheld 3D scanners are gaining popularity in this fast-growing market. They offer various benefits in comparison with other types of 3D scanners:- Ability to access hard-to-reach places
- Relative ease of use
- Portability
If you're looking for a desktop 3D scanner, check out our Best 3D scanners article or use our 3D scanner comparison engine to see even more options.
[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="4_4"][et_pb_text admin_label="Table" background_layout="light" text_orientation="left"][table id=Best-handheld-3D-scanners-portable responsive=scroll responsive_breakpoint=tablet /][/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="2_3"][et_pb_cta admin_label="Call To Action" button_url="https://www.aniwaa.com/comparison/3d-scanners/" button_text="See more 3D scanners with our comparison engine" use_background_color="off" background_layout="dark" text_orientation="left" background_color="#007cb0" /][/et_pb_column][et_pb_column type="1_3"][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off" transparent_background="off" background_color="#f1f1f1" allow_player_pause="off" inner_shadow="off" parallax="off" parallax_method="off"][et_pb_fullwidth_header admin_label="H2: Overview of the best handheld 3D scanners" title="Overview of the best handheld 3D scanners" background_layout="light" text_orientation="left" subhead="Below, find more details and information about each portable 3D scanner from our selection." /][/et_pb_section][et_pb_section fullwidth="off" specialty="off" transparent_background="off" background_color="#ffffff" allow_player_pause="off" inner_shadow="off" parallax="off" parallax_method="off"][et_pb_row][et_pb_column type="1_4"][et_pb_image admin_label="Shining 3D EinScan Pro 2X" src="https://www.aniwaa.com/wp-content/uploads/2019/07/Cheap-handheld-3D-scanner-Shining-3D-EinScan-Pro-2X.jpg" alt="Shining 3D EinScan Pro 2X cheap handheld 3D scanner" title_text="Shining 3D EinScan Pro 2X cheap handheld 3D scanner" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" url="https://www.aniwaa.com/product/3d-scanners/shining-3d-einscan-pro-2x-plus/" /][/et_pb_column][et_pb_column type="1_4"][et_pb_text admin_label="Features: Shining 3D EinScan Pro 2X" background_layout="light" text_orientation="left"]Shining 3D EinScan Pro 2X
- Accuracy: 0.04 mm
- Resolution: 0.2 mm
- Weight: 1.13 kg
- Technology: Structured light
- Country: China
- Price: $5,499
THOR3D Calibry
- Accuracy: 0.1 mm
- Resolution: 0.3 mm
- Weight: 0.7 kg
- Technology: Structured light
- Country: Russia
- Price: $5,790
Shining 3D EinScan Pro 2X Plus
- Accuracy: 0.04 mm
- Resolution: 0.2 mm
- Weight: 1.13 kg
- Technology: Structured light
- Country: China
- Price: $6,899
Peel 3d peel 2
- Accuracy: 0.25 mm
- Resolution: 0.5 mm
- Weight: 0.95 kg
- Technology: Structured light
- Country: Canada
- Price: $7,490
FARO Freestyle3D X
- Accuracy: 1 mm
- Resolution: 0.2 mm
- Weight: 0.98 kg
- Technology: Laser triangulation
- Country: United States
- Price: $10K - $50K
Mantis Vision F6 SMART
- Accuracy: 0.5 mm
- Resolution: 1.0 mm
- Weight: 1.0 kg
- Technology: Structured light
- Country: Israel
- Price: $10K - $50K
Artec Eva
- Accuracy: 0.1 mm
- Resolution: 0.5 mm
- Weight: 0.9 kg
- Technology: Structured light
- Country: Luxembourg
- Price: $19,800
Artec Leo
- Accuracy: 0.1 mm
- Resolution: 0.5 mm
- Weight: 2.6 kg
- Technology: Structured light
- Country: Luxembourg
- Price: $25,800
Creaform Go!SCAN SPARK
- Accuracy: 0.05 mm
- Resolution: 0.2 mm
- Weight: 1.25 kg
- Technology: Structured light
- Country: Canada
- Price: $39,900
Creaform HandyScan BLACK
- Accuracy: 0.035 mm
- Resolution: 0.1 mm
- Weight: 0.94 kg
- Technology: Laser triangulation
- Country: Canada
- Price: $50K - $100K
Purpose: what do you need your 3D scanner for?
This is the absolute first question you or your team need to ask yourselves. For example, to 3D scan large objects, scenes, or rooms, you'll need a 3D scanner with a large 3D scanning volume. Also, in these cases, you may not need an extremely high accuracy. If you're looking to 3D scan small objects, you can make do with smaller 3D scanning areas. Various 3D scanners have different scanning modes in order to adapt to small, medium, and relatively large objects. Need a free quote or advice? Contact us. For reverse engineering, accuracy and resolution may be the most important specs to you. However, if you want to 3D scan your products for e-commerce, then maybe you'll put accuracy to the side and rather focus on 3D scanners that can provide full color meshes. 3D scanning can serve an amazing amount of purposes– determine yours before you proceed to choosing a 3D scanner. Take a look at our 3D scanner buying guide for more detailed explanations and tips.Desired 3D scan results
Accuracy
A 3D scanner’s accuracy is its ability to obtain exact measurements. In certain industries, like quality inspection, high accuracy is of utmost importance.Resolution
Just like with photos or screens, the level of 3D scanning resolution counts depending on the amount of detail you need.Speed
The speed factor is especially important when 3D scanning large objects and landscapes, or for 3D body scanning. Large objects take a while to scan, and some 3D scanners require you to stand still for a few seconds before moving on to the next perspective. Other scanners are much quicker, and they'll therefore be more comfortable for large objects.Prior knowledge and experience
Some 3D scanner manufacturers insist more on user-friendly experiences that others. Choosing a more complex 3D scanner implies hours of training, and beginners may find it more interesting to get an easy-to-use 3D scanner.Budget
Last but not least, and as it is the case for so many other products, budget is definitely something to take into account. There are cheap handheld 3D scanner options for under $1,000 if you're willing to sacrifice accuracy and performance. Industrial 3D scanners are the most expensive, with advanced 3D scanning technologies and prices around $100K. Unless you need a 3D scanner for 24/7 quality inspection or other very specific use cases, an entry or mid-level 3D scanner will suit you. For more detailed 3D scanner tech spec explanations, don't hesitate to take a look at our 3D scanner buying guide.[/et_pb_text][/et_pb_column][et_pb_column type="1_4"][et_pb_text admin_label="New responsive AdSense (automatic)" background_layout="light" text_orientation="left"][/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_2"][et_pb_text admin_label="YouTube video" background_layout="light" text_orientation="left"][/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_text admin_label="AdSense (rectangle)" background_layout="light" text_orientation="left"] [/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_2"][et_pb_text admin_label="Compare 3D scanners" background_layout="light" text_orientation="left"]Find the perfect balance between all these factors with our 3D scanner comparison engine and its filters. We reference hundreds of different 3D scanners, and our database keeps growing daily.[/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_cta admin_label="Call To Action" button_url="https://www.aniwaa.com/comparison/3d-scanners/" button_text="3D scanner comparison engine" use_background_color="off" background_color="#007cb0" background_layout="light" text_orientation="left" /][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="2_3"][et_pb_text admin_label="H3: More resources" background_layout="light" text_orientation="left"]More resources
- Interested in 3D printing? Check out the numerous articles we have regarding 3D printers and their applications.
- Use our 3D scanner comparison engine to find even more 3D scanners, including handheld scanners, desktop 3D scanners, 3D body scanners, and more.
- Discover 3D scanning with these free 3D scanner smartphone apps.
- We also have articles dedicated to makers. Check out the best CNC routers and the best laser cutters!
The 8 best 3D scanning apps for smartphones and iPads in 2020 (3D scanner apps)
[/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="off" specialty="off" transparent_background="off" background_color="#ffffff" allow_player_pause="off" inner_shadow="off" parallax="off" parallax_method="off"][et_pb_row][et_pb_column type="2_3"][et_pb_text admin_label="Chapeau" background_layout="light" text_orientation="left"]3D scanning apps (a.k.a. 3D scanner apps) are a fun way to learn about 3D scanning. In this article we cover the best 3D scanning apps in 2019 and explain how it works. We also keep track of discontinued apps and we have a special section for 3D photo apps.[/et_pb_text][/et_pb_column][et_pb_column type="1_3"][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_2"][et_pb_text admin_label="TOC" background_layout="light" text_orientation="left"] [toc] [/et_pb_text][et_pb_text admin_label="Responsive Adsense (rectangle)" background_layout="light" text_orientation="left"] [/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_text admin_label="H2: What are the best 3D scanner apps for iOS and Android" background_layout="light" text_orientation="left"]What are the best 3D scanner apps for iOS and Android?
A 3D scanner app can turn almost any smartphone into a pocket-sized 3D scanner. 3D scanning apps are based on photogrammetry, a 3D scanning technology that creates 3D models out of 2D photos. You take pictures of an object from different angles and then a software “stitches” the images together. This technology allows you to turn your smartphone into a 3D scanner. With a 3D scanning app, you can 3D scan objects, rooms, and can even be used for 3D body scanning. You can use a 3D scanner app to create 3D objects for augmented reality. It's also possible to create 3D models for 3D printing. Of course, 3D scanner apps for smartphones are less accurate than actual 3D scanners. However they are a great, affordable way to learn more about 3D scanning without investing in complex hardware. In this article, we provide a comprehensive list of the best 3D scanner apps for iPhone and Android smartphones. We also include the best 3D scanning apps for iPad.[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="3_4"][et_pb_text admin_label="Table" background_layout="light" text_orientation="left"] [table id=best-3D-scanning-apps responsive=scroll responsive_breakpoint=tablet /] [/et_pb_text][/et_pb_column][et_pb_column type="1_4"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2017/09/3D-scanner-app-qlone-logo-2.jpg" alt="3D scanning apps - Qlone" title_text="3D scanning apps - Qlone" show_in_lightbox="off" url_new_window="off" animation="off" sticky="off" url="https://www.aniwaa.com/product/3d-scanners/eyecue-qlone/" /][et_pb_text admin_label="Caption" background_layout="light" text_orientation="left"]Qlone is a smartphone 3D scanning app from EyeCue Technologies.
[/et_pb_text][et_pb_text admin_label="Responsive AdSense (square)" background_layout="light" text_orientation="left"][/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off" transparent_background="off" background_color="#f1f1f1" allow_player_pause="off" inner_shadow="off" parallax="off" parallax_method="off"][et_pb_fullwidth_header admin_label="H2: How do 3D scanning apps work?" title="How do 3D scanning apps work?" background_layout="light" text_orientation="left" /][/et_pb_section][et_pb_section fullwidth="off" specialty="off" transparent_background="off" background_color="#ffffff" allow_player_pause="off" inner_shadow="off" parallax="off" parallax_method="off"][et_pb_row][et_pb_column type="1_2"][et_pb_text admin_label="H3: Photogrammetry 3D scanning technology" background_layout="light" text_orientation="left"]Photogrammetry 3D scanning technology
By definition, photogrammetry is “the science of making measurements from photographs”. Put simply, you take photos of a 3D object, and then the software stitches the pictures together. With this technology, the final 3D scan features color and texture.3D scanning using a smartphone (iOS or Android)
You need to take several pictures of the object from different angles (usually 360° around the object) with your phone. 3D scanning apps provide you with tips and guidance to help you take the pictures properly. The app then processes these pictures and “stitches” them together to form a 3D model. The 3D model is then available for export or editing using additional 3D software. In some cases, users may also print their 3D models with a 3D printer.[/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_text admin_label="YouTube video" background_layout="light" text_orientation="left"][/et_pb_text][et_pb_text admin_label="Note" background_layout="light" text_orientation="left"]The above video demonstrates photogrammetry, although the photos are used by PC software and not an app. Note: more information about 3D scanning is available in our 3D scanning technologies article.[/et_pb_text][et_pb_text admin_label="Amazon store" background_layout="light" text_orientation="left"][/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="4_4"][et_pb_text admin_label="Responsive AdSense (automatic)" background_layout="light" text_orientation="left"][/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off" transparent_background="off" background_color="#f1f1f1" allow_player_pause="off" inner_shadow="off" parallax="off" parallax_method="off"][et_pb_fullwidth_header admin_label="H2: 3D scanner apps overview (iOS and Android)" title="3D scanner apps overview (iOS and Android)" background_layout="light" text_orientation="left" subhead="Below we provide more insights on each 3D app from the list." /][/et_pb_section][et_pb_section fullwidth="off" specialty="off" transparent_background="off" background_color="#ffffff" allow_player_pause="off" inner_shadow="off" parallax="off" parallax_method="off"][et_pb_row][et_pb_column type="2_3"][et_pb_text admin_label="3D scanning apps overview text" background_layout="light" text_orientation="left"]We divided the best 3D scanning apps into three categories:- 3D scanner apps that don’t require any hardware in addition to the smartphone
- 3D scanning apps that do require extra hardware
- and 3D scanner apps for iPad
Scann3D tutorial and interface. Credit: Scann3D
[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="2_3"][et_pb_text admin_label="H3: Free 3D scanner apps not requiring extra hardware" background_layout="light" text_orientation="left"]Free 3D scanner apps not requiring extra hardware
These 3D scanner apps are free and do not require any external hardware.[/et_pb_text][/et_pb_column][et_pb_column type="1_3"][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_4"][et_pb_image admin_label="Qlone logo" alt="3D scanning apps Qlone" title_text="3D scanning apps Qlone" show_in_lightbox="off" url="https://www.aniwaa.com/product/3d-scanners/eyecue-qlone/" url_new_window="on" animation="off" sticky="on" src="https://www.aniwaa.com/wp-content/uploads/2017/09/3D-scanner-app-qlone-logo-2.jpg" /][/et_pb_column][et_pb_column type="1_4"][et_pb_text admin_label="Bullet points" background_layout="light" text_orientation="left"]Qlone
- Operating system: iOS/Android
- Price: Free
- Extra cost: Sketchfab export $0.99/3D scan
- App Store rating: 4/5
- Google Play rating: 2.9/5
- Country: Israel
Scandy Pro
- Operating system: iOS
- Price: Free
- App Store rating: 4.2/5
- Country: United States
Scann3D
- Operating system: Android
- Price: Free
- Google Play rating: 2.9/5
- Country: Hungary
Sony 3D Creator
- Operating system: Android
- Price: Free
- Google Play rating: 4.2/5
- Country: Sweden
Capture: 3D Scan Anything
- Operating system: iOS
- Price: Free
- App store rating: 4.2/5
- Country: United States
Free 3D scanning app requiring extra hardware
Although this 3D scanner app is free, you need to purchase extra hardware. The most popular are the Structure Sensor by Occipital and the 3D Systems iSense.[/et_pb_text][/et_pb_column][et_pb_column type="1_3"][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_4"][et_pb_image admin_label="3DSizeME logo" alt="smartphone 3D scanning 3DSizeME" title_text="smartphone 3D scanning 3DSizeME" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" src="https://www.aniwaa.com/wp-content/uploads/2018/09/3D-scanner-app-3DSizeME-logo.jpg" /][/et_pb_column][et_pb_column type="1_4"][et_pb_text admin_label="Bullet points" background_layout="light" text_orientation="left"]TechMed3D 3DSizeME
- Operating system: iOS
- App Store rating: 4.3/5
- Price: Free
- Hardware: Structure Sensor ($379, available on Amazon)
- Country: Canada
iPad 3D scanner apps
[/et_pb_text][/et_pb_column][et_pb_column type="1_3"][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_4"][et_pb_image admin_label="Canvas logo" alt="3D scanner app Canvas" title_text="3D scanner app Canvas" show_in_lightbox="off" url="https://www.aniwaa.com/product/3d-scanners/occipital-canvas/" url_new_window="on" animation="off" sticky="on" src="https://www.aniwaa.com/wp-content/uploads/2017/09/3D-scanner-apps-canvas-logo-1.jpg" /][/et_pb_column][et_pb_column type="1_4"][et_pb_text admin_label="Bullet points" background_layout="light" text_orientation="left"]Canvas
- Operating system: iOS (iPads only)
- Price: Free
- App Store rating: 4/5
- Hardware: Occipital Structure Sensor ($379, available on Amazon)
- Country: United States
itSeez3D
- Operating system: iOS (iPads only)
- Price: Free
- App Store rating: 4.2/5
- Country: Russia
3D scanning with a smartphone: special mentions
3DF Zephyr
3DF Zephyr, a 3D scanning software for PC, enables you to create 3D scans from your smartphone pics. You can then export the 3D scans in common 3D file formats.
Bevel 3D
Bevel launched on Kickstarter on July 28th, 2015 and was successfully funded only two weeks later. Bevel, a small dongle-like device, officially started shipping in April 2017 after almost 2 years of development. The app hasn't received any updates since late 2017 but is still available.Trnio
Trnio, developed in 2013, is one of the first 3D scanning apps to be released. This app used to be free but is now priced at $2.99. It is only available for iOS.iPhone X 3D scanning apps
The iPhone X's TrueDepth sensor has made it possible to develop a variety of selfie 3D scanning apps. Some interesting iPhone X 3D scanning apps include:- Bellus3D: the app itself is free, but you need to pay in order to export your scans. For three days of unlimited 3D scan exports, the price is $7.99. For more accurate 3D scans, users may opt for the Bellus3D Face Camera add-on (see on Amazon).
- Heges: like Bellus3D, the app is free to download. However, the in-app option to export 3D scans costs $2.99.
- 3D Scanner Pro: this iPhone X scanning app by Laan Labs targets professional use cases (real estate, architecture, etc.).
What is 3D photo or spatial photography?
Spatial photography is a hybrid between capturing a video and taking photographs. 3D photos combine the perspective of a panoramic photo and the 3D features of a video.[/et_pb_text][/et_pb_column][et_pb_column type="1_3"][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_4"][et_pb_image admin_label="Fyuse" src="https://www.aniwaa.com/wp-content/uploads/2017/09/3D-scanner-apps-fyuse-logo.jpg" alt="Fyuse 3D photo app" title_text="Fyuse 3D photo app" show_in_lightbox="off" url_new_window="off" animation="off" sticky="on" /][/et_pb_column][et_pb_column type="1_4"][et_pb_text admin_label="Fyuse points" background_layout="light" text_orientation="left"]Fyuse 3D photo app
- Operating system: iOS/Android
- Price: Free
- App Store rating: 3.8/5
- Google Play rating: 4/5
- Country: United States
Life Lapse 3D photo app
- Operating system: iOS/Android
- Price: Free
- App Store rating: 4.7/5
- Play Store rating: 4.5/5
- Country: Canada
Differences between 3D photo and 3D scanning apps
3D photos are similar to 3D scans, at least in the way they are seen, but they are still both different:- 3D photos can only be stored and accessed through a specific viewing app
- Spatial photography photos can’t be 3D printed
- 3D scans can be edited
- You can't export 3D photos to external software such as Sketchfab
123D Catch
123D Catch, which was once the most famous 3D scanning mobile app, is discontinued since April 2017. 123D Catch was compatible with iOS, Android, and Windows smartphones.Trimensional
Although Trimensional is still available on the App Store, it hasn’t been updated since late 2014.Seene
Seene is a 3D scanning app for smartphones that has been acquired by Snapchat.Pixelio
PIXELIO is a portable turntable that uses 123D catch, a 3D scanning app that was discontinued in April 2017. The creators of PIXELIO have yet to deliver on their promise.3Dignite Scanner
This app was supposed to let you export 3D scans to the VR world (and to Minecraft). However, the company seems to be inactive since 2017.EORA 3D
EORA 3D is an Australian Kickstarter project that launched in October 2015. Their website has disappeared and they are no longer providing support for their product.[/et_pb_text][et_pb_text admin_label="H3: Conclusion" background_layout="light" text_orientation="left"]Conclusion
In this article, we provide a comprehensive overview of 3D scanning apps for smartphones. The market is still too small to create a ranking or leave out certain 3D scanning apps. These apps and their accessories are able to create decent 3D models. However, they don't offer the high quality that actual 3D scanners do. 3D scanning apps are a great solution for beginners, hobbyists and even professionals that don’t require much precision.[/et_pb_text][et_pb_text admin_label="Responsive AdSense (square)" background_layout="light" text_orientation="left"][/et_pb_text][/et_pb_column][et_pb_column type="1_3"][et_pb_sidebar admin_label="Sidebar" orientation="left" area="sidebar-1" background_layout="light" /][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off" transparent_background="off" background_color="#f1f1f1" allow_player_pause="off" inner_shadow="off" parallax="off" parallax_method="off"][et_pb_fullwidth_header admin_label="H2: FAQ" title="FAQ" background_layout="light" text_orientation="left" /][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="3_4"][et_pb_text admin_label="Text" background_layout="light" text_orientation="left"]Can 3D printers scan objects?
3D printers can scan objects if they are a 2-in-1 3D printer scanner combo. Very few of these machines exist.How do 3D scanners work?
3D scanners capture 3D data of a given space or object. To do so, the scanner can use a laser, structured light, a photo camera, or a touch probe. See our 3D scanning technology guide for more information.What is the best 3D laser scanner?
The best 3D laser scanner is the one that best fits your needs. Use our 3D scanner comparison engine and filter through your criteria.Is there an app to create 3D models?
There are various apps available to create 3D models, as seen in this article. You can create a model by 3D scanning an object with your phone. You can also find thousands of pre-made models on STL file websites.[/et_pb_text][/et_pb_column][et_pb_column type="1_4"][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="4_4"][et_pb_text admin_label="More resources" background_layout="light" text_orientation="left"]More resources
- Over 200 3D scanners are listed in our 3D scanning comparison engine.
- Check out the top all-in-one VR headsets available this year.
- Use your 3D scans in augmented reality!
- Or 3D print your scans with one of these cheap 3D printers (under $300)!
Pre
Array
(
[0] => 31510
[1] => 37492
[2] => 31775
[3] => 34928
[4] => 31510
[5] => 34928
[6] => 31775
[7] => 37492
)
3D scanners - Product roundups, rankings and lists of the best products
In this section, we list all our rankings and round-ups of the best 3D scanners. We aim to offer reliable product selections highlighting the top 3D scanners for various categories and applications.
We read and summarize user reviews and community feedback from active 3D scanning sites and forums (Reddit and more) and discussion groups on Facebook. We also use our market expertise, in-depth research and hands-on product reviews to produce unbiased and up to date product lists.
Whenever possible we use our rating system, the metascore. For professional or industrial 3D scanners that are difficult to rate fairly, we provide an overview of the top products on the market, ranked in no particular order.
What’s the best 3D scanner? Explore our articles to find out!
We read and summarize user reviews and community feedback from active 3D scanning sites and forums (Reddit and more) and discussion groups on Facebook. We also use our market expertise, in-depth research and hands-on product reviews to produce unbiased and up to date product lists.
Whenever possible we use our rating system, the metascore. For professional or industrial 3D scanners that are difficult to rate fairly, we provide an overview of the top products on the market, ranked in no particular order.
What’s the best 3D scanner? Explore our articles to find out!
The 10 best 3D body scanners in 2020
Last update: March 25, 2020
By Martin Lansard
A full body 3D scanner can scan your entire body in 3D, which can be useful for various applications. See our selection of the best 3D body scanners.
Read more
The 10 best 3D scanners in 2020
Last update: March 5, 2020
By Martin Lansard
What is the best 3D scanner? Here is our top 10 best 3D scanners accompanied by a useful buying guide and technology overview.
Read more
Handheld 3D scanners 2020: top 10 selection and buying guide
Last update: March 5, 2020
By Ludivine Cherdo
What are the best handheld 3D scanners? Our selection covers various types of portable 3D scanners and is based on reliable reviews and feedback.
Read more
The 8 best 3D scanning apps for smartphones in 2020 (free!)
Last update: February 6, 2020
By Ludivine Cherdo
Discover the8 best 3D scanning apps to turn your smartphone or iPad into a 3D scanner. Most of these are free 3D scanner apps!
Read more
