PEEK-300
By
CreatBot
This manufacturer is a Verified partner from our network.
Technology | Fused Filament Fabrication (FFF) |
Materials | Thermoplastics |
Feedstock format | Filament |
Build envelope | 300 × 300 × 400 mm |
Country | China |
From
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...).
$ 13,999
CreatBot
This manufacturer is a Verified partner from our network.
Creatbot, established in 2011, is a leading 3D printer manufacturer. Holding over 30 patents and numerous certifications. The company has sold over 10,000 units to companies including global leaders such as Harvard, Volkswagen and the NASA and has been awarded major prizes such as the German Red Dot Design Award.
Description

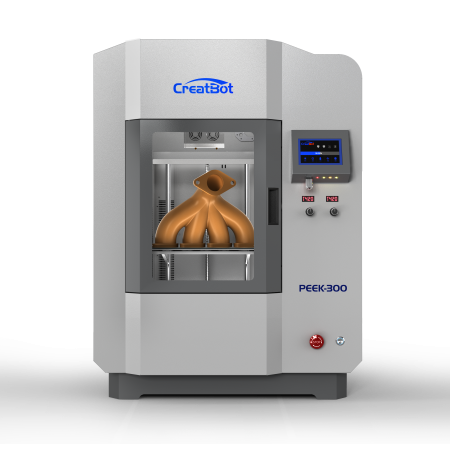

CreatBot PEEK-300 overview
The PEEK-300 is a 3D printer produced by CreatBot, a manufacturer based in China.
It uses the Fused Filament Fabrication technology to produce thermoplastic parts using filament feedstock.
It offers a build volume of 300 × 300 × 400 mm.
CreatBot PEEK-300 main features
- Ultra-high temp. nozzle/bed
- Advanced Thermal System
- Direct Annealing System
- Water cooling/ Heat isolation system
- Medical/Industry application
CreatBot PEEK-300 price
This 3D printer is available from $ 13,999.
Highlights
Direct Annealing System
480°C Hotbed
120°C Hot Chamber
Smart Auto-Rising Dual Extruders at 480°C
Technical specifications
General |
|
---|---|
Model | PEEK-300 |
Brand | CreatBot |
Price Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...). | from $ 13,999 |
Country | China |
Status | Available |
Release date | 2020 |
Topics | High-performance |
Certifications | CE, FCC, ROHS, WEEE |
Performance |
|
---|---|
Build envelope | 300 × 300 × 400 mm |
Build volume | 36 L |
Max. resolution (XY) | 0.01 mm |
Max. resolution (Z) | 0.04 mm |
Max. build rate | 300 cm3/h |
Max. chamber temp. | 120 °C |
Full color | - |
Technology |
|
---|---|
Process | Material Extrusion (MEX) |
Technology | Thermally-bonded > Fused Filament Fabrication (FFF) |
Max. print speed | 150 mm /s |
Max. deposition rate | 0.5 kg /h |
Filament diameter(s) | 1.75 mm |
Max. build plate temp. | 200 °C |
Number of extruders | 2 |
Max. extruder temp. | 480 °C |
Independent Dual Extruder (IDEX) | - |
Nozzle diameter(s) | 0.4 mm |
Materials |
|
---|---|
Feedstock format | Filament |
Materials | Polymers |
Thermoplastics | |
PLA | |
Polyamides | |
Polyaryletherketone: PEEK, PEEK-CF, PEKK, PEKK-CF, PAEK (others) | |
Polycarbonates | |
Polyesters | |
Polyimides | |
Polysulfones | |
Styrenes: ABS, ASA |
Applications |
|
---|---|
Industries | - |
Hardware |
|
---|---|
Dimensions | 650 × 600 × 750 mm |
Weight | 120 kg |
Axes | 6 |
Hybrid manufacturing | - |
Robotic arm | - |
