Makyn NX Nyomo
| Basic specs | Price: $ 10,000 - $ 50,00010 000 € - 50 000 €7,647 £ - 38,235 £1,130,160 ¥ - 5,650,800 ¥ The prices we display are estimates and can differ from the actual market prices. Prices vary by resellers and countries. |
|---|---|
| Metascore We index ratings and reviews from trusted sources to calculate a reliable aggregate rating we call "metascore". | - |
| Model | Makyn NX |
| Manufacturer | Nyomo |
| Category | Professional |
| Technology | Resin (SLA, DLP...) |
| Material | Liquid resin |
| Max. build size | 67 × 38 × 100 mm2.64 × 1.5 × 3.94 in |
| Release date | — |
| Country | — |
Nyomo Makyn NX review

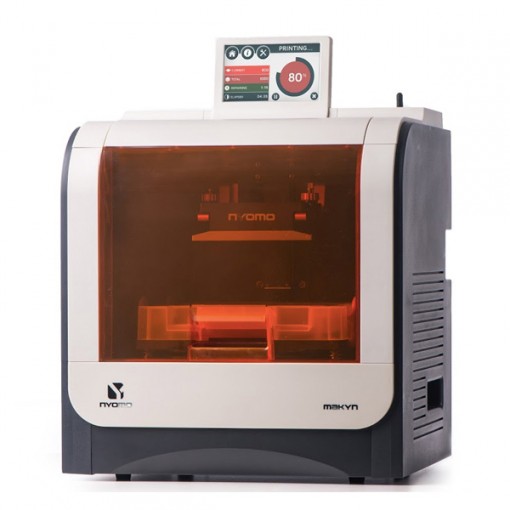

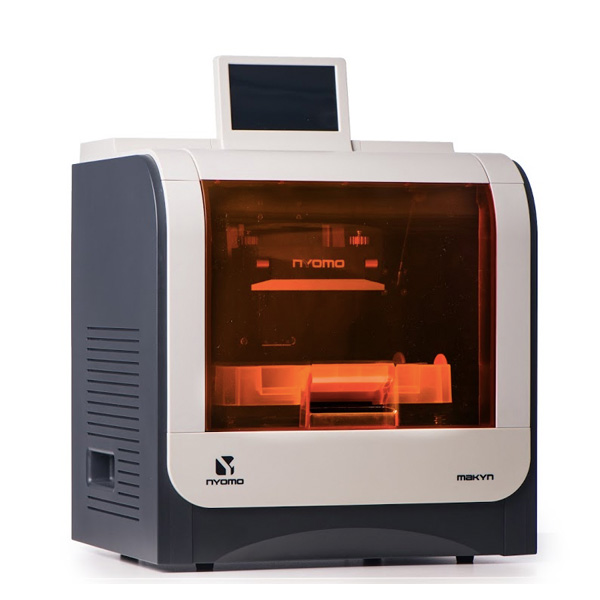

The Nyomo Makyn NX is a desktop 3D printer made by Nyomo, a manufacturer based in Hong-Kong.
The Makyn is available in three different versions, the Makyn 6 (very high XY resolution, very small build volume), the Makyn 9 (high XY resolution, small build volume) and the Makyn NX (ultra high XY resolution, ultra small build volume).
The Nyomo Makyn NX is a compact desktop resin 3D printer. The Nyomo Makyn NX uses a UV LED Light source (wavelengths between 385 nm and 405 nm) to selectively photocure liquid resin, in a 3D printing process similar to Stereolithography (SLA).
The Nyomo Makyn NX offers a color touchscreen and a closed frame. It is compatible with over 10 different resins, including medical certification grade materials. The 3D printer is controlled by a Nyomo proprietary software called Unyk, available in two different versions, Unyk Professional and Unyk Express.
The Unyk software allows its users to 3D print parts that are both reliable and of high quality. For ease of use, several formats are available as output, including but not limited to STL, SLC, PLY, OBJ, PNG, and BMP.
Due to its small 3D print volume and very high Z resolution (up to 10 microns) the Nyomo Makyn NX is a very good fit for dental, hearing aids and jewelry applications.
Makyn NX Nyomo
General |
|
|---|---|
| Model | Makyn NX |
| Manufacturer | Nyomo |
| Metascore We index ratings and reviews from trusted sources to calculate a reliable aggregate rating we call "metascore". | — |
| Price The prices we display are estimates and can differ from the actual market prices. Prices vary by resellers and countries. | $ 10,000 - $ 50,00010 000 € - 50 000 €7,647 £ - 38,235 £1,130,160 ¥ - 5,650,800 ¥ |
| Release date | — |
| Country | — |
| Status | Available |
| Category | Professional |
| Technology | Resin (SLA, DLP...) |
| Material | Liquid resin |
| Filament diameter | — |
| OS compatibility | Microsoft Windows |
| Generic material | — |
Performance |
|
|---|---|
| XY accuracy | 0.035 mm0.001 in |
| Max. build size | 67 × 38 × 100 mm2.64 × 1.5 × 3.94 in |
| Max. build volume | 0.25 L |
| Max. print speed | — |
| Min. layer thickness The thinnest layer height of filament material the 3D printer can print. The thinner the layer height, the more detailed the final result. | 0.01 mm0 in |
Hardware |
|
|---|---|
| Dimensions | 360 × 333 × 465 mm14.17 × 13.11 × 18.31 in |
| Weight | 13 kg28.66 lb |
| Nozzle diameter(s) | — |
| Power input | 110-220 V 50-60 Hz AC |
Features |
|
|---|---|
| Heated print bed | — |
| Heated build chamber | — |
| Automatic calibration | — |
| Closed frame | Yes |
| Dual extruder | — |
| Independent Dual Extruder | — |
| Full color | — |
| LCD screen | — |
| Touchscreen | Yes |
| On-board camera | — |
| Mobile app | — |
| 3D scanners | — |
| CNC mill | — |
| Electronics 3D printing | — |
| Laser engraving | — |
| Conveyor belt | — |
| Air filter | — |
| Pellet extruder | — |
Connectivity |
|
|---|---|
| USB | Yes |
| Wifi | Yes |
| Bluetooth | — |
| SD card | — |
| Ethernet | Yes |
