Eva Lite Artec 3D
| Basic specs | Price: $ 9,8006 700 €7,494 £1,107,557 ¥ The prices we display are estimates and can differ from the actual market prices. Prices vary by resellers and countries. |
|---|---|
| Metascore We index ratings and reviews from trusted sources to calculate a reliable aggregate rating we call "metascore". | — |
| Model | Eva Lite |
| Manufacturer | Artec 3D |
| Category | Handheld |
| Technology | Structured light |
| Output formats | AOP, ASC, E57, OBJ, PLY, PTX, STL, WRL, XYZRGB, BTX |
| Max. resolution The minimal distance between two scan points. The lower the number, the higher the resolution and the more detailed the 3D scan. | 0.5 mm0.02 in |
| Release date | 2013 |
| Country | Luxembourg |
Artec 3D Eva Lite review

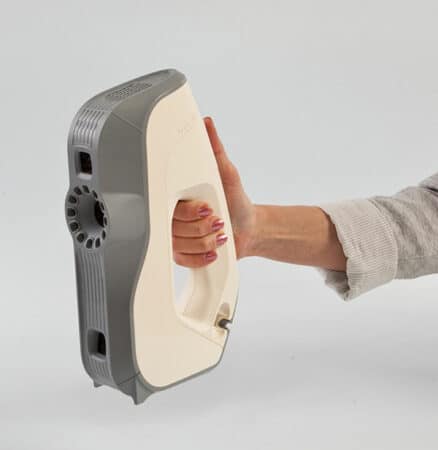

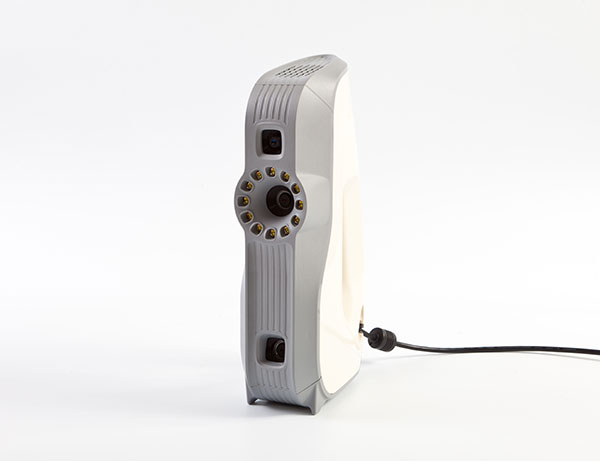

The Artec Eva Lite is a professional portable 3D scanner made by Artec. It uses structured light technology to 3D scan a wide variety of subjects: objects, mechanical parts, people, vehicles and environments. The Eva Lite is a simplified version of the Eva, without the ability to capture the textures (colors). It is possible to upgrade to the standard version for $5,600.
The Eva Lite has a very interesting price-to-performance ratio and can be used for various uses cases such as reverse engineering, body scanning, museum conservation, or architecture.
This 3D scanner works with the Artec Studio software suite. Artec Studio is a powerful tool for an optimized 3D scanning process. This software is capable of aligning, stitching, and repairing 3D scans.
Artec Eva Lite price
Artec 3D’s Eva Lite 3D scanner is available at the price of $9,800. Please contact us for a quote.
Discover more 3D scanners with our 3D scanner comparison engine.
Eva Lite Artec 3D
General |
|
|---|---|
| Model | Eva Lite |
| Manufacturer | Artec 3D |
| Metascore We index ratings and reviews from trusted sources to calculate a reliable aggregate rating we call "metascore". | — |
| Price The prices we display are estimates and can differ from the actual market prices. Prices vary by resellers and countries. | $ 9,8006 700 €7,494 £1,107,557 ¥ |
| Release date | 2013 |
| Country | Luxembourg |
| Status | Available |
| Category | Handheld |
| Technology | Structured light |
| Output formats | AOP, ASC, E57, OBJ, PLY, PTX, STL, WRL, XYZRGB, BTX |
| OS compatibility | Microsoft Windows |
Performance |
|
|---|---|
| Max. resolution The minimal distance between two scan points. The lower the number, the higher the resolution and the more detailed the 3D scan. | 0.5 mm0.02 in |
| Max. accuracy | 0 mm0 in |
| Acquisition speed | 2000000 points/s |
| Camera resolution | — |
| Working range | 0.4 – 1 m |
| Scanning area (near) | 214 × 148 mm8.43 × 5.83 in |
| Scanning area (far) | 536 × 371 mm21.1 × 14.61 in |
Hardware |
|
|---|---|
| Dimensions | 261.5 × 158.2 × 63.7 mm10.3 × 6.23 × 2.51 in |
| Weight | 0.85 kg1.87 lb |
| Power input | 12V 48W |
Features |
|
|---|---|
| Texture/Colors | — |
| Wireless | — |
| Tripod | — |
| Rotating table | — |
| Robotic arm | — |
| 3D printers | — |
| Built-in screen | — |
Connectivity |
|
|---|---|
| USB | Yes |
| Wifi | — |
| Bluetooth | — |
| SD card | — |
| Ethernet | — |
