3dMDface System 3dMD
Basic specs | Price: $ 10,000 - $ 20,000 The prices we display are estimates and can differ from the actual market prices. Prices vary by resellers and countries. |
---|---|
Model |
3dMDface System
|
Brand | 3dMD (see all products) |
Category | Stationary > Industrial |
Topic | Metrology 3D scanners (see all articles) |
Technology | Photogrammetry |
Max. resolution The minimal distance between two scan points. The lower the number, the higher the resolution and the more detailed the 3D scan. | — |
Release date | — |
Country | — |
3dMD 3dMDface System review
The 3dMD 3dMDface System is 3D scanner system made by 3dMD, a manufacturer operating from the United-States and the United-Kingdom.
3dMD developed its own 3D capture technology to incorporate many different camera viewpoints and achieve fast capture speeds. 3dMD’s approach results in a high-precision 3D surface image of humans’ face, head, torso, limb, thorax or even full body. The main 3dMD clients are hospitals, clinics and research institutions.
For all their 3D scanners, 3dMF offers on-site installation, training options and ongoing customer support.

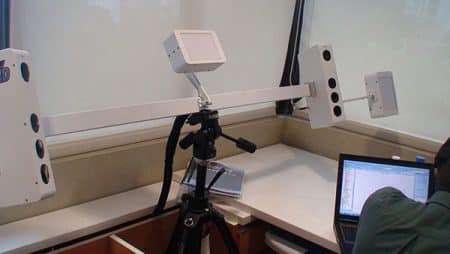

This 3D scanner uses two modular units of six machine vision cameras and an industrial-grade flash system synchronized in a single capture. The 3dMD 3dMDface System system automatically generates a continuous 3D polygon surface mesh with a single x,y,z coordinate system from all synchronized stereo pairs. The 3dMDvultus Software automatically maps all of the color information to the mesh. This process does not requires any stitching of the images.
3dMDface System 3dMD
General |
|
---|---|
Model | 3dMDface System
|
Brand | 3dMD |
Rating | — |
Price The prices we display are estimates and can differ from the actual market prices. Prices vary by resellers and countries. | $ 10,000 - $ 20,000 |
Release date | — |
Country | — |
Status | Available |
Category | Stationary > Industrial |
Technology | Photogrammetry |
Output formats | OBJ, PLY, STL |
OS compatibility | Microsoft Windows |
Performance |
|
---|---|
Max. resolution The minimal distance between two scan points. The lower the number, the higher the resolution and the more detailed the 3D scan. | — |
Max. accuracy | 0.2 mm |
Acquisition speed | — |
Camera resolution | — |
Working range | — |
Scanning area (near) | — |
Scanning area (far) | — |
Hardware |
|
---|---|
Dimensions | — |
Weight | — |
Power input | — |
Features |
|
---|---|
Texture/Colors | Yes |
Wireless | — |
Robotic arm | — |
Enclosed | — |
Connectivity |
|
---|---|
USB | — |
Wifi | — |
Bluetooth | — |
SD card | — |
Ethernet | — |
