Capture
Category | Stationary > Desktop |
Topic | |
Technology | Structured light |
Max. resolution | 0.11 mm |
Release date | - |
Country | - |

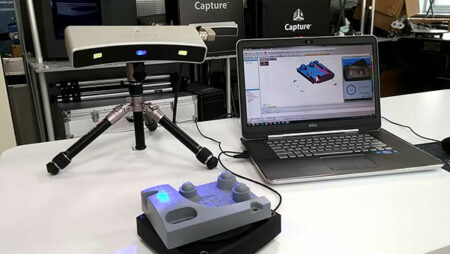

Geomagic Capture overview
The Geomagic Capture is an integrated desktop scanner for professional scan-based design and quality inspection. It is possible to chose from six configuration bundles, each coming with a Geomagic scanner and a specific software suite. This 3D scanner is based on a blue LED structured light technology.
The Geomagic Capture is pre-calibrated at the factory and offers accuracy of 60 microns at the near field (about 0.3m from the scanner) to 118 microns at the far end of the field (about 0.5m from the scanner).
The strong points of this 3D scanner are its ease of use and integration within the 3D printing process.
Questions? Need a quote?
General |
|
---|---|
Model | Capture |
Brand | Geomagic |
Price
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...).
|
$ 20,000 |
Release date | - |
Country | - |
Status | Available |
Category | Stationary > Desktop |
Topic | |
Technology | Structured light |
OS compatibility | Microsoft Windows |
Performance |
|
---|---|
Max. resolution | 0.11 mm |
Max. accuracy | 0.06 mm |
Volumetric accuracy | - |
Acquisition speed | 3,280,000 points/s |
Camera resolution | - |
Working range | 0.3 - 0.48 m |
Scanning area (near) | 124 × 120 mm |
Scanning area (far) | 190 × 175 mm |
Hardware |
|
---|---|
Dimensions | 276 × 74 × 49 mm |
Weight | 1.35 kg |
Features |
|
---|---|
Texture/Colors | - |
Wireless | - |
Robotic arm | - |
Enclosed | - |
Connectivity |
|
---|---|
USB | - |
Wifi | - |
Bluetooth | - |
SD card | - |
Ethernet |
