3D Scanner ULTRA HD NextEngine
| Buy the NextEngine 3D Scanner ULTRA HD | ||
|---|---|---|
| Seller | Shipping zones | |
| Aniwaa | France | Quote |
Featured in "Best of"
| Basic specs | Price: $ 2,9952 561 €2,290 £338,483 ¥ |
|---|---|
| Metascore We index ratings and reviews from trusted sources to calculate a reliable aggregate rating we call "metascore". | — |
| Manufacturer | NextEngine |
| Category | Desktop |
| Technology | Laser triangulation |
| Output formats | OBJ, PLY, STL, VRML, XYZ |
| Max. resolution The minimal distance between two scan points. The lower the number, the higher the resolution and the more detailed the 3D scan. | 0.1 mm0.004 in |
| Release date | 2016 |
| Country | United States |
| See offers Full specs |

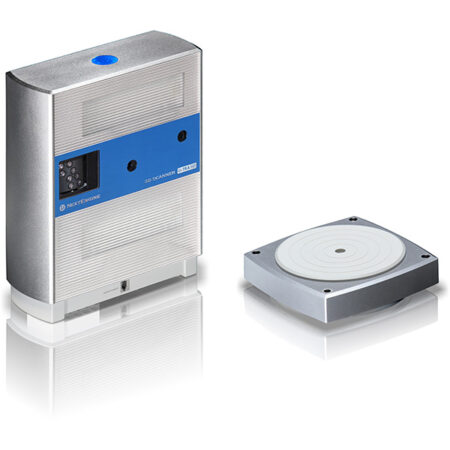

NextEngine 3D Scanner ULTRA HD review
The Next Engine 3D Scanner ULTRA HD is a professional desktop 3D scanner made by Next Engine, a manufacturer based in the USA. This version was introduced in late 2015 and is the latest version of this product.
NextEngine 3D Scanner ULTRA HD features
The Next Engine 3D Scanner ULTRA HD uses a laser triangulation technology. This 3D scanner can be used with a rotating table or without it. An array of laser beams is projected on the object at the center of the rotating plate. Degree after degree the plate turns so the object can be 3D scanned from all sides. 2 minutes are required to 3D scan a single facet, a full object can take up to 10 minutes for a complete 3D scan.
The NextEngine 3D scanner ULTRA HD is able to:
- 3D scan large objects: since this 3D scanner can be used without a rotating table, it is possible to 3D scan large objects. Multiple views can be patched together to get objects bigger than the field size. Twin ranges cover Macro and Wide fields.
- capture colors.
Like most of 3D scanners Next Engine 3D Scanner ULTRA HD is not capable of 3D scanning dark, transparent or reflective surfaces and objects without preparation.
NextEngine 3D Scanner ULTRA HD price
This 3D scanner is available on quote. Contact us by clicking on the quote button in the sellers section.
General |
|
|---|---|
| Model | 3D Scanner ULTRA HD |
| Manufacturer | NextEngine |
| Metascore We index ratings and reviews from trusted sources to calculate a reliable aggregate rating we call "metascore". | — |
| Price | $ 2,9952 561 €2,290 £338,483 ¥ |
| Release date | 2016 |
| Country | United States |
| Status | Available |
| Category | Desktop |
| Technology | Laser triangulation |
| Output formats | OBJ, PLY, STL, VRML, XYZ |
| OS compatibility | Microsoft Windows |
Performance |
|
|---|---|
| Max. resolution The minimal distance between two scan points. The lower the number, the higher the resolution and the more detailed the 3D scan. | 0.1 mm0.004 in |
| Max. accuracy | 0.13 mm0.005 in |
| Acquisition speed | 50000 points/s |
| Camera resolution | 5 MP MP |
| Working range | 0.13 - 0.56 m |
| Scanning area (near) | 129.54 × 96.52 mm5.1 × 3.8 in |
| Scanning area (far) | 342.9 × 256.54 mm13.5 × 10.1 in |
Hardware |
|
|---|---|
| Dimensions | 223.52 × 91.44 × 276.86 mm8.8 × 3.6 × 10.9 in |
| Weight | 3.18 kg7.01 lb |
| Power input | 110-240V 50-60Hz |
Features |
|
|---|---|
| Texture/Colors | Yes |
| Wireless | No |
| Tripod | No |
| Rotating table | No |
| Robotic arm | No |
| 3D printers | No |
Connectivity |
|
|---|---|
| USB | Yes |
| Wifi | No |
| Bluetooth | No |
| SD card | No |
| Ethernet | No |
