Phenix PXM
Technology | Material jetting (thermally-bonded) |
Materials | Metal, Ceramic |
Feedstock format | Wire, Liquid |
Build envelope | 140 × 140 × 100 mm |
Country | - |
Description

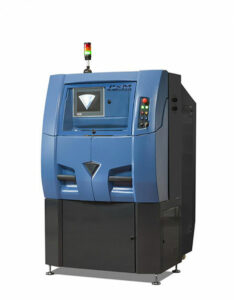

The 3D Systems Phenix PXM is a professional 3D printer from the US based manufacturer 3D Systems. The 3D Systems ProX 3D printers are rebranded Phenix Systems 3D printers, a French manufacturer purchased by 3D Systems.
The Phenix line of professional 3D printers (Phenix PXS, Phenix PXM, Phenix PXL) use the Direct Metal Printing (DMP) technology. This 3D printing technique also called laser sintering uses a laser as a power source to sinter powdered material. The compatible materials are metals (stainless steels, tool steels, non-ferrous alloys and super alloys) and ceramics (such as Cermet and others). More than 15 materials are available.
Those professional 3D printers are recommended for additive manufacturing of highly corrosion-resistant industrial parts that require high temperature resistance. The DMP technology can be used for the production of the following products: custom dental prostheses, orthopedic implants, tire molds, watches and aircraft parts, conformal tooling, tooling inserts and blow molds.
The Phenix PXM features a build volume of 140 x 140 x 100 mm along with semi-auto material loading.
The Phenix PXM is delivered with 3D Systems’ software tools, specifically designed to ensure efficient metal or ceramic manufacturing processes.
Upcoming trade shows
Technical specifications
General |
|
---|---|
Model | Phenix PXM |
Brand | 3D Systems |
Price Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...). | upon request |
Country | - |
Status | Discontinued |
Release date | - |
Topics | Ceramic, Metal |
Certifications | - |
Performance |
|
---|---|
Build envelope | 140 × 140 × 100 mm |
Build volume | 1.96 L |
Max. resolution (XY) | 0.02 mm |
Max. resolution (Z) | 0.01 mm |
Max. build rate | - |
Max. chamber temp. | - |
Full color | - |
Technology |
|
---|---|
Process | Material Jetting (MJT) |
Technology | Thermally-bonded > Material jetting (thermally-bonded) |
Resolution (dpi) | - |
Materials |
|
---|---|
Feedstock format | Wire, Liquid |
Materials | Metal |
Steel | |
Stainless steel | |
Ceramic | |
Ceramics (others) |
Applications |
|
---|---|
Industries | - |
Hardware |
|
---|---|
Dimensions | 1200 × 1500 × 1950 mm |
Weight | 1500 kg |
Axes | - |
Hybrid manufacturing | - |
Robotic arm | - |
