Figure 4 Production
Technology | Digital Light Processing (DLP) |
Materials | Thermosets |
Feedstock format | Resin |
Build envelope | 124.8 × 70.2 × 346 mm |
Country | United States |
Description

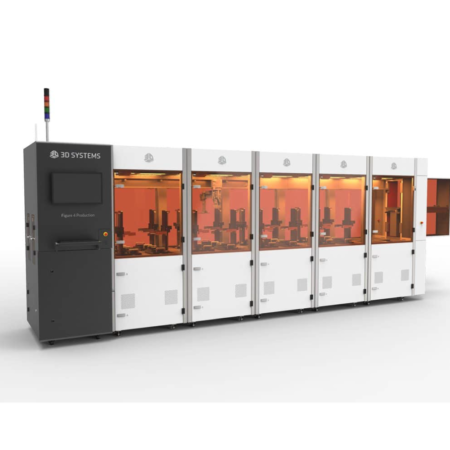

The Figure 4 Production is a customizable, fully-integrated factory solution for direct digital production produced by 3D Systems. The 3D Systems Figure 4 Production uses stereolithography-based 3D printing technology. This 3D printer offers a build volume of 124.8 x 70.2 x 346 mm.
Guides and whitepapers
How to Evaluate Additive Manufacturing Materials for Production
On-Demand Webinar – Evaluating Materials for AM Production
Figure 4® 3D Printer adds Precision and Productivity for Swedish Design Agency, Splitvision
3D Systems Figure 4 Production price
Please contact us to obtain a quote.
Discover and compare more 3D printers with our 3D printer comparison engine.
Technical specifications
General |
|
---|---|
Model | Figure 4 Production |
Manufacturer | 3D Systems |
Price Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...). | upon request |
Release date | - |
Country | United States |
Status | Available |
Topics | Resin |
Technology |
|
---|---|
Technology | Vat photopolymerization (VPP) > LED light > Digital Light Processing (DLP) |
Materials |
|
---|---|
Materials | Polymers |
Thermosets | |
Photopolymers | |
Feedstock format | Resin |
Performance |
|
---|---|
Build envelope | 124.8 × 70.2 × 346 mm |
Build volume | 3 L |
Max. temperatures | |
Max. extruder temp. | - |
Max. chamber temp. | - |
Max. plate temp. | - |
Min. layer thickness | - |
XY accuracy | 0.065 mm |
Max. print speed | - |
Hardware |
|
---|---|
Dimensions | 1168 × 1219 × 2337 mm |
Weight | 363 kg |
Nozzle diameter(s) | - |
Filament diameter | - |
Features |
|
---|---|
Heated build chamber | - |
Extruder | |
Dual extruder | - |
Independent Dual Extruder (IDEX) | - |
Multiple extruders (3+) | - |
Pellet extruder | - |
Full color | - |
Conveyor belt | - |
5-axis | - |
Hybrid manufacturing | - |
Robotic arm | - |
