HBD 1000Pro
By
HBD (Shanghai Hanbang United 3D Tech)
This manufacturer is a Verified partner from our network.
Technology | Selective Laser Melting (SLM) |
Materials | Aluminum, Cobalt chrome, Nickel, Steel, Titanium, Tungsten |
Feedstock format | Powder |
Build envelope | 660 × 660 × 1250 mm |
Country | China |
Price
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...).
upon request
HBD (Shanghai Hanbang United 3D Tech)
This manufacturer is a Verified partner from our network.
HBD is a leading manufacturer of LPBF Metal Additive Manufacturing systems, customising AM solutions for customers across multiple industries. We have over 600 metal 3D printers deployed in 25 countries serving industries such as aerospace, dental, orthopaedics, mould and die, automotive, oil and gas and education.
Description

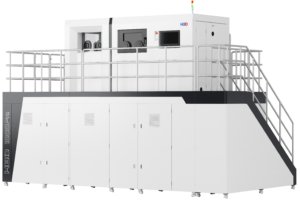

HBD 1000Pro overview
The HBD 1000Pro is designed to be a highly efficient and advanced solution in the manufacturing sector. This equipment integrates various specialized tools to facilitate a streamlined and effective production process.
The HBD 1000Pro is an ideal choice for businesses seeking to enhance their production capabilities with technology that is both advanced and user-friendly.
HBD 1000Pro main features
- Real-Time Powder Monitoring: Maintains consistent material quality during production by continuously monitoring the powder used.
- 8-Laser Seam Integration: Enhances precision and increases production speed by using eight lasers simultaneously.
- Large Build Volume: Allows for the creation of larger or more complex items, supporting versatile manufacturing needs.
- Innovative Blade Clamp Design: Improves the stability of the build process, leading to higher quality outcomes.
- Optimized Airflow and Permanent Filtration System: Provides a safer working environment and improves user experience.
- Adjustable Powder Recovery: Offers the ability to customize material handling, adding flexibility to the production process.
- Mobile Cleaning System: Simplifies the maintenance of the machine, making it more convenient to use.
- Safety-Interlocked Retrieval Compartment: Ensures the safety of the operator by preventing access to the build area during operation.
HBD 1000Pro pricing
Please contact us to get a quote.
Technical specifications
General |
|
---|---|
Model | HBD 1000Pro |
Brand | HBD (Shanghai Hanbang United 3D Tech) |
Price Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...). | upon request |
Country | China |
Status | Available |
Release date | - |
Topics | Metal |
Certifications | CE |
Performance |
|
---|---|
Build envelope | 660 × 660 × 1250 mm |
Build volume | 544.5 L |
Max. resolution (XY) | - |
Max. resolution (Z) | - |
Max. build rate | - |
Max. chamber temp. | - |
Full color |
Technology |
|
---|---|
Process | Powder Bed Fusion (PBF) |
Technology | Laser beam > Selective Laser Melting (SLM) |
Max. number of lasers | 8 |
Laser type(s) | Fiber |
Max. laser power | 500 W |
Min. laser spot size | - |
Gas | Argon |
Materials |
|
---|---|
Feedstock format | Powder |
Materials | Metal |
Aluminum | |
AlSi10Mg | |
Cobalt chrome | |
Cobalt chrome (others) | |
Nickel | |
Nickel (others) | |
Steel | |
Stainless steel: 316L, Stainless steel (others) | |
Tool steel: CX, Tool steel (others) | |
Titanium | |
TA5 | |
Ti64 | |
Titanium (others) | |
Tungsten | |
Tungsten (others) |
Applications |
|
---|---|
Industries | Aerospace and Space, Automotive and Transports, Energy, Manufacturing and Tooling |
Hardware |
|
---|---|
Dimensions | 7050 × 3630 × 4480 mm |
Weight | 16000 kg |
Axes | - |
Hybrid manufacturing | - |
Robotic arm | - |
