ProJet 7000 HD
Technology | Stereolithography (SLA) |
Materials | Thermosets |
Feedstock format | Resin |
Build envelope | 380 × 380 × 250 mm |
Country | United States |
Description

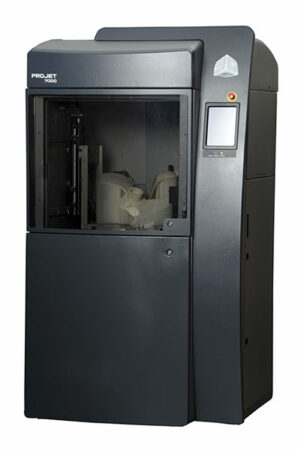

The 3D Systems ProJet 7000 HD is a professional 3D printer made by 3D Systems, a manufacturer based in the USA.
The 3D Systems ProJet 7000 use the Stereolithography (SLA) 3D printing technology. This 3D printing technique uses a PolyRay print head to photo polymerise liquid resin. The compatible materials are plastics with a large variety of physical properties including resistance to high temperature, tensile strengths and impact strengths. The 3D Systems ProJet 7000 professional 3D printers is available in 3 models, SD, HD and MP, with different maximum resolutions.
The 3D Systems ProJet 7000 HD uses VisiJet SL Clear, a 3D printing material USP Class VI certified, ideal for medical product manufacturing, especially in mass custom manufacturing projects such as hearing aids and dental applications.
Technical specifications
General |
|
---|---|
Model | ProJet 7000 HD |
Manufacturer | 3D Systems |
Price Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...). | upon request |
Release date | - |
Country | United States |
Status | Available |
Topics | Dental, Large format, Resin |
Technology |
|
---|---|
Technology | Vat photopolymerization (VPP) > UV laser beam > Stereolithography (SLA) |
Materials |
|
---|---|
Materials | Polymers |
Thermosets | |
Photopolymers | |
Feedstock format | Resin |
Performance |
|
---|---|
Build envelope | 380 × 380 × 250 mm |
Build volume | 36.1 L |
Max. temperatures | |
Max. extruder temp. | - |
Max. chamber temp. | - |
Max. plate temp. | - |
Min. layer thickness | 0.08 mm |
XY accuracy | 0.025 mm |
Max. print speed | - |
Hardware |
|
---|---|
Dimensions | 984 × 854 × 1829 mm |
Weight | 272 kg |
Nozzle diameter(s) | - |
Filament diameter | - |
Features |
|
---|---|
Heated build chamber | - |
Extruder | |
Dual extruder | - |
Independent Dual Extruder (IDEX) | - |
Multiple extruders (3+) | - |
Pellet extruder | - |
Full color | - |
Conveyor belt | - |
5-axis | - |
Hybrid manufacturing | - |
Robotic arm | - |
