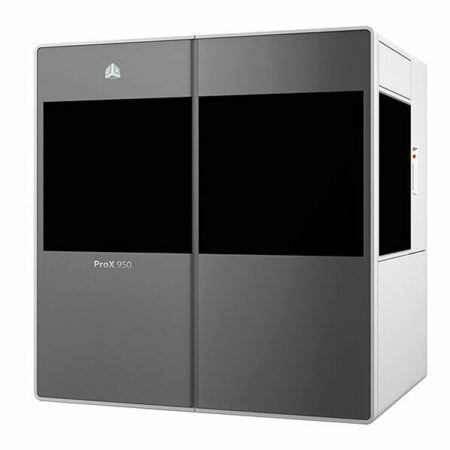

ProX 950
By
3D Systems
This brand is a certified partner from our network.
Technology | Stereolithography (SLA) |
Materials | Thermosets |
Feedstock format | Resin |
Build envelope | 1500 × 750 × 550 mm |
Country | United States |
Price
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...).
upon request
3D Systems (NYSE:DDD) is one of the oldest, largest, and most global AM equipment manufacturers in the industry. The company was founded in 1986 and pioneered stereolithography technology in its early years. Today, 3D Systems markets numerous technologies and caters to most industries and their different use cases.
Description
The 3D Systems ProX 950 is a professional 3D printer from the US based manufacturer 3D Systems.
The ProX SLA line of professional 3D printers (ProX 800 and ProX 950) use the Stereolithography (SLA) technology. This 3D printing technique uses a PolyRay print head to photo polymerise liquid resin. The compatible materials are plastics which range from ABS-like toughness to polycarbonate-like clarity.
The 3D Systems ProX 950 applications include:
>Prototypes
>End-use Parts
>Clear Parts
>Medical Models
>Casting Patterns
>Rapid Tooling
Technical specifications
General |
|
---|---|
Model | ProX 950 |
Brand | 3D Systems |
Price Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...). | upon request |
Release date | - |
Country | United States |
Status | Available |
Topics | Large format, Resin |
Technology |
|
---|---|
Technology | Vat photopolymerization (VPP) > UV laser beam > Stereolithography (SLA) |
Materials |
|
---|---|
Materials | Polymers |
Thermosets | |
Photopolymers | |
Feedstock format | Resin |
Performance |
|
---|---|
Build envelope | 1500 × 750 × 550 mm |
Build volume | 618.75 L |
Max. temperatures | |
Max. extruder temp. | - |
Max. chamber temp. | - |
Max. plate temp. | - |
Min. layer thickness | 0.13 mm |
XY accuracy | 0.05 mm |
Max. print speed | - |
Hardware |
|
---|---|
Dimensions | 2200 × 1600 × 2260 mm |
Weight | 1724 kg |
Nozzle diameter(s) | - |
Filament diameter | - |
Features |
|
---|---|
Heated build chamber | - |
Extruder | |
Dual extruder | - |
Independent Dual Extruder (IDEX) | - |
Multiple extruders (3+) | - |
Pellet extruder | - |
Full color | - |
Conveyor belt | - |
5-axis | - |
Hybrid manufacturing | - |
Robotic arm | - |
