Titan 2 HR
By
Kudo3D
| Technology | Resin > LCD |
| Material | Thermoplastics > Standard (PLA, ABS…) |
| Topic | Resin 3D printing |
| Build volume | 96 × 54 × 250 mm |
| Release date | - |
| Country | - |
From
Approximate starting prices based on supplier-provided information and public data. Prices may vary over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...).
$ 3,699

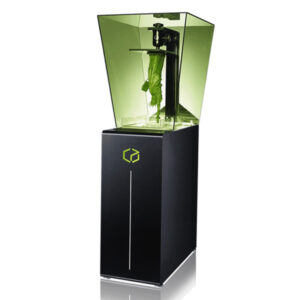

Kudo3D Titan 2 HR overview
The Kudo3D Titan 2 HR is a professional SLA DLP 3D printer made by Kudo3D, a US-based manufacturer.
This 3D printer offers a very high XY resolution (23-50 microns) and is a good fit for various applications requiring high quality prints. The Titan 2 HR is available in green or red.
Kudo3D Titan 2 HR technology
The Kudo3D Titan 2 HR uses a combination of SLA (Stereolithography) and DLP (Digital Light Processing) 3D printing technologies to selectively photocure liquid resin.
This 3D printer can 3D print at a speed of 70 mm per hour, at a 50 microns resolution.
Kudo3D Titan 2 HR features
The Kudo3D Titan 2 HR is equipped with:
- a built-in Rapsberry Pi 3 onboard computer
- a HD DLP projector (1920 × 1080) powered by a DMD chip from Texas Instruments
- a web-based control system
- the passive self-peeling (PSP) technology created by Kudo3D to minimize the separation forces between the cured layers and the flexible resin container in order to enhance print quality and print speed.
Kudo3D Titan 2 HR price
This professional resin 3D printer is available for $3,699.
Do you work for Kudo3D?
Titan 2 HR
By Kudo3D
From
Approximate starting prices based on supplier-provided information and public data. Prices may vary over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...).
$ 3,699
Interested in this product?
Kudo3D Titan 2 HR technical specifications
General |
|
|---|---|
| Model | Titan 2 HR |
| Brand | Kudo3D |
| Price
Approximate starting prices based on supplier-provided information and public data. Prices may vary over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...).
|
$ 3,699 |
| Release date | - |
| Country | - |
| Status | Available |
| Category | Professional |
| Technology | Resin > LCD |
| Material | Thermoplastics > Standard (PLA, ABS…) |
Performance |
|
|---|---|
| Max. build size | 96 × 54 × 250 mm |
| Max. build volume | 1.296 L |
| Max. temperatures | |
| Extruder | - |
| Build chamber | - |
| Build plate | - |
| Min. layer thickness | 0.005 mm |
| XY accuracy | 0.023 mm |
| Max. print speed | - |
Hardware |
|
|---|---|
| Dimensions | 410 × 350 × 850 mm |
| Weight | 13.5 kg |
| Nozzle diameter(s) | - |
| Filament diameter | - |
| Power input | - |
Features |
|
|---|---|
| Heated build chamber | - |
| Extruder | |
| Dual extruder | - |
| Independent Dual Extruder (IDEX) | - |
| Multiple extruders (3+) | - |
| Pellet extruder | - |
| Full color | - |
| Conveyor belt | - |
| 5-axis | - |
| Hybrid manufacturing | - |
| Freeform (robotic arm) | - |
Connectivity |
|
|---|---|
| USB | |
| Wifi | |
| Bluetooth | - |
| SD card | - |
| Ethernet | - |
