Ultimaker S5
Technology | Extrusion |
Material | Thermoplastics > Engineering (PC, nylon…) |
Topic | Large format 3D printing |
Build size | 330 × 240 × 300 mm |
Release date | 2018 |
Country | Netherlands |
Ultimaker Ultimaker S5 overview

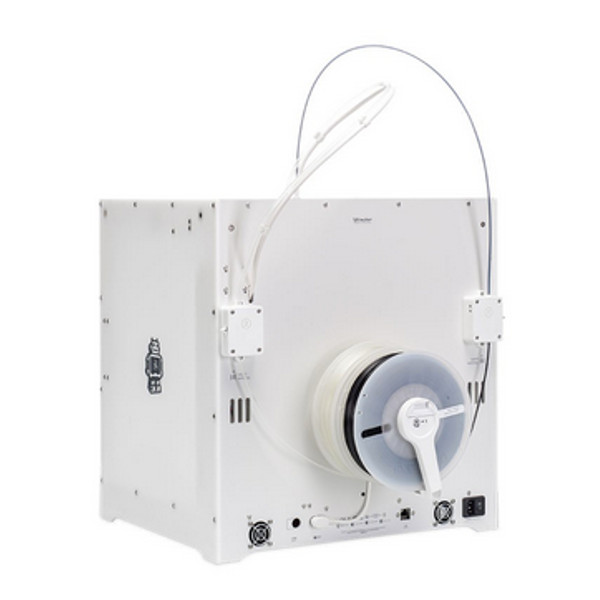

The Ultimaker S5 is a professional desktop 3D printer made by Ultimaker, a manufacturer based in the Netherlands. This is an updated version of the successful Ultimaker 3.
Users may control their S5 from a distance thanks to the Ultimaker App and a Wi-Fi connection. There is also an onboard camera to monitor 3D prints from a distance.
Furthermore, to maximize production efficiency, it is possible to group multiple S5 3D printers together with Cura Connect.
Thanks to its closed frame and heated print bed, the S5 is compatible with a wide range of filaments. These include PLA, ABS, Nylon, and CPE as well a Polycarbonate and flexible TPU-style material.
S5 main features
- Dual extruder (up to 280°C): this enables to 3D print with two different materials simultaneously, including water-soluble support. Also, users may switch between nozzle sizes (0.8, 0.4, or 0.25 mm) to focus on speed or detail.
- Dynamic bed heating system (up to 140°C): there is a real-time feedback system to make sure the print surface maintains a consistent temperature. The aluminum print surface is removable.
- Active bed leveling: ensures flat first layers.
- NFC reader: the S5 recognizes the material it is 3D printing to automatically use specific settings.
- Start and Play system: users may pause and resume 3D prints to swap filament, for example.
Ultimaker S5 versus Ultimaker 3
There are a few differences between the S5 and the Ultimaker 3. The S5 boasts a larger build volume and higher accuracy.
The S5 also boasts additional features such as a full-color 4.7″ touchscreen and a filament detector.
Ultimaker S5 price
This large volume 3D printer for professionals is available at the manufacturer price of$5,995 and comes with a 1-year warranty.
Ultimaker S5 Pro Bundle
A bundle for professionals is available at the price of $12,000. The pack includes:
- Air Manager: it is a printer enclosure and air filtering system that sits atop the printer.
- Material Station: this closed, anti-humidity filament chamber enables the use of up to 6 filaments at a time. It is placed beneath the printer.
- An Ultimaker S5 3D printer
Discover other Ultimaker 3D printers with our comparison engine.
Questions? Need a quote?
Ultimaker Ultimaker S5 technical specifications
General |
|
---|---|
Model | Ultimaker S5 |
Brand | Ultimaker |
Price
Approximate starting prices based on supplier-provided information and public data. Prices may vary over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...).
|
$ 5,995 |
Release date | 2018 |
Country | Netherlands |
Status | Available |
Category | Professional |
Technology | Extrusion |
Material | Thermoplastics > Standard (PLA, ABS…), Thermoplastics > Engineering (PC, nylon…) |
Performance |
|
---|---|
Max. build size | 330 × 240 × 300 mm |
Max. build volume | 23.76 L |
Max. temperatures | |
Extruder | - |
Build chamber | - |
Build plate | - |
Min. layer thickness | 0.02 mm |
XY accuracy | 0.0069 mm |
Max. print speed | - |
Hardware |
|
---|---|
Dimensions | 495 × 457 × 520 mm |
Weight | 20.6 kg |
Nozzle diameter(s) | 0.4 mm |
Filament diameter | 2.85 mm |
Features |
|
---|---|
Heated build chamber | |
Extruder | |
Dual extruder | |
Independent Dual Extruder (IDEX) | |
Multiple extruders (3+) | |
Pellet extruder | |
Full color | |
Conveyor belt | |
5-axis | |
Hybrid manufacturing | |
Robotic arm |
Connectivity |
|
---|---|
USB | |
Wifi | |
Bluetooth | |
SD card | |
Ethernet |
