VX
By ZMorph
Technology | Extrusion |
Material | Thermoplastics > Standard (PLA, ABS…), Ceramic, Food, Clay |
Topic | Ceramic, Clay, Hybrid manufacturing |
Build size | 250 × 235 × 165 mm |
Release date | 2017 |
Country | Poland |
From
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...).
$ 2,799

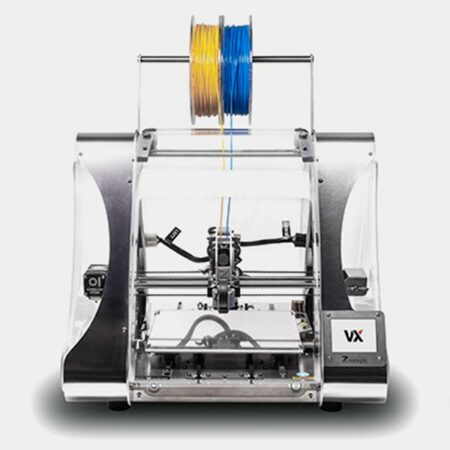

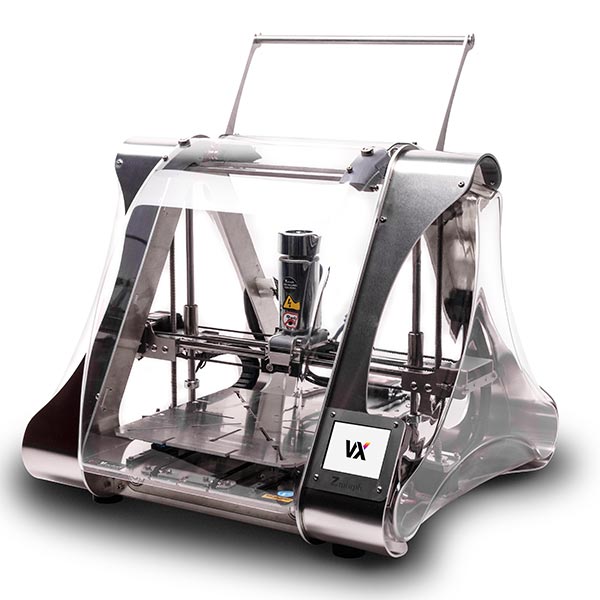

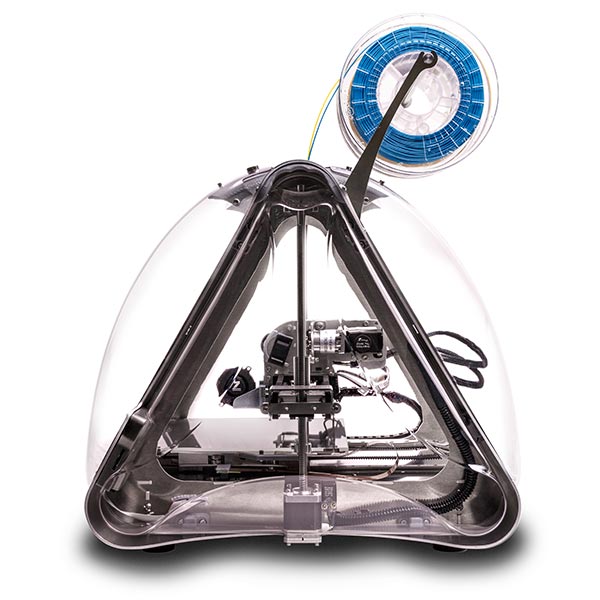

ZMorph VX overview
The ZMorph VX is a multifunctional desktop 3D printer manufactured by ZMorph. This AIO (all-in-one) 3D printer features dual extrusion, CNC milling and laser cutting and engraving capabilities.
The multifunctional VX features a high-quality frame, carriage and sliding rails. A special CNC table features pre-set holes.
The VX’s multi-functionality enables users to work with a wide variety of materials.
ZMorph VX main features
- Automatic calibration: the VX sets the correct height between the Z and Y axis. The print bed doesn’t require bed leveling.
- Dual extruder: for multi-material and multi-color 3D prints.
- Heated build plate: can heat up to 100°C. Detachable borosilicate glass sheets are available.
- Closed loop: an error correction loop prevents layer offset.
- Multi-tool head: enables the following functionalities:
- CNC milling (for wood, polycarbonates, acrylic glass, machining wax and more).
- Laser engraver (for wood, leather and copper laminate).
- Laser cutter (paper, cardboard, felt, thin gasket materials).
- Paste extrusion (chocolate, dough, cream cheese, frosting and more).
- Touchscreen: offers a friendlier user experience.
- Silent X and Y steppers: reduces noise by 50%.
- Interchangeable nozzles: nozzles diameters of 0.2, 0.3 and 0.4 mm are available.
- Voxelizer software: Voxelizer, ZMorph’s proprietary software, offers improved user experience and works with various fabrication techniques (3D printing, CNC milling and laser cutting). The VX is also compatible with Simplify3D, Cura and Slic3r.
ZMorph VX price
The VX is available at the manufacturer starting price of $2,799, or $4,399 with all of the functionalities. The VX is available on Amazon.
ZMorph also manufactures the ZMorph 2.0 SX.
VX
By ZMorph
From
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...).
$ 2,799
Questions? Need a quote?
ZMorph VX technical specifications
General | |
---|---|
Model | VX |
Brand | ZMorph |
Price Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...). | $ 2,799 |
Release date | 2017 |
Country | Poland |
Status | Available |
Topic | Ceramic Clay Hybrid manufacturing |
Category | Professional |
Technology | Extrusion |
Material | Thermoplastics > Standard (PLA, ABS…) Ceramic Food Clay |
Performance | |
---|---|
Max. build size | 250 × 235 × 165 mm |
Max. build volume | 9.69 L |
Max. temperatures | |
Extruder | - |
Build chamber | - |
Build plate | - |
Min. layer thickness | 0.05 mm |
XY accuracy | 0.014 mm |
Max. print speed | - |
Features | |
---|---|
Heated build chamber | - |
Extruder | |
Dual extruder | |
Independent Dual Extruder (IDEX) | - |
Multiple extruders (3+) | - |
Pellet extruder | - |
Full color | - |
Conveyor belt | - |
5-axis | - |
Hybrid manufacturing | - |
Robotic arm | - |
Connectivity | |
---|---|
USB | |
Wifi | |
Bluetooth | - |
SD card | |
Ethernet | - |
Hardware | |
---|---|
Dimensions | 530 × 555 × 480 mm |
Weight | 20 kg |
Nozzle diameter(s) | 0.4 mm|
Filament diameter | - |
