Today, we are doing a hands-on review of the latest version of Creaform’s first product, the HandySCAN 700.

Creaform’s mission is to develop, manufacture, and market cutting-edge portable 3D measurement and analysis technologies that increase productivity. Through its expertise, Creaform helps companies from the manufacturing industry to create, simulate, verify, and collaborate in 3D. Creaform offers several portable industrial 3D scanners, including the HandySCAN, the HandyPROBE, the MetraSCAN, and the MaxSHOT.

The Creaform quality control solutions for every part size.
The Creaform quality control solutions for every part size.

Each 3D scanner is equipped to deal with a specific parts’ size range, from small to big. These metrology-grade devices are suitable for almost all design and production-related applications.

The Creaform quality control solutions for every part size.
Mapping of the Creaform quality control solutions with their respective operating ranges.

Creaform also offers a more affordable category of portable 3D scanners; the Go!SCAN 50 and the Go!Scan 20 which is not represented in this illustration. These two products are capable of producing full-color 3D scans.

Tested This product has been reviewed by our team.
TechnologyLaser triangulation
Max resolution0.05 mm
Weight0.85 kg
Price$ 31,900
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, …).
$ 31,900

Discovering the Creaform HandySCAN 700

We have been invited by Creaform local team in Tokyo to visit their offices and perform a hands-on review of their lineup of portable 3D scanners, the MetraSCAN 750, the HandySCAN 700, and the Go!SCAN 50. This is the third article of this series. After the MetraSCAN 750 review and the Go!SCAN 50 review, we are now performing our hands-on test of the HandySCAN 700.

The full setup of the Creaform HandySCAN 700 solution.
The full setup of the Creaform HandySCAN 700 solution.

The HandySCAN 700 is Creaform’s flagship metrology-grade portable 3D scanner. The HandySCAN 3D product line underwent a complete re-engineering in 2014. These metrology handheld 3D scanners have been optimized to meet the needs of product development and engineering professionals. The HandySCAN 3D is capable of quickly delivering accurate and high-resolution 3D scans.

Creaform HandySCAN 3D handheld 3D scanners won the Red Dot Award for Product Design 2015. Counting about 5,000 entries from 2,000 participants each year, the Red Dot is awarded for international product design, communication design, and design concept.

The Creaform’s HandySCAN 3D is available in two versions:

  • HandySCAN 300, the most affordable version of the lineup. It offers accuracy up to 0.040 mm (0.0016 in.), a maximum resolution of 0.100 mm (0.0039 in.). Its top acquisition rate is 205,000 measurements/s, within a 3D scanning area of 225 x 250 mm (8.8 x 9.8 in.).
  • HandySCAN 700 is the flagship 3D scanner of the HandySCAN family. It offers accuracy up to 0.030 mm (0.0012 in.) and a maximum resolution of 0.050 mm (0.0020 in.). Its top acquisition rate is 480,000 measurements/s, within a 3D scanning area of 275 x 250 mm (10.8 x 9.8 in.).
The Creafrom HandySCAN 700.
The Creaform HandySCAN 700.

The HandySCAN 700 has a very good quality and finish, on par with everyday consumer products. According to Creaform, the HandySCAN 700 characteristics have been drastically upgraded, compared to its predecessor :

  • 40% more accurate
  • 25 times faster with 7 laser crosses
  • 50% smaller
  • 35% lighter (weights 0.85 kg)

The HandySCAN 3D scanners are based on laser 3D scanning technology. Both products are equipped with a 2M (eye-safe) laser class. The HandySCAN 300 offers 3 laser crosses, while the HandySCAN 700 is fitted with 7 laser crosses plus one “Single-beam” mode, which makes it faster and more precise. Each laser line (in fact a very fast-moving beam) is cast on the surface of the object which is 3D scanned.

The surface’s topology of the object deviates from the laser beam. The 3D scanner sensors (two cameras recording at 60 frames/s) register this deviation and the device can calculate the properties of the surface, hence the exact shape of the object. This generates a detailed mesh (a 3D file) which can then be edited, compared, or exported.

Getting started with the Creaform HandySCAN 700


The Creaform HandySCAN is packaged in a protective hard case, build with very strong plastic, and fitted with thick protective foam. Everything fits tightly, including all the accessories required for 3D scanning. On the picture top right can be seen the stickable targets, while the calibration plate is hidden on the top cover of the case.

The Creaform HandySCAN 700.
The Creaform HandySCAN 700.

Included in the transport case is the connectivity cable of the device, which splits up as a connectivity cable to the computer and an alimentation cable. The connectivity cable plugs to USB 3.0 plug on a computer while the alimentation cable requires an AC plug.

The full case is easy to move around and can be held as a carry on luggage in airplanes.

Calibration process

Calibration process of the Creaform HandySCAN 700.
Calibration process of the Creaform HandySCAN 700.

This metrology-grade 3D scanner must be calibrated before use. The full calibration process takes around 2 minutes.

The included calibration plate is a nice finished plain flat wooden box. It contains some warnings and a white area covered with several specifically placed targets.

The calibration process requires the user to follow step by step some very simple instructions displayed by Creaform VXElements software. The HandySCAN 700 must be held vertically above the calibration plate and then smoothly tilted toward left, right, up, and down directions.

VXElements is the data acquisition platform for all Creaform 3D scanners.

Testing the Creaform HandySCAN 700

The sensor itself weighs only 0.85 kg (1.9 lbs.) and is very compact: 77 x 122 x 294 mm (3.0 x 4.8 x 11.6 in.). The distribution of weight is good, and the device well balanced.

The handle of the device is a bit square and quite large, while the height is restricted. Holding the Creaform HandySCAN feels like a small toy with its featherweight. However small hands might have a hard time grasping it firmly due to the thick handle.

The 4 multi-functional interface buttons are activated by a soft thumb touch; the bottom round one can start and stop the 3D scanning process, the two vertical buttons in the middle can zoom in and out of the 3D model or control the shutter speed of the cameras’ and the top rectangular one toggles between different modes. Pressing the buttons while 3D scanning often requires to use of your other hand or an extremely nimble thumb.

The HandySCAN 700 itself is connected to a computer via a USB 3.0 port. This protocol is required to deal with the massive amount of data transferred from the 3D scanner to the computer during a 3D scan.

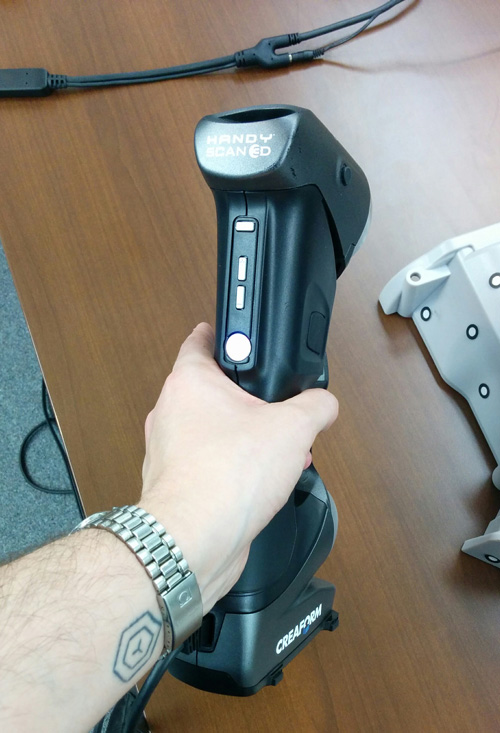

The HandySCAN 700 in hand.
The HandySCAN 700 in hand.

Two cables come out of the 3D scanner. They quickly join in a unique one for most of their length and then separate again into a USB connection for the computer, and an alimentation cable to be connected to a standard AC wall socket.

Compared to some competitors that rely on two cables all along that is a big advantage for mobility and flexibility while 3D scanning.

The laptop we used in this demonstration is the recommended computer provided by Creaform. This is a powerful HP laptop with a Windows 7 OS 64 bits, 32 Gb of RAM, an Intel Core i7, and an Nvidia Quadro K1100M GPU.

We do not recommend a less powerful configuration as 3D scanning is a very demanding process. Windows 10 is not officially supported yet but some Creaform clients use it successfully.

The HandySCAN 700 interface.
The HandySCAN 700 interface.

Reverse engineering use case

For testing the HandySCAN 700, we used the standard sample part provided by Creaform for their demonstration.

The part is a medium-sized plastic part, very similar to a mechanical part. It is quite complex with a lot of features and small intricate details. It is also full of holes, a type of feature which is usually very challenging to 3D scan, as the software usually tries to fill them with geometries.

The only downside of the 3D scanning process with the HandySCAN is that it is required to use Creaform targets to get the highest performance level. These targets also allow the user to move the part while scanning and to never lose track of it. The part was already equipped with several targets, patched all across its surface (14 targets in total).

The HandySCAN 700 can work in two different modes, the “Cross grid” and “Single-beam” modes. The beams are in fact a single laser point moved very fast.

The Creaform HandySCAN 700 requires the use of markers.
The Creaform HandySCAN 700 requires the use of markers.

Cross grid mode is for faster data capture, while the single beam mode is used to go deeper into pockets and harder to reach areas. A standard 3D scan would begin with the Cross grid mode to acquire quickly the part, and the Single beam mode on a second step for a very high precision 3D scan and details acquisition.

Cross grid mode uses 7 crosses with the HandySCAN 700; and only 3 crosses with the HandySCAN 300 (Single beam is not available), hence the performance and price difference.

The result of a 3D scan performed by the HandySCAN 700 in VXElements.
The result of a 3D scan performed by the HandySCAN 700 in VXElements.

We obtained in less than 5 minutes a very detailed 3D scan of the complex surface of the part. The targets are white dots with black rims. You can see how they have been layout on all the surfaces of the part.

The useful design tree inside the VXElements software.
The useful 3D scanning tree inside the VXElements software.

The Creaform Software provided with the HandySCAN 700 is called VXElements. It can perform real-time fusion, which means that alignment and fusion of the 3D scans are automatically fused to generate one unique mesh.

With VXElements’ advanced tracking algorithm it is possible to find back a part that has been moved and to directly add data to the existing dot cloud. The 3D scanner captures the part in a specified resolution; specified in the software scanning panel.

The 3D scanner captures the part in a specified resolution; the parameter needs to be specified in the software scanning panel. When the operator chooses a specific capture resolution, it is possible to change it afterward in the software (like a RAW file of a photo). Therefore, the output resolution can also be edited according to the user’s needs.

The HandySCAN 700 maximum resolution is 0.050 mm (0.0020 in.).

At any given step of the 3D scanning process, it is possible to remove or add data, to obtain more accurate and defined 3D data. It is also possible to select and delete erroneous data and targets, and even some missed frames, thanks to the very useful 3D scanning tree inside VXElements, a feature very similar to most CAD tools’ design tree.

VXelements is the basic capture package included with all Creaform 3D scanners. VXmodel, VXtrack, VXinspect, and VXremote are software modules bringing in additional features (beyond data capture) and are sold separately.

VXinspect allows users to compare a CAD model to the scanned data, which is very useful for reverse engineering and metrology applications.

VXmodel is a post-treatment software that directly integrates into VXelements. VXmodel allows the finalization of 3D scan data to export it as a readable 3D file for 3D printing and CAD software (CATIA, SolidWorks, Inventor…).

The VXtrack module has several applications like robot calibration and guidance, monitoring of complex assembly processes, real-time compensation of machining tool-generated errors, and monitoring of deformations during testing and can be useful in various industries such as aerospace, automotive, robotics, biomechanics, and non-destructive testing. We have not tried it during this review.

VXremote enables users to better visualize real-time scanned data and change parameters—even when they are far from their laptops. VXremote is particularly useful when scanning large objects or when the scanning has to be performed in constrained or remote areas. VXremote is compatible with Creaform-certified rugged tablets (available in 7″ or 10″ size). This add-on was not tested during this review.


Aniwaa’s opinion

The HandySCAN 700 is a reference among metrology-grade solutions for professionals who work in demanding industrial environments. Yet, this handheld 3D scanner is remarkably light and easy to use, served by an efficient design and a great user interface. More specifically, the capture software called VXElement allows a lot of flexibility in the 3D scanning process. Generating files for inspection, CAD modeling or 3D printing is a breeze when you add VXinspect and VXmodel extension modules.

However, this device is very expensive and will be out of reach for smaller companies or entry-level 3D scanner users.

Regarding the 3D scanning performance, the HandySCAN 700 is simply the top performing portable 3D scanner we ever had the opportunity to test (and also the most expensive).
