CDFI 1m3
By
CDFI 3D
Product data validated by the manufacturer.
Technology | Material Extrusion |
Materials | Thermoplastics |
Feedstock format | Filament, Pellet |
Build envelope | 1000 × 1000 × 1000 mm |
Country | France |
Price
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...).
upon request
Description
CDFI 3D CDFI 1m3 overview

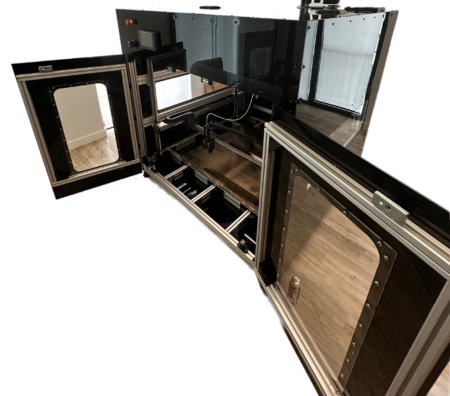

The CDFI 1m3 is a 3D printer produced by CDFI 3D, a manufacturer based in France.
It uses the Fused Filament Fabrication and Fused Deposition Modeling technologies to produce thermoplastics parts using filament and pellet feedstocks.
It offers a build volume of 1000 × 1000 × 1000 mm .
CDFI 3D CDFI 1m3 price
Please contact us to get a quote.
Technical specifications
General |
|
---|---|
Model | CDFI 1m3 |
Brand | CDFI 3D |
Price Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...). | upon request |
Country | France |
Status | Available |
Release date | 2021 |
Topics | Large format |
Certifications | CE |
Performance |
|
---|---|
Build envelope | 1000 × 1000 × 1000 mm |
Build volume | 1000 L |
Max. resolution (XY) | 0.005 mm |
Max. resolution (Z) | 0.005 mm |
Max. build rate | 1800 cm3/h |
Max. chamber temp. | - |
Full color | - |
Technology |
|
---|---|
Process | Material Extrusion (MEX) |
Technology | Thermally-bonded > Fused Filament Fabrication (FFF) |
Technology | Thermally-bonded > Fused Deposition Modeling (FDM) |
Max. print speed | 300 mm /s |
Max. deposition rate | 2 kg /h |
Filament diameter(s) | 1.75 mm, 2.85 mm |
Max. build plate temp. | 120 °C |
Number of extruders | 1 |
Max. extruder temp. | 450 °C |
Independent Dual Extruder (IDEX) | - |
Nozzle diameter(s) | 0.4 mm, 0.6 mm, 0.8 mm |
Materials |
|
---|---|
Feedstock format | Filament, Pellet |
Materials | Polymers |
Thermoplastics | |
PLA | |
Polycarbonates: PC, PC-ABS, PC-ASA | |
Polyesters: PCTG, PET, PETG, Polyester (others) | |
Styrenes: ABS, ASA |
Applications |
|
---|---|
Industries | - |
Hardware |
|
---|---|
Dimensions | 1500 × 1500 × 1500 mm |
Weight | 350 kg |
Axes | 3 |
Hybrid manufacturing | - |
Robotic arm | - |
