BIG-Meter V4
Modix
Product data validated by the manufacturer.
Technology | Fused Filament Fabrication (FFF) |
Materials | Elastomers, Thermoplastics |
Feedstock format | Filament |
Build envelope | 1010 × 1010 × 1010 mm |
Country | Israel |
From
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...).
$ 15,000
Description
Modix BIG-Meter V4 overview

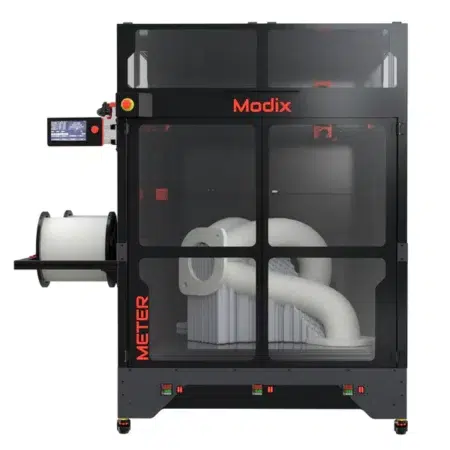

The BIG-Meter V4 is a 3D printer produced by Modix, a manufacturer based in Israel.
It uses the Fused Filament Fabrication technology to produce elastomers and thermoplastics parts using filament feedstock.
It offers a build volume of 1010 × 1010 × 1010 mm .
Modix BIG-Meter V4 price
This 3D printer is available from $ 15,000 .
Technical specifications
General |
|
---|---|
Model | BIG-Meter V4 |
Brand | Modix |
Price Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...). | from $ 15,000 |
Country | Israel |
Status | Available |
Release date | 2023 |
Topics | Composite AM, Large format |
Certifications | CE |
Performance |
|
---|---|
Build envelope | 1010 × 1010 × 1010 mm |
Build volume | 1030.3 L |
Max. resolution (XY) | 0.01 mm |
Max. resolution (Z) | 0.5 mm |
Max. build rate | - |
Max. chamber temp. | - |
Full color | - |
Technology |
|
---|---|
Process | Material Extrusion (MEX) |
Technology | Thermally-bonded > Fused Filament Fabrication (FFF) |
Max. print speed | 250 mm /s |
Max. deposition rate | - |
Filament diameter(s) | 1.75 mm |
Max. build plate temp. | 110 °C |
Number of extruders | 2 |
Max. extruder temp. | 450 °C |
Independent Dual Extruder (IDEX) | |
Nozzle diameter(s) | 0.4 mm, 0.6 mm, 0.8 mm |
Materials |
|
---|---|
Feedstock format | Filament |
Materials | Polymers |
Elastomers | |
Thermoplastic elastomers: TPE, TPU | |
Thermoplastics | |
PLA | |
PVA | |
Polyamides: PA-CF, Polyamides (others) | |
Polycarbonates | |
Polyesters: PETG, Polyester (others) | |
Styrenes: ABS, ASA, HIPS |
Applications |
|
---|---|
Industries | Aerospace and Space, Automotive and Transports, Consumer goods, Defense and Military, Manufacturing and Tooling |
Hardware |
|
---|---|
Dimensions | 1739 × 1424 × 1808 mm |
Weight | 200 kg |
Axes | 3 |
Hybrid manufacturing | - |
Robotic arm | - |
