BIG-120X V4
By
Modix
This manufacturer is a Verified partner from our network.
Technology | Fused Filament Fabrication (FFF) |
Materials | Elastomers, Thermoplastics |
Feedstock format | Filament |
Build envelope | 1200 × 600 × 640 mm |
Country | Israel |
From
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...).
$ 7,500
This manufacturer is a Verified partner from our network.
Modix is based in Tel Aviv and has been manufacturing modular, large-volume 3D printers since 2014. The company focuses on providing high-quality components and hardware at an affordable price while giving users the possibility to tailor their solutions via add-ons and upgrades. Modix 3D printers are ideal solutions for the vehicle retail industry as well as for aerospace, medical, and educational applications.
Description

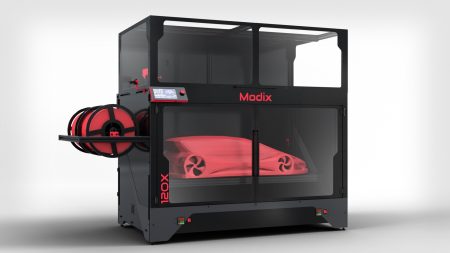

The Modix BIG-120X V4 is a very large 3D printer kit for professionals made by Modix, a manufacturer from Israel.
The self-assembly and modular Big-120X V4 3D printer is a bigger version of the Modix BIG-60 V4. This large 3D printer format is suitable for professional applications and is in its fourth version, having received numerous hardware updates over the years.
BIG-120X V4 key improvements
- IDEX dual printing – IDEX stands for independent dual extruder. With this feature, each extruder can ‘park’ outside of the bed while inactive. IDEX drastically reduces the manual labor involved in removing supports by efficiently using a special type of breakaway support filament. This is especially critical for printing advanced models with internal geometries using water-soluble filament. The IDEX add-on is a significant upgrade in Modix’s offering.
- Fast 3D Printing – Travel of up to 350 mm/s, high quality printing at 100 mm/s and higher speeds for draft printing. Such remarkable speeds are made possible by strong Nema-23 motors on the X axis, which replace the current Nema-17 motors. Also, since the IDEX configuration uses two Y-axis motors, one per extruder, the motor weight-load on the Y axis is reduced and speed is increased.
- Fully automated calibration – Modix is now offering a full set of automated calibrations routines to all our models including automated bed tilt, bed leveling, gantry alignment and Z offset calibration.
- Multiple other improvements including optical end-stops that improve job recovery accuracy, stronger Nema-23 Motors on Z axis, improved enclosure sealing and ergonomics, emergency stop button as default and a fresh, new design.
BIG-120X V4 main features
This very large 3D printer boasts interesting features such as:
- Dual extrusion with E3D Volcano nozzles
- Independent dual extruder (IDEX)
- 150-point automatic bed leveling system
- Hiwin motion rails
- Dual-zone silicon print bed heaters with PID temperature controller
- PEI sheet with 3M adhesive
Modix BIG-120X V4 price
This large 3D printer is available starting from $7,500 (see here).
Discover more 3D printers with our 3D printer comparison engine.
Highlights
New printhead design
Large, intuitive touchscreen
Smart nozzle offset
Technical specifications
General |
|
---|---|
Model | BIG-120X V4 |
Manufacturer | Modix |
Price Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...). | from $ 7,500 |
Release date | 2022 |
Country | Israel |
Status | Available |
Topics | Large format |
Technology |
|
---|---|
Technology | Material Extrusion (MEX) > Thermally-bonded > Fused Filament Fabrication (FFF) |
Materials |
|
---|---|
Materials | Polymers |
Elastomers | |
Thermoplastic elastomers: TPE, TPU | |
Thermoplastics | |
PLA | |
PVA | |
Polyamides: PA-CF, Polyamides (others) | |
Polycarbonates | |
Polyesters: PETG, Polyester (others) | |
Styrenes: ABS, ASA, HIPS | |
Feedstock format | Filament |
Performance |
|
---|---|
Build envelope | 1200 × 600 × 640 mm |
Build volume | 460.8 L |
Max. temperatures | |
Max. extruder temp. | 500 °C |
Max. chamber temp. | - |
Max. plate temp. | 110 °C |
Min. layer thickness | - |
XY accuracy | 0.01 mm |
Max. print speed | 350 mm /s |
Hardware |
|
---|---|
Dimensions | 1556 × 1060 × 1506 mm |
Weight | 170 kg |
Nozzle diameter(s) | 1 mm |
Filament diameter | 1.75 mm |
Features |
|
---|---|
Heated build chamber | - |
Extruder | |
Dual extruder | |
Independent Dual Extruder (IDEX) | |
Multiple extruders (3+) | - |
Pellet extruder | - |
Full color | - |
Conveyor belt | - |
5-axis | - |
Hybrid manufacturing | - |
Robotic arm | - |
