Shape X
By
Fusion technologies
Product data validated by the manufacturer.
Technology | Digital Light Processing (DLP) |
Materials | Thermosets |
Feedstock format | Resin |
Build envelope | 198.2 × 123.84 × 200 mm |
Country | Lebanon |
Price
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...).
upon request
Description
Fusion technologies Shape X overview

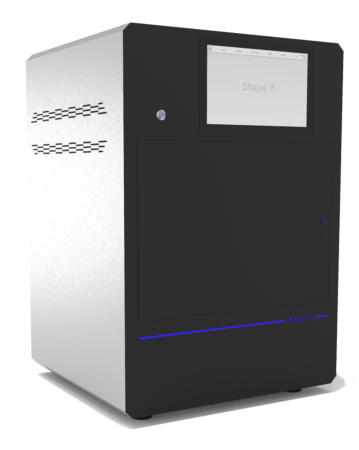

The Shape X is a 3D printer produced by Fusion technologies, a manufacturer based in Lebanon.
It uses the Digital Light Processing technology to produce thermosets parts using resin feedstock.
It offers a build volume of 198.2 × 123.84 × 200 mm .
Fusion technologies Shape X price
Please contact us to get a quote.
Technical specifications
General |
|
---|---|
Model | Shape X |
Brand | Fusion technologies |
Price Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...). | upon request |
Country | Lebanon |
Status | Available |
Release date | 2023 |
Topics | Resin |
Certifications | - |
Performance |
|
---|---|
Build envelope | 198.2 × 123.84 × 200 mm |
Build volume | 4.87 L |
Max. resolution (XY) | 0.033 mm |
Max. resolution (Z) | 0.03 mm |
Max. build rate | - |
Max. chamber temp. | - |
Full color | - |
Technology |
|
---|---|
Process | Vat photopolymerization (VPP) |
Technology | LED light > Digital Light Processing (DLP) |
DLP resolution | - |
Wavelength | 405 nm |
Materials |
|
---|---|
Feedstock format | Resin |
Materials | Polymers |
Thermosets | |
Photopolymers |
Applications |
|
---|---|
Industries | - |
Hardware |
|
---|---|
Dimensions | 505 × 725 × 495 mm |
Weight | 45 kg |
Axes | - |
Hybrid manufacturing | - |
Robotic arm | - |
