Form 3L Formlabs

Form 3L Formlabs - 3D printers
Buy the Formlabs Form 3L
Seller Shipping zones
Aniwaa Worldwide Quote
Basic specs Price: $ 5,000 - $ 10,0005 000 € - 10 000 €3,823 £ - 7,647 £565,080 ¥ - 1,130,160 ¥
Metascore -
Model Form 3L
Manufacturer Formlabs
Category Professional
Technology Resin (SLA, DLP...)
Material Liquid resin
Max. build size 335 × 200 × 300 mm13.19 × 7.87 × 11.81 in
Release date 2019
Country United States

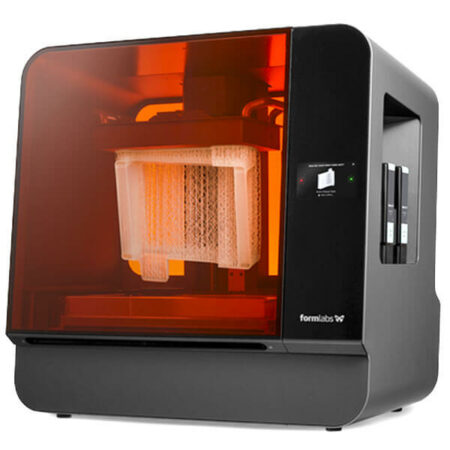

Formlabs Form 3L review

The Formlabs Form 3L is a professional resin 3D printer by Formlabs, a popular 3D printer manufacturer from the US. Formlabs focuses on delivering high print quality and reliability.

The Form 3L, along with the Form 3, was announced by Formlabs CEO Max Lobovsky almost four years after its previous version, the Form 2.

This industrial-grade SLA 3D printer is suitable for prototyping and small production series. The Form 3L is user-friendly and, according to Formlabs, is plug-n-play. Its cartridge material system indeed eliminates many painful steps implied by manual material loading.

Formlabs Form 3L vs. Form 3L

The Form 3L boasts a larger build volume than the Form 3 and is equipped with two laser units instead of one. Aside from those two elements, the Form 3 and Form 3L are essentially the same resin 3D printer.

Low Force Stereolithography (LFS) technology

With the Form 3 and Form 3L, Formlabs is introducing their new LFS (Low Force Stereolithography) technology. This 3D printing method uses linear illumination and a flexible tank, dramatically improving print quality and repeatability by reducing peel forces.

LFS technology allows for easy support removal and better part surfaces. It also new printing possibilities in regards to complex materials (e.g. high viscosity resins).

Form 3D resin 3D printer main features

  • Light Processing Units (LPU): the two high-power-density 250mW lasers deliver large yet precise prints. The module moves laterally below the resin tank, contrary to the usual fixed lasers or projectors that can be found on standard resin 3D printers.
  • Constant monitoring: the Form 3L constantly monitors its printing process and is able to notify users of its progress. Its various optical sensors also provide constant automatic calibration, and can even detect if there is unwanted dust in the machine.
  • User-friendly cartridge system: users may switch materials by simply replacing the resin cartridge. There is no need for pouring the resin into the tank manually.

Formlabs also highlights that all of the Form 3L’s main components can be manually replaced by the user. This way, users can quickly replace parts in-house instead of sending the 3D printer to the manufacturer for repair.

Formlabs resins and post-processing stations

Formlabs SLA 3D printers are compatible only with proprietary materials. Over 20 different proprietary resins are available for purchase from Formlabs. These include tough resins, high temperature resistant resins, castable resins, and others.

Furthermore, users can streamline their productions thanks to the FormWash and FormCure stations (available separately). FormWash rinses prints, while FormCure cures prints.

Formlabs Form 3L price

Please contact the manufacturer to obtain a quote for this large volume resin 3D printer.

Discover more 3D printers with our 3D printer comparison engine.


See something wrong? Let us know.

Form 3L Formlabs

General

Model Form 3L
Manufacturer Formlabs
Metascore
Price $ 5,000 - $ 10,0005 000 € - 10 000 €3,823 £ - 7,647 £565,080 ¥ - 1,130,160 ¥
Release date 2019
Country United States
Status Available
Category Professional
Technology Resin (SLA, DLP...)
Material Liquid resin
Filament diameter
OS compatibility Mac OS, Microsoft Windows
Generic material

Performance

XY accuracy 0.025 mm0.001 in
Max. build size 335 × 200 × 300 mm13.19 × 7.87 × 11.81 in
Max. build volume 20.10 L
Max. print speed
Min. layer thickness 0.025

Hardware

Dimensions 775 × 520 × 735 mm30.51 × 20.47 × 28.94 in
Weight 48 kg105.82 lb
Nozzle diameter(s)
Power input

Features

Heated print bed
Heated build chamber Yes
Automatic calibration Yes
Closed frame Yes
Dual extruder
Independent Dual Extruder
Full color
LCD screen
Touchscreen Yes
On-board camera
Mobile app Yes
3D scanners
CNC mill
Electronics 3D printing
Laser engraving
Conveyor belt
Air filter

Connectivity

USB Yes
Wifi Yes
Bluetooth
SD card
Ethernet Yes
