Ultimaker 3 Extended Ultimaker

Ultimaker 3 Extended Ultimaker - 3D printers
Ultimaker 3 Extended Ultimaker 3 Extended Product description: A professional 3D printer with a maximum build size of 215 x 215 x 300 mm, manufactured by Ultimaker. Customer reviews:
Review of the Ultimaker 3 Extended professional 3D printer. - by , Oct 20, 2016
4.3/ 5stars
Array
(
    [0] => Array
        (
            [post_id] => 11216
            [name] => Amazon US
            [zones] => Array
                (
                    [0] => united_states
                )

            [price] => 0
            [quote] =>
            [url] => https://amzn.to/2IipC6V
        )

    [1] => Array
        (
            [post_id] => 22620
            [name] => Amazon France
            [zones] => Array
                (
                    [0] => france
                )

            [price] => 0
            [quote] =>
            [url] => https://amzn.to/2DwXgao
        )

    [2] => Array
        (
            [post_id] => 23544
            [name] => Aniwaa
            [zones] => Array
                (
                    [0] => worldwide
                )

            [price] => 0
            [quote] => 1
            [url] =>
        )

)
Buy the Ultimaker Ultimaker 3 Extended
Seller Shipping zones
Aniwaa Worldwide Quote
Amazon US United States Buy
Amazon France France Buy

Awards

Basic specs Price: $ 4,065
Model Ultimaker 3 Extended
Compare
Brand Ultimaker (see all products)
Rating
Category Professional
Technology Extrusion
Material Thermoplastics > Standard (PLA, ABS…)
Build volume 215 × 215 × 300 mm
Release date 2016
Country Netherlands

Ultimaker Ultimaker 3 Extended review

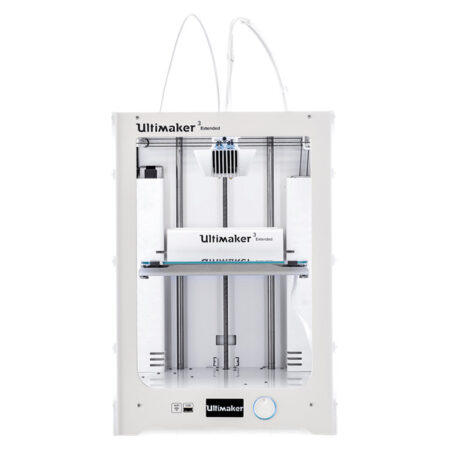

The Ultimaker 3 Extended is a desktop 3D printer made by Ultimaker, a manufacturer based in the Netherlands. This 3D printer was revealed on the 18th of October 2016, and it replaces the very successful Ultimaker 2 Extended+.

The Ultimaker 3 Extended won the MatterHackers Best Seller award in 2017.

Ultimaker now manufactures the Ultimaker S5 and S3.

Ultimaker 3 Extended main features

The Ultimaker 3 Extended has a semi-closed frame on 3 sides with a glass heated print bed. This 3D printer is capable of 3D printing with PLA, PVA, ABS, CPE (also called UPET) and Nylon filaments. The Ultimaker 3 Extended offers a very high 3D printing resolution of 20 microns and uses 2.85 – 3 mm diameter filament (less common than 1.75 mm).

Compared to its predecessor the Ultimaker 3 Extended offers a lot of new and very interesting features, including:

  • A dual extruder head
    The standard Ultimaker 3 Extended version is delivered with two extruders, which are both easy to swap and to maintain. The two nozzles are 0.4 mm diameter. Ultimaker tackled the oozing issue by adding a clever open and close functionality that ensures a not in use nozzle is slightly moved up inside the extruder head. This dual extruder feature allows the Ultimaker 3 to produce dual material 3D prints; in multi materials (such as PVA and PLA) or multi color 3D prints.
    The build volume indicated in this page is for the single extruder configuration. When using the dual extruder head, the maximum build volume gets slightly smaller.
  • Built in camera
    The Ultimaker 3 Extended is fitted with a small webcam in one corner of the build volume. This feature (a MakerBot’s classic) allows the Ultimaker users to monitor their 3D prints directly from afar.
  • Enhanced connectivity options: With Wifi, USB and even Ethernet connectivity options the Ultimaker 3 is now on par with its most famous competitors. The Ethernet plug was a very important requirement for professional users.
  • Auto levelling 3D print bed: The Ultimaker 3 Extended extruder is now equipped with a capacitive sensor which allows the print head to check if the print bed is well aligned. If that’s not the case the 3D printer is able to automatically compensate the deviations.
  • NFC 3D filament reader: This feature allows the 3D printer to automatically detect the inserted filament and adjust the 3D printer parameters.

The Ultimaker 3 Extended is slightly bigger than the Ultimaker 2 Extended+. This new version can operate in an almost perfect silence, at only 50 dB. Ultimaker recommends the open source software Cura 2 for their 3D printers.

Like its predecessor the Ultimaker 3 Extended is also available in a smaller version, simply called the Ultimaker 3.

Ultimaker 3 Extended price

The Ultimaker 3 Extended is at the manufacturer price of $3,695.

Discover more large volume 3D printers for professionals with our comparison engine.


Claim this product
Ultimaker Ultimaker 3 Extended tests and ratings
Source Rating
Amazon
3D Hubs
Pinshape
Metascore

Ultimaker 3 Extended Ultimaker

General

Model Ultimaker 3 Extended
Compare
Brand Ultimaker
Rating
Price $ 4,065
Release date 2016
Country Netherlands
Status Available
Category Professional
Technology Extrusion
Material Thermoplastics > Standard (PLA, ABS…)

Performance

Max. build size 215 × 215 × 300 mm
Max. build volume 13.8675 L
Max. temperatures
Extruder
Build chamber
Build plate
Min. layer thickness 0.02 mm
XY accuracy 0.0125 mm
Max. print speed 300 mm/s

Hardware

Dimensions 342 × 505 × 688 mm
Weight 11.3 kg
Nozzle diameter(s) 0.4 mm
Filament diameter 2.85 mm
Power input 221W @ 110-220 V 50-60 Hz AC

Features

Heated build chamber
Extruder
Dual extruder Yes
Independent Dual Extruder (IDEX)
Multiple extruders (3+)
Pellet extruder
Full color
Conveyor belt
5-axis
Hybrid manufacturing
Freeform (robotic arm)

Connectivity

USB Yes
Wifi Yes
Bluetooth
SD card
Ethernet
