RSPro600 UnionTech
| Basic specs | Price: $ 100,000 - $ 250,000100 000 € - 250 000 €76,470 £ - 191,175 £11,301,600 ¥ - 28,254,000 ¥ |
|---|---|
| Metascore We index ratings and reviews from trusted sources to calculate a reliable aggregate rating we call "metascore". | - |
| Model | RSPro600 |
| Manufacturer | UnionTech |
| Category | Industrial |
| Technology | Resin (SLA, DLP...) |
| Material | Liquid resin |
| Max. build size | 600 × 600 × 500 mm23.62 × 23.62 × 19.69 in |
| Release date | — |
| Country | — |
UnionTech RSPro600 review

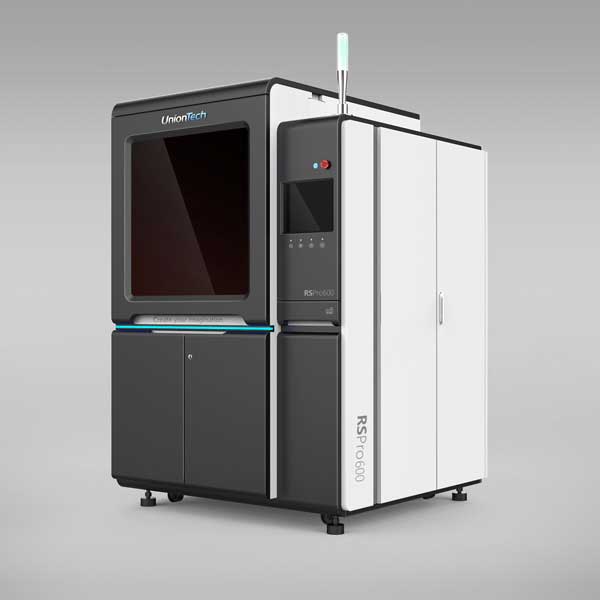

The UnionTech RSPro600 is an industrial SLA 3D printer made by UnionTech, formerly Union-Tek. This manufacturer is originally from China, although it has headquarters in the US and Germany. The RSPro600 features CE certification.
To 3D print, the UnionTech RSPro600 uses stereolithography (SLA) technology. This means that a powerful laser beam selectively cures layers of resin, one after the other.
RSPro600 main features
- Large build volume: the RSPro600 offers a large build volume of 600 x 600 x 500 mm, where users can 3D print objects of up to 100 kg.
- Minimum layer thickness: this 3D printer can generate very thin layers of 0.05 mm.
- Closed-loop system: regulates laser power, resin level, temperature and accuracy.
- Remote control: it is possible to control the RSPro600 from a distance.
- Changeable vat: users may replace the resin vat.
UnionTech RSPro600 price
Please contact us to obtain a free quote for this professional SLA 3D printer.
UnionTech also manufactures the PILOT SD, the RSPro450 and the RSPro800.
See something wrong? Let us know.
RSPro600 UnionTech
General |
|
|---|---|
| Model | RSPro600 |
| Manufacturer | UnionTech |
| Metascore We index ratings and reviews from trusted sources to calculate a reliable aggregate rating we call "metascore". | — |
| Price | $ 100,000 - $ 250,000100 000 € - 250 000 €76,470 £ - 191,175 £11,301,600 ¥ - 28,254,000 ¥ |
| Release date | — |
| Country | — |
| Status | Available |
| Category | Industrial |
| Technology | Resin (SLA, DLP...) |
| Material | Liquid resin |
| Filament diameter | — |
| OS compatibility | Microsoft Windows |
| Generic material | Yes |
Performance |
|
|---|---|
| XY accuracy | 0.08 mm0.003 in |
| Max. build size | 600 × 600 × 500 mm23.62 × 23.62 × 19.69 in |
| Max. build volume | 180.00 L |
| Max. print speed | 12000 mm472.44 in/s |
| Min. layer thickness The thinnest layer height of filament material the 3D printer can print. The thinner the layer height, the more detailed the final result. | 0.01 mm0 in |
Hardware |
|
|---|---|
| Dimensions | 1621 × 1617 × 2227 mm63.82 × 63.66 × 87.68 in |
| Weight | 2300 kg5070.64 lb |
| Nozzle diameter(s) | — |
| Power input | 110-120 VAC, 60 Hz |
Features |
|
|---|---|
| Heated print bed | — |
| Heated build chamber | — |
| Automatic calibration | — |
| Closed frame | Yes |
| Dual extruder | — |
| Independent Dual Extruder | — |
| Full color | — |
| LCD screen | — |
| Touchscreen | Yes |
| On-board camera | — |
| Mobile app | — |
| 3D scanners | — |
| CNC mill | — |
| Electronics 3D printing | — |
| Laser engraving | — |
| Conveyor belt | — |
| Air filter | — |
| Pellet extruder | — |
Connectivity |
|
|---|---|
| USB | — |
| Wifi | — |
| Bluetooth | — |
| SD card | — |
| Ethernet | Yes |
