HDI Compact C506
By
Polyga
Category | Stationary > Industrial |
Topic | Metrology 3D scanners |
Technology | Structured light |
Max. resolution | 0.02 mm |
Country | Canada |
From
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...).
$ 16,990
Description

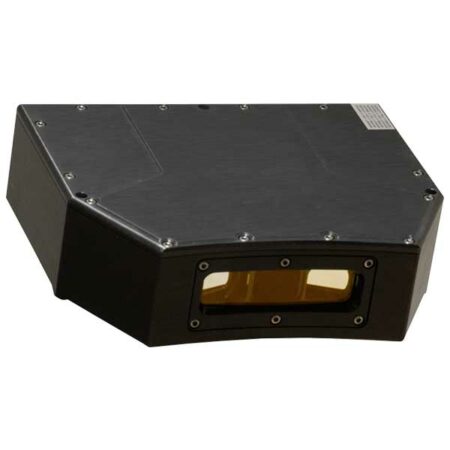

The Polyga HDI Compact C506 is a professional plug-and-play 3D scanner made by Polyga, a manufacturer from Canada.
It is part of Polyga's HDI Compact C series of three professional 3D scanners. Polyga HDI Compact 3D scanners use blue LED structured light 3D scanning technology to capture objects in less than a second. They are the next generation of HDI 100 3D scanners.
The HDI Compact C506 is ideal for 3D scanning very small parts in high resolution and accuracy. Indeed, it features two 5.2 monochrome MP cameras.
HDI Compact C506 main features
- Resistant: with its solid aluminum body, the HDI Compact C506 is dust and water resistant.
- Plug-and-play: Polyga pre-calibrates their 3D scanners before shipping, so they are ready to use out of the box.
- Small and lightweight: this gives users the possibility to access narrow spaces and to mount the 3D scanner on industrial robots.
- FlexScan3D: Polyga's proprietary software features a variety of post-processing capabilities.
Polyga HDI Compact C506 price
This professional 3D scanner is available at the manufacturer price of $16,990. Discover other Polyga 3D scanners with our comparison engine.Technical specifications
General |
|
---|---|
Model | HDI Compact C506 |
Brand | Polyga |
Price
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...).
|
upon request |
Release date | 2018 |
Country | Canada |
Status | Available |
Category | Stationary > Industrial |
Topic | Metrology |
Technology | Structured light |
OS compatibility | Microsoft Windows |
Performance |
|
---|---|
Max. resolution | 0.02 mm |
Max. accuracy | 0.012 mm |
Volumetric accuracy | - |
Acquisition speed | 10,000,000 points/s |
Camera resolution | 5 MP |
Working range | 0.025 m |
Scanning area (near) | 27 × 45 mm |
Scanning area (far) | 30 × 45 mm |
Hardware |
|
---|---|
Dimensions | 49 × 136 × 170 mm |
Weight | 1.52 kg |
Features |
|
---|---|
Texture/Colors | |
Wireless | - |
Robotic arm | |
Enclosed | - |
Connectivity |
|
---|---|
USB | |
Wifi | - |
Bluetooth | - |
SD card | - |
Ethernet | - |
