F430 CreatBot

Overview Full specs
EUR USD GBP JPY
Metric Imperial
F430 CreatBot - High temp, Large format
Buy the CreatBot F430
Seller Shipping zones
Aniwaa Worldwide Quote
AliExpress Worldwide Buy

Editor's pick

Basic specs Price:$ 500 - $ 5,000
Model F430
Compare
Brand CreatBot (see all products)
Category Professional
Topic High-temperature 3D printing (see all articles)
Technology Extrusion
Material Thermoplastics > High-performance (PEEK, Ultem...)
Build volume 400 x 300 x 300 mm
Release date 2018
Country China

Full specs

CreatBot F430 review

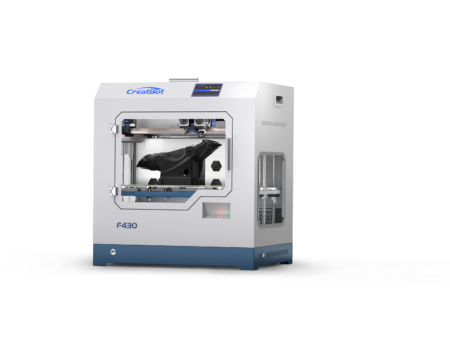

The CreatBot F430 is a desktop 3D printer made by CreatBot, a manufacturer based in China.

This dual extruder 3D printer is able to 3D print PEEK and PEI thanks to its closed and heated build volume, heated print bed, and optional high-temperature nozzle.

F430 main features

  • Air filter: for a safer user environment.
  • Automatic bed leveling: the F430’s probe levels the ceramic print bed with 25 points.
  • Dual extrusion: enables 3D printing with two different materials simultaneously, including soluble support.
  • Closed and heated chamber: the build area may heat up to 70°C, for better 3D printing quality.
  • High-temperature nozzle (optional): the default nozzle is able to heat up to 260°C. However, a nozzle capable of reaching up to 420°C is available to 3D print high-performance materials such as PEEK.

This desktop 3D printer also features a filament detector and an auto-shutdown function.

CreatBot F430 price

This PEEK 3D printer is available for under $5,000 (see on AliExpress).

Discover more high-temperature 3D printers in our PEEK article.


Claim this product

F430 CreatBot

Overview Full specs
EUR USD GBP JPY
Metric Imperial

General
Model F430
Compare
Manufacturer CreatBot
Price $ 500 - $ 5,000
Release date 2018
Country China
Status Available
Category Professional
Technology Extrusion
Material Thermoplastics > High-performance (PEEK, Ultem...)
Thermoplastics > Standard (PLA, ABS…)
Thermoplastics > Engineering (PC, nylon…)

Performance
Max. build size 400 x 300 x 300 mm
Max. build volume 36 L
Max. temperatures
Extruder 420 °C
Build chamber 70 °C
Build plate 120 °C
Min. layer thickness 0.02 mm
XY accuracy 0.04 mm
Max. print speed 180 mm/s

Hardware
Dimensions 660 × 470 × 580 mm
Weight 43 kg
Nozzle diameter(s) 0.4 mm
Filament diameter 1.75 mm
Power input 100-240 V 50-60 Hz

Features
Heated build chamber —
Extruder
Dual extruder Yes
Independent Dual Extruder (IDEX) —
Multiple extruders (3+) —
Pellet extruder —
Full color —
Conveyor belt —
5-axis —
Hybrid manufacturing —
Freeform (robotic arm) —

Connectivity
USB Yes
Wifi —
Bluetooth —
SD card —
Ethernet —
