Stream 30 Ultra SC2
By
Volumic
Product data validated by the manufacturer.
Technology | Fused Filament Fabrication (FFF) |
Materials | Ceramic, Composites, Metal, Polymers |
Feedstock format | Filament |
Build envelope | 300 × 200 × 310 mm |
Country | France |
From
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...).
$ 5,490
Description
Volumic Stream 30 Ultra SC2 overview

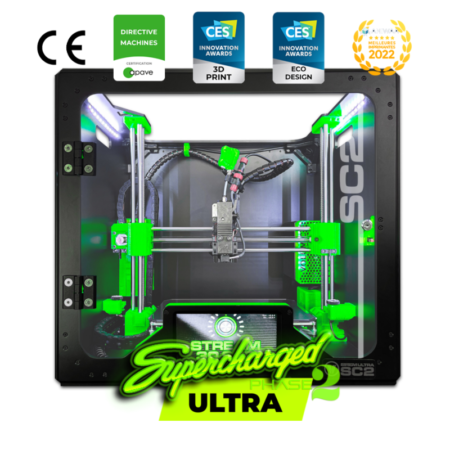

The Stream 30 Ultra SC2 is a 3D printer produced by Volumic, a manufacturer based in France.
It uses the Fused Filament Fabrication technology to produce alumina, zirconia, continuous fiber reinforced polymers, steel, elastomers and thermoplastics parts using filament feedstock.
It offers a build volume of 300 × 200 × 310 mm .
Volumic Stream 30 Ultra SC2 price
This 3D printer is available from $ 5,490 .
Technical specifications
General |
|
---|---|
Model | Stream 30 Ultra SC2 |
Brand | Volumic |
Price Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...). | from $ 5,490 |
Country | France |
Status | Available |
Release date | 2021 |
Topics | - |
Certifications | - |
Performance |
|
---|---|
Build envelope | 300 × 200 × 310 mm |
Build volume | 18.6 L |
Max. resolution (XY) | 0.015 mm |
Max. resolution (Z) | 0.001 mm |
Max. build rate | 144 cm3/h |
Max. chamber temp. | - |
Full color | - |
Technology |
|
---|---|
Process | Material Extrusion (MEX) |
Technology | Thermally-bonded > Fused Filament Fabrication (FFF) |
Max. print speed | 300 mm /s |
Max. deposition rate | - |
Filament diameter(s) | 1.75 mm |
Max. build plate temp. | 160 °C |
Number of extruders | 1 |
Max. extruder temp. | 420 °C |
Independent Dual Extruder (IDEX) | - |
Nozzle diameter(s) | 0.4 mm |
Materials |
|
---|---|
Feedstock format | Filament |
Materials | Ceramic |
Alumina | |
Zirconia | |
Composites | |
Continuous fiber reinforced polymers | |
Carbon reinforced polymers | |
Glass fiber reinforced polymers | |
KEVLAR reinforced polymers | |
Continuous fiber reinforced polymers (others) | |
Metal | |
Steel | |
Stainless steel: 316L | |
Polymers | |
Elastomers | |
Thermoplastic elastomers: TPE, TPU | |
Thermoplastics | |
PLA | |
PMMA | |
POM | |
PVA | |
Polypropylene | |
Polyamides: PA-AF, PA-CF, PA-GF, PA11, PA12, PA6, PA66 | |
Polyaryletherketone: PEEK, PEEK-CF, PEKK, PEKK-CF | |
Polycarbonates: PC, PC-ABS, PC-ASA | |
Polyesters: PCTG, PET, PETG | |
Polyimides: ULTEM 1010 (PEI), ULTEM 9085 (PEI) | |
Styrenes: ABS, ASA, HIPS |
Applications |
|
---|---|
Industries | - |
Hardware |
|
---|---|
Dimensions | 500 × 540 × 480 mm |
Weight | 35 kg |
Axes | - |
Hybrid manufacturing | - |
Robotic arm | - |
