X24HT Machina Corp

X24HT Machina Corp - 3D printers
Buy the Machina Corp X24HT
Seller Shipping zones
Aniwaa Worldwide Quote
Basic specs Price: $ 6,250
Model X24HT
Compare
Brand Machina Corp (see all products)
Category Professional
Topic High-temperature 3D printing (see all articles)
Technology Extrusion
Material Thermoplastics > High-performance (PEEK, Ultem...)
Build volume 305 x 210 x 280 mm
Release date 2017
Country Canada

Machina Corp X24HT review

Machina Corp has ceased operations. Find similar printers in our PEEK 3D printer selection.

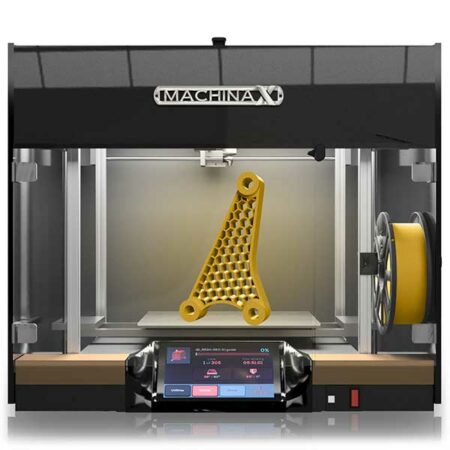

The Machina Corp X24HT is a professional 3D printer made by Machina Corp, a manufacturer from Canada.

The Machina X24HT is one of three PEEK-ready 3D printers of the High Temperature X-Series. Machina Corp also manufactures custom-sized builds of the regular and HT series.

This 3D printer’s high-temperature extruder (500°C) is compatible with various high-performance engineering thermoplastics such as PEEK and PEI. The X24HT features a relatively large build volume as well.

X24HT options

Different features are available optionally:

  • Dual extruder
  • Automatic calibration
  • LCD screen or touchscreen
  • Onboard camera

Machina Corp X24HT price

The X24HT PEEK 3D printer is available between $5K and $20K.

Machina Corp also manufactures the X16HT PEEK 3D printer with a smaller build volume. Discover more 3D printers with our 3D printer comparison engine.


Claim this product

X24HT Machina Corp

General

Model X24HT
Compare
Manufacturer Machina Corp
Price $ 6,250
Release date 2017
Country Canada
Status discontinued
Category Professional
Technology Extrusion
Material Thermoplastics > High-performance (PEEK, Ultem...)
Thermoplastics > Standard (PLA, ABS…)
Thermoplastics > Engineering (PC, nylon…)

Performance

Max. build size 305 x 210 x 280 mm
Max. build volume 17.934 L
Max. temperatures
Extruder
Build chamber
Build plate
Min. layer thickness 0.05 mm
XY accuracy 0.01 mm
Max. print speed 150 mm/s

Hardware

Dimensions 700 × 570 × 600 mm
Weight 40 kg
Nozzle diameter(s) 0.4 mm
Filament diameter 1.75 mm
Power input 100-120V 50-60Hz

Features

Heated print bed Yes
Extruder
Dual extruder Yes
Independent Dual Extruder (IDEX)
Multiple extruders (3+)
Pellet extruder
Full color
Conveyor belt
5-axis
Hybrid manufacturing
Freeform (robotic arm)

Connectivity

USB Yes
Wifi Yes
Bluetooth
SD card Yes
Ethernet
