LENS MR-7 Optomec

LENS MR-7 Optomec  - 3D printers
Basic specs Price: > $ 250,000> 250 000 €> 191,175 £> 28,254,000 ¥
Metascore -
Model LENS MR-7
Manufacturer Optomec
Category Industrial
Technology Directed Energy Deposition
Material Metal
Max. build size 300 × 300 × 300 mm11.81 × 11.81 × 11.81 in
Release date
Country

Optomec LENS MR-7 review

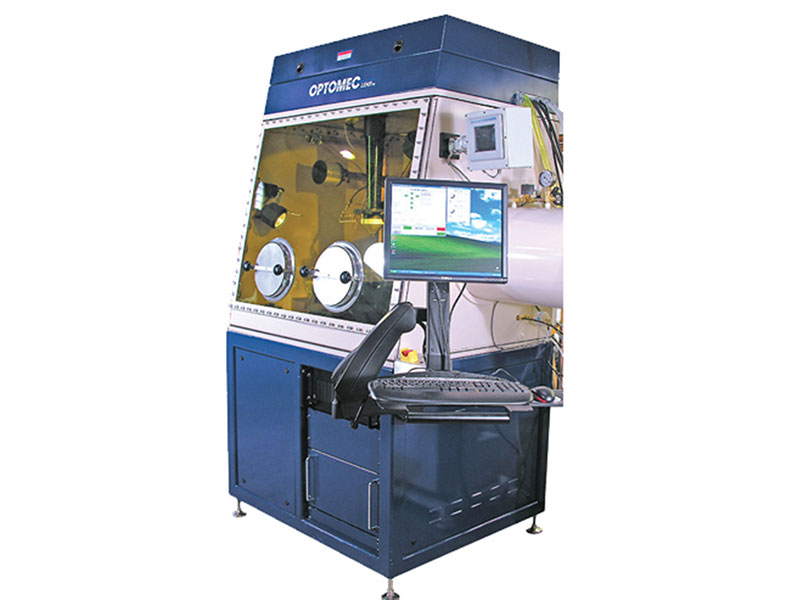

The Optomec LENS MR-7 is an industrial 3D printer made by Optomec, a manufacturer based in Albuquerque, USA.

Optomec LENS MR-7 3D printing technology

The Optomec LENS MR-7 uses LENS 3D printing technology to build metal parts. The LENS based 3D printers use a high-power laser (500W to 4kW) to fuse powdered metals into fully dense three-dimensional structures.

The LENS process takes place in a closed 3D printing build chamber which is purged with argon so that the oxygen and moisture levels stay very low (<10 ppm). This keeps the part clean and prevents oxidation. The metal powder feedstock is delivered to the material deposition head by Optomec’s proprietary powder-feed system. Once a single layer has been deposited, the material deposition head moves on to the next layer. This process is repeated until the whole part is constructed. When complete, the component is removed and can be heat-treated, hot-isostatic-pressed, machined, or finished to best suit the final application.

Optomec LENS MR-7 applications

The Optomec LENS MR-7 is a system intended for research and development applications. This industrial 3D printer produces medium-sized parts.


See something wrong? Let us know.

LENS MR-7 Optomec

General

Model LENS MR-7
Manufacturer Optomec
Metascore
Price > $ 250,000> 250 000 €> 191,175 £> 28,254,000 ¥
Release date
Country
Status Available
Category Industrial
Technology Directed Energy Deposition
Material Metal
Filament diameter
OS compatibility Microsoft Windows
Generic material

Performance

XY accuracy 0.25 mm0.01 in
Max. build size 300 × 300 × 300 mm11.81 × 11.81 × 11.81 in
Max. build volume 27.00 L
Max. print speed
Min. layer thickness 0.03 mm0.001 in

Hardware

Dimensions 3000 × 1500 × 2500 mm118.11 × 59.06 × 98.43 in
Weight
Nozzle diameter(s)
Power input

Features

Heated print bed
Heated build chamber
Automatic calibration
Closed frame Yes
Dual extruder
Independent Dual Extruder
Full color
LCD screen
Touchscreen
On-board camera
Mobile app
3D scanners
CNC mill
Electronics 3D printing
Laser engraving
Conveyor belt
Air filter

Connectivity

USB
Wifi
Bluetooth
SD card
Ethernet Yes
