EinScan-Pro+
| Category | Handheld |
| Topic | Handheld 3D scanners |
| Technology | Structured light |
| Max. resolution | 0.24 mm |
| Country | China |
Shining 3D
Description

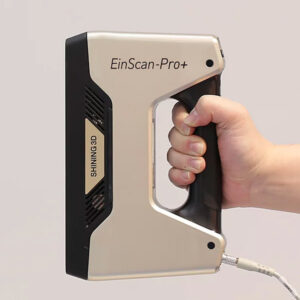

The EinScan-Pro+ is a portable 3D scanner designed by Shining 3D, a manufacturer based in China. The EinScan-Pro+ is the latest version of the EinScan-Pro and was introduced during the CES 2017.
EinScan-Pro+ features and comparison with EinScan-Pro
The main new features of the EinScan-Pro+ and differences with the EinScan-Pro are:
- New HD capture mode
- Larger 3D scanning area
- Rapid acquisition module for faster 3D capture
This handheld 3D scanner offers the same advantages as its predecessor: it is light and portable with a weight of only 0.8 kg(1.76 lbs). Besides, several different configurations are available in order to offer the best 3D scanning speed to resolution ratio. The four 3D scan modes available are similar to the EinScan-Pro: “handheld rapid scan”, “handheld HD scan”, “automatic scan” and “free scan”.
The Shining 3D EinScan-Pro original 7 data capture lines have been increased to 100 lines on the EinScan-Pro+. The 3D scanning speed under the handheld HD mode has been increased to 550,000 points/second.
This professional handheld 3D scanner uses a white structured light 3D scanning technology, based on LED lighting. We do not recommended outdoor use as the sun affects the structured light, even under cloudy weather.
In addition, the EinScan-Pro+ is delivered with the latest version of the EinScan software. This software includes an improved user experience, enhanced user-friendliness of the software interface, one-click data upload to the “Sketchfab” platform, and streamlined process to share scanned 3D data directly over the Internet. EinScan v2.5 also includes multiple new and upgraded functions for a more efficient 3D scanning process.
In option, a specific module called R² (Rapid Registration) can be activated for the “handheld rapid scan” mode. It allows the EinScan-Pro+ to recognize and align reference points. With this, even large-size objects with few geometrical characteristics, or flat objects without any geometrical characteristics can easily be 3D scanned. Besides, the R² mode delivers a rapid and smooth operating experience while ensuring 3D scanning accuracy.
Shining 3D EinScan-Pro+ price
Two additional packages are available for the EinScan-Pro+; the “industrial pack” with a tripod and a turntable, and the “color pack”. In addition, here is the price of the EinScan-Pro+ for the various configurations (the prices are MSRP, please contact us to get the exact price in your country):
- Basic version: $4,999
- Basic + Industrial pack + Color pack: $6,397
- Basic + Color pack: $5,698
- Basic + Industrial pack: $5,698
- Basic + R² Function: $5,299
The recently introduced EinScan software version 2.5 is available as a free upgrade for all EinScan (EinScan-S, EinScan-Pro and EinScan-Pro+) users.
The EinScan-Pro+ is available on Amazon.
Upcoming trade shows
The latest innovations and equipment in the advanced manufacturing sector.
InterMold is an international trade fair for tool and mold making, design, and product development.
Exhibition for Metal Forming Machines, Industrial Tools, Welding and Cutting Equipment.
Automate is the largest automation show in North America.
EDIX is Japan’s Largest Industry Show for the Educational Field.
International Fair of Machine Tools and Equipment, consolidated as one of the largest events in Latin America in the industry.
The leading automation and manufacturing hybrid exhibition.
The largest exhibition for manufacturing machinery in East Java.
North India’s biggest exhibition on metal cutting and machine tools industry.
The leading additive manufacturing trade show in TaIwan.
An international industrial exhibition in the form of a roadmap held in the Industrial Complex.
The premier meeting for orthotic, prosthetic and pedorthic professionals.
North America’s leading technical boat-building showcase.
North America’s Largest Metal Forming, Fabricating, Welding and Finishing Event.
The premier automotive specialty products trade event.
A leading global tradeshow dedicated to Additive Manufacturing.
Indonesia’s largest international manufacturing exhibition.
Technical specifications
General |
|
|---|---|
| Model | EinScan-Pro+ |
| Brand | Shining 3D |
| Price
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...).
|
upon request |
| Release date | 2017 |
| Country | China |
| Status | discontinued |
| Category | Handheld |
| Topic | Handheld |
| Technology | Structured light |
| OS compatibility | Microsoft Windows |
Performance |
|
|---|---|
| Max. resolution | 0.24 mm |
| Max. accuracy | 0.05 mm |
| Volumetric accuracy | - |
| Acquisition speed | 550,000 points/s |
Hardware |
|
|---|---|
| Dimensions | 248 × 156 × 48 mm |
| Weight | 0.8 kg |
Features |
|
|---|---|
| Texture/Colors | |
| Wireless | - |
| Robotic arm | - |
| Enclosed | - |
Connectivity |
|
|---|---|
| USB | |
| Wifi | - |
| Bluetooth | - |
| SD card | - |
| Ethernet | - |
