INDUSTRY F420 3DGence

INDUSTRY F420 3DGence - High temp, Large format
Buy the 3DGence INDUSTRY F420
Seller Shipping zones
Aniwaa Worldwide Quote

Editor's pick

Basic specs Price: $ 50,000 - $ 100,000
Model INDUSTRY F420
Compare
Brand 3DGence (see all products)
Category Industrial
Topic High-temperature 3D printing (see all articles)
Technology Extrusion
Material Thermoplastics > High-performance (PEEK, Ultem...)
Build volume 380 x 380 x 420 mm
Release date 2019
Country Poland

3DGence INDUSTRY F420 review

The 3DGence INDUSTRY F420 is an industrial high-temperature 3D printer for demanding applications manufactured by 3DGence. 3DGence is a Polish manufacturer and provider of comprehensive 3D printing solutions including professional accessories and engineering-grade materials.

This professional 3D printer is suitable for various applications, from prototyping to producing end-use parts or spare parts.

INDUSTRY F420 main features

  • High print speed of up to 400 mm/s
  • Heated chamber up to 180°C, high-temperature extruder (up to 500°C), build plate (up to 180°C)
  • Large build volume: 380 x 380 x 420 mm
  • Filament bay for up to four spools, heated up to 50°C
  • Cloud-based solution

Compatible materials

The 3DGence INDUSTRY F420 is able to 3D print a wide range of materials, including: PEI (ULTEM™), PEEK, PLA, ABS, Nylon (PA6/69), and Polycarbonate. It is also compatible with soluble support materials such as ESM-10 and breakaway support material such as HIPS.

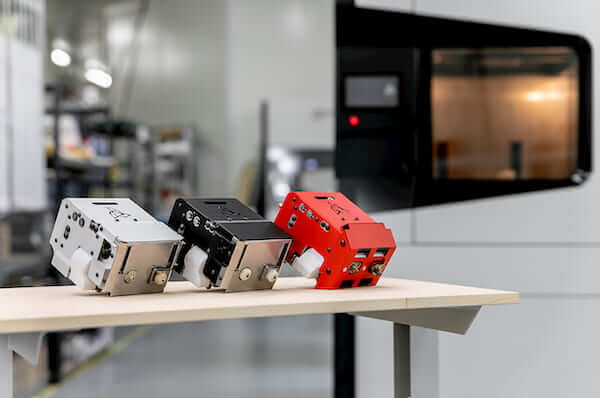

Interchangeable printing modules for versatile 3D printing

The INDUSTRY F420 is equipped with a practical and cost-effective modular system. This allows the printer to use a wide range of materials, instead of being limited to what only one type of nozzle can print.

Three different modules are available:

  • M280 module: PLA, ABS, ASA, PA6/69
  • M360 module: PC, ULTEM™ filament
  • M500 module: PEEK

3DGence INDUSTRY F420 price

The INDUSTRY F420 price is between $49,000 and $75,000. Please contact us to obtain a quote for this 3D printer.

Discover more 3D printers with our 3D printer comparison engine.


Claim this product

INDUSTRY F420 3DGence

General

Model INDUSTRY F420
Compare
Manufacturer 3DGence
Price $ 50,000 - $ 100,000
Release date 2019
Country Poland
Status Available
Category Industrial
Technology Extrusion
Material Thermoplastics > High-performance (PEEK, Ultem...)
Thermoplastics > Standard (PLA, ABS…)
Thermoplastics > Engineering (PC, nylon…)
Thermoplastics > Engineering (PC, nylon…)
Thermoplastics > Engineering (PC, nylon…)

Performance

Max. build size 380 x 380 x 420 mm
Max. build volume 60.648 L
Max. temperatures
Extruder 500 °C
Build chamber 180 °C
Build plate 180 °C
Min. layer thickness
XY accuracy
Max. print speed 400 mm/s

Hardware

Dimensions
Weight
Nozzle diameter(s) 0.4 mm
Filament diameter 1.75 mm
Power input

Features

Heated build chamber Yes
Extruder
Dual extruder Yes
Independent Dual Extruder (IDEX)
Multiple extruders (3+)
Pellet extruder
Full color
Conveyor belt
5-axis
Hybrid manufacturing
Freeform (robotic arm)

Connectivity

USB Yes
Wifi Yes
Bluetooth
SD card Yes
Ethernet Yes
