M-Flex
| Technology | Binder Jetting |
| Material | Metal,Ceramic |
| Topic | Metal 3D printing |
| Build volume | 401 × 250 × 250 mm |
| Release date | - |
| Country | Germany |

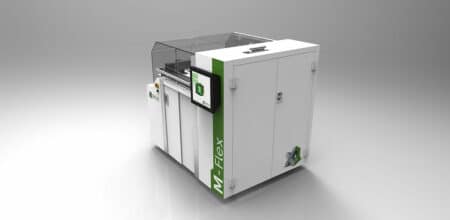

ExOne M-Flex overview
The ExOne M-Flex is an industrial 3D printer made by the German manufacturer ExOne.
ExOne M-Flex 3D printing technology
ExOne company is an expert in the Binder Jetting 3D printing technology applied to sand, metal and ceramics materials. The Binder Jetting technology is an additive manufacturing process in which a liquid binding agent is selectively deposited to join powder particles. First the printhead selectively dispense micro droplets of binder into the material powder to glue the particles together. The job box, where the 3D printed object is fabricated, then lowers and another layer of powder is spread for the process to start over. Layer after layer, the 3D printed part is fabricated.
The ExOne M-Flex creates parts from metal or ceramics powders. Those 3D printed parts are typically cured, sintered and sometimes infiltrated with another material, depending on the application. Hot isostatic pressing may be employed to achieve high densities in solid metals.
ExOne M-Flex price
This industrial 3D printer costs more than USD 500,000.
Interested in this product?
ExOne M-Flex technical specifications
General |
|
|---|---|
| Model | M-Flex |
| Brand | ExOne |
| Price
Approximate starting prices based on supplier-provided information and public data. Prices may vary over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...).
|
- |
| Release date | - |
| Country | Germany |
| Status | Available |
| Category | Industrial |
| Technology | Binder Jetting |
| Material | Metal Ceramic |
Performance |
|
|---|---|
| Max. build size | 401 × 250 × 250 mm |
| Max. build volume | 25.06 L |
| Max. temperatures | |
| Extruder | - |
| Build chamber | - |
| Build plate | - |
| Min. layer thickness | 0.15 mm |
| XY accuracy | 0.0635 mm |
| Max. print speed | - |
Hardware |
|
|---|---|
| Dimensions | 1675 × 1400 × 1855 mm |
| Weight | 1020 kg |
| Nozzle diameter(s) | - |
| Filament diameter | - |
| Power input | 208V-240V / 3 phases |
Features |
|
|---|---|
| Heated build chamber | - |
| Extruder | |
| Dual extruder | - |
| Independent Dual Extruder (IDEX) | - |
| Multiple extruders (3+) | - |
| Pellet extruder | - |
| Full color | - |
| Conveyor belt | - |
| 5-axis | - |
| Hybrid manufacturing | - |
| Freeform (robotic arm) | - |
Connectivity |
|
|---|---|
| USB | - |
| Wifi | - |
| Bluetooth | - |
| SD card | - |
| Ethernet | |
