Artec Spider Artec
| Basic specs | Price: $ 18,36315 700 €14,042 £2,075,354 ¥ |
|---|---|
| Metascore We index ratings and reviews from trusted sources to calculate a reliable aggregate rating we call "metascore". | — |
| Model | Artec Spider |
| Manufacturer | Artec |
| Category | Handheld |
| Technology | Structured light |
| Output formats | AOP, ASCII, E57, OBJ, PLY, PTX, STL, WRL, XYZRGB |
| Max. resolution The minimal distance between two scan points. The lower the number, the higher the resolution and the more detailed the 3D scan. | 0.1 mm0.004 in |
| Release date | — |
| Country | — |
Artec Artec Spider review

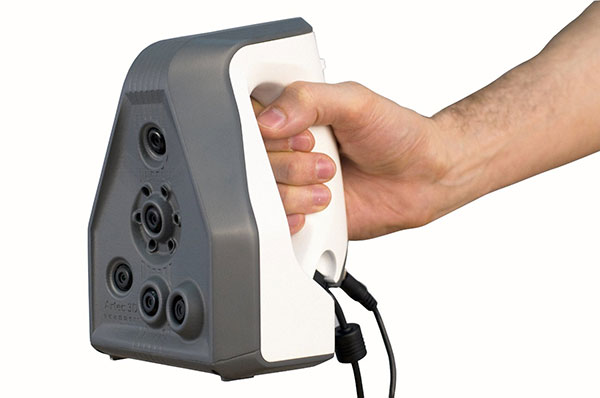

The Artec Spider is a professional portable 3D scanner made by Artec.
The Artec Spider uses a blue LED the structured light technology to 3D scan a wide variety of small detailed subjects and their textures (colors): objects, mechanical parts, body parts (hand, foot, ear).
The 3D scanner Artec Spider has a very interesting price to performance ratio and can be used for various uses cases such as reverse engineering, body scan or museum conservation.
It is recommended to buy this 3D scanner with the Artec Studio software suite. Artec Studio is a powerful tool for an optimized 3D scanning process. This software is capable of aligning, stitching and repairing 3D scans.
See something wrong? Let us know.
Artec Spider Artec
General |
|
|---|---|
| Model | Artec Spider |
| Manufacturer | Artec |
| Metascore We index ratings and reviews from trusted sources to calculate a reliable aggregate rating we call "metascore". | — |
| Price | $ 18,36315 700 €14,042 £2,075,354 ¥ |
| Release date | — |
| Country | — |
| Status | discontinued |
| Category | Handheld |
| Technology | Structured light |
| Output formats | AOP, ASCII, E57, OBJ, PLY, PTX, STL, WRL, XYZRGB |
| OS compatibility | Microsoft Windows |
Performance |
|
|---|---|
| Max. resolution The minimal distance between two scan points. The lower the number, the higher the resolution and the more detailed the 3D scan. | 0.1 mm0.004 in |
| Max. accuracy | 0.05 mm0.002 in |
| Acquisition speed | 1000000 points/s |
| Camera resolution | 1.3 MP MP |
| Working range | 0.17 – 0.35 m |
| Scanning area (near) | 90 × 70 mm3.54 × 2.76 in |
| Scanning area (far) | 180 × 140 mm7.09 × 5.51 in |
Hardware |
|
|---|---|
| Dimensions | 190 × 140 × 130 mm7.48 × 5.51 × 5.12 in |
| Weight | 0.85 kg1.87 lb |
| Power input | 12V 24W |
Features |
|
|---|---|
| Texture/Colors | Yes |
| Wireless | — |
| Tripod | — |
| Rotating table | — |
| Robotic arm | — |
| 3D printers | — |
| Built-in screen | — |
Connectivity |
|
|---|---|
| USB | Yes |
| Wifi | — |
| Bluetooth | — |
| SD card | — |
| Ethernet | — |
See something wrong or missing? Let us know.
