Freestyle3D FARO
| Basic specs | Price: $ 10,000 - $ 20,00010 000 € - 20 000 €7,647 £ - 15,294 £1,130,160 ¥ - 2,260,320 ¥ The prices we display are estimates and can differ from the actual market prices. Prices vary by resellers and countries. |
|---|---|
| Metascore We index ratings and reviews from trusted sources to calculate a reliable aggregate rating we call "metascore". | — |
| Model | Freestyle3D |
| Manufacturer | FARO |
| Category | Handheld |
| Technology | Laser triangulation |
| Output formats | XYZ, XYZRGB |
| Max. resolution The minimal distance between two scan points. The lower the number, the higher the resolution and the more detailed the 3D scan. | 0.2 mm0.008 in |
| Release date | — |
| Country | — |
FARO Freestyle3D review
The FARO Freestyle3D is a professional 3D scanner made by FARO, a manufacturer based in Lake Mary, Florida in the USA.

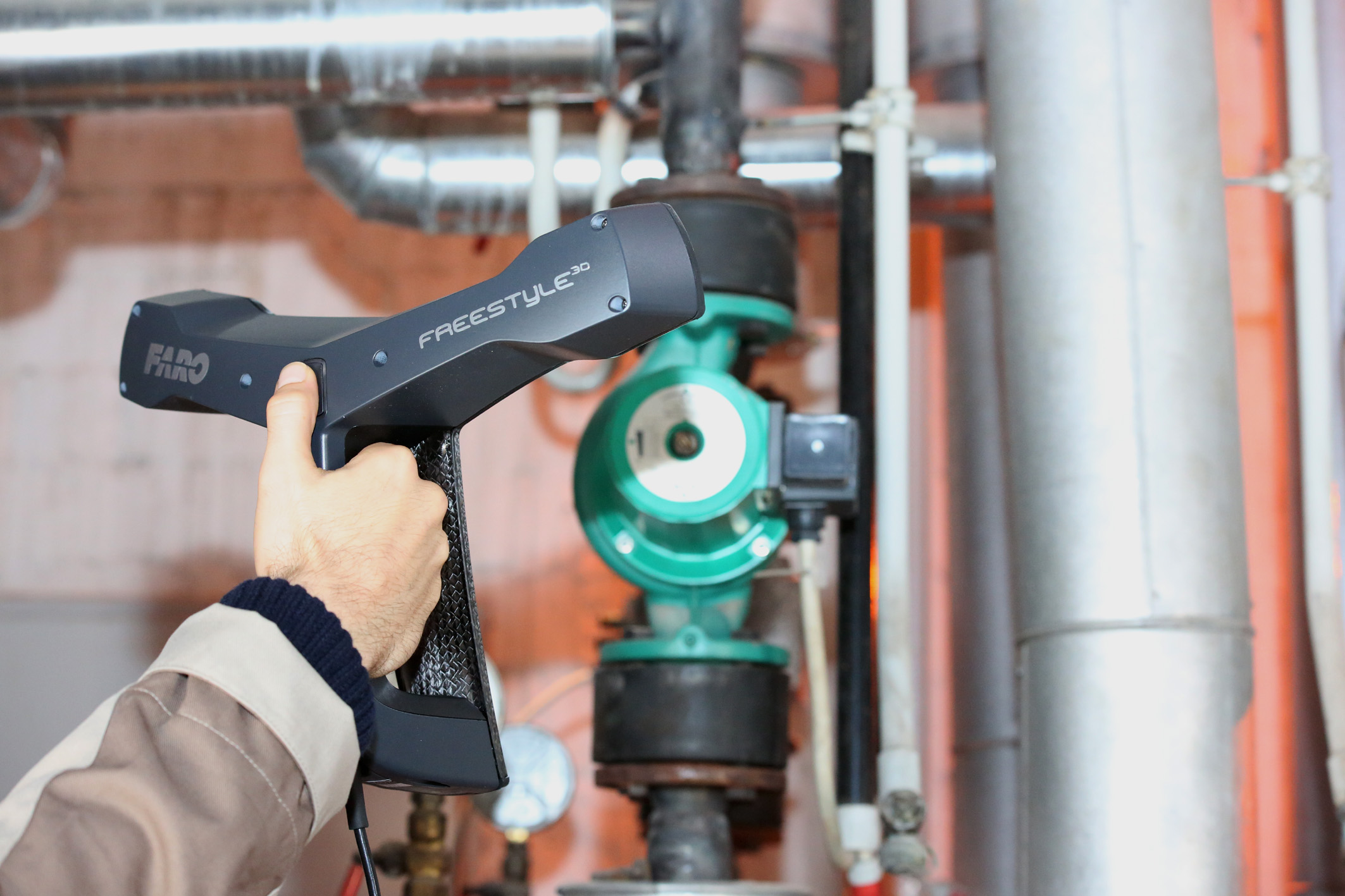

The FARO Freestyle3D is a top-quality handheld 3D scanner. It quickly and reliably documents rooms, structures and objects in 3D and creates high-definition pointclouds. With great precision it is suitable for all applications in which installations or properties must be quickly measured from various perspectives.
The applications areas of the FARO Freestyle3D are diverse and range from construction to industrial production and forensics.
Thanks to its lightweight carbon fibre body, the handheld scanner weighs less than a kilogramme and is therefore extremely portable and mobile. The tablet PC provides intuitive user guidance, even for inexperienced operators.
Freestyle3D FARO
General |
|
|---|---|
| Model | Freestyle3D |
| Manufacturer | FARO |
| Metascore We index ratings and reviews from trusted sources to calculate a reliable aggregate rating we call "metascore". | — |
| Price The prices we display are estimates and can differ from the actual market prices. Prices vary by resellers and countries. | $ 10,000 - $ 20,00010 000 € - 20 000 €7,647 £ - 15,294 £1,130,160 ¥ - 2,260,320 ¥ |
| Release date | — |
| Country | — |
| Status | Available |
| Category | Handheld |
| Technology | Laser triangulation |
| Output formats | XYZ, XYZRGB |
| OS compatibility | Microsoft Windows |
Performance |
|
|---|---|
| Max. resolution The minimal distance between two scan points. The lower the number, the higher the resolution and the more detailed the 3D scan. | 0.2 mm0.008 in |
| Max. accuracy | 1.5 mm0.06 in |
| Acquisition speed | 88000 points/s |
| Camera resolution | — |
| Working range | 0.5 - 3 m |
| Scanning area (near) | — |
| Scanning area (far) | — |
Hardware |
|
|---|---|
| Dimensions | 260 × 310 × 105 mm10.24 × 12.2 × 4.13 in |
| Weight | 0.98 kg2.16 lb |
| Power input | — |
Features |
|
|---|---|
| Texture/Colors | Yes |
| Wireless | Yes |
| Tripod | — |
| Rotating table | — |
| Robotic arm | — |
| 3D printers | — |
| Built-in screen | — |
Connectivity |
|
|---|---|
| USB | Yes |
| Wifi | — |
| Bluetooth | — |
| SD card | — |
| Ethernet | — |
