peel 1
By
peel 3d
Category | Mobile > Handheld |
Topic | Handheld 3D scanners |
Technology | Structured light |
Max. resolution | 0.5 mm |
Country | Canada |
From
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...).
$ 5,990
Description

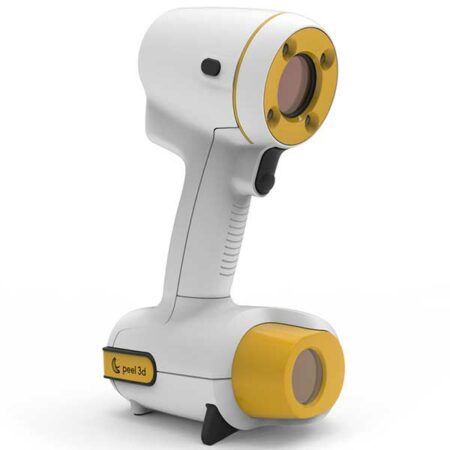

The peel 3d 3d Scanner is manufactured by peel 3d, a subsidiary of Creaform. Creaform is a well-established 3D scanner manufacturer from Canada. This 3D scanner uses a white LED light to capture objects in 3D with Structured Light technology.
Read our in-depth review of the peel 3D scanner here!
However, Creaform's professional 3D scanners are usually located in a higher price range. They include the Go!SCAN 50 and the HandySCAN 700. With this affordable yet professional 3D scanner, Creaform is now aiming for the entry-level market. The peel 3d Professional Handheld 3D Scanner is suitable for use in science and education, body scanning, reverse engineering, and other applications. Indeed, this portable 3D scanner is compatible with most types of surfaces. The peel 3d features automatic shape recognition and a user-friendly, easy-to-use software. Weighing in at less than a kilogram, this 3D scanner is relatively lightweight.peel 3d 3d Scanner compatible objects and surfaces
- Metal castings
- Clay models
- Ceramic and porcelain
- Plastics
- Painted parts
- Stone and masonry
- Sculptures
- Fabric and leather
- Body scanning
- Organic shapes
peel 3d software
This 3D scanner comes with peel 3d's intuitive data processing software. peel 3d software offers four main functionalities:- Cleanup: users can crop out things that don't belong in the 3D scan.
- Improve: to optimize the 3D capture.
- Align: users can manually align meshes.
- Export: it is possible to export 3D scans in a wide variety of formats.
peel 3d Professional Handheld 3d Scanner price
This professional-grade, portable 3D scanner is available at the manufacturer price of $5,990. The peel 3d Scanner comes with positioning targets, a USB cable and a power supply. peel 3D also manufactures the peel 2. Discover more 3D scanners with our 3D scanner comparison engine.Review
Our opinion on the 3D scanner is positive: peel 3d delivered on their promise in producing an affordable professional-grade 3D scanner.
The 3D scanner is easy to use and the software is intuitive and fast, with a selection of software tools available to edit and prepare a good final mesh in a short amount of time.
Our results were very satisfying even considering that we lacked a professional test lab with high-quality lighting for this review. We were not disappointed when the 3D scanner hit its limitations with some objects, as peel 3d had clearly identified these on their website.
Pros
- Fast software processing time
- Start-and-stop scan system
- User-friendly process
Cons
- Easy to lose track of the target
- Cable is too short for large scans
Technical specifications
General |
|
---|---|
Model | peel 1 |
Brand | peel 3d |
Price
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...).
|
upon request |
Release date | 2017 |
Country | Canada |
Status | discontinued |
Category | Mobile > Handheld |
Topic | Handheld |
Technology | Structured light |
OS compatibility | Microsoft Windows |
Performance |
|
---|---|
Max. resolution | 0.5 mm |
Max. accuracy | 0.25 mm |
Volumetric accuracy | - |
Acquisition speed | 550 points/s |
Hardware |
|
---|---|
Dimensions | 96 × 140 × 258 mm |
Weight | 0.85 kg |
Features |
|
---|---|
Texture/Colors | - |
Wireless | - |
Robotic arm | - |
Enclosed | - |
Connectivity |
|
---|---|
USB | |
Wifi | - |
Bluetooth | - |
SD card | - |
Ethernet | - |
