TrackScan-P550
Category | Mobile > Handheld |
Topic | Metrology 3D scanners |
Technology | Laser triangulation |
Max. resolution | 0.02 mm |
Country | China |
Description

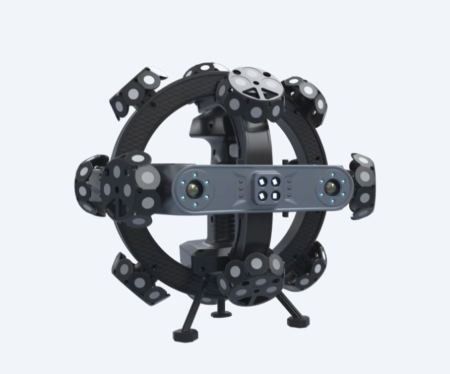

The TrackScan-P550 is an optical 3D measurement system produced by Scantech. Scantech is a 3D scanner manufacturer based in China.
Scantech TrackScan-P550 main features
The TrackScan-P550, also known as TrackScan-P, is the most advanced optical 3D measurement system of the TrackScan series. It offers several key innovations including ultra-fast 3D scanning, upgraded high-resolution cameras, and an innovative edge detection feature. TrackScan-P550 is a target-free optical 3D scanner that can precisely measure parts without the hassle of having to stick reference targets.
The TrackScan-P550 is designed to capture large-scale objects in applications from quality control, product development, reverse engineering, and more. It allows accurate 3D capture in various industries and applications, from aerospace to automotive, rail transport, molding, and more.
3D scanning modes

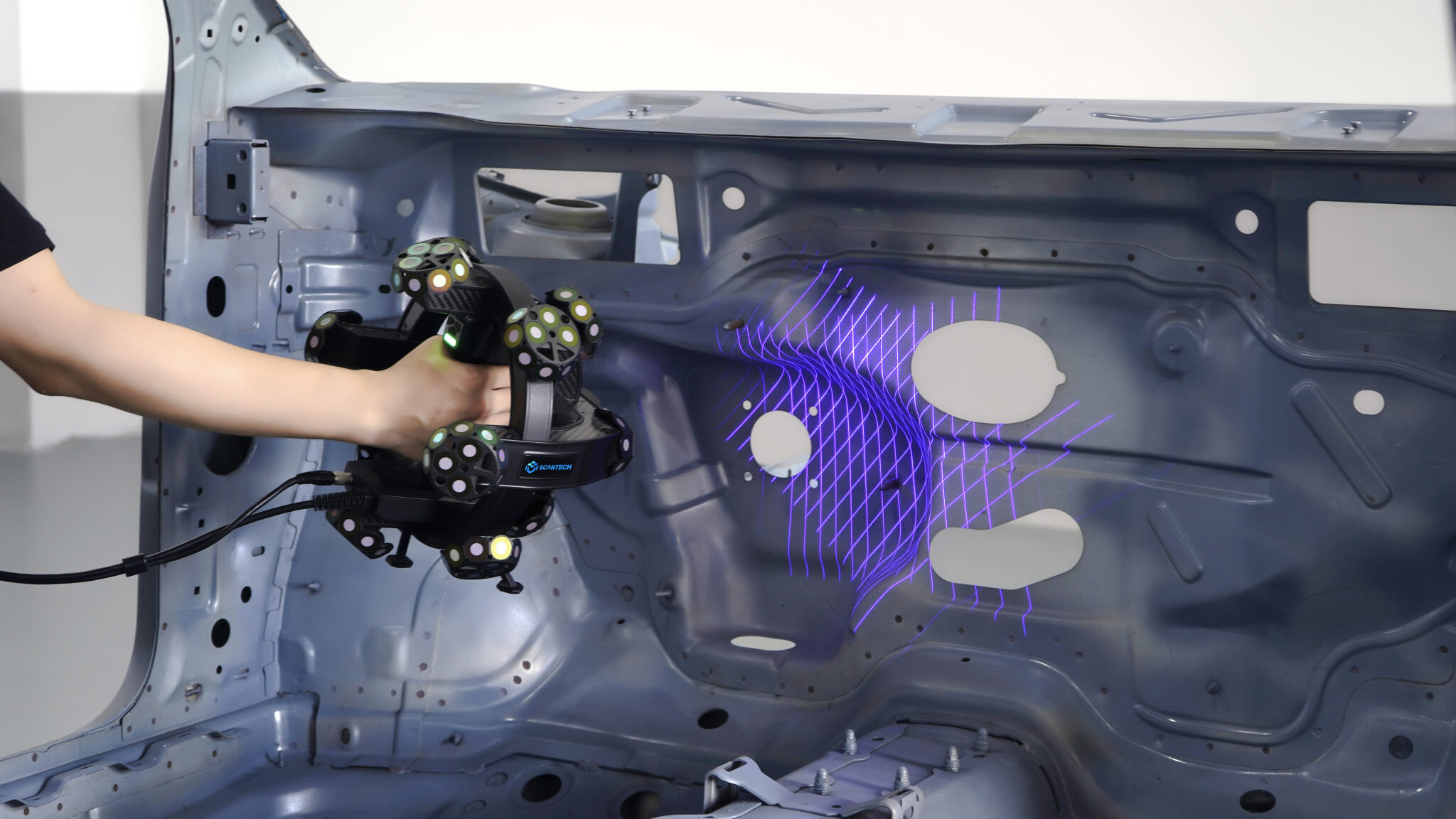

Scantech’s TrackScan-P550 makes use of blue lasers to capture 3D data. Three 3D capture modes are available:
- Ultra-fast mode for efficiency (21 blue laser crosses)
- Hyperfine mode for details (7 blue parallel laser lines)
- Deep hole mode for hard-to-reach areas (1 extra blue laser line)
Scantech TrackScan-P550: technical specifications
- Accuracy: up to 0.025 mm
- Measurement rate: up to 2,600,000 measurements/s
- Scanning area: up to 500 mm x 600 mm
- Resolution: 0.020 mm
- Object size (recommended): 100-8000 mm
- Stand-off distance: 300 mm
Scantech TrackScan-P550 price
Please contact us to obtain a quote.
Technical specifications
General |
|
---|---|
Model | TrackScan-P550 |
Brand | SCANTECH (HANGZHOU) |
Price
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...).
|
upon request |
Release date | 2022 |
Country | China |
Status | Available |
Category | Mobile > Handheld |
Topic |
Handheld Metrology |
Technology | Laser triangulation |
OS compatibility | - |
Performance |
|
---|---|
Max. resolution | 0.02 mm |
Max. accuracy | 0.025 mm |
Volumetric accuracy | 0.025 mm + 0.06 mm/m |
Acquisition speed | 2,600,000 points/s |
Hardware |
|
---|---|
Dimensions | - |
Weight | - |
Features |
|
---|---|
Texture/Colors | - |
Wireless | - |
Robotic arm | - |
Enclosed | - |
Connectivity |
|
---|---|
USB | |
Wifi | - |
Bluetooth | - |
SD card | - |
Ethernet | - |
