Ackuray A135
| Technology | Resin > DLP |
| Material | Thermoplastics > Standard (PLA, ABS…) |
| Topic | Dental 3D printers and 3D scanners |
| Build volume | 135 × 76 × 130 mm |
| Release date | - |
| Country | Taiwan |

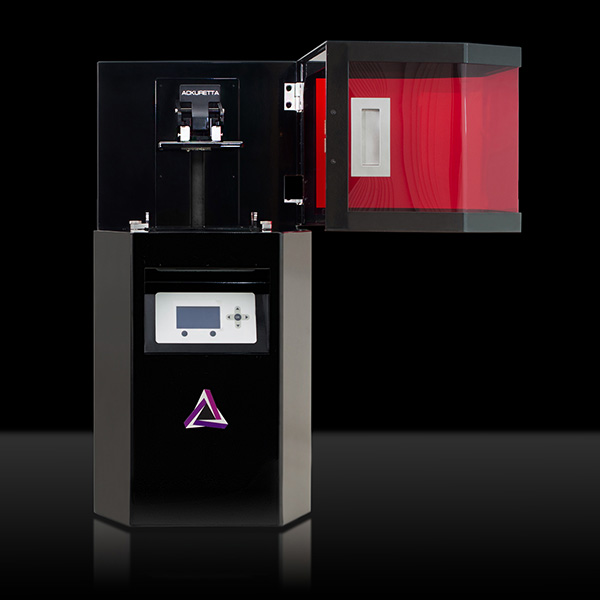

Ackuretta Technologies Ackuray A135 overview
The Ackuretta Technologies Ackuray A135 is a resin 3D printer made by Ackuretta Technologies, a manufacturer based in Taipei, Taiwan.
The Ackuretta Technologies Ackuray A135 is a 3D printer that uses a DLP projector (wavelength 405 nm) to cure a photopolymer (light initiated) resin to construct high resolution 3D objects from 3D model files. Third party resins are compatible.
This 3D printer is available in two different versions, the Ackuray A135 (70 microns XY accuracy, larger build volume) and the Ackuray A96 (50 microns XY accuracy, smaller build volume).
The Ackuretta Technologies Ackuray A135 operating temperature is between 12 and 32°C with a recommended optimal temperature of 26°C . The operating software of this 3D printer is Materialise Visualizer proprietary software, licensed for 3 years.
Because of its ability to create high resolution small 3D prints the Ackuretta Technologies Ackuray A135 is a great fit for the production of jewels, hearing aids and products for dental applications.
Interested in this product?
Ackuretta Technologies Ackuray A135 technical specifications
General |
|
|---|---|
| Model | Ackuray A135 |
| Brand | Ackuretta Technologies |
| Price
Approximate starting prices based on supplier-provided information and public data. Prices may vary over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...).
|
$ 18,900 |
| Release date | - |
| Country | Taiwan |
| Status | Available |
| Category | Professional |
| Technology | Resin > DLP |
| Material | Thermoplastics > Standard (PLA, ABS…) |
Performance |
|
|---|---|
| Max. build size | 135 × 76 × 130 mm |
| Max. build volume | 1.33 L |
| Max. temperatures | |
| Extruder | - |
| Build chamber | - |
| Build plate | - |
| Min. layer thickness | 0.001 mm |
| XY accuracy | 0.07 mm |
| Max. print speed | - |
Hardware |
|
|---|---|
| Dimensions | 360 × 460 × 720 mm |
| Weight | - |
| Nozzle diameter(s) | - |
| Filament diameter | - |
| Power input | 120W @ 100-240V, 50/60Hz |
Features |
|
|---|---|
| Heated build chamber | - |
| Extruder | |
| Dual extruder | - |
| Independent Dual Extruder (IDEX) | - |
| Multiple extruders (3+) | - |
| Pellet extruder | - |
| Full color | - |
| Conveyor belt | - |
| 5-axis | - |
| Hybrid manufacturing | - |
| Freeform (robotic arm) | - |
Connectivity |
|
|---|---|
| USB | |
| Wifi | |
| Bluetooth | - |
| SD card | - |
| Ethernet | |
