Ultra miniFactory

Ultra miniFactory - High temp
Buy the miniFactory Ultra
Seller Shipping zones
Aniwaa Worldwide Quote

Editor's pick

Awards

Aniwaa Badge PEEK
Basic specs Price:$ 64,000
Model Ultra
Compare
Brand miniFactory (see all products)
Category Professional
Topic High-temperature 3D printing (see all articles)
Technology Extrusion
Material Thermoplastics > High-performance (PEEK, Ultem...)
Build volume 330 x 180 x 180 mm
Release date 2018
Country Finland

miniFactory Ultra review

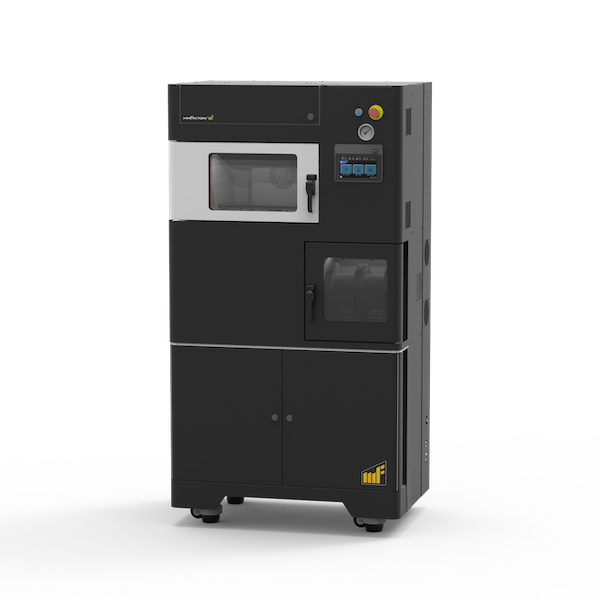

The miniFactory Ultra is a professional PEEK 3D printer made by miniFactory, a manufacturer from Finland.

This high-temperature 3D printer is compatible with a range of high-performance engineering thermoplastics such as PEEK, PEI (ULTEM), and PEKK. These materials are suitable for a number of applications in industries such as automotive or aerospace.

miniFactory Ultra main features

  • Heated chamber: the Ultra’s build chamber is able to heat up to 250°C to enhance layer adhesion and mechanical strength while avoiding warping and mechanical stress issues.
  • Heated filament chamber: can heat up to 120°C.
  • Dual extruder: dual extrusion enables users to 3D print with two different materials or to 3D print two identical parts at the same time. The nozzles can reach up to 480°C.
  • Intuitive touchscreen: this PEEK 3D printer’s 7-inch touchscreen provides useful monitoring information and control over the 3D printing process.
  • Automated post-processing: miniFactory’s Ultra 3D printer features integrated annealing of parts to improve their physical properties.
  • Carbon filter: the Ultra boasts an active filter to reduce the emission of potentially harmful particles.
  • CE certification

miniFactory Ultra price

This professional high-temperature 3D printer is available for around €54,000. Please contact us for more information.

Discover more PEEK 3D printers here or use our 3D printer comparison engine to see all available 3D printers.


Claim this product

Ultra miniFactory

General

Model Ultra
Compare
Manufacturer miniFactory
Price $ 64,000
Release date 2018
Country Finland
Status Available
Category Professional
Technology Extrusion
Material Thermoplastics > Standard (PLA, ABS…)
Thermoplastics > Engineering (PC, nylon…)
Thermoplastics > High-performance (PEEK, Ultem...)

Performance

Max. build size 330 x 180 x 180 mm
Max. build volume 10.69 L
Max. temperatures
Extruder 480 °C
Build chamber 250 °C
Build plate 250 °C
Min. layer thickness
XY accuracy
Max. print speed

Hardware

Dimensions 1000 × 800 × 1900 mm
Weight 320 kg
Nozzle diameter(s) 0.3 mm
Filament diameter 1.75 mm
Power input 230V / 16A

Features

Heated build chamber Yes
Extruder
Dual extruder Yes
Independent Dual Extruder (IDEX)
Multiple extruders (3+)
Pellet extruder
Full color
Conveyor belt
5-axis
Hybrid manufacturing
Freeform (robotic arm)

Connectivity

USB Yes
Wifi Yes
Bluetooth
SD card
Ethernet
Claim this product
