TrackScan-Sharp
Category | Mobile > Handheld |
Topic | Metrology 3D scanners |
Technology | Laser triangulation |
Max. resolution | 0.02 mm |
Country | China |
Description
The TrackScan-Sharp is an optical 3D measurement system produced by Scantech. Scantech is a 3D scanner manufacturer based in China.
Scantech TrackScan-Sharp main features

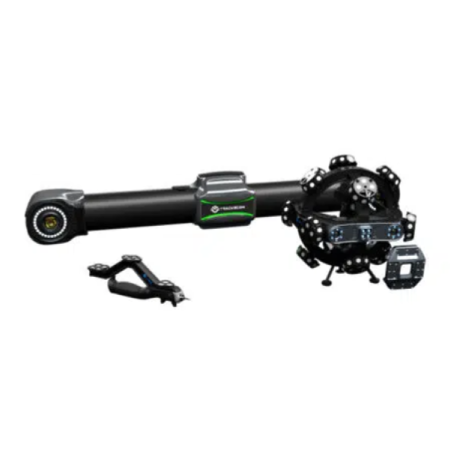

TrackScan-Sharp is comprised of a portable 3D scanner called the i-Scanner and an optical i-Tracker. It takes optical measurement to new heights by providing a tracking range of up to 6 meters, a volumetric range of 49 m3, and a volumetric accuracy of up to 0.049 mm (10.4 m3) for measuring large-scale parts.
The system is equipped with i-Tracker’s onboard processor for pre-computation, 25-megapixel industrial cameras, and advanced technologies, making it perfect for measuring large parts or multiple parts without the need for frequent tracker movement. The system supports both wired and wireless data transfer, making scanning more convenient, and can work with an auxiliary light module for inspecting holes and slots.
The TrackScan-Sharp system is an efficient and reliable solution for enhancing product development, quality control, and more.
Scantech TrackScan-Sharp: technical specifications
- Accuracy: up to 0.025 mm
- Measurement rate: up to 2,600,000 measurements/s
- Resolution: 0.020 mm
- Camera resolution: 25 MP
- Volumetric accuracy: 0.049 mm/m
- Tracking range: up to 6 meters
- Volumetric range: 49 m3
Scantech TrackScan-Sharp price
Please contact us to obtain a quote.
Technical specifications
General |
|
---|---|
Model | TrackScan-Sharp |
Brand | SCANTECH (HANGZHOU) |
Price
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...).
|
upon request |
Release date | 2023 |
Country | China |
Status | Available |
Category | Mobile > Handheld |
Topic |
Handheld Metrology |
Technology | Laser triangulation |
OS compatibility | - |
Performance |
|
---|---|
Max. resolution | 0.02 mm |
Max. accuracy | 0.025 mm |
Volumetric accuracy | 0.025 mm + 0.049 mm/m |
Acquisition speed | 2,600,000 points/s |
Hardware |
|
---|---|
Dimensions | - |
Weight | - |
Features |
|
---|---|
Texture/Colors | - |
Wireless | |
Robotic arm | - |
Enclosed | - |
Connectivity |
|
---|---|
USB | |
Wifi | - |
Bluetooth | - |
SD card | - |
Ethernet | - |
