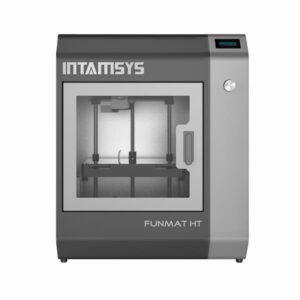

FUNMAT HT
Technology | Fused Filament Fabrication (FFF) |
Materials | Elastomers, Thermoplastics |
Feedstock format | Filament |
Build envelope | 260 × 260 × 260 mm |
Country | China |
Description
The FUNMAT HT is a professional 3D printer made by INTAMSYS, a manufacturer based in Shanghai, China. The INTAMSYS FUNMAT HT 3D printer targets the prosumer (consumer) market and offers a number of characteristics usually limited to more advanced, industrial-grade 3D printers.
Thanks to its high-temperature extruder and heated build envelope, this 3D printer can use a variety of exotic materials including PEEK and ULTEM (PEI).
INTAMSYS FUNMAT HT main features
- Insulated and heated build chamber: can reach constant temperatures of up to 90°C.
- Heated print bed: the print bed can heat up to 160°C. The FUNMAT HT automatically levels the print bed before and during the 3D printing process.
- Hot end extruder: this 3D printer\’s extruder can reach up to 450°C.
- Built-in camera: allows users to monitor the 3D printing process remotely.
- Software: this 3D printer includes a license for INTAMSUITE, the manufacturer\’s proprietary software.
The FUNMAT HT is relatively quiet in terms of noise emission, with an operational volume between 55db and 59db.
INTAMSYS FUNMAT HT material compatibility
This 3D printer is optimal for ASA, ABS, PC, and PA-CF prints and to produce prototypes with higher-temperature materials like PEEK or PEI. INTAMSYS 3D printers are all open material systems either welcoming INTAM™ filaments (which come with ready-to-print settings) or filaments from third-party manufacturers.
With its high mechanical strength, toughness, flexibility, and chemical and radiation resistance, PEEK 3D printing material is great for a wide range of applications. These include applications for electronics, aerospace, automotive, and medical industries.
INTAMSYS FUNMAT HT price
The INTAMSYS FUNMAT HT price may vary depending on the shipping location. Please contact us to obtain a quote for this PEEK-ready 3D printer.
INTAMSYS also manufactures the FUNMAT PRO 610HT and FUNMAT 410.
Highlights
Upcoming trade shows
Rapid.Tech 3D is the future-oriented pioneering event of the AM scene at Erfurt
Join us in Lyon, France, for the 47th WorldSkills Competition
A leading global tradeshow dedicated to Additive Manufacturing.
Technical specifications
General |
|
---|---|
Model | FUNMAT HT |
Brand | INTAMSYS |
Price Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...). | from $ 5,000 |
Country | China |
Status | Available |
Release date | 2017 |
Topics | High-performance |
Certifications | CE |
Performance |
|
---|---|
Build envelope | 260 × 260 × 260 mm |
Build volume | 17.58 L |
Max. resolution (XY) | 0.015 mm |
Max. resolution (Z) | 0.1 mm |
Max. build rate | - |
Max. chamber temp. | 90 °C |
Full color | - |
Technology |
|
---|---|
Process | Material Extrusion (MEX) |
Technology | Thermally-bonded > Fused Filament Fabrication (FFF) |
Max. print speed | 120 mm /s |
Max. deposition rate | - |
Filament diameter(s) | 1.75 mm |
Max. build plate temp. | 160 °C |
Number of extruders | 1 |
Max. extruder temp. | 450 °C |
Independent Dual Extruder (IDEX) | - |
Nozzle diameter(s) | - |
Materials |
|
---|---|
Feedstock format | Filament |
Materials | Polymers |
Elastomers | |
Thermoplastic elastomers: TPU | |
Thermoplastics | |
PLA | |
Polyamides | |
Polyaryletherketone: PEEK, PEKK | |
Polycarbonates: PC | |
Polyesters | |
Polyimides: ULTEM 1010 (PEI), ULTEM 9085 (PEI) | |
Polysulfones: PPSU/PPSF | |
Styrenes: ABS |
Applications |
|
---|---|
Industries | Aerospace and Space, Automotive and Transports, Defense and Military, Energy, Manufacturing and Tooling |
Hardware |
|
---|---|
Dimensions | 542 × 501 × 645 mm |
Weight | 63 kg |
Axes | - |
Hybrid manufacturing | - |
Robotic arm | - |
