Prom IS 500

Technology	Continuous fiber deposition
Materials	Composites, Polymers
Feedstock format	Filament
Build envelope	600 × 420 × 300 mm23.62 × 16.54 × 11.81 in
Country	Luxembourg

Price

upon request

Anisoprint

Certified partner

Anisoprint is a deep tech startup producing 3D printers for the manufacturing of continuous fiber-reinforced plastic parts. Their patented Continuous Fiber Coextrusion (CFC) technology is used in aerospace, engineering, and many other areas to produce functional parts while cutting costs and increasing productivity.

Description

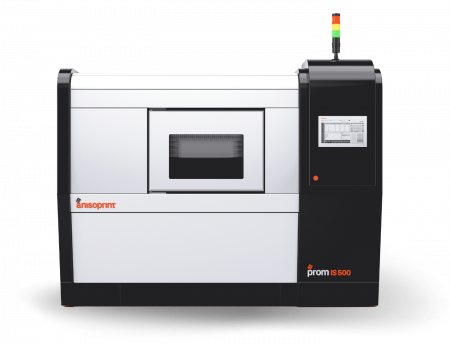

The Prom IS 500 is an industrial carbon fiber 3D printer produced by Anisoprint.

This continuous fiber 3D printer offers a large build volume of 600 x 420 x 300 mm. It uses Anisoprint’s patented CFC technology, which stands for Composite Fiber Co-extrusion.

With this technology, the Prom IS 500 is able to reinforce parts with a strand of continuous fiber. Available reinforcing fibers from Anisoprint include 1k and 3k high-temperature Composite Carbon Fiber.

A drying chamber is integrated into the machine and can hold up to six spools of filament. An optional high-temperature extruder (410°C) and heated chamber (160°C) are available for PEEK and PEI (ULTEM).

The Prom IS 500 can use up to four extruders and is compatible with both 1.75mm and 2.85mm filament. Available nozzle diameters range from the standard 0.4mm up to 1.2mm.

Anisoprint Prom IS 500 price

This high-temperature, composite 3D printer’s price is $280,000. Please contact us to get a quote.

Anisoprint also manufactures the Composer A3 and A4. Discover and compare all professional 3D printers with our 3D printer comparison engine.

Highlights

Continuous Fiber Composites

Optimal Lattice Reinforcement

Open System

High Performance Thermoplastics

Technical specifications

General
Model	Prom IS 500
Brand	Anisoprint
Price Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...).	upon request
Release date	2019
Country	Luxembourg
Status	Available
Topics	Composite AM, Continuous fiber, High-performance, Large format

Technology
Technology	Material Extrusion (MEX) > Thermally-bonded > Continuous fiber deposition

Materials
Materials	Composites
	Continuous fiber reinforced polymers
	Carbon reinforced polymers
	Polymers
	Thermoplastics
	PLA
	Polyamides: PA-CF, Polyamides (others)
	Polyaryletherketone: PEEK, PEKK, PAEK (others)
	Polycarbonates: PC
	Polyesters: PETG
	Polyimides: ULTEM 1010 (PEI), ULTEM 9085 (PEI), Polyimides (others)
	Polysulfones: PPSU/PPSF, PSU
	Styrenes: ABS
Feedstock format	Filament

Performance
Build envelope	600 × 420 × 300 mm23.62 × 16.54 × 11.81 in
Build volume	75.6 L
Max. temperatures
Max. extruder temp.	410 °C770 °F
Max. chamber temp.	160 °C320 °F
Max. plate temp.	-
Min. layer thickness	0.06 mm0.002362 in
XY accuracy	-
Max. print speed	333 mm13.11 in/s

Hardware
Dimensions	2800 × 1800 × 2700 mm110.24 × 70.87 × 106.3 in
Weight	-
Nozzle diameter(s)	0.4 - 1.2
Filament diameter	1.75 mm0.07 in

Features
Heated build chamber
Extruder
Dual extruder
Independent Dual Extruder (IDEX)	-
Multiple extruders (3+)
Pellet extruder	-
Full color	-
Conveyor belt	-
5-axis	-
Hybrid manufacturing	-
Robotic arm	-
