P220
Technology | Extrusion |
Material | Thermoplastics > High-performance (PEEK, Ultem...) |
Topic | High-performance |
Build size | 220 × 175 × 160 mm |
Release date | 2018 |
Country | Germany |
Apium P220 overview

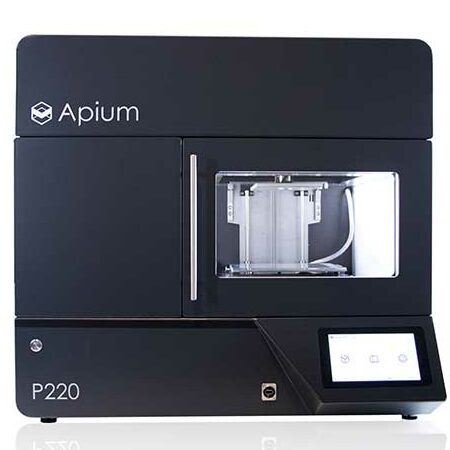

The Apium P220 is a PEEK-ready industrial 3D printer made by Apium, a manufacturer based in Germany formerly known as Indmatec.
This closed-frame 3D printer enables the 3D printing of high-performance polymers (PEEK, ULTEM). Apium also manufactures its own proprietary filament. Available materials include PEEK, Carbon PEEK (30%), PVDF, POM-C, PP, and metals (316L, 17-4PH).
The P220 is a larger version of the P155, with adaptive heating and easy filament change systems.
P220 main features
- Adaptive heating system (up to 180°C): enables temperature control on and within the part and offers the ability to control material properties at the voxel level.
- Integrated controlling software on a touch-screen: features print parameter optimization, a maintenance management system, and a process control system.
- Interchangeable nozzle: enables material changes within 2 minutes.
- Highly-heated 3D print bed (up to 160°C) and nozzle (up to 540°C): enables the 3D printing of specialty engineering materials (PEEK, PEI, metals, composites, etc.).
- Easy transportation: with its low noise emission and weight of 65 kg, no additional infrastructure is required.
Apium P220 price
This PEEK 3D printer is available between €25,000 and €40,000. Please contact the manufacturer for more information about the Apium P220.
Discover other PEEK 3D printers here.
Questions? Need a quote?
General |
|
---|---|
Model | P220 |
Brand | Apium |
Price
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...).
|
$ 29,000 |
Release date | 2018 |
Country | Germany |
Status | Available |
Topic | High-performance |
Category | Industrial |
Technology | Extrusion |
Material | Thermoplastics > Standard (PLA, ABS…) Thermoplastics > Engineering (PC, nylon…) Thermoplastics > High-performance (PEEK, Ultem...) |
Performance |
|
---|---|
Max. build size | 220 × 175 × 160 mm |
Max. build volume | 4.77 L |
Max. temperatures | |
Extruder | 540 °C |
Build chamber | 180 °C |
Build plate | 160 °C |
Min. layer thickness | 0.1 mm |
XY accuracy | 0.0125 mm |
Max. print speed | - |
Features |
|
---|---|
Heated build chamber | |
Extruder | |
Dual extruder | - |
Independent Dual Extruder (IDEX) | - |
Multiple extruders (3+) | - |
Pellet extruder | - |
Full color | - |
Conveyor belt | - |
5-axis | - |
Hybrid manufacturing | - |
Robotic arm | - |
Connectivity |
|
---|---|
USB | |
Wifi | |
Bluetooth | - |
SD card | - |
Ethernet |
Hardware |
|
---|---|
Dimensions | 850 × 685 × 675 mm |
Weight | 65 kg |
Nozzle diameter(s) | 0.4 mm |
Filament diameter | 1.75 mm |
