X7
Technology | Extrusion |
Material | Thermoplastics > Engineering (PC, nylon…), Continuous fibers |
Topic | Composite AM, Continuous fiber |
Build size | 330 × 270 × 200 mm |
Release date | 2017 |
Country | United States |

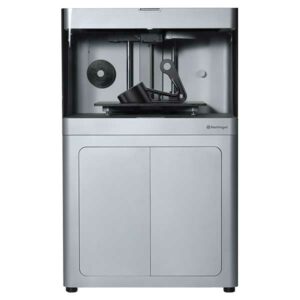

Markforged X7 overview
The Markforged X7 is an industrial 3D printer made by Markforged, a US manufacturer based in Boston. The X3 and X5 are part of the same series.
Markforged X7 Onyx material
The X7 3D prints with Onyx, a proprietary filament made of Nylon reinforced with carbon fiber. This material is strong (20% stronger than ABS) and can withstand high temperatures. Onyx enables professionals to 3D print engineering-grade parts at a fraction of the cost of traditional manufacturing.
To make the 3D printed parts even stronger, the X7 weaves a Continuous Carbon Fiber, Fiberglass, or Kevlar strand into the Onyx filament. This makes the parts as strong as metal.
Markforged X7 main features
- Continuous Filament Fabrication (CFF): this dual nozzle system enables the 3D printer to integrate fiberglass, carbon fiber, or Kevlar material to the Onyx filament.
- Material usage detection: the X7 offers material usage detection and informs users when the filament is about to run out.
- High-precision calibration: thanks to a built-in laser, the 3D printer scans the print bed to provide accurate bed leveling. The laser also acts as a fail-safe in case of a power outage, by scanning and determining where the 3D print stopped.
- 4.3-inch touchscreen: offers a friendly user interface.
- Elger software: this proprietary software enables users to 3D print from their browser and control their fleet of 3D printers.
Markforged X7 price
This professional, industrial 3D printer is available at the manufacturer price of $69,900. Contact us for a quote.
Markforged manufactures various other industrial 3D printers, including the Mark Two and the Metal X.
Questions? Need a quote?
Markforged X7 technical specifications
General | |
---|---|
Model | X7 |
Brand | Markforged |
Price Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...). | $ 69,900 |
Release date | 2017 |
Country | United States |
Status | Available |
Topic | Composite AM Continuous fiber |
Category | Industrial |
Technology | Extrusion |
Material | Thermoplastics > Standard (PLA, ABS…) Thermoplastics > Engineering (PC, nylon…) Continuous fibers |
Performance | |
---|---|
Max. build size | 330 × 270 × 200 mm |
Max. build volume | 17.82 L |
Max. temperatures | |
Extruder | - |
Build chamber | - |
Build plate | - |
Min. layer thickness | 0.05 mm |
XY accuracy | - |
Max. print speed | - |
Features | |
---|---|
Heated build chamber | - |
Extruder | |
Dual extruder | - |
Independent Dual Extruder (IDEX) | - |
Multiple extruders (3+) | - |
Pellet extruder | - |
Full color | - |
Conveyor belt | - |
5-axis | - |
Hybrid manufacturing | - |
Robotic arm | - |
Connectivity | |
---|---|
USB | - |
Wifi | |
Bluetooth | - |
SD card | - |
Ethernet | - |
Hardware | |
---|---|
Dimensions | 584 × 483 × 914 mm |
Weight | 68 kg |
Nozzle diameter(s) | - |
Filament diameter | - |
