Hylo
By
AON3D
Product data validated by the manufacturer.
| Technology | Material Extrusion |
| Materials | Thermoplastics |
| Feedstock format | Filament |
| Build envelope | 650 × 450 × 450 mm |
| Country | Canada |
Price
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...).
upon request
Description
AON3D Hylo overview

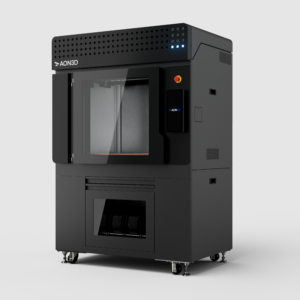

The Hylo is a 3D printer produced by AON3D, a manufacturer based in Canada.
It uses the Fused Filament Fabrication and Fused Deposition Modeling technologies to produce thermoplastics parts using filament feedstock.
It offers a build volume of 650 × 450 × 450 mm.
AON3D Hylo price
Please contact us to get a quote.
Technical specifications
General |
|
|---|---|
| Model | Hylo |
| Brand | AON3D |
| Price Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...). | upon request |
| Country | Canada |
| Status | Available |
| Release date | 2023 |
| Topics | High-performance, Large format |
| Certifications | - |
Performance |
|
|---|---|
| Build envelope | 650 × 450 × 450 mm |
| Build volume | 131.63 L |
| Max. resolution (XY) | 10 mm |
| Max. resolution (Z) | 1.5 mm |
| Max. build rate | 360 cm3/h |
| Max. chamber temp. | 250 °C |
| Full color | - |
Technology |
|
|---|---|
| Process | Material Extrusion (MEX) |
| Technology | Thermally-bonded > Fused Filament Fabrication (FFF) |
| Technology | Thermally-bonded > Fused Deposition Modeling (FDM) |
| Max. print speed | 500 mm/s |
| Max. deposition rate | - |
| Filament diameter(s) | 1.75 mm |
| Max. build plate temp. | 250 °C |
| Number of extruders | 2 |
| Max. extruder temp. | 500 °C |
| Independent Dual Extruder (IDEX) | |
| Nozzle diameter(s) | 0.2 mm, 0.25 mm, 0.3 mm, 0.4 mm, 0.5 mm, 0.6 mm, 0.8 mm, 1 mm |
Materials |
|
|---|---|
| Feedstock format | Filament |
| Materials | Polymers |
| Thermoplastics | |
| PLA | |
| PMMA | |
| POM | |
| PVA | |
| Polypropylene | |
| Polyamides: PA-CF, PA-GF, PA11, PA12, PA6, PA66, Polyamides (others) | |
| Polyaryletherketone: PEEK, PEEK-CF, PEKK, PEKK-CF | |
| Polycarbonates: PC, PC-ABS, PC-ASA | |
| Polyesters: PET, PETG | |
| Polyimides: TPI, ULTEM 1010 (PEI), ULTEM 9085 (PEI), Polyimides (others) | |
| Polysulfones: PPSU/PPSF, PSU, Polysulfones (others) | |
| Styrenes: ABS, ASA, HIPS | |
Applications |
|
|---|---|
| Industries | - |
Hardware |
|
|---|---|
| Dimensions | 1258 × 870 × 1892 mm |
| Weight | 650 kg |
| Axes | - |
| Hybrid manufacturing | - |
| Robotic arm | - |
