Ultra 2
By
miniFactory
Product data validated by the manufacturer.
Technology | Fused Filament Fabrication (FFF) |
Materials | Thermoplastics |
Feedstock format | Filament |
Build envelope | 330 × 180 × 180 mm |
Country | Finland |
From
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...).
$ 70,000
Description

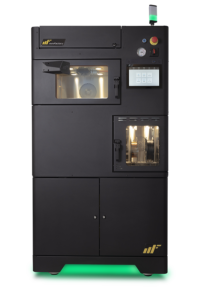

miniFactory Ultra 2 overview
The Ultra 2 is a 3D printer produced by miniFactory, a manufacturer based in Finland.
It uses the Fused Filament Fabrication technology to produce thermoplastics parts using filament feedstock.
It offers a build volume of 330 × 180 × 180 mm .
miniFactory Ultra 2 price
This 3D printer is available from $ 70,000 .
Technical specifications
General |
|
---|---|
Model | Ultra 2 |
Brand | miniFactory |
Price Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...). | from $ 70,000 |
Country | Finland |
Status | Available |
Release date | 2022 |
Topics | High-performance |
Certifications | CE |
Performance |
|
---|---|
Build envelope | 330 × 180 × 180 mm |
Build volume | 10.69 L |
Max. resolution (XY) | 0.001 mm |
Max. resolution (Z) | 0.01 mm |
Max. build rate | - |
Max. chamber temp. | 250 °C |
Full color | - |
Technology |
|
---|---|
Process | Material Extrusion (MEX) |
Technology | Thermally-bonded > Fused Filament Fabrication (FFF) |
Max. print speed | 120 mm /s |
Max. deposition rate | - |
Filament diameter(s) | 1.75 mm |
Max. build plate temp. | 250 °C |
Number of extruders | 2 |
Max. extruder temp. | 480 °C |
Independent Dual Extruder (IDEX) | - |
Nozzle diameter(s) | 0.4 mm, 0.5 mm, 0.6 mm, 0.8 mm, 1 mm |
Materials |
|
---|---|
Feedstock format | Filament |
Materials | Polymers |
Thermoplastics | |
PLA | |
Polyamides: PA-AF, PA-CF, PA-GF, PA11, PA12, PA6, PA66 | |
Polyaryletherketone: PEEK, PEEK-CF, PEKK, PEKK-CF | |
Polycarbonates: PC, PC-ABS, PC-ASA | |
Polyesters: PET | |
Polyimides: ULTEM 1010 (PEI), ULTEM 9085 (PEI), Polyimides (others) | |
Polysulfones: PPSU/PPSF, PSU | |
Styrenes: ABS, ASA |
Applications |
|
---|---|
Industries | - |
Hardware |
|
---|---|
Dimensions | 1800 × 800 × 1900 mm |
Weight | 320 kg |
Axes | - |
Hybrid manufacturing | - |
Robotic arm | - |
