T-SCAN CS
By
ZEISS
Category | Mobile > Handheld |
Topic | Handheld 3D scanners |
Technology | Laser triangulation |
Max. resolution | 0.075 mm |
Release date | 2015 |
Country | Germany |
Price
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...).
upon request
ZEISS T-SCAN CS overview
The ZEISS T-SCAN CS is a professional 3D scanner system made by ZEISS, a manufacturer based in Germany. In 2015 ZEISS Industrial Metrology acquired a majority interest in Steinbichler Optotechnik GmbH.

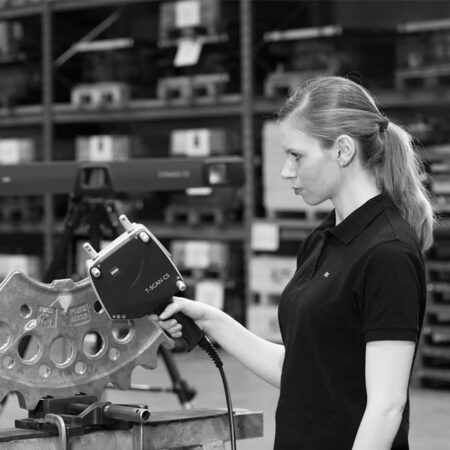

The ZEISS T-SCAN CS is dedicated to 3D scanning volumes up to 5 cubic meters. The ZEISS T-SCAN CS is used with additional sensors. Due to its high flexibility, the handheld laser scanner can be used for various applications like reverse engineering, rapid manufacturing or quality control.
The ZEISS T-TRACK CS+ is used as a master tracker and made to connect and track either the T-SCAN module and/or the T-POINT module. T-SCAN is based on infra-red tracking while the T-POINT requires contact with the object being 3D scanned.
T-SCAN CS
By ZEISS
Price
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...).
upon request
Questions? Need a quote?
ZEISS T-SCAN CS technical specifications
General |
|
---|---|
Model | T-SCAN CS |
Brand | ZEISS |
Price
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...).
|
upon request |
Release date | 2015 |
Country | Germany |
Status | Available |
Category | Mobile > Handheld |
Topic | Handheld |
Technology | Laser triangulation |
OS compatibility | Microsoft Windows |
Performance |
|
---|---|
Max. resolution | 0.075 mm |
Max. accuracy | mm |
Volumetric accuracy | - |
Acquisition speed | 210,000 points/s |
Camera resolution | - |
Working range | 0.15 - m |
Scanning area (near) | - |
Scanning area (far) | - |
Hardware |
|
---|---|
Dimensions | 300 × 170 × 150 mm |
Weight | 1.1 kg |
Features |
|
---|---|
Texture/Colors | - |
Wireless | - |
Robotic arm | - |
Enclosed | - |
Connectivity |
|
---|---|
USB | - |
Wifi | - |
Bluetooth | - |
SD card | - |
Ethernet | - |
