What is post-processing in 3D printing?

In most situations, the production of a 3D printed part doesn’t end when the part comes off the print bed. Some parts emerge from the 3D printer with a very rough surface texture and temporary support structures still attached. For all intents and purposes, these parts are still unfinished and must undergo post-processing.

Post-processing is a group of techniques used to turn unfinished 3D printed parts into something usable, displayable, or marketable. Some of these techniques (surface finishing, coloring, etc.) are universal, while some (curing, sintering, etc.) are particular to specific technologies. All of them guide a printed part towards its final form.

The importance of post-processing is on the rise. As 3D printing has become more widely used as a production tool, the demand for high-quality post-processing has increased, and today’s printed parts look and feel better than ever before.

This article looks at the most important aspects of post-processing 3D printed parts, including the increasingly important role of automation, and includes a comprehensive product guide for additive manufacturing (AM) post-processing systems.

The best 3D printing post-processing systems in 2023

Post-processing solutionWork area*Post-processing typeCountry
PostProcess Technologies DECI480 x 700 x 660 mmSupport removalUnited States
Quill Vogue Wash Station320 x 520 x 530 mmSupport removalUnited Kingdom
PostProcess Technologies FORTI355 x 355 x 355 mmResin removalUnited States
Ackuretta Cleani225 x 225 x 330 mmResin removalTaiwan
AM Solutions (Rossler) S1 990 x 1000 x 710 mmPowder removalGermany
AmPro Innovations G2⌀ 300 x 300 mmPowder removalAustralia
AMT PostProDPPowder removalUnited Kingdom
DyeMansion Powershot C 380 x 290 x 380 mmPowder removalGermany
Quill Vogue Powder Wash 670 x 660 x 510 mmPowder removalUnited Kingdom
Solukon SFM-AT200300 x 300 x 230 mmPowder removalGermany
Quintus Technologies Small HIP SystemsHeat treatmentSweden
3DNextech 3D Finisher300 x 300 x 300 mmSurface finishingItaly
AM Solutions (Rossler) M1⌀ 210 x 530 mmSurface finishingGermany
AMT PostPro3D600 x 400 x 400 mmSurface finishingUnited Kingdom
DLyte PRO500⌀ 700 x 250 mmSurface finishingSpain
DyeMansion Powershot S 380 x 290 x 380 mmSurface finishingGermany
METALIZZ MetalFogø 100 x 200 mmSurface finishingFrance
Polymaker Polysher⌀ 150 x 180 mmSurface finishingChina
PostProcess Technologies RADOR540 x 220 x 330 mmSurface finishingUnited States
DyeMansion DM60⌀ 390 x 360 mmColoringGermany
Girbau DY 130⌀ 620 x 416 mmColoringSpain
Hirtenberger H3000300 x 300 x 150 mmAll-in-oneAustria
PostProcess Technologies Hybrid DECI Duo⌀ 380 x 380 mmAll-in-oneUnited States

*Work area: Depending on the data provided by the manufacturer, these numbers can either refer to the entire work area or to the maximum treatable part size.

Post-processing workflow

The nature and extent of post-processing depend on several factors, such as the chosen 3D printing technology and the end use of the printed parts. Some projects may require several stages of post-processing, while others may not require any at all.

As such, the following post-processing techniques can be used in many combinations.

We have listed them in the order in which they might generally take place, beginning with cleaning processes and concluding with part inspection.

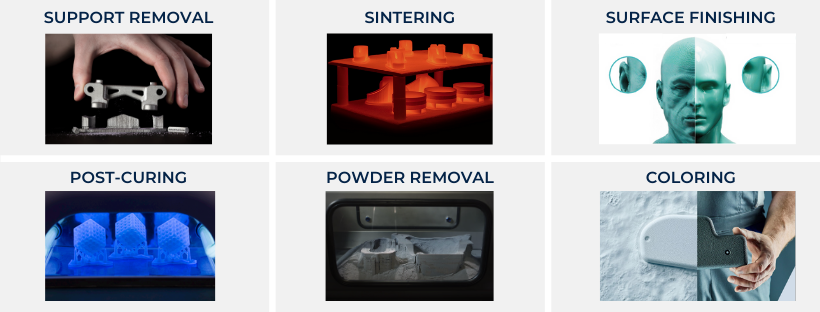

Post-processing workflow: a few steps
Some of the many post-processing steps available for 3D printed parts. Sources : Desktop Metal, Formlabs, SLM Solutions, Polymaker

Support removal and cleaning

Support removal

3D printers can create extremely complex shapes. However, parts with overhanging sections sometimes require printed supports, which prevent the structure from collapsing.

Supports need to be removed after printing. In some cases — usually when the supports are made from the same material as the printed object — this involves breaking the supports away manually or with pliers. These kinds of supports are known as insoluble supports.

However, some 3D printers can print support structures in a dedicated support material, which can later be dissolved in liquid for a cleaner and faster breakaway. These are known as soluble supports.

DECI

By PostProcess Technologies
Work area480 x 700 x 660 mm
CountryUnited States
From
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, …).

The PostProcess DECI is a support removal machine for FDM and FFF parts, though it can also be compatible with SLA and CLIP-made parts. It uses a proprietary PostProcess technology called Volumetric Velocity Dispersion (VVD) which sprays a specially formulated consumable onto the part.

The machine also integrates a rinsing function to eliminate the detergent once supports have all been successfully removed from the parts.

Wash Station

By Quill Vogue
Work area320 x 520 x 530 mm
CountryUnited Kingdom
From
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, …).

Quill Vogue is a UK-based company specializing in detergents and wash stations. It provides solutions for FDM, SLM, SLS, Projet and PolyJet post-processing.

The Quill Vogue Wash Station is a post-processing solution for PolyJet 3D printers such as those in the Stratasys Objet line. Available in a Standard or XL model, the ultra-quiet (60 dB) Wash Station uses pressurized cold water to remove support material, even from deep cavities.

Powder removal

3D printing processes like SLS use powder as a printing material. When a part is finished, it may have a powdery residue on the surface which needs to be removed.

Although powder can be removed manually by sweeping and vacuuming, it is faster and more effective to use a dedicated machine, especially during large-scale production. Powder removal systems, many of which use compressed air, may rotate or vibrate the printed parts in order to accelerate de-powdering.

Some de-powdering systems also use an inert gas chamber to nullify a potentially explosive atmosphere that can be caused by reactive AM powder materials like titanium, while most have filters to prevent workers from inhaling dangerous particles.

A few desktop SLS 3D printer manufacturers like Sinterit sell post-processing accessory bundles with their printers.

PostProDP

By AMT
Work area
CountryUnited Kingdom
From
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, …).

The PostProDP, developed and marketed by British company Additive Manufacturing Technologies (AMT), is a cyclone de-powdering system capable of cleaning powder-bed parts in 10 minutes.

The system sucks out blast media, dust, and contamination from the parts using a suction hose; rotation speed, blast time, and blow-off time are all adjustable via a touchscreen panel.

Powershot C

By DyeMansion
Work area380 x 290 x 380 mm
CountryGermany
From
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, …).

The Powershot C, built by German company DyeMansion, is a post-processing station capable of cleaning parts in 3 to 10 minutes.

Equipped with a rotating basket and manufactured from stainless steel, the Powershot C uses two simultaneous blast nozzles and two antistatic ionizing nozzles to gently remove powder. It is large enough to process an entire build tray of parts from the HP Jet Fusion 4200 or 5200.

SFM-AT200

By Solukon
Work area300 x 300 x 230 mm
CountryGermany
From
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, …).

Solukon’s SFM-AT200, described as an entry-level unit by the German company, is a cost-effective solution for de-powdering and cleaning laser-melted metal parts.

The system uses “optimal vibration excitation” and automated pivoting to remove powder, and is designed without any ignition source. Its inert gas infusion mechanism is safety-monitored, which ensures protection against explosion when working with reactive metal powders.

Powder Wash

By Quill Vogue
Work area670 x 660 x 510 mm
CountryUnited Kingdom
From
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, …).

Quill Vogue’s Powder Wash system is designed to process SLM and SLS parts. The system uses pressurized cold water to rapidly remove surplus powder.

The Powder Wash, which is ultra-quiet and compatible with many metal powders, also allows for the wire-erosion of metal components from build platforms without causing arcing and wire breakages.

S1

By AM Solutions
Work area990 x 1000 x 710 mm
CountryGermany
From
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, …).

Billed as a “plug-and-play” system with minimal setup time, the S1 is a semi-automatic de-powdering machine from Germany’s AM Solutions (part of the Rösler Group).

The S1 is compatible with gentle or abrasive blast media, while its rotational abilities allow for consistent blasting. The machine is an entry-level solution in the AM Solutions catalog, which also includes the larger S2 and S3 models.

G2

By AmPro Innovations
Work area990 x 1000 x 710 mm
CountryGermany
From
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, …).

Billed as a “plug-and-play” system with minimal setup time, the S1 is a semi-automatic de-powdering machine from Germany’s AM Solutions (part of the Rösler Group).

The S1 is compatible with gentle or abrasive blast media, while its rotational abilities allow for consistent blasting. The machine is an entry-level solution in the AM Solutions catalog, which also includes the larger S2 and S3 models.

Part washing

Resin 3D printing processes like SLA can leave a sticky residue on printed parts. This excess resin must therefore be removed before further post-processing, testing, or end-use.

It can be removed manually by soaking the printed parts in a solvent like isopropyl alcohol, but there are also machines, such as the Formlabs Form Wash, that can perform this soaking in a programmed and controlled manner.

To comprehensively remove excess liquid resin, the part may need to be gently shaken in the solvent bath, and sequential soaking in fresh baths may also be required.

FORTI

By PostProcess Technologies
Work area355 x 355 x 355 mm
CountryUnited States
From
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, …).

The FORTI Support & Resin Removal solution, developed by PostProcess Technologies of Buffalo, New York, is a submersion-type support removal machine. It is designed to clean excess resin from SLA, DLP, and CLIP parts, and is able to remove supports from FDM and PolyJet parts, among others.

The FORTI uses the company’s Submersed Vortex Cavitation (SVC) technology, which agitates parts while immersing them in up to seventeen gallons (64L) of fluid. PostProcess Technologies’ proprietary software and algorithms automatically determines how much detergent, how much time, and which temperatures are needed for a specific part according to its size and complexity.

Cleani

By Ackuretta
Work area225 x 225 x 330 mm
CountryTaiwan
From
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, …).

The Cleani from Ackuretta is a compact resin removal station specially designed for professionals in the dental industry. It features two separate and independent IPA tanks and can process entire print beds (including the build platform itself) at a time.

It’s compact, lightweight, and both tanks are detachable for easy maintenance and cleaning.

Annealing, curing, and sintering

Heat treatment and annealing

Most metal 3D printed parts require heat treatment after printing. This helps improve layer fusion and gives desirable mechanical properties to the metal. Under certain conditions, heat treatment can also remove contaminants such as oxide film from the surface of the part.

Heat treatment can sometimes take place within the AM system itself. The miniFactory Ultra, for example, can anneal printed parts made from thermoplastic materials like PEEK or PEKK, heating them up to 250°C. Standalone units also exist for the process.

In rare cases, it is possible to use High-Pressure Heat Treatment (HPHT), applying pressure up to 30,000 psi and temperatures of up to 2,200°C for the heat treatment of high-performance materials.

Annealing for post-processing
A brief explanation of the annealing process. Source: Rigid Ink/3DSourced

Small Hot Isostatic Presses (HIP) Systems

By Quintus Technologies
Work area
CountrySweden
From
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, …).

Small Hot Isostatic Presses (HIP) Systems, developed by Quintus Technologies of Sweden, are compact high-pressure HIP systems designed for HIP research and feasibility studies.

The machines eliminate pores and remove defects from metal AM parts, and Quintus Technologies says its HIP systems are the safest, most reliable and durable pressure containment systems ever designed.

Post-curing

Most resin 3D printed parts need to be further cured under UV lamps as a whole before they are fully hardened and ready for use. This is called post-curing.

SLA specialist Formlabs offers a dedicated post-curing machine called the Form Cure, while AM innovator Carbon has integrated UV curing into its CLIP 3D printing process. Most resin 3D printer manufacturers also sell their own curing machines and accessories.

Sintering

Metal and ceramic AM processes often require sintering after printing is complete, with parts emerging from the printer “green” and not yet ready for use. This is also the case for clay 3D printing.

Metal binder jetting 3D printers, such as the ExOne X1 25Pro, require the use of a debinding and sintering furnace to burn out the polymer adhesive from parts. This leaves behind only the metal particles, which sinter together to make the parts stronger.

All-in-one solutions like the Desktop Metal Production System come with their own furnace, while some manufacturers sell proprietary equipment separately.

Furnaces may also be used when using 3D printed parts as wax casting patterns. The printed pattern is burnt out once the cast has been formed, allowing new parts to be cast. This technique is often used in the jewelry industry.

Surface finishing: subtractive methods

Smoothing

An important surface finishing treatment for FDM parts is chemical or vapor smoothing, which reduces the appearance of layer lines — an unsightly feature that may be visible even at high printing resolution.

However, smoothing is difficult to carry out with precision, and it can damage the delicate features of a print by removing too much material.

Chemicals like acetone can be used to effectively smooth FDM parts made from PLA or ABS.

AMT Technologies’ post-processing system for smooth 3D printed surfaces.

PostPro3D

By Quintus Technologies
Work area600 x 400 x 400 mm
CountryUnited Kingdom
From
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, …).

The AMT PostPro3D is an automated smoothing system for parts printed using technologies like SLS, FDM and HP’s Multi Jet Fusion.

The machine uses AMT’s proprietary BLAST (Boundary Layer Automated Smoothing Technology) to give parts a surface finish roughness of less than 1 micron — comparable to the surface finish of injection molded parts.

3D Finisher

By 3DNextech
Work area300 x 300 x 300 mm
CountryItaly
From
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, …).

The 3D Finisher is a surface finishing solution from Italian company 3Dnextech. The machine can reduce surface roughness by over 90 percent, with each cycle taking around 70 minutes, and finished parts can be made smooth, waterproof, and paintable.

3Dnextech’s 3D Finisher can also be remotely controlled through its dedicated software.

Polysher

By Polymaker
Work area⌀ 150 x 180 mm
CountryChina
From
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, …).

The Polysher is a low-cost surface finishing machine from Chinese company Polymaker. The machine uses a fine mist of alcohol which evenly smooths 3D printed parts, removing layer lines.

Polishing takes between 20 and 40 minutes.

The Polysher is designed to work with small parts (15 x 18 cm) made from Polymaker’s PolySmooth and PolyCast materials.

Buy

M1

By AM Solutions
Work area⌀ 210 x 530 mm
CountryGermany
From
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, …).

Designed for single parts or small batches, the AM Solutions M1 is a compact finishing system ready for the production line.

The machine can process metal or plastic printed parts and can be individually adapted for different finishing solutions. It uses integrated process water recycling and monitors process water flow quantity for optimum quality control.

Sanding

Sanding is a manual finishing process used on many manufactured parts, including FDM 3D prints.

It can be beneficial to start with coarse sandpaper for removing chunks of excess material, before moving to a finer paper to smooth the entire surface of the part.

Tumbling

Tumbling is a method of smoothing the surface finish of printed parts. It works by rotating a printed part with abrasive media in an enclosed drum, usually for several hours.

Abrasive media can include steel pieces, ceramic pieces, and even organic matter like nutshells.

A combination of tumbling and chemical smoothing with the PostProcess Technhologies RADOR.

RADOR

By PostProcess Technologies
Work area540 x 220 x 330 mm
CountryUnited States
From
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, …).

The PostProcess RADOR is a surface finishing solution for parts made using FDM, SLA, CLIP, PolyJet, SLS, MJF and other technologies.

The RADOR employs PostProcess Technologies’ Suspended Rotational Force (SRF) technology, which combines rotation, vibration and the application of a media-detergent mix.

Other surface finishing solutions offered by the company include the LEVO and NITOR models.

Powershot S

By DyeMansion
Work area380 x 290 x 380 mm
CountryGermany
From
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, …).

The Powershot S is a surface finishing machine from DyeMansion that uses automated mechanical PolyShot Surfacing (PSS) — a combination of blasted beads and compressed air — to finish parts.

DyeMansion says the Powershot S delivers a “unique matt-glossy look” and “pleasant haptics” on printed parts. It also prepares parts for even and consistent coloration by improving pore consistency.

Polishing

Polishing can be employed to add a mirror shine to 3D printed parts, usually after a technique like sanding (and possibly coloring) has already been applied.

Liquid polish can be applied manually using a cloth.

Milling

It is possible to remove sections of material from a 3D printed part using a mill or, for the highest level of accuracy, a CNC mill.

CNC mills can achieve tighter tolerances than 3D printers, so milling is a useful post-processing technique for functional and mechanical parts.

PRO500

By DLyte
Work area⌀ 700 x 250 mm
CountrySpain
From
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, …).

DLyte is a Spanish company whose PRO500 is a high-capacity surface finishing machine with a six-axis robotic arm for increased part access.

Designed for the finishing of metal alloys, the PRO500 uses DLyte’s patented DryLyte technology, which facilitates ion transport using free solid bodies.

Possible finishing techniques include grinding, rounding, deburring, surface smoothing and high-gloss polishing.

Surface finishing: additive methods

Spraying

Printed parts can be given a high-gloss look by spraying them with a liquid coating of a substance like polyurethane.

Glazed epoxy coatings can also be applied with a paintbrush.

Metal plating

For shiny metallic surface finishing, metal plating can be added to 3D printed parts, either via electroplating or electroless plating.

During the electroplating process, parts are immersed in a solution of water and metal salts and subjected to an electrical current. A metal coating quickly forms around the printed part. It is similar to the process of anodization — though anodization is not usually recommended for 3D prints.

Electroless plating uses chemicals instead of electricity and takes longer to complete.

MetalFog

By METALLIZ
Work areaø 100 x 200 mm
CountryFrance
From
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, …).

The MetalFog machine by French manufacturer METALIZZ is an interesting finishing option. It pre-plates plastic objects by spraying them with a thin layer of metal.

Resulting parts are electrically conductive. The machine is able to plate various types of plastics including PE, PVC, PA, PET, PEEK, and more. It takes around 6 minutes for a standard part to be fully sprayed with metal.

Infiltration

Infiltration is a common post-processing technique for binder jetting 3D printed parts.

Like sintering, it requires a furnace to burn out any polymer binder. But instead of sintering the remaining metal particles, a new metal material is introduced to fill the porous spaces in the part.

Coloring

Dyeing

Dyeing is a coloring process frequently used to color nylon parts or other prints made using jetting, binding or sintering processes.

Color can be added by hand using a tub of hot water, but several machines exist for dyeing printed parts in a controlled manner.

White parts are most suitable for dyeing.

DyeMansion’s 3D printed part coloring technology.

DM60

By DyeMansion
Work area⌀ 390 x 360 mm
CountryGermany
From
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, …).

The DyeMansion DM60 is a coloring solution for industrial AM. It uses DyeMansion’s DeepDye Coloring (DDC) technology, which enables mid-size build jobs to be completed in 150 minutes.

170 RAL and standardized colors are available, and DyeMansion’s machine also offers a color matching option — for putting printed parts in corporate colors, for example. The company says it guarantees total color control via “exact color recipes down to the microgram.”

DY 130

By Girbau
Work area⌀ 620 x 416 mm
CountrySpain
From
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, …).

Spanish company Girbau developed the DY 130 as a post-processing solution for dye finishing. The machine is designed specifically for use with the HP Jet Fusion 5200 and HP Jet Fusion 4200 3D printing systems, and uses a mixture of 74 liters of water and 7.4 liters of dye to apply color.

Automated for unsupervised operation, the DY 130 purportedly offers half the cost per part of comparable automatic dyeing equipment.

Priming and painting

While dyeing is best suited to parts made from powder, paint can be applied to a wider variety of printed materials.

After a layer of primer is applied, paint can be added to a 3D print using a brush or spray, or with a dedicated coloring machine.

Inspection

An important final step in the post-processing procedure is part inspection.

In addition to visual inspection, parts can be analyzed using tools such as Coordinate Measuring Machines (CMM), which precisely measure the dimensions of a finished part.

Alternatively, metrology 3D scanners can be used to perform a similar function at higher speed and precision, all while providing several more million 3D points. It is even possible to automate part inspection thanks to robotic arms and adequate 3D software.

From 3D scanning to inspection - GOM Inspect
High-precision part inspection with metrology 3D scanning hardware. Source: GOM

Multi-functional post-processing machines

Some post-processing machines are capable of performing multiple operations in the post-processing workflow.
These machines tend to combine soluble support removal with smoothing or other surface finishing techniques, reducing the total product cycle time.

Most use a programmed cycle to move from the rougher support removal process to finer smoothing or polishing operations.

Hybrid DECI Duo

By PostProcess Technologies
Work area⌀ 380 x 380 mm
CountryUnited States
From
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, …).

The Hybrid DECI Duo is an all-in-one post-processing machine from PostProcess Technologies. It combines support removal, powder removal and surface finishing for resin, thermoplastic and metal printed parts.

The hybrid machine uses Thermal Atomized Fusillade (TAF) technology, which comprises two perpendicular, single-axis jet streams of compressed air, detergent and suspended solids. These jet streams are used for targeted blast sequences as the part is rotated 360° for complete surface exposure.

H3000 Finishing Module

By Hirtenberger
Work area300 x 300 x 150 mm
CountryAustria
From
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, …).

The H3000 Finishing Module is a hybrid post-processing machine from Austrian company Hirtenberger Engineered Surfaces.

Designed for the treatment of metal printed parts, the H3000 removes support structures and excess sintered particles and powders; it then proceeds to smooth and polish part surfaces, cleaning and drying them before removal.

Why post-process 3D printed parts?

3D printed parts can be post-processed for functional or aesthetic reasons, or both. Rough prototypes may not require post-processing, but virtually all other prints require some degree of treatment.

Functional reasons

  • Strength: Processes like sintering and debinding can turn weak and brittle metal parts into sturdy ones
  • Water or UV resistance: Smoothing techniques make part surfaces less porous and increase water and UV resistance
  • Tolerances: Precisely controlled post-processing techniques like CNC machining can tighten tolerances for critical parts
  • Thermal stability: Processes like annealing can improve the heat resistance of a printed part to increase its mechanical reliability
  • Decreased friction: Processes like polishing can improve the smoothness of parts that need to interact with other parts with minimal friction

Aesthetic reasons

  • Smoother appearance: Surface finishing treatments can reduce the rough appearance of printed parts
  • Softer touch: Smoothing and polishing makes 3D printed parts soft to the touch, which may be desirable for ergonomic consumer products
  • Controlled gloss: Post-processing allows the manufacturer to determine and control a part’s level of glossiness
  • Eliminate signs of manufacture: Techniques like sanding can be used to remove layer lines and disguise a part’s machine of origin — ideal for prototypes of parts that will ultimately be injection molded
  • Color options: Dyeing and painting allows parts to be made in a wide range of colors

Post-processing and automation

Most post-processing — from support removal to polishing and painting — is still carried out manually, which lengthens the time required to bring a part to completion.

In order for AM to remain a viable production solution, more manufacturers need to adopt automated post-processing solutions that are capable of quickly processing parts in batches or in rapid sequence. Dedicated additive manufacturing MES software solutions exist to help automate AM workflows.

Automating post-processing is crucial for obtaining positive ROI, since it reduces manual labor and decreases time-to-market. AM equipment providers already recognize this fact, as can be seen from the wide array of automated post-processing solutions available.

Manufacturers may decide that their workflow is suited to separate post-processing machines for each task, while others may favor a compact, all-in-one solution like the PostProcess Hybrid DECI.

Incorporating automated post-processing solutions into the production line also has other benefits. For example, eliminating manual post-processing reduces safety hazards associated with the accidental ingestion of powders and the handling of sharp objects.

FAQ

What is post-processing in 3D printing?

Post-processing is a group of processes used to improve a 3D printed part after it leaves the printer. The term covers methods of cleaning, smoothing, augmenting, and coloring 3D printed parts.

How do you post-process PLA?

PLA parts made on a 3D printer may require several forms of post-processing, including support removal, sanding, smoothing, and painting. For homemade prints, sanding requires the least equipment.

Is post-processing always necessary?

Rough prototypes may not require post-processing, but very few 3D printers claim to fabricate parts that are ready for use right from the print bed. Your chosen 3D printing technology determines the amount of post-processing required.

Why don’t 3D printers automatically perform post-processing?

Some industrial 3D printers incorporate some forms of post-processing, especially large, powder-based machines. However, many post-processing techniques require a large work area in addition to substances like chemical solvents, blast media, and colorants. It would not be feasible to employ these techniques within the printer envelope, as integral parts of the printer could get damaged.

Can 3D printers print in color?

Yes, special “full-color 3D printers” exist and can directly 3D print in color.
