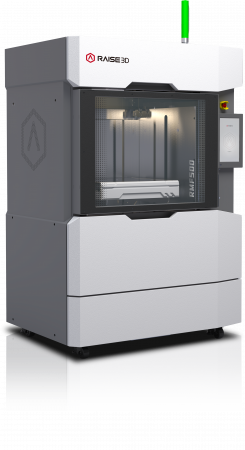

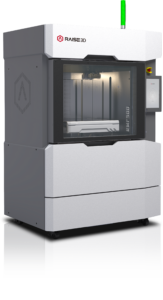

RMF500
By
Raise3D
This manufacturer is a Verified partner from our network.
Technology | Fused Filament Fabrication (FFF) |
Materials | Thermoplastics |
Feedstock format | Filament |
Build envelope | 500 × 500 × 500 mm |
Country | United States |
Price
Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...).
upon request
Raise3D
This manufacturer is a Verified partner from our network.
Raise3D designs and manufactures top-performing 3D printers and additive manufacturing solutions for SMEs and LSEs. With offices in California, Rotterdam, and Shanghai, Raise3D is an ISO9001:2015- and ISO14001-certified company, positioned to be a leader in developing complete solutions using FFF additive manufacturing technology for polymers, composite, and metal materials.
Description
Raise3D RMF500 overview
The RMF500 is a 3D printer produced by Raise3D, a manufacturer based in the United States.
It uses the Fused Filament Fabrication technology to produce thermoplastics parts using filament feedstock.
It offers a build volume of 500 × 500 × 500 mm .
Raise3D RMF500 price
Please contact us to get a quote.
Technical specifications
General |
|
---|---|
Model | RMF500 |
Brand | Raise3D |
Price Approximate starting prices based on supplier-provided information and public data. Prices may vary by region, over time and do not include additional products or services (taxes, shipping, accessories, training, installation, ...). | upon request |
Country | United States |
Status | Available |
Release date | 2021 |
Topics | Large format |
Certifications | - |
Performance |
|
---|---|
Build envelope | 500 × 500 × 500 mm |
Build volume | 125 L |
Max. resolution (XY) | 0.001 mm |
Max. resolution (Z) | 9.8E-5 mm |
Max. build rate | - |
Max. chamber temp. | - |
Full color | - |
Technology |
|
---|---|
Process | Material Extrusion (MEX) |
Technology | Thermally-bonded > Fused Filament Fabrication (FFF) |
Max. print speed | - |
Max. deposition rate | - |
Filament diameter(s) | 1.75 mm |
Max. build plate temp. | 110 °C |
Number of extruders | 2 |
Max. extruder temp. | 330 °C |
Independent Dual Extruder (IDEX) | |
Nozzle diameter(s) | 0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm, 1 mm, 1.2 mm |
Materials |
|
---|---|
Feedstock format | Filament |
Materials | Polymers |
Thermoplastics | |
Polyamides: PA-CF, PA12, Polyamides (others) | |
Polycarbonates | |
Polyesters | |
Styrenes: ABS, ASA |
Applications |
|
---|---|
Industries | Aerospace and Space, Automotive and Transports, Manufacturing and Tooling |
Hardware |
|
---|---|
Dimensions | 1340 × 990 × 2370 mm |
Weight | 790 kg |
Axes | 3 |
Hybrid manufacturing | - |
Robotic arm | - |
