Upost
When it comes to holding the scanner, product design is once again well thought out, despite the handle's compact size. There is room to fit three fingers around it, while the index finger is to be positioned on the scanner's side (as if you were holding a gun). The surface textures are grippy and a little squishy where needed.
Button interactions are done with the thumb, which won’t struggle finding its resting position and how to access the contextual 6-button interface. Contextual means that the functionalities are not hard-mapped in the buttons, but rather depend on the use case and what you are scanning. This enables an intuitive use and a lot of efficiency when performing 3D scans.[/et_pb_text][et_pb_image admin_label="Image: Holding position Aniwaa review Creaform HandySCAN BLACK Elite" src="https://www.aniwaa.com/wp-content/uploads/2019/09/Holding-position-Aniwaa-review-Creaform-HandySCAN-BLACK-Elite.jpg" alt="Holding position Aniwaa review Creaform HandySCAN BLACK Elite" title_text="Holding position Aniwaa review Creaform HandySCAN BLACK Elite" show_in_lightbox="off" url_new_window="on" animation="off" sticky="off" /][et_pb_text admin_label="H3: Getting started" background_layout="light" text_orientation="left"]
A very interesting function allows users to easily compare a registered CAD model with a scan mesh to perform “on-the-go” metrological quality verifications. We also appreciate the ability to directly obtain a clean mesh, with the practical option to fine-tune its resolution.
It was able to successfully capture tiny texts with letters smaller than 100 microns, and within a black matte part (which is usually a difficult color/texture to 3D scan).
For some parts, a manual turntable fitted with markers was used. It allowed to keep 3D scanning very quickly while standing in the same spot. We were able to see how the “small part 3D scanning” mode works, with a smooth step-by-step process specifically designed for such use cases.
We then performed a 3D scan ourselves, and chose an object that is difficult to 3D scan.
[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="4_4"][et_pb_text admin_label="Creaform CTA" background_layout="light" text_orientation="left"]More information[/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="off" specialty="off" transparent_background="off" background_color="#f1f1f1" allow_player_pause="off" inner_shadow="off" parallax="off" parallax_method="off"][et_pb_row][et_pb_column type="4_4"][et_pb_text admin_label="More 3D printing resources" background_layout="light" text_orientation="left"]
The EinScan Pro 2X Plus is advertised by its manufacturer– Shining 3D– as a “Professional 3D Digitizing Solution for Versatile Applications in an Easy Way”. Will it live up to this promise?[/et_pb_text][et_pb_testimonial admin_label="FINAL RATING" url_new_window="on" quote_icon="off" use_background_color="on" background_color="#f5f5f5" background_layout="light" text_orientation="left"]
[/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="off" specialty="off" transparent_background="off" background_color="#f1f1f1" allow_player_pause="off" inner_shadow="off" parallax="off" parallax_method="off"][et_pb_row][et_pb_column type="4_4"][et_pb_text admin_label="More 3D printing resources" background_layout="light" text_orientation="left"]
[/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="off" specialty="off" transparent_background="off" background_color="#f1f1f1" allow_player_pause="off" inner_shadow="off" parallax="off" parallax_method="off"][et_pb_row][et_pb_column type="4_4"][et_pb_text admin_label="More 3D printing resources" background_layout="light" text_orientation="left"]
Array
(
[0] => WP_Post Object
(
[ID] => 59029
[post_author] => 203
[post_date] => 2019-09-03 23:06:54
[post_date_gmt] => 2019-09-03 21:06:54
[post_content] => [et_pb_section fullwidth="off" specialty="off" transparent_background="off" background_color="#007cb0" allow_player_pause="off" inner_shadow="off" parallax="off" parallax_method="off"][et_pb_row][et_pb_column type="4_4"][et_pb_text admin_label="H1 : Creaform HandySCAN BLACK Elite review (hands-on)" background_layout="dark" text_orientation="left"]
Creaform HandySCAN BLACK Elite review (hands-on)
[/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="2_3"][et_pb_text admin_label="Disclaimer" background_layout="light" text_orientation="left"]Disclaimer: the comments and opinions expressed in this Creaform HandySCAN BLACK Elite review are the results of our own (limited) experience with the product. As always, we try to provide context to give a fair overview of the product. We strive to remain impartial and unbiased, and we have not received any payment or compensation of any form for writing this review. We conducted our hands-on review within the kxiop Experience Center, and the 3D scanner was directly brought to us by a Creaform official reseller.[/et_pb_text][/et_pb_column][et_pb_column type="1_3"][et_pb_text admin_label="Creaform CTA" background_layout="light" text_orientation="left"]More information[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="4_4"][et_pb_image admin_label="Image: Banner" show_in_lightbox="off" url_new_window="on" animation="off" sticky="off" src="https://www.aniwaa.com/wp-content/uploads/2019/09/Banner-Hands-On-Creaform-HandySCAN-BLACK-review.jpg" alt="Creaform HandySCAN BLACK Elite review hands-on demo" title_text="Creaform HandySCAN BLACK Elite review hands-on demo" /][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_3"][et_pb_text admin_label="TOC" background_layout="light" text_orientation="left"]
[toc]
[/et_pb_text][et_pb_text admin_label="Responsive AdSense (automatic)" background_layout="light" text_orientation="left"][/et_pb_text][/et_pb_column][et_pb_column type="2_3"][et_pb_text admin_label="Introduction" background_layout="light" text_orientation="left"]Introduction
Today we are testing the Creaform HandySCAN BLACK Elite, the latest evolution of the HandySCAN 700 and HandySCAN 300. It is one of Creaform's flagship portable 3D scanners and offers a better performance than the HandySCAN BLACK.
The main differences between both 3D scanners are their acquisition speed (measurements per second) and their accuracy (both standard and volumetric). Hence, the HandySCAN BLACK Elite is 62,5% faster than the standard version and is also almost 30% more accurate.
| Accuracy | Volumetric accuracy | Scanning speed | |
|---|---|---|---|
| HandySCAN BLACK Elite | 0,025 mm | 0.020 mm + 0.040 mm/m | 1,300,000 measurements/second |
| HandySCAN BLACK | 0,035 mm | 0.020 mm + 0.060 mm/m | 800,000 measurements/second |
3D scanning technology
HandySCAN BLACK 3D scanners use blue light laser technology for enhanced accuracy. The Elite version works with 11 laser crosses generated by 2 laser sources. An additional single laser line mode is available for scanning intricate zones with low visibility. The HandySCAN BLACK Elite also relies on photogrammetry technology in order to position itself in space, with the help of targets (stickers). These markers can be placed either on the part itself or on its immediate surroundings.Certifications
The HandySCAN BLACK Elite has passed the VDI/VDE 2634 Part 3 acceptance test, and Creaform recently received ISO 17025 accreditation in the field of calibration, a world first for a handheld metrology solution.[/et_pb_text][et_pb_testimonial admin_label="FINAL RATING" url_new_window="on" quote_icon="off" use_background_color="on" background_color="#f5f5f5" background_layout="light" text_orientation="left"]FINAL RATING: 5/5
[/et_pb_testimonial][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off"][et_pb_fullwidth_header admin_label="H2: Packaging" title="Packaging: 5/5" background_layout="light" text_orientation="left" /][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="2_3"][et_pb_text admin_label="H3: Accessories/PC" background_layout="light" text_orientation="left"]All the hardware and material needed for the demonstration was brought by a Creaform reseller. This consisted of a rugged transportation case and a backpack containing a laptop and a few sample parts. The case firmly held the 3D scanner and its accessories in place. The full package (laptop, 3D scanner, and accessories) weighs under 10 kg and can be easily transported by a single person, even for plane travel.Accessories
So, what’s inside the box? The HandySCAN BLACK Elite comes with the following items :- One cable with two connectors; one for the USB 3.0 connection to the computer, one for the power cable
- A power cable with its integrated AC/DC converter
- A calibration plate
- Two sets of targets
- One USB key holding the VXElements software suite and license key
- Certification documentation (VDI/VDE 2634 Part 3 acceptance test)
Minimum PC requirements
A high-performance PC is required to use both the VXElements software suite and the HandySCAN BLACK Elite. For an optimal experience, Creaform recommends a certified laptop from HP, the Zbook G5 Mobile Workstation. It is from HP's most powerful product lineup and, priced at over $5,000, it is a real beast. This computer has the following specs:- Display: 17.3’’ LED FHD
- CPU: Intel Core TM i7 8850H
- Ram: 64 GB
- Hard drive: 1 TB SSD
- GPU: NVIDIA Quadro P5200
- OS: Windows 10 Pro x64
The HandySCAN BLACK Elite in its hardcase.
[/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off"][et_pb_fullwidth_header admin_label="H2: Overview and setup" title="Overview and setup: 5/5" background_layout="light" text_orientation="left" /][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="3_4"][et_pb_text admin_label="H3: Software" background_layout="light" text_orientation="left"]Software
The laptop we were provided with already had the software installed. Hence, we did not get to perform the installation ourselves. It only took a few seconds to start up the computer (thanks to the SSD) and directly start calibrating the 3D scanner after launching the VXElements software suite.[/et_pb_text][et_pb_image admin_label="Image: A screenshot from VXelements software" src="https://www.aniwaa.com/wp-content/uploads/2019/09/VXelements-screenshot-Creaform-review.jpg" alt="A screenshot from VXelements software" title_text="A screenshot from VXelements software" show_in_lightbox="off" url_new_window="on" animation="off" sticky="off" /][et_pb_text admin_label="H3: Hardware" background_layout="light" text_orientation="left"]Hardware
Setting up the hardware was super quick and convenient, as there is only one cable plugged into the 3D scanner. That single cable is a USB 3.0 cable with two connectors. The first one is used to connect the 3D scanner to the computer. The second one is used to plug in the power cable. Creaform also included a clever little plastic part that secures and holds the cable to the computer. Therefore, even if the user accidentally "tugs" on the scanner when using it, the USB cable won't get yanked out.[/et_pb_text][et_pb_image admin_label="Image: Safety holder (left) and cables" src="https://www.aniwaa.com/wp-content/uploads/2019/09/Creaform-HandySCAN-BLACK-review-setup.jpg" alt="Safety holder (left) and cables" title_text="Safety holder (left) and cables" show_in_lightbox="off" url_new_window="on" animation="off" sticky="off" /][et_pb_text admin_label="H3: Design" background_layout="light" text_orientation="left"]Design
The HandySCAN BLACK Elite is light and ergonomic. At only 0.940 kg (2.1 lbs), the scanner is so lightweight that it could even be concerning at first– it could be mistaken for a “cheap” product. However, after a few uses, this weight optimization starts to demonstrate its purpose and benefits. The 3D scanner is easy to manipulate and isn't tiring to move around, even with complex (unusual) arm movements. It truly is light and portable. Creaform's HandySCAN BLACK Elite boasts a clean, robust finishing. Everything exudes quality and rigor. For an industrial product, it even looks "beautiful". This attention to detail is similar to the feeling that Apple products give off. Even the camera PCBs are optimized and designed with aesthetics in mind. It’s no wonder this scanner received a RedDot Design Award.
When it comes to holding the scanner, product design is once again well thought out, despite the handle's compact size. There is room to fit three fingers around it, while the index finger is to be positioned on the scanner's side (as if you were holding a gun). The surface textures are grippy and a little squishy where needed.
Button interactions are done with the thumb, which won’t struggle finding its resting position and how to access the contextual 6-button interface. Contextual means that the functionalities are not hard-mapped in the buttons, but rather depend on the use case and what you are scanning. This enables an intuitive use and a lot of efficiency when performing 3D scans.[/et_pb_text][et_pb_image admin_label="Image: Holding position Aniwaa review Creaform HandySCAN BLACK Elite" src="https://www.aniwaa.com/wp-content/uploads/2019/09/Holding-position-Aniwaa-review-Creaform-HandySCAN-BLACK-Elite.jpg" alt="Holding position Aniwaa review Creaform HandySCAN BLACK Elite" title_text="Holding position Aniwaa review Creaform HandySCAN BLACK Elite" show_in_lightbox="off" url_new_window="on" animation="off" sticky="off" /][et_pb_text admin_label="H3: Getting started" background_layout="light" text_orientation="left"]
Getting started
As it is often the case, calibration is recommended. The software guides the user step-by-step directly on the computer screen. The calibration plate is the heaviest item of the package– it's even heavier than the HandySCAN BLACK Elite itself. This calibration process consists in 3D scanning the calibration plate from different distances and angles. The LED lighting on the back of the 3D scanner is of precious help. All in all, the process is very fast, and once complete, the software signals that it is ready to 3D scan.[/et_pb_text][et_pb_image admin_label="Image: Calibrating the HandySCAN BLACK" src="https://www.aniwaa.com/wp-content/uploads/2019/09/3D-scanner-calibration-plate-Creaform-review-Aniwaa.jpg" alt="Calibrating the HandySCAN BLACK" title_text="Calibrating the HandySCAN BLACK" show_in_lightbox="off" url_new_window="on" animation="off" sticky="off" /][/et_pb_column][et_pb_column type="1_4"][et_pb_text admin_label="Responsive AdSense (automatic)" background_layout="light" text_orientation="left"][/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off"][et_pb_fullwidth_header admin_label="H2: Experience" title="Experience: 5/5" background_layout="light" text_orientation="left" /][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="3_4"][et_pb_text admin_label="H3: Software/3D scanning" background_layout="light" text_orientation="left"]Software
The VXElements software suite offers a complete experience from the first steps of digitization to powerful and comprehensive reverse engineering capabilities.
A very interesting function allows users to easily compare a registered CAD model with a scan mesh to perform “on-the-go” metrological quality verifications. We also appreciate the ability to directly obtain a clean mesh, with the practical option to fine-tune its resolution.
3D scanning
Contrary to most 3D scanners, setting up the HandySCAN BLACK Elite really is a breeze, without any special lighting conditions required. Once the 3D scanner is connected and powered up and the software is running, you can instantly start 3D scanning. Two modes are available: with or without markers on the object to be scanned. We did not test the first mode, which offers a superior quality but at the cost of a slightly longer setup process. The device is light, with a very well-thought interface and ergonomics. It is possible to perform almost all the necessary manipulations directly from the sensor itself. We also very much appreciate the LED indicator on the 3D scanner's back; it changes colors to indicate if the 3D scan distance is optimal or not.Meshes and 3D models
Usually, 3D scanners produce a dot cloud, which is then transformed into a mesh, which is a number of triangles joined together by their corners and edges. The dots are indeed small, three-dimensional coordinates. The original dot cloud is of great importance, because each point is only acquired once, and the triangles' generation depend on the number and resolution of those original points. Here, Creaform got the idea of increasing the number of samples for each point. Hence, each time a single point on the surface is acquired, its accuracy increases. There are no oversampling issues associated with this technique, and one of its major advantages is the ability to directly generate a surface from the raw capture data. There is no more time lost in the mesh creation process, with long periods of waiting for the PC to compute the mesh, because it is generated straight away during the 3D scanning process. For someone used to the "traditional" 3D scanning process, the HandySCAN BLACK Elite's real-time mesh generation is truly astonishing.[/et_pb_text][et_pb_image admin_label="Image: Real-time mesh generation from raw data" src="https://www.aniwaa.com/wp-content/uploads/2019/09/Realtime-mesh-generation.jpg" alt="Real-time mesh generation from raw data" title_text="Real-time mesh generation from raw data" show_in_lightbox="off" url_new_window="on" animation="off" sticky="off" /][/et_pb_column][et_pb_column type="1_4"][et_pb_sidebar admin_label="Sidebar" orientation="left" area="sidebar-1" background_layout="light" /][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off"][et_pb_fullwidth_header admin_label="H2: 3D scan results" title="3D scan results: 5/5" background_layout="light" text_orientation="left" /][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="3_4"][et_pb_text admin_label="H3: 3D scan and reverse engineering of a saxophone mouthpiece" background_layout="light" text_orientation="left"]For this rating, we compared the HandySCAN BLACK's performance to similar 3D scanners. The Creaform demonstrator carried out scans of a few sample parts, where the HandySCAN BLACK Elite was able to deliver an amazing level of detail.
It was able to successfully capture tiny texts with letters smaller than 100 microns, and within a black matte part (which is usually a difficult color/texture to 3D scan).
For some parts, a manual turntable fitted with markers was used. It allowed to keep 3D scanning very quickly while standing in the same spot. We were able to see how the “small part 3D scanning” mode works, with a smooth step-by-step process specifically designed for such use cases.
We then performed a 3D scan ourselves, and chose an object that is difficult to 3D scan.
3D scan and reverse engineering of a saxophone mouthpiece
3D scanners tend to struggle a lot with shiny materials and thin parts. Therefore, to put the HandySCAN BLACK Elite to the test, we tried to capture a shiny, black saxophone mouthpiece. The mouthpiece also has a small, transparent plastic insert on one of its faces, intended for the teeth to rest. In less than a minute, we were able to capture most of the part's external geometry. It only took us a few more seconds to capture its interior, with all its complexity and intricate details. The raw mesh was then imported into VXmodel, a software that is entirely dedicated to reverse engineering applications. For first-time users, the software offers several simple tutorials in order to grasp its key concepts. To simplify, the basic steps are the following :- Clean the mesh (hole filling, decimation, and smoothing) and realign the reference axes
- Generate the surfaces with NURBS references and geometric primitives (planes, cylinders)
- Import the geometric references in a CAD software (in our case, SolidWorks 2019)
- Reconstruct the full CAD model thanks to the geometric references
We 3D printed the saxophone mouthpiece scan result.
[/et_pb_text][/et_pb_column][et_pb_column type="1_4"][et_pb_text admin_label="Responsive AdSense (automatic)" background_layout="light" text_orientation="left"][/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off"][et_pb_fullwidth_header admin_label="H2: Value" title="Value: 5/5" background_layout="light" text_orientation="left" /][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="1_2"][et_pb_text admin_label="H3: Value" background_layout="light" text_orientation="left"]The HandySCAN BLACK Elite is a game-changer in the 3D scanning and metrology industry. It delivers a powerful performance that reminds us of the Metrascan 750, but without all the hurdles (complex setup, number of parts and accessories, and large footprint). The overall capacity of the product is indeed amazing. It can 3D scan black and matte materials as well as shiny, mirror-like surfaces. The usual limitations linked to 3D scanners have been completely overcome. Perhaps this scanner's only negative aspect is the fact that markers (targets) must be placed on the object or its surroundings. Its resolution (both standard and volumetric) and accuracy are equal to those of sophisticated industrial systems that can easily cost two to three times more. Nevertheless, for applications where extreme resolution is required (under 10 microns), the HandySCAN BLACK won't be the sufficient. In terms of software, the VXElements suite is also on par. It is well-optimized, runs smoothly, and offers a lot of functions and capabilities, all while managing to be relatively intuitive. You will quickly be at ease with the software if you're familiar with 3D tools. If you have the budget, the Creaform HandySCAN BLACK Elite is simply the best product available on the market for this price range. Furthermore, it is an accessible tool suited for most operators who have some experience with 3D scanning. No particular expertise in metrology is required to take full advantage of its benefits.[/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_text admin_label="Ratings Table" background_layout="light" text_orientation="left"]| Weight | Rating | |
|---|---|---|
| Overview and setup | 2 | 5/5 |
| Experience | 2 | 5/5 |
| 3D scan results | 2 | 5/5 |
| Value | 1 | 5/5 |
| FINAL RATING | – | 5/5 |
More 3D scanning and printing resources
- Discover our list of the best handheld 3D scanners.
- 3D scanner apps for smartphones are a great way to try out 3D scanning for free.
- We reference over 1,000 3D printers to fuel our 3D scanner comparison engine.
Shining 3D EinScan Pro 2X Plus review
[/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="2_3"][et_pb_text admin_label="Disclaimer" background_layout="light" text_orientation="left"]Disclaimer: the comments and opinions expressed in this EinScan Pro 2X Plus review are the results of our own (limited) experience with the product. As always, we try to provide context to give a fair overview of the product. We strive to remain impartial and unbiased, and we have not received any payment or compensation of any form for writing this review. We conducted our hands-on review within kxiop Design Center and the 3D scanner was lent for free (along with a laptop) by Machines-3D.[/et_pb_text][/et_pb_column][et_pb_column type="1_3"][et_pb_text admin_label="Quote CTA" background_layout="light" text_orientation="left"]Contact us for a quote[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_3"][et_pb_text admin_label="TOC" background_layout="light" text_orientation="left"] [toc] [/et_pb_text][/et_pb_column][et_pb_column type="2_3"][et_pb_text admin_label="Introduction" background_layout="light" text_orientation="left"]Today we are testing the Shining 3D EinScan Pro 2X Plus, the latest evolution of the EinScan Pro and EinScan Pro Plus. It is the poster child of the family and offers a slightly better performance than the EinScan Pro 2X. The main difference between both 3D scanners is their scan area and stand-off distance; the EinScan Pro 2X Plus is more convenient for large objects. Also, the 2X comes in a light grey color while the 2X Plus is almost black.| Scan area (near) | Scan area (far) | Stand-off distance | |
|---|---|---|---|
| EinScan Pro 2X Plus | 208 x 136 mm | 312 x 204 mm | 510 mm |
| EinScan Pro 2X | 135 x 100 mm | 225 x 170 mm | 400 mm |
FINAL RATING: 4.4/5
[/et_pb_testimonial][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_3"][et_pb_text admin_label="Amazon card" background_layout="light" text_orientation="left"] [/et_pb_text][/et_pb_column][et_pb_column type="1_3"][et_pb_text admin_label="H2: PROS" background_layout="light" text_orientation="left"]PROS
- Intuitive and user-friendly (for a 3D scanner)
- Performance (quality and speed)
- Price
CONS
- Texture quality
- Few editing options within the software
Unboxing
We received the 3D scanner along with a powerful laptop computer (courtesy of Machines 3D) to conduct this test. Everything was well packaged and protected inside a single cardboard box. The EinScan Pro 2X Plus and all its accessories were contained within a single and robust plastic hard case. The full package, including the laptop, 3D scanner, and accessories, is quite heavy but stillweighs under 10 kg and can be easily transported by a single person.[/et_pb_text][/et_pb_column][et_pb_column type="1_4"][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_2"][et_pb_text admin_label="H3: Instruction Manual/Accessories" background_layout="light" text_orientation="left"]Instruction manual
For this review we did not use any manual and simply followed the software’s instructions directly displayed on the computer. 3D scanners are usually complex to operate, but with the EinScan Pro 2X Plus we were quickly able to perform 3D scans in a variety of configurations, including Fixed HD mode and Free mode.Accessories
For EinScan Pro 2X Plus review, we were provided with both the ”Professional” pack (includes a tripod and automatic turntable) and the “color” pack (includes the color sensor). Please note that we didn’t get the “HD Prime” pack, which is dedicated for the HD Handheld Mode. The 3D scanner comes with everything needed to use it, including :- One USB cable to connect the 3D scanner to the computer (USB 3.0)
- Two power cables
- A calibration plate
- An automatic turntable
- A tripod
- A color sensor
Minimum PC requirements
To run the software during our tests, Machines-3D provided us with a powerful gaming laptop, the ASUS ROG STRIX 15.6-inch. This computer boasts the following specs:- CPU : Intel Core i7-7700HQ @ 2.80GHz
- GPU : Nvidia GTX 1060
- Ram : 16 Gb
- OS : Windows 10 Pro x64
The EinScan Pro 2X Plus in its hardcase.
[/et_pb_text][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2019/05/Shining-3D-review-EinScan-Pro-2X-Plus.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="Pierre-Antoine EinScan Pro 2X Plus review Aniwaa" title_text="Pierre-Antoine EinScan Pro 2X Plus review Aniwaa" /][et_pb_text admin_label="Caption" background_layout="light" text_orientation="left"]Using the 2X Plus handheld 3D scanning mode.
[/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off"][et_pb_fullwidth_header admin_label="H2: Overview and setup" title="Overview and setup: 4/5" background_layout="light" text_orientation="left" /][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="3_4"][et_pb_text admin_label="H3: Software/Hardware" background_layout="light" text_orientation="left"]Software
The laptop we were provided with already had the software installed. Hence, we did not get to perform the installation ourselves. In comparison with older Shining 3D software, this piece of EXScan PRO software offers a new UI and simplified workflow. It allows for a fast 3D scanning experience with intuitive navigation.Hardware
Setting up the hardware was a breeze. There is one main USB 3.0 cable that connects the 3D scanner to the computer. Then there’s a power cable that plugs into that same USB cable (which has a specific power slot) from your power outlet. Hence, only one cable is plugged into the scanner– convenient! After setting up the 3D scanner we mounted the Color pack. This process was simple as well, only requiring you to plug in the small module on the 3D scanner’s side and locking it in place. Everything feels robust and sturdy once assembled. The last step consists in plugging the turntable into the USB port on the laptop, and connecting it to a power outlet with the dedicated adapter. Note that the turntable adapter and 3D scanner adapter are the same, which avoids any confusion. You need two USB ports to connect both the scanner’s USB cable and the turntable’s USB cable. Therefore you’ll need an extra USB port on your computer in order to plug in a mouse, which is highly recommended when interacting with 3D content.[/et_pb_text][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2019/05/EinScan-Pro-2X-Plus-review-tripod-with-color-module.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="Shining 3D EinScan Pro 2X Plus review: tripod and color module." title_text="Shining 3D EinScan Pro 2X Plus review: tripod and color module." /][et_pb_text admin_label="Caption" background_layout="light" text_orientation="left"]The Shining 3D EinScan Pro 2X Plus 3D scanner and tripod.
[/et_pb_text][/et_pb_column][et_pb_column type="1_4"][et_pb_text admin_label="Responsive AdSense (automatic)" background_layout="light" text_orientation="left"] [/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_2"][et_pb_text admin_label="H3: Getting started" background_layout="light" text_orientation="left"]Getting started
When in hand, the EinScan 2X Pro Plus feels robust and ergonomic. The product’s finish is clean and reinforces its sturdy, industrial look. The Start scanning button is well placed, as well as the other two smaller ones. In order to start 3D scanning, a short calibration setup is recommended. The process is very intuitive, and a step-by-step video is directly displayed via the software, without the need to access any YouTube tutorials on your browser. It first consists in 3D scanning the calibration plate at different distances and at different angles. The software then displays a “calibrating” message while it does its calculations (lasts several minutes) and provides the result in terms of pixels. Then, it calibrates white balance, which is almost instantaneous (you only need to turn the calibration plate over). Last but not least, it measures accuracy, which also requires a single step before displaying the result. We got 0.100106 mm on our first try. Once the calibration is complete, it is possible to choose a 3D scanning mode in the menu, and you can then directly start 3D scanning.[/et_pb_text][et_pb_text admin_label="Responsive AdSense (square)" background_layout="light" text_orientation="left"] [/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2019/05/EinScan-Pro-2X-Plus-review-in-action-tripod-turntable.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="The 3D scanner in action on its tripod and with the automatic turntable." title_text="The 3D scanner in action on its tripod and with the automatic turntable." /][et_pb_text admin_label="Caption" background_layout="light" text_orientation="left"]The 3D scanner in action with the automatic turntable.
[/et_pb_text][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2019/05/EinScan-Pro-2X-Plus-review-color-module-zoom.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="The Pro 2X Plus color module up close." title_text="The Pro 2X Plus color module up close." /][et_pb_text admin_label="Caption" background_layout="light" text_orientation="left"]The Pro 2X Plus color module up close.
[/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off"][et_pb_fullwidth_header admin_label="H2: Experience" title="Experience: 4/5" background_layout="light" text_orientation="left" /][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="2_3"][et_pb_text admin_label="H3: Software" background_layout="light" text_orientation="left"]Software
The software takes you through several steps to perform a 3D scan. The first step consists in choosing the 3D scanning method:- Fixed Scan
- Handheld HD Scan
- Handheld Rapid Scan
3D scanning
As usual with structured light 3D scanners, it is recommended to be in a room without direct sunlight, to make the 3D scanning process easier. We tested two of the three 3D scanning modes.[/et_pb_text][et_pb_text admin_label="YouTube video" background_layout="light" text_orientation="left"][/et_pb_text][/et_pb_column][et_pb_column type="1_3"][et_pb_sidebar admin_label="Sidebar" orientation="left" area="sidebar-1" background_layout="light" /][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_2"][et_pb_text admin_label="H4: Fixed scan" background_layout="light" text_orientation="left"]Fixed Scan
We used this mode to capture several small-sized objects, which all fit on the turntable. In some cases, we manually positioned the objects to capture specific parts without suffering from occlusion issues. The objects we tested were made of various textures (plastic, wood, metal, rubber…), with surfaces that were more or less complex. The turntable was of great help, and it allowed us to perform 3D scans in a matter of minutes. Once a 360° 3D scan is complete (which consists of 8-12 scans, merged together), the object must be flipped over in order to capture its lower, bottom structure. The number of stops the turntable does within its 360° rotation can be changed manually.[/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_text admin_label="H4: Handheld rapid scan" background_layout="light" text_orientation="left"]Handheld Rapid Scan
This mode was a bit more of a struggle, as it requires the 3D scanning operator (user) to move smoothly and steadily while standing at a constant, specific distance from the object. We used this mode to scan a few faces and obtained very good results in seconds. We also got interesting results while capturing limbs (hands and arms, feet and legs). In our opinion, this mode is best suited for 3D scanning large objects such as a car door or even a full scooter as demoed on Shining 3D’s website. One thing we noticed is that depending on the selected mode, the structured light cast by the scanner is not the same. For the Fixed Scan mode, the light is made of fine stripes, while for the Handheld Rapid Scan mode it’s a pixelated pattern.[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="2_3"][et_pb_text admin_label="H4: Meshes and 3D models" background_layout="light" text_orientation="left"]Meshes and 3D models
Once the 3D scanning is done, it is possible to create a mesh from the dot cloud by first choosing the type of mesh:- Open: open meshes are basically just surfaces and can be used to make digital assets, for reverse engineering, or for specific custom applications.
- Watertight: these meshes are fully-closed 3D models (required for applications such as 3D printing).
Dinosaur toy (plastic)
This white, silky plastic toy is roughly 150 x 100 x 50 mm. It doesn’t have any complex surfaces, but nonetheless its shape is difficult to fully capture because of occlusion (especially at the dinosaur’s neck and tail). The EinScan Pro 2X Plus did a very good job combining 20 scans into a single mesh. The object’s simple texture was well rendered and could be used to manually align the 3D scans if necessary (although most of the time EXScan PRO was able to do it by itself).[/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2019/05/EinScan-Pro-2X-Plus-review-dinosaur-toy-scan.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="EinScan Pro 2X Plus review: dinosaur toy 3D scan." title_text="EinScan Pro 2X Plus review: dinosaur toy 3D scan." /][et_pb_text admin_label="Caption" background_layout="light" text_orientation="left"]EinScan Pro 2X Plus review: dinosaur toy 3D scan.
[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_2"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2019/05/EinScan-Pro-2X-Plus-review-shoe-scan.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="EinScan Pro 2X Plus review: child's shoe 3D scan." title_text="EinScan Pro 2X Plus review: child's shoe 3D scan." /][et_pb_text admin_label="Caption" background_layout="light" text_orientation="left"]EinScan Pro 2X Plus review: child's shoe 3D scan.
[/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_text admin_label="H3: Shoe" background_layout="light" text_orientation="left"]Shoe
We used a small kid’s shoe (size 21 for Europeans) in order to grasp the 3D scanner’s ability to capture multi-material objects. The EinScan Pro 2X Plus did an excellent job at capturing the shoe, with only 2 complete 360° spins on the turntable. It even did a decent job at 3D scanning the inside of the shoe, which was filled with a striped repetitive pattern (known for being difficult to 3D scan).[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_2"][et_pb_text admin_label="H3: Saxophone mouthpiece" background_layout="light" text_orientation="left"]Saxophone mouthpiece
It is widely known that 3D scanners struggle a lot with shiny materials and thin parts. To put the EinScan Pro 2X Plus to the test, we tried to capture a metallic saxophone mouthpiece. It has also a small black matte plastic insert on one of its faces, making it even harder to scan. For this test the texture (color) capture was turned off. At first we did not obtain anything and finally resorted to one of the best kept secrets of the 3D scanning world– always have some toothpaste ready! We used a little mix of toothpaste and water to cover the mouthpiece and then 3D scanned it. Instantly, the software started displaying the captured surfaces. In the end the result was amazing: the shape of the mouthpiece was really well captured, and even had enough detail to allow for a later reverse engineering process.[/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2019/05/EinScan-Pro-2X-Plus-review-saxophone-mouthpiece.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="EinScan Pro 2X Plus review: saxophone mouthpiece 3D scan (right-hand image is a photo of the original object, not the scan result)." title_text="EinScan Pro 2X Plus review: saxophone mouthpiece 3D scan (right-hand image is a photo of the original object, not the scan result)." /][et_pb_text admin_label="Caption" background_layout="light" text_orientation="left"]EinScan Pro 2X Plus review: saxophone mouthpiece 3D scan (right-hand image is a photo of the original object, not the scan result).
[/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off"][et_pb_fullwidth_header admin_label="H2: Value" title="Value: 5/5" background_layout="light" text_orientation="left" /][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="1_2"][et_pb_text admin_label="H3: Value" background_layout="light" text_orientation="left"]The EinScan Pro 2X Plus is quite a unique offer on the market at the time of writing this review. It is affordable, offers modularity (with three scanning modes) and provides a professional-grade performance. For the most standard use cases such as dental, jewelry or design applications, you probably won’t need the color module. It could be interesting for e-commerce, e.g. posting 3D scans of products rather than simple pictures. However, compared to this scanner’s overall performance, its color capture is a tiny bit disappointing. The EXScan PRO software is perfect for beginners and people who don’t want to dive into complex functionalities. It does the job while keeping it simple.[/et_pb_text][et_pb_text admin_label="Amazon card" background_layout="light" text_orientation="left"] [/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_text admin_label="Ratings Table" background_layout="light" text_orientation="left"]| Weight | Rating | |
|---|---|---|
| Overview and setup | 2 | 5/5 |
| Experience | 2 | 4/5 |
| 3D scan results | 2 | 4/5 |
| Value | 1 | 5/5 |
| FINAL RATING | – | 4.4/5 |
More 3D scanning and printing resources
- 3D scanner apps for smartphones are a great way to try out 3D scanning for free.
- We reference over 1,000 3D printers to fuel our 3D scanner comparison engine.
- What are the best 3D printers under $300?
peel 3d review: a cost-effective handheld 3D scanner
[/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="1_3"][et_pb_text admin_label="TOC" background_layout="light" text_orientation="left"] [toc] [/et_pb_text][et_pb_text admin_label="Disclaimer" background_layout="light" text_orientation="left"] Disclaimer: the comments and opinions expressed in this review are the results of our own (limited) experience with the product. As always, we try to provide context to give a fair overview of the product. We strive to remain impartial and unbiased, and we have not received any payment or compensation of any form for writing this peel 3d review. [/et_pb_text][/et_pb_column][et_pb_column type="1_3"][et_pb_text admin_label="Introduction" background_layout="light" text_orientation="left"] peel 3d, which is a subsidiary of Creaform, is a Canadian company that operates in the 3D scanning industry and provides reverse engineering services. The goal of peel 3d is to manufacture cost-effective, high-quality handheld 3D scanners and therefore offer businesses the possibility of increasing productivity at an affordable price. Most high-end handheld industrial 3D scanners cost above $20,000. Thus, peel 3d wants to appeal to a wider range of customers with a more affordable price point of under $6,000 for their handheld 3D scanner. The peel 3d is an entry-level professional handheld 3d scanner suitable for reverse engineering, 3D body scanning, education, design and other applications. The device uses a white LED light to capture objects in 3D with structured light technology. Aniwaa has reviewed popular handheld 3D scanners before like the Artec Eva, the Creaform Go!SCAN 50, and the Shining 3D EinScan-Pro. Our aim in this review was to verify that the peel 3d is a 3D scanner that is ideally suitable, as the manufacturer claims, for a user with a restricted budget, minimal hands-on 3D scanning knowledge, and operating without a lab setup. [/et_pb_text][et_pb_testimonial admin_label="Testimonial" url_new_window="on" quote_icon="off" use_background_color="on" background_color="#f5f5f5" background_layout="light" text_orientation="left"]FINAL RATING: 4.5/5
[/et_pb_testimonial][/et_pb_column][et_pb_column type="1_3"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2018/08/peel-3d-review-3D-scanner.jpg" alt="The peel 3d is a affordable professional scanner." title_text="The peel 3d is a affordable professional scanner." show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" /][et_pb_text admin_label="Text" background_layout="light" text_orientation="left"] Before starting the review, we watched the tutorial videos produced by peel 3d and prepared a list of protocols and features we wanted to test. We experienced some issues with the hardware during the scan testing (caused by a power fluctuation) so we were not able to fully test the capabilities of the peel 3d or produce further detailed scans as we had planned [/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_3"][et_pb_text admin_label="YouTube video: peel 3d" background_layout="light" text_orientation="left"] [/et_pb_text][/et_pb_column][et_pb_column type="1_3"][et_pb_text admin_label="H2: PROS" background_layout="light" text_orientation="left"]PROS
- Fast software processing time
- Start-and-stop scan system
- User-friendly process
CONS
- Easy to lose track of the target
- Cable is too short for large scans
Hardware and software first steps rating: 4/5
Aniwaa’s office is based in Phnom Penh, Cambodia and even after a lengthy shipping journey from Canada, the product arrived in a professional-looking protective hard-plastic travel case which enables the user to transport the 3D scanner safely and easily. All of the accessories and the peel 3d scanner are neatly organized within the travel case, firmly positioned in foam padding. [/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2018/08/peel-3d-review-accessories.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="All the peel 3d accessories pictured are standard." title_text="All the peel 3d accessories pictured are standard." /][et_pb_text admin_label="CAPTION" background_layout="light" text_orientation="left"]All the peel 3d accessories pictured are standard.
[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_2"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2018/08/peel-3d-review-transport-case.jpg" alt="peel 3d travel case" title_text="peel 3d travel case" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" /][et_pb_text admin_label="CAPTION" background_layout="light" text_orientation="left"]peel 3d travel case.
[/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_text admin_label="Text" background_layout="light" text_orientation="left"]peel 3d hardware
Hands-on with the peel 3d
This 3D scanner looks professional and is easy to hold in our hands. The design is simple yet ergonomic. The device is well-balanced and fits well in the user’s hand. Its weight is reasonable (850g), not overly heavy but not light either.Accessories and documentation
The following items come with the peel 3d scanner:- One 4m cable to connect the 3D scanner to the computer (USB 2.0)
- Documentation of the basic process for scanning
- A power cable
- A USB key to install the peel 3d software
- Two boxes of 500 positioning targets each (1 regular, 1 super-adhesive)
- A calibration plate
Minimum PC requirements
peel 3d provided us with a laptop to run the software during our tests. (The peel 3d does not usually ship with a laptop!) The HP EliteBook Mobile Workstation has the following specs: 8570w - 15.6’’ - Core i7 3610QM - 8GB RAM - 750GB HDD graphic card. The specs fall within the range of the minimum PC requirements peel 3d suggest on their website to run the software: [/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2018/08/peel-3d-review-minimum-PC-requirements.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="off" alt="The minimum PC requirements to run the peel 3d software" title_text="The minimum PC requirements to run the peel 3d software" /][et_pb_text admin_label="CAPTION" background_layout="light" text_orientation="left"]The minimum PC requirements to run the peel 3d software.
[/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off"][et_pb_fullwidth_header admin_label="H2: peel 3d scanner review" title="peel 3d scanner review" background_layout="light" text_orientation="left" /][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="1_2"][et_pb_text admin_label="H3: peel 3d software" background_layout="light" text_orientation="left"]peel 3d software
First steps with the peel 3d software
The software was really easy to install. After inserting the USB key to the laptop, we selected “peel 3d”, entered the product serial number included with the key, and the software was effortlessly installed. The software is very user-friendly, and the technical terms are understandable with even minimal 3D scanning knowledge. There are many options within the software, but the layout remains simple and intuitive.- On the left side of the screen are the settings that the user will enter based on what is being 3D scanned.
- On the right side of the screen are the working platforms which show the 3D scanning process in real time.
- Towards the top of the software are the different tools used to enhance the scan results: meshing, texturing, cleaning, etc.
The layout of the peel 3d software.
[/et_pb_text][et_pb_text admin_label="Responsive AdSense (automatic)" background_layout="light" text_orientation="left"] [/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_2"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2018/08/peel-3d-review-calibration-process.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="Calibrating the peel 3d. " title_text="Calibrating the peel 3d. " /][et_pb_text admin_label="CAPTION" background_layout="light" text_orientation="left"]Calibrating the peel 3d.
[/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_text admin_label="H3: peel 3d calibration" background_layout="light" text_orientation="left"]peel 3d calibration
Calibrating the peel 3d was simple and fast. The calibration plate was placed on a flat surface and we followed the steps that were displayed at the bottom of the software on-screen. We tested the calibration process several times and it took less than a minute to accurately calibrate the peel 3d. [/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="2_3"][et_pb_text admin_label="Text: H3 Main features of the software" background_layout="light" text_orientation="left"]Main features of the software
The peel 3d software offers several main tools that are used to help users optimize their 3D scans. Start and stop system It is possible to pause and change the settings while 3D scanning, or to rest in case of long 3D scan sessions for bigger objects, and to resume scanning thereafter. Delete frames Some 3D scans can result in distorted images. This easy-to-use tool allows the user to correct the mistake, recognize the poorly-scanned frames, and delete them. Clean mesh This is an automatic cleaning tool that erases the small potential imperfections made within a 3D scan. Fill holes The image mesh may have some holes, big or small. It is always possible to rescan if needed, but thanks to this tool, it is possible to manually fill in the gaps. The tool is precise and fast. Watertight remesh This tool allows the user to automatically fill in all the holes of the model. It is less precise than manually filling in all the gaps and there is room for improvement, but it is still a great tool. Users should note that no printed manual is provided to explain the tools, but we used peel 3d’s YouTube tutorials to help us understand the software options, and we would suggest potential peel 3d users to do the same. [/et_pb_text][/et_pb_column][et_pb_column type="1_3"][et_pb_sidebar admin_label="Sidebar" orientation="left" area="sidebar-1" background_layout="light" /][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off"][et_pb_fullwidth_header admin_label="H2: Test peel 3d scanning " title="Test peel 3d scanning " background_layout="light" text_orientation="left" /][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="1_2"][et_pb_text admin_label="H3: peel 3d experience – 4.5/5" background_layout="light" text_orientation="left"]peel 3d experience: 4.5/5
Our experience with the software was very satisfying. It was user-friendly and the online tutorials are really comprehensive and helpful. Finally, the peel 3d software quickly processed the scans. The average scanning process from setup, to a final, edited and ready-for-export scan result was 25 minutes based on the 3D scans we completed.Summary of the steps
- Plug-and-play setup (1 minute)
- Calibration (1 minute, recommended after the scanner has been transported)
- Enter the desired settings (2 min)
- 3D scanning (from 5 to 20 minutes for larger objects)
- Texturing and meshing (1 to 5 minutes based on the size of the scan)
- Cleaning the mesh (on average 5 minutes)
- Watertight meshing (5 to 15 minutes based on the object)
- Export 3D file
Limitations
peel 3d makes the following limitations very clear on their website; these issues are common for many 3D scanners available in the market:- Hair, beard or fur are very hard or impossible to 3D scan. peel 3d claims it simply doesn’t work, and this is what we experienced when we tested scanning hair and beards. It is possible to sculpt hair on sculpting software such as Sculptris, which is the advice peel 3d gave us when we asked them for a solution.
- Very shiny/reflective surfaces are very hard or impossible to scan with the peel 3d. Gold, silver, and some metals are also difficult to capture, but not impossible to scan, which can be problematic for industrial objects (for example the silver engine of a 170 cm Suzuki Step motorcycle we scanned - see further below).
- It is not possible to 3D scan transparent objects.
- It is very hard to 3D scan small objects (less than 30cm), however, it does not mean that the peel 3d cannot capture small details on larger objects. Indeed, this 3D scanner can produce realistic and highly-detailed scans.
- It is hard to 3D scan thin objects (for example tree leaves or cactus pikes).
3D scan results: 4.5/5
Our goal was to verify the claims of peel 3d and challenge the limitations of the 3D scanner. In order to do that, we chose to 3D scan objects that peel 3d claimed should work, but we also attempted to 3D scan what peel 3d claimed to be hard or impossible to scan. Our 3D scan list:- Semi-rigid objects: a full body scan (190cm) and a head scan (30cm).
- A bigger industrial object: a full motorcycle (170cm).
- A smaller industrial object: a plastic coffee machine (40cm), with the particularity of having a transparent water container.
- Challenging items to test the limits of the peel 3d: a shiny lamp (50cm) and a black tee-shirt (50cm).
- Uniform surface
- Automatic shutter
- 1mm resolution (because a higher resolution requires a more powerful computer)
- Semi-rigid positioning for human anatomy (head and body)
- Shutter (ms) at 8 for dark surfaces like the lamp
- Textured surface such as the leather seat of the motorcycle
Body scan (190cm)
For our first scan, we wanted to try a full-body scan. We selected the default settings with semi-rigid positioning as per the manufacturer's advice. The peel 3d was easy to hold in hand, and the process of scanning was more simple than we expected. One observation we had is that the length of the cable between the scanner and the laptop could be longer than 4 meters, but the overall experience was comfortable and intuitive. [/et_pb_text][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2018/08/peel-3d-review-3D-body-scan.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="Our first 3D body scan result" title_text="Our first 3D body scan result" /][et_pb_text admin_label="CAPTION" background_layout="light" text_orientation="left"]Our first 3D body scan result
[/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2018/08/peel-3d-review-3D-body-scanning-session.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="Our model with the first 3D scan result we obtained." title_text="Our model with the first 3D scan result we obtained." /][et_pb_text admin_label="CAPTION" background_layout="light" text_orientation="left"]Our model with the first 3D scan result we obtained.
[/et_pb_text][et_pb_text admin_label="TEXT" background_layout="light" text_orientation="left"]- The 3D scan took 20 minutes and we were quite satisfied with the full-body 3D scan.
- The software took 10 minutes to process the scan, with an additional 10 minutes using the fill holes and water meshing tools. We acknowledged that the tutorial helps the user at every step, and that the software was easy-to-use for beginners. The only problem we had was that the 3D scanner lost focus quite a few times during the scan. We managed to regain the focus, even if the process required some patience, but for other 3D scans we used a lot of positional targets to help with this issue.
Head 3D scan (30cm)
We 3D scanned a human head to test the quality of the detail on a particular scan (with semi-rigid positioning). We managed to obtain good results on the first head-scan and we were pleasantly surprised that the processing and the editing steps were easy and quick. Our subject, Steve, has no hair, so it was perfect since the peel 3d doesn't easily 3D scan hair.- 3D scanning process: 5 minutes
- Meshing: 1 minute
- Watertight meshing and overall cleaning: 15 minutes
Motorcycle 3D scan (170cm)
We attempted to try a larger, industrial-grade 3D scan to assess the professional use of the peel 3d and the quality the user can expect to achieve. We scanned a Suzuki motorcycle belonging to the CEO at Aniwaa, Martin Lansard. We 3D scanned the motorcycle with the default settings of a uniform surface, apart from the seat, where we changed the setting to textured surface and it worked really well. We also used a number of positional targets to ensure that we didn't lose focus whilst completing the scan. [/et_pb_text][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2018/08/peel-3d-review-motorcycle-3D-scan-result.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="he 3D scan of the Suzuki, after running the watertight meshing tool" title_text="he 3D scan of the Suzuki, after running the watertight meshing tool" /][et_pb_text admin_label="CAPTION" background_layout="light" text_orientation="left"]The 3D scan of the Suzuki, after running the watertight meshing tool.
[/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2018/08/peel-3d-review-3d-scanning-motorcycle.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="3D scanning the Suzuki motorcycle." title_text="3D scanning the Suzuki motorcycle." /][et_pb_text admin_label="CAPTION" background_layout="light" text_orientation="left"]3D scanning the Suzuki motorcycle.
[/et_pb_text][et_pb_text admin_label="TEXT" background_layout="light" text_orientation="left"]- The scanning session took 30 minutes. We were satisfied with the time it took for a large and complex object. The meshing was almost instantaneous, but the watertight meshing took a further 10 minutes.
- For a first 3D scan of such a big object, we were happy with the results. However, surfaces that are reflective or transparent are difficult to 3D scan but, as mentioned, peel 3d is very clear about this aspect. A possible solution is to use a mattifying spray specifically for this use case, or if possible, paint on the scanned object to make it an easier target for the 3D scanner.
Coffee machine 3D scan (40cm)
- We 3D scanned a plastic coffee machine, with a transparent water container at the rear. Indeed, we wanted to scan a medium-sized object since professional users would likely use the peel 3d to scan objects of similar size for prototyping or design purposes.
- It took us 5 minutes to 3D scan the whole coffee machine, and 5 minutes to process and edit the image. We were really satisfied with the results. However, as expected, the 3D scanner didn’t detect the transparent surface of the water tank.
The coffee machine (on the left) and the transparent water container not appearing in the 3D scan (on the right).
[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_2"][et_pb_text admin_label="H3: Challenging 3D scans of small objects (50cm)" background_layout="light" text_orientation="left"]Challenging 3D scans of small objects (50cm)
After scanning a full body, a human head, a large object (a motorbike) and a small-medium object (coffee machine), we wanted to challenge the peel 3d by scanning more difficult objects.- The first object we 3D scanned had a shiny, reflective surface- a desktop lamp made in reflective metal- but it didn’t work at all. The 3D scanner simply didn’t pick up the object, even when we used the positioning tracker stickers.
- We 3D scanned a dark and matte surface of a black tee-shirt. The scan worked really well with the shutter set at 8ms. With some patience and the right settings, dark surfaces can be 3D scanned. It took 2 minutes to 3D scan the shirt, and 5 minutes to process in the software.
Aniwaa’s opinion: 4.5/5
After testing the peel 3d at Aniwaa’s office, we felt that the peel 3d exceeded our expectations. The 3D scanner is easy to use and the software is intuitive and fast, with a selection of software tools available to edit and prepare a good final mesh in a short amount of time. Our results were very satisfying even considering that we lacked a professional test lab with high-quality lighting for this review. We were not disappointed when the 3D scanner hit its limitations with some objects, as peel 3d had clearly identified these on their website. Our opinion on the 3D scanner is positive: peel 3d delivered on their promise in producing an affordable professional-grade 3D scanner. However, some adjustments and upgrades are possible:- The cable is a bit too short for larger objects that require the user to walk around the target.
- The watertight meshing tool is quite challenging to tweak, and this tool appeared to have some limitations on more detailed parts of a 3D scanned object.
Aniwaa team with the peel 3d scanner.
[/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_text admin_label="H3: Aniwaa’s opinion: 4.5/5" background_layout="light" text_orientation="left"]Conclusion and buying advice for peel 3d
peel 3d targets professionals on smaller budgets with this cost-effective handheld 3D scanner. The manufacturer claims that the user will achieve the quality of a professional-grade 3D scanner at an affordable price, and it is indeed the case. This 3D scanner is user-friendly, the overall process is fast and simple, and the software is easy to use with intuitive tools to get the most out of a 3D scan. The peel 3d remains cost-effective at its price of $5,900 compared to most high-end industrial scanners available on the market.[/et_pb_text][et_pb_text admin_label="Ratings Table" background_layout="light" text_orientation="left"]| Rating | ||
| Hardware and software first steps: |
4/5 |
|
| Experience: |
4.5/5 |
|
| Scan result: |
4.5/5 |
|
| Aniwaa’s opinion: | 4.5/5 | |
| FINAL RATING |
4.4/5 |
More 3D scanning and printing resources
- 3D scanner apps for smartphones are a great way to try out 3D scanning for free.
- We reference over 1,000 3D printers to fuel our 3D scanner comparison engine.
- What are the best 3D printers under $300?
Pre
Array
(
[0] => 30454
[1] => 27446
[2] => 31030
[3] => 29366
[4] => 29333
[5] => 27976
[6] => 27461
[7] => 37008
[8] => 28814
[9] => 42498
[10] => 38514
[11] => 41389
[12] => 59029
[13] => 55247
[14] => 47722
)
Array
(
[0] => WP_Post Object
(
[ID] => 59029
[post_author] => 203
[post_date] => 2019-09-03 23:06:54
[post_date_gmt] => 2019-09-03 21:06:54
[post_content] => [et_pb_section fullwidth="off" specialty="off" transparent_background="off" background_color="#007cb0" allow_player_pause="off" inner_shadow="off" parallax="off" parallax_method="off"][et_pb_row][et_pb_column type="4_4"][et_pb_text admin_label="H1 : Creaform HandySCAN BLACK Elite review (hands-on)" background_layout="dark" text_orientation="left"]
Creaform HandySCAN BLACK Elite review (hands-on)
[/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="2_3"][et_pb_text admin_label="Disclaimer" background_layout="light" text_orientation="left"]Disclaimer: the comments and opinions expressed in this Creaform HandySCAN BLACK Elite review are the results of our own (limited) experience with the product. As always, we try to provide context to give a fair overview of the product. We strive to remain impartial and unbiased, and we have not received any payment or compensation of any form for writing this review. We conducted our hands-on review within the kxiop Experience Center, and the 3D scanner was directly brought to us by a Creaform official reseller.[/et_pb_text][/et_pb_column][et_pb_column type="1_3"][et_pb_text admin_label="Creaform CTA" background_layout="light" text_orientation="left"]More information[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="4_4"][et_pb_image admin_label="Image: Banner" show_in_lightbox="off" url_new_window="on" animation="off" sticky="off" src="https://www.aniwaa.com/wp-content/uploads/2019/09/Banner-Hands-On-Creaform-HandySCAN-BLACK-review.jpg" alt="Creaform HandySCAN BLACK Elite review hands-on demo" title_text="Creaform HandySCAN BLACK Elite review hands-on demo" /][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_3"][et_pb_text admin_label="TOC" background_layout="light" text_orientation="left"]
[toc]
[/et_pb_text][et_pb_text admin_label="Responsive AdSense (automatic)" background_layout="light" text_orientation="left"][/et_pb_text][/et_pb_column][et_pb_column type="2_3"][et_pb_text admin_label="Introduction" background_layout="light" text_orientation="left"]Introduction
Today we are testing the Creaform HandySCAN BLACK Elite, the latest evolution of the HandySCAN 700 and HandySCAN 300. It is one of Creaform's flagship portable 3D scanners and offers a better performance than the HandySCAN BLACK.
The main differences between both 3D scanners are their acquisition speed (measurements per second) and their accuracy (both standard and volumetric). Hence, the HandySCAN BLACK Elite is 62,5% faster than the standard version and is also almost 30% more accurate.
| Accuracy | Volumetric accuracy | Scanning speed | |
|---|---|---|---|
| HandySCAN BLACK Elite | 0,025 mm | 0.020 mm + 0.040 mm/m | 1,300,000 measurements/second |
| HandySCAN BLACK | 0,035 mm | 0.020 mm + 0.060 mm/m | 800,000 measurements/second |
3D scanning technology
HandySCAN BLACK 3D scanners use blue light laser technology for enhanced accuracy. The Elite version works with 11 laser crosses generated by 2 laser sources. An additional single laser line mode is available for scanning intricate zones with low visibility. The HandySCAN BLACK Elite also relies on photogrammetry technology in order to position itself in space, with the help of targets (stickers). These markers can be placed either on the part itself or on its immediate surroundings.Certifications
The HandySCAN BLACK Elite has passed the VDI/VDE 2634 Part 3 acceptance test, and Creaform recently received ISO 17025 accreditation in the field of calibration, a world first for a handheld metrology solution.[/et_pb_text][et_pb_testimonial admin_label="FINAL RATING" url_new_window="on" quote_icon="off" use_background_color="on" background_color="#f5f5f5" background_layout="light" text_orientation="left"]FINAL RATING: 5/5
[/et_pb_testimonial][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off"][et_pb_fullwidth_header admin_label="H2: Packaging" title="Packaging: 5/5" background_layout="light" text_orientation="left" /][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="2_3"][et_pb_text admin_label="H3: Accessories/PC" background_layout="light" text_orientation="left"]All the hardware and material needed for the demonstration was brought by a Creaform reseller. This consisted of a rugged transportation case and a backpack containing a laptop and a few sample parts. The case firmly held the 3D scanner and its accessories in place. The full package (laptop, 3D scanner, and accessories) weighs under 10 kg and can be easily transported by a single person, even for plane travel.Accessories
So, what’s inside the box? The HandySCAN BLACK Elite comes with the following items :- One cable with two connectors; one for the USB 3.0 connection to the computer, one for the power cable
- A power cable with its integrated AC/DC converter
- A calibration plate
- Two sets of targets
- One USB key holding the VXElements software suite and license key
- Certification documentation (VDI/VDE 2634 Part 3 acceptance test)
Minimum PC requirements
A high-performance PC is required to use both the VXElements software suite and the HandySCAN BLACK Elite. For an optimal experience, Creaform recommends a certified laptop from HP, the Zbook G5 Mobile Workstation. It is from HP's most powerful product lineup and, priced at over $5,000, it is a real beast. This computer has the following specs:- Display: 17.3’’ LED FHD
- CPU: Intel Core TM i7 8850H
- Ram: 64 GB
- Hard drive: 1 TB SSD
- GPU: NVIDIA Quadro P5200
- OS: Windows 10 Pro x64
The HandySCAN BLACK Elite in its hardcase.
[/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off"][et_pb_fullwidth_header admin_label="H2: Overview and setup" title="Overview and setup: 5/5" background_layout="light" text_orientation="left" /][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="3_4"][et_pb_text admin_label="H3: Software" background_layout="light" text_orientation="left"]Software
The laptop we were provided with already had the software installed. Hence, we did not get to perform the installation ourselves. It only took a few seconds to start up the computer (thanks to the SSD) and directly start calibrating the 3D scanner after launching the VXElements software suite.[/et_pb_text][et_pb_image admin_label="Image: A screenshot from VXelements software" src="https://www.aniwaa.com/wp-content/uploads/2019/09/VXelements-screenshot-Creaform-review.jpg" alt="A screenshot from VXelements software" title_text="A screenshot from VXelements software" show_in_lightbox="off" url_new_window="on" animation="off" sticky="off" /][et_pb_text admin_label="H3: Hardware" background_layout="light" text_orientation="left"]Hardware
Setting up the hardware was super quick and convenient, as there is only one cable plugged into the 3D scanner. That single cable is a USB 3.0 cable with two connectors. The first one is used to connect the 3D scanner to the computer. The second one is used to plug in the power cable. Creaform also included a clever little plastic part that secures and holds the cable to the computer. Therefore, even if the user accidentally "tugs" on the scanner when using it, the USB cable won't get yanked out.[/et_pb_text][et_pb_image admin_label="Image: Safety holder (left) and cables" src="https://www.aniwaa.com/wp-content/uploads/2019/09/Creaform-HandySCAN-BLACK-review-setup.jpg" alt="Safety holder (left) and cables" title_text="Safety holder (left) and cables" show_in_lightbox="off" url_new_window="on" animation="off" sticky="off" /][et_pb_text admin_label="H3: Design" background_layout="light" text_orientation="left"]Design
The HandySCAN BLACK Elite is light and ergonomic. At only 0.940 kg (2.1 lbs), the scanner is so lightweight that it could even be concerning at first– it could be mistaken for a “cheap” product. However, after a few uses, this weight optimization starts to demonstrate its purpose and benefits. The 3D scanner is easy to manipulate and isn't tiring to move around, even with complex (unusual) arm movements. It truly is light and portable. Creaform's HandySCAN BLACK Elite boasts a clean, robust finishing. Everything exudes quality and rigor. For an industrial product, it even looks "beautiful". This attention to detail is similar to the feeling that Apple products give off. Even the camera PCBs are optimized and designed with aesthetics in mind. It’s no wonder this scanner received a RedDot Design Award.
When it comes to holding the scanner, product design is once again well thought out, despite the handle's compact size. There is room to fit three fingers around it, while the index finger is to be positioned on the scanner's side (as if you were holding a gun). The surface textures are grippy and a little squishy where needed.
Button interactions are done with the thumb, which won’t struggle finding its resting position and how to access the contextual 6-button interface. Contextual means that the functionalities are not hard-mapped in the buttons, but rather depend on the use case and what you are scanning. This enables an intuitive use and a lot of efficiency when performing 3D scans.[/et_pb_text][et_pb_image admin_label="Image: Holding position Aniwaa review Creaform HandySCAN BLACK Elite" src="https://www.aniwaa.com/wp-content/uploads/2019/09/Holding-position-Aniwaa-review-Creaform-HandySCAN-BLACK-Elite.jpg" alt="Holding position Aniwaa review Creaform HandySCAN BLACK Elite" title_text="Holding position Aniwaa review Creaform HandySCAN BLACK Elite" show_in_lightbox="off" url_new_window="on" animation="off" sticky="off" /][et_pb_text admin_label="H3: Getting started" background_layout="light" text_orientation="left"]
Getting started
As it is often the case, calibration is recommended. The software guides the user step-by-step directly on the computer screen. The calibration plate is the heaviest item of the package– it's even heavier than the HandySCAN BLACK Elite itself. This calibration process consists in 3D scanning the calibration plate from different distances and angles. The LED lighting on the back of the 3D scanner is of precious help. All in all, the process is very fast, and once complete, the software signals that it is ready to 3D scan.[/et_pb_text][et_pb_image admin_label="Image: Calibrating the HandySCAN BLACK" src="https://www.aniwaa.com/wp-content/uploads/2019/09/3D-scanner-calibration-plate-Creaform-review-Aniwaa.jpg" alt="Calibrating the HandySCAN BLACK" title_text="Calibrating the HandySCAN BLACK" show_in_lightbox="off" url_new_window="on" animation="off" sticky="off" /][/et_pb_column][et_pb_column type="1_4"][et_pb_text admin_label="Responsive AdSense (automatic)" background_layout="light" text_orientation="left"][/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off"][et_pb_fullwidth_header admin_label="H2: Experience" title="Experience: 5/5" background_layout="light" text_orientation="left" /][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="3_4"][et_pb_text admin_label="H3: Software/3D scanning" background_layout="light" text_orientation="left"]Software
The VXElements software suite offers a complete experience from the first steps of digitization to powerful and comprehensive reverse engineering capabilities.
A very interesting function allows users to easily compare a registered CAD model with a scan mesh to perform “on-the-go” metrological quality verifications. We also appreciate the ability to directly obtain a clean mesh, with the practical option to fine-tune its resolution.
3D scanning
Contrary to most 3D scanners, setting up the HandySCAN BLACK Elite really is a breeze, without any special lighting conditions required. Once the 3D scanner is connected and powered up and the software is running, you can instantly start 3D scanning. Two modes are available: with or without markers on the object to be scanned. We did not test the first mode, which offers a superior quality but at the cost of a slightly longer setup process. The device is light, with a very well-thought interface and ergonomics. It is possible to perform almost all the necessary manipulations directly from the sensor itself. We also very much appreciate the LED indicator on the 3D scanner's back; it changes colors to indicate if the 3D scan distance is optimal or not.Meshes and 3D models
Usually, 3D scanners produce a dot cloud, which is then transformed into a mesh, which is a number of triangles joined together by their corners and edges. The dots are indeed small, three-dimensional coordinates. The original dot cloud is of great importance, because each point is only acquired once, and the triangles' generation depend on the number and resolution of those original points. Here, Creaform got the idea of increasing the number of samples for each point. Hence, each time a single point on the surface is acquired, its accuracy increases. There are no oversampling issues associated with this technique, and one of its major advantages is the ability to directly generate a surface from the raw capture data. There is no more time lost in the mesh creation process, with long periods of waiting for the PC to compute the mesh, because it is generated straight away during the 3D scanning process. For someone used to the "traditional" 3D scanning process, the HandySCAN BLACK Elite's real-time mesh generation is truly astonishing.[/et_pb_text][et_pb_image admin_label="Image: Real-time mesh generation from raw data" src="https://www.aniwaa.com/wp-content/uploads/2019/09/Realtime-mesh-generation.jpg" alt="Real-time mesh generation from raw data" title_text="Real-time mesh generation from raw data" show_in_lightbox="off" url_new_window="on" animation="off" sticky="off" /][/et_pb_column][et_pb_column type="1_4"][et_pb_sidebar admin_label="Sidebar" orientation="left" area="sidebar-1" background_layout="light" /][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off"][et_pb_fullwidth_header admin_label="H2: 3D scan results" title="3D scan results: 5/5" background_layout="light" text_orientation="left" /][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="3_4"][et_pb_text admin_label="H3: 3D scan and reverse engineering of a saxophone mouthpiece" background_layout="light" text_orientation="left"]For this rating, we compared the HandySCAN BLACK's performance to similar 3D scanners. The Creaform demonstrator carried out scans of a few sample parts, where the HandySCAN BLACK Elite was able to deliver an amazing level of detail.
It was able to successfully capture tiny texts with letters smaller than 100 microns, and within a black matte part (which is usually a difficult color/texture to 3D scan).
For some parts, a manual turntable fitted with markers was used. It allowed to keep 3D scanning very quickly while standing in the same spot. We were able to see how the “small part 3D scanning” mode works, with a smooth step-by-step process specifically designed for such use cases.
We then performed a 3D scan ourselves, and chose an object that is difficult to 3D scan.
3D scan and reverse engineering of a saxophone mouthpiece
3D scanners tend to struggle a lot with shiny materials and thin parts. Therefore, to put the HandySCAN BLACK Elite to the test, we tried to capture a shiny, black saxophone mouthpiece. The mouthpiece also has a small, transparent plastic insert on one of its faces, intended for the teeth to rest. In less than a minute, we were able to capture most of the part's external geometry. It only took us a few more seconds to capture its interior, with all its complexity and intricate details. The raw mesh was then imported into VXmodel, a software that is entirely dedicated to reverse engineering applications. For first-time users, the software offers several simple tutorials in order to grasp its key concepts. To simplify, the basic steps are the following :- Clean the mesh (hole filling, decimation, and smoothing) and realign the reference axes
- Generate the surfaces with NURBS references and geometric primitives (planes, cylinders)
- Import the geometric references in a CAD software (in our case, SolidWorks 2019)
- Reconstruct the full CAD model thanks to the geometric references
We 3D printed the saxophone mouthpiece scan result.
[/et_pb_text][/et_pb_column][et_pb_column type="1_4"][et_pb_text admin_label="Responsive AdSense (automatic)" background_layout="light" text_orientation="left"][/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off"][et_pb_fullwidth_header admin_label="H2: Value" title="Value: 5/5" background_layout="light" text_orientation="left" /][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="1_2"][et_pb_text admin_label="H3: Value" background_layout="light" text_orientation="left"]The HandySCAN BLACK Elite is a game-changer in the 3D scanning and metrology industry. It delivers a powerful performance that reminds us of the Metrascan 750, but without all the hurdles (complex setup, number of parts and accessories, and large footprint). The overall capacity of the product is indeed amazing. It can 3D scan black and matte materials as well as shiny, mirror-like surfaces. The usual limitations linked to 3D scanners have been completely overcome. Perhaps this scanner's only negative aspect is the fact that markers (targets) must be placed on the object or its surroundings. Its resolution (both standard and volumetric) and accuracy are equal to those of sophisticated industrial systems that can easily cost two to three times more. Nevertheless, for applications where extreme resolution is required (under 10 microns), the HandySCAN BLACK won't be the sufficient. In terms of software, the VXElements suite is also on par. It is well-optimized, runs smoothly, and offers a lot of functions and capabilities, all while managing to be relatively intuitive. You will quickly be at ease with the software if you're familiar with 3D tools. If you have the budget, the Creaform HandySCAN BLACK Elite is simply the best product available on the market for this price range. Furthermore, it is an accessible tool suited for most operators who have some experience with 3D scanning. No particular expertise in metrology is required to take full advantage of its benefits.[/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_text admin_label="Ratings Table" background_layout="light" text_orientation="left"]| Weight | Rating | |
|---|---|---|
| Overview and setup | 2 | 5/5 |
| Experience | 2 | 5/5 |
| 3D scan results | 2 | 5/5 |
| Value | 1 | 5/5 |
| FINAL RATING | – | 5/5 |
More 3D scanning and printing resources
- Discover our list of the best handheld 3D scanners.
- 3D scanner apps for smartphones are a great way to try out 3D scanning for free.
- We reference over 1,000 3D printers to fuel our 3D scanner comparison engine.
Shining 3D EinScan Pro 2X Plus review
[/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="2_3"][et_pb_text admin_label="Disclaimer" background_layout="light" text_orientation="left"]Disclaimer: the comments and opinions expressed in this EinScan Pro 2X Plus review are the results of our own (limited) experience with the product. As always, we try to provide context to give a fair overview of the product. We strive to remain impartial and unbiased, and we have not received any payment or compensation of any form for writing this review. We conducted our hands-on review within kxiop Design Center and the 3D scanner was lent for free (along with a laptop) by Machines-3D.[/et_pb_text][/et_pb_column][et_pb_column type="1_3"][et_pb_text admin_label="Quote CTA" background_layout="light" text_orientation="left"]Contact us for a quote[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_3"][et_pb_text admin_label="TOC" background_layout="light" text_orientation="left"] [toc] [/et_pb_text][/et_pb_column][et_pb_column type="2_3"][et_pb_text admin_label="Introduction" background_layout="light" text_orientation="left"]Today we are testing the Shining 3D EinScan Pro 2X Plus, the latest evolution of the EinScan Pro and EinScan Pro Plus. It is the poster child of the family and offers a slightly better performance than the EinScan Pro 2X. The main difference between both 3D scanners is their scan area and stand-off distance; the EinScan Pro 2X Plus is more convenient for large objects. Also, the 2X comes in a light grey color while the 2X Plus is almost black.| Scan area (near) | Scan area (far) | Stand-off distance | |
|---|---|---|---|
| EinScan Pro 2X Plus | 208 x 136 mm | 312 x 204 mm | 510 mm |
| EinScan Pro 2X | 135 x 100 mm | 225 x 170 mm | 400 mm |
FINAL RATING: 4.4/5
[/et_pb_testimonial][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_3"][et_pb_text admin_label="Amazon card" background_layout="light" text_orientation="left"] [/et_pb_text][/et_pb_column][et_pb_column type="1_3"][et_pb_text admin_label="H2: PROS" background_layout="light" text_orientation="left"]PROS
- Intuitive and user-friendly (for a 3D scanner)
- Performance (quality and speed)
- Price
CONS
- Texture quality
- Few editing options within the software
Unboxing
We received the 3D scanner along with a powerful laptop computer (courtesy of Machines 3D) to conduct this test. Everything was well packaged and protected inside a single cardboard box. The EinScan Pro 2X Plus and all its accessories were contained within a single and robust plastic hard case. The full package, including the laptop, 3D scanner, and accessories, is quite heavy but stillweighs under 10 kg and can be easily transported by a single person.[/et_pb_text][/et_pb_column][et_pb_column type="1_4"][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_2"][et_pb_text admin_label="H3: Instruction Manual/Accessories" background_layout="light" text_orientation="left"]Instruction manual
For this review we did not use any manual and simply followed the software’s instructions directly displayed on the computer. 3D scanners are usually complex to operate, but with the EinScan Pro 2X Plus we were quickly able to perform 3D scans in a variety of configurations, including Fixed HD mode and Free mode.Accessories
For EinScan Pro 2X Plus review, we were provided with both the ”Professional” pack (includes a tripod and automatic turntable) and the “color” pack (includes the color sensor). Please note that we didn’t get the “HD Prime” pack, which is dedicated for the HD Handheld Mode. The 3D scanner comes with everything needed to use it, including :- One USB cable to connect the 3D scanner to the computer (USB 3.0)
- Two power cables
- A calibration plate
- An automatic turntable
- A tripod
- A color sensor
Minimum PC requirements
To run the software during our tests, Machines-3D provided us with a powerful gaming laptop, the ASUS ROG STRIX 15.6-inch. This computer boasts the following specs:- CPU : Intel Core i7-7700HQ @ 2.80GHz
- GPU : Nvidia GTX 1060
- Ram : 16 Gb
- OS : Windows 10 Pro x64
The EinScan Pro 2X Plus in its hardcase.
[/et_pb_text][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2019/05/Shining-3D-review-EinScan-Pro-2X-Plus.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="Pierre-Antoine EinScan Pro 2X Plus review Aniwaa" title_text="Pierre-Antoine EinScan Pro 2X Plus review Aniwaa" /][et_pb_text admin_label="Caption" background_layout="light" text_orientation="left"]Using the 2X Plus handheld 3D scanning mode.
[/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off"][et_pb_fullwidth_header admin_label="H2: Overview and setup" title="Overview and setup: 4/5" background_layout="light" text_orientation="left" /][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="3_4"][et_pb_text admin_label="H3: Software/Hardware" background_layout="light" text_orientation="left"]Software
The laptop we were provided with already had the software installed. Hence, we did not get to perform the installation ourselves. In comparison with older Shining 3D software, this piece of EXScan PRO software offers a new UI and simplified workflow. It allows for a fast 3D scanning experience with intuitive navigation.Hardware
Setting up the hardware was a breeze. There is one main USB 3.0 cable that connects the 3D scanner to the computer. Then there’s a power cable that plugs into that same USB cable (which has a specific power slot) from your power outlet. Hence, only one cable is plugged into the scanner– convenient! After setting up the 3D scanner we mounted the Color pack. This process was simple as well, only requiring you to plug in the small module on the 3D scanner’s side and locking it in place. Everything feels robust and sturdy once assembled. The last step consists in plugging the turntable into the USB port on the laptop, and connecting it to a power outlet with the dedicated adapter. Note that the turntable adapter and 3D scanner adapter are the same, which avoids any confusion. You need two USB ports to connect both the scanner’s USB cable and the turntable’s USB cable. Therefore you’ll need an extra USB port on your computer in order to plug in a mouse, which is highly recommended when interacting with 3D content.[/et_pb_text][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2019/05/EinScan-Pro-2X-Plus-review-tripod-with-color-module.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="Shining 3D EinScan Pro 2X Plus review: tripod and color module." title_text="Shining 3D EinScan Pro 2X Plus review: tripod and color module." /][et_pb_text admin_label="Caption" background_layout="light" text_orientation="left"]The Shining 3D EinScan Pro 2X Plus 3D scanner and tripod.
[/et_pb_text][/et_pb_column][et_pb_column type="1_4"][et_pb_text admin_label="Responsive AdSense (automatic)" background_layout="light" text_orientation="left"] [/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_2"][et_pb_text admin_label="H3: Getting started" background_layout="light" text_orientation="left"]Getting started
When in hand, the EinScan 2X Pro Plus feels robust and ergonomic. The product’s finish is clean and reinforces its sturdy, industrial look. The Start scanning button is well placed, as well as the other two smaller ones. In order to start 3D scanning, a short calibration setup is recommended. The process is very intuitive, and a step-by-step video is directly displayed via the software, without the need to access any YouTube tutorials on your browser. It first consists in 3D scanning the calibration plate at different distances and at different angles. The software then displays a “calibrating” message while it does its calculations (lasts several minutes) and provides the result in terms of pixels. Then, it calibrates white balance, which is almost instantaneous (you only need to turn the calibration plate over). Last but not least, it measures accuracy, which also requires a single step before displaying the result. We got 0.100106 mm on our first try. Once the calibration is complete, it is possible to choose a 3D scanning mode in the menu, and you can then directly start 3D scanning.[/et_pb_text][et_pb_text admin_label="Responsive AdSense (square)" background_layout="light" text_orientation="left"] [/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2019/05/EinScan-Pro-2X-Plus-review-in-action-tripod-turntable.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="The 3D scanner in action on its tripod and with the automatic turntable." title_text="The 3D scanner in action on its tripod and with the automatic turntable." /][et_pb_text admin_label="Caption" background_layout="light" text_orientation="left"]The 3D scanner in action with the automatic turntable.
[/et_pb_text][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2019/05/EinScan-Pro-2X-Plus-review-color-module-zoom.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="The Pro 2X Plus color module up close." title_text="The Pro 2X Plus color module up close." /][et_pb_text admin_label="Caption" background_layout="light" text_orientation="left"]The Pro 2X Plus color module up close.
[/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off"][et_pb_fullwidth_header admin_label="H2: Experience" title="Experience: 4/5" background_layout="light" text_orientation="left" /][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="2_3"][et_pb_text admin_label="H3: Software" background_layout="light" text_orientation="left"]Software
The software takes you through several steps to perform a 3D scan. The first step consists in choosing the 3D scanning method:- Fixed Scan
- Handheld HD Scan
- Handheld Rapid Scan
3D scanning
As usual with structured light 3D scanners, it is recommended to be in a room without direct sunlight, to make the 3D scanning process easier. We tested two of the three 3D scanning modes.[/et_pb_text][et_pb_text admin_label="YouTube video" background_layout="light" text_orientation="left"][/et_pb_text][/et_pb_column][et_pb_column type="1_3"][et_pb_sidebar admin_label="Sidebar" orientation="left" area="sidebar-1" background_layout="light" /][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_2"][et_pb_text admin_label="H4: Fixed scan" background_layout="light" text_orientation="left"]Fixed Scan
We used this mode to capture several small-sized objects, which all fit on the turntable. In some cases, we manually positioned the objects to capture specific parts without suffering from occlusion issues. The objects we tested were made of various textures (plastic, wood, metal, rubber…), with surfaces that were more or less complex. The turntable was of great help, and it allowed us to perform 3D scans in a matter of minutes. Once a 360° 3D scan is complete (which consists of 8-12 scans, merged together), the object must be flipped over in order to capture its lower, bottom structure. The number of stops the turntable does within its 360° rotation can be changed manually.[/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_text admin_label="H4: Handheld rapid scan" background_layout="light" text_orientation="left"]Handheld Rapid Scan
This mode was a bit more of a struggle, as it requires the 3D scanning operator (user) to move smoothly and steadily while standing at a constant, specific distance from the object. We used this mode to scan a few faces and obtained very good results in seconds. We also got interesting results while capturing limbs (hands and arms, feet and legs). In our opinion, this mode is best suited for 3D scanning large objects such as a car door or even a full scooter as demoed on Shining 3D’s website. One thing we noticed is that depending on the selected mode, the structured light cast by the scanner is not the same. For the Fixed Scan mode, the light is made of fine stripes, while for the Handheld Rapid Scan mode it’s a pixelated pattern.[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="2_3"][et_pb_text admin_label="H4: Meshes and 3D models" background_layout="light" text_orientation="left"]Meshes and 3D models
Once the 3D scanning is done, it is possible to create a mesh from the dot cloud by first choosing the type of mesh:- Open: open meshes are basically just surfaces and can be used to make digital assets, for reverse engineering, or for specific custom applications.
- Watertight: these meshes are fully-closed 3D models (required for applications such as 3D printing).
Dinosaur toy (plastic)
This white, silky plastic toy is roughly 150 x 100 x 50 mm. It doesn’t have any complex surfaces, but nonetheless its shape is difficult to fully capture because of occlusion (especially at the dinosaur’s neck and tail). The EinScan Pro 2X Plus did a very good job combining 20 scans into a single mesh. The object’s simple texture was well rendered and could be used to manually align the 3D scans if necessary (although most of the time EXScan PRO was able to do it by itself).[/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2019/05/EinScan-Pro-2X-Plus-review-dinosaur-toy-scan.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="EinScan Pro 2X Plus review: dinosaur toy 3D scan." title_text="EinScan Pro 2X Plus review: dinosaur toy 3D scan." /][et_pb_text admin_label="Caption" background_layout="light" text_orientation="left"]EinScan Pro 2X Plus review: dinosaur toy 3D scan.
[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_2"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2019/05/EinScan-Pro-2X-Plus-review-shoe-scan.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="EinScan Pro 2X Plus review: child's shoe 3D scan." title_text="EinScan Pro 2X Plus review: child's shoe 3D scan." /][et_pb_text admin_label="Caption" background_layout="light" text_orientation="left"]EinScan Pro 2X Plus review: child's shoe 3D scan.
[/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_text admin_label="H3: Shoe" background_layout="light" text_orientation="left"]Shoe
We used a small kid’s shoe (size 21 for Europeans) in order to grasp the 3D scanner’s ability to capture multi-material objects. The EinScan Pro 2X Plus did an excellent job at capturing the shoe, with only 2 complete 360° spins on the turntable. It even did a decent job at 3D scanning the inside of the shoe, which was filled with a striped repetitive pattern (known for being difficult to 3D scan).[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_2"][et_pb_text admin_label="H3: Saxophone mouthpiece" background_layout="light" text_orientation="left"]Saxophone mouthpiece
It is widely known that 3D scanners struggle a lot with shiny materials and thin parts. To put the EinScan Pro 2X Plus to the test, we tried to capture a metallic saxophone mouthpiece. It has also a small black matte plastic insert on one of its faces, making it even harder to scan. For this test the texture (color) capture was turned off. At first we did not obtain anything and finally resorted to one of the best kept secrets of the 3D scanning world– always have some toothpaste ready! We used a little mix of toothpaste and water to cover the mouthpiece and then 3D scanned it. Instantly, the software started displaying the captured surfaces. In the end the result was amazing: the shape of the mouthpiece was really well captured, and even had enough detail to allow for a later reverse engineering process.[/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2019/05/EinScan-Pro-2X-Plus-review-saxophone-mouthpiece.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="EinScan Pro 2X Plus review: saxophone mouthpiece 3D scan (right-hand image is a photo of the original object, not the scan result)." title_text="EinScan Pro 2X Plus review: saxophone mouthpiece 3D scan (right-hand image is a photo of the original object, not the scan result)." /][et_pb_text admin_label="Caption" background_layout="light" text_orientation="left"]EinScan Pro 2X Plus review: saxophone mouthpiece 3D scan (right-hand image is a photo of the original object, not the scan result).
[/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off"][et_pb_fullwidth_header admin_label="H2: Value" title="Value: 5/5" background_layout="light" text_orientation="left" /][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="1_2"][et_pb_text admin_label="H3: Value" background_layout="light" text_orientation="left"]The EinScan Pro 2X Plus is quite a unique offer on the market at the time of writing this review. It is affordable, offers modularity (with three scanning modes) and provides a professional-grade performance. For the most standard use cases such as dental, jewelry or design applications, you probably won’t need the color module. It could be interesting for e-commerce, e.g. posting 3D scans of products rather than simple pictures. However, compared to this scanner’s overall performance, its color capture is a tiny bit disappointing. The EXScan PRO software is perfect for beginners and people who don’t want to dive into complex functionalities. It does the job while keeping it simple.[/et_pb_text][et_pb_text admin_label="Amazon card" background_layout="light" text_orientation="left"] [/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_text admin_label="Ratings Table" background_layout="light" text_orientation="left"]| Weight | Rating | |
|---|---|---|
| Overview and setup | 2 | 5/5 |
| Experience | 2 | 4/5 |
| 3D scan results | 2 | 4/5 |
| Value | 1 | 5/5 |
| FINAL RATING | – | 4.4/5 |
More 3D scanning and printing resources
- 3D scanner apps for smartphones are a great way to try out 3D scanning for free.
- We reference over 1,000 3D printers to fuel our 3D scanner comparison engine.
- What are the best 3D printers under $300?
peel 3d review: a cost-effective handheld 3D scanner
[/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="1_3"][et_pb_text admin_label="TOC" background_layout="light" text_orientation="left"] [toc] [/et_pb_text][et_pb_text admin_label="Disclaimer" background_layout="light" text_orientation="left"] Disclaimer: the comments and opinions expressed in this review are the results of our own (limited) experience with the product. As always, we try to provide context to give a fair overview of the product. We strive to remain impartial and unbiased, and we have not received any payment or compensation of any form for writing this peel 3d review. [/et_pb_text][/et_pb_column][et_pb_column type="1_3"][et_pb_text admin_label="Introduction" background_layout="light" text_orientation="left"] peel 3d, which is a subsidiary of Creaform, is a Canadian company that operates in the 3D scanning industry and provides reverse engineering services. The goal of peel 3d is to manufacture cost-effective, high-quality handheld 3D scanners and therefore offer businesses the possibility of increasing productivity at an affordable price. Most high-end handheld industrial 3D scanners cost above $20,000. Thus, peel 3d wants to appeal to a wider range of customers with a more affordable price point of under $6,000 for their handheld 3D scanner. The peel 3d is an entry-level professional handheld 3d scanner suitable for reverse engineering, 3D body scanning, education, design and other applications. The device uses a white LED light to capture objects in 3D with structured light technology. Aniwaa has reviewed popular handheld 3D scanners before like the Artec Eva, the Creaform Go!SCAN 50, and the Shining 3D EinScan-Pro. Our aim in this review was to verify that the peel 3d is a 3D scanner that is ideally suitable, as the manufacturer claims, for a user with a restricted budget, minimal hands-on 3D scanning knowledge, and operating without a lab setup. [/et_pb_text][et_pb_testimonial admin_label="Testimonial" url_new_window="on" quote_icon="off" use_background_color="on" background_color="#f5f5f5" background_layout="light" text_orientation="left"]FINAL RATING: 4.5/5
[/et_pb_testimonial][/et_pb_column][et_pb_column type="1_3"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2018/08/peel-3d-review-3D-scanner.jpg" alt="The peel 3d is a affordable professional scanner." title_text="The peel 3d is a affordable professional scanner." show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" /][et_pb_text admin_label="Text" background_layout="light" text_orientation="left"] Before starting the review, we watched the tutorial videos produced by peel 3d and prepared a list of protocols and features we wanted to test. We experienced some issues with the hardware during the scan testing (caused by a power fluctuation) so we were not able to fully test the capabilities of the peel 3d or produce further detailed scans as we had planned [/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_3"][et_pb_text admin_label="YouTube video: peel 3d" background_layout="light" text_orientation="left"] [/et_pb_text][/et_pb_column][et_pb_column type="1_3"][et_pb_text admin_label="H2: PROS" background_layout="light" text_orientation="left"]PROS
- Fast software processing time
- Start-and-stop scan system
- User-friendly process
CONS
- Easy to lose track of the target
- Cable is too short for large scans
Hardware and software first steps rating: 4/5
Aniwaa’s office is based in Phnom Penh, Cambodia and even after a lengthy shipping journey from Canada, the product arrived in a professional-looking protective hard-plastic travel case which enables the user to transport the 3D scanner safely and easily. All of the accessories and the peel 3d scanner are neatly organized within the travel case, firmly positioned in foam padding. [/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2018/08/peel-3d-review-accessories.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="All the peel 3d accessories pictured are standard." title_text="All the peel 3d accessories pictured are standard." /][et_pb_text admin_label="CAPTION" background_layout="light" text_orientation="left"]All the peel 3d accessories pictured are standard.
[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_2"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2018/08/peel-3d-review-transport-case.jpg" alt="peel 3d travel case" title_text="peel 3d travel case" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" /][et_pb_text admin_label="CAPTION" background_layout="light" text_orientation="left"]peel 3d travel case.
[/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_text admin_label="Text" background_layout="light" text_orientation="left"]peel 3d hardware
Hands-on with the peel 3d
This 3D scanner looks professional and is easy to hold in our hands. The design is simple yet ergonomic. The device is well-balanced and fits well in the user’s hand. Its weight is reasonable (850g), not overly heavy but not light either.Accessories and documentation
The following items come with the peel 3d scanner:- One 4m cable to connect the 3D scanner to the computer (USB 2.0)
- Documentation of the basic process for scanning
- A power cable
- A USB key to install the peel 3d software
- Two boxes of 500 positioning targets each (1 regular, 1 super-adhesive)
- A calibration plate
Minimum PC requirements
peel 3d provided us with a laptop to run the software during our tests. (The peel 3d does not usually ship with a laptop!) The HP EliteBook Mobile Workstation has the following specs: 8570w - 15.6’’ - Core i7 3610QM - 8GB RAM - 750GB HDD graphic card. The specs fall within the range of the minimum PC requirements peel 3d suggest on their website to run the software: [/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2018/08/peel-3d-review-minimum-PC-requirements.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="off" alt="The minimum PC requirements to run the peel 3d software" title_text="The minimum PC requirements to run the peel 3d software" /][et_pb_text admin_label="CAPTION" background_layout="light" text_orientation="left"]The minimum PC requirements to run the peel 3d software.
[/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off"][et_pb_fullwidth_header admin_label="H2: peel 3d scanner review" title="peel 3d scanner review" background_layout="light" text_orientation="left" /][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="1_2"][et_pb_text admin_label="H3: peel 3d software" background_layout="light" text_orientation="left"]peel 3d software
First steps with the peel 3d software
The software was really easy to install. After inserting the USB key to the laptop, we selected “peel 3d”, entered the product serial number included with the key, and the software was effortlessly installed. The software is very user-friendly, and the technical terms are understandable with even minimal 3D scanning knowledge. There are many options within the software, but the layout remains simple and intuitive.- On the left side of the screen are the settings that the user will enter based on what is being 3D scanned.
- On the right side of the screen are the working platforms which show the 3D scanning process in real time.
- Towards the top of the software are the different tools used to enhance the scan results: meshing, texturing, cleaning, etc.
The layout of the peel 3d software.
[/et_pb_text][et_pb_text admin_label="Responsive AdSense (automatic)" background_layout="light" text_orientation="left"] [/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_2"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2018/08/peel-3d-review-calibration-process.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="Calibrating the peel 3d. " title_text="Calibrating the peel 3d. " /][et_pb_text admin_label="CAPTION" background_layout="light" text_orientation="left"]Calibrating the peel 3d.
[/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_text admin_label="H3: peel 3d calibration" background_layout="light" text_orientation="left"]peel 3d calibration
Calibrating the peel 3d was simple and fast. The calibration plate was placed on a flat surface and we followed the steps that were displayed at the bottom of the software on-screen. We tested the calibration process several times and it took less than a minute to accurately calibrate the peel 3d. [/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="2_3"][et_pb_text admin_label="Text: H3 Main features of the software" background_layout="light" text_orientation="left"]Main features of the software
The peel 3d software offers several main tools that are used to help users optimize their 3D scans. Start and stop system It is possible to pause and change the settings while 3D scanning, or to rest in case of long 3D scan sessions for bigger objects, and to resume scanning thereafter. Delete frames Some 3D scans can result in distorted images. This easy-to-use tool allows the user to correct the mistake, recognize the poorly-scanned frames, and delete them. Clean mesh This is an automatic cleaning tool that erases the small potential imperfections made within a 3D scan. Fill holes The image mesh may have some holes, big or small. It is always possible to rescan if needed, but thanks to this tool, it is possible to manually fill in the gaps. The tool is precise and fast. Watertight remesh This tool allows the user to automatically fill in all the holes of the model. It is less precise than manually filling in all the gaps and there is room for improvement, but it is still a great tool. Users should note that no printed manual is provided to explain the tools, but we used peel 3d’s YouTube tutorials to help us understand the software options, and we would suggest potential peel 3d users to do the same. [/et_pb_text][/et_pb_column][et_pb_column type="1_3"][et_pb_sidebar admin_label="Sidebar" orientation="left" area="sidebar-1" background_layout="light" /][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off"][et_pb_fullwidth_header admin_label="H2: Test peel 3d scanning " title="Test peel 3d scanning " background_layout="light" text_orientation="left" /][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="1_2"][et_pb_text admin_label="H3: peel 3d experience – 4.5/5" background_layout="light" text_orientation="left"]peel 3d experience: 4.5/5
Our experience with the software was very satisfying. It was user-friendly and the online tutorials are really comprehensive and helpful. Finally, the peel 3d software quickly processed the scans. The average scanning process from setup, to a final, edited and ready-for-export scan result was 25 minutes based on the 3D scans we completed.Summary of the steps
- Plug-and-play setup (1 minute)
- Calibration (1 minute, recommended after the scanner has been transported)
- Enter the desired settings (2 min)
- 3D scanning (from 5 to 20 minutes for larger objects)
- Texturing and meshing (1 to 5 minutes based on the size of the scan)
- Cleaning the mesh (on average 5 minutes)
- Watertight meshing (5 to 15 minutes based on the object)
- Export 3D file
Limitations
peel 3d makes the following limitations very clear on their website; these issues are common for many 3D scanners available in the market:- Hair, beard or fur are very hard or impossible to 3D scan. peel 3d claims it simply doesn’t work, and this is what we experienced when we tested scanning hair and beards. It is possible to sculpt hair on sculpting software such as Sculptris, which is the advice peel 3d gave us when we asked them for a solution.
- Very shiny/reflective surfaces are very hard or impossible to scan with the peel 3d. Gold, silver, and some metals are also difficult to capture, but not impossible to scan, which can be problematic for industrial objects (for example the silver engine of a 170 cm Suzuki Step motorcycle we scanned - see further below).
- It is not possible to 3D scan transparent objects.
- It is very hard to 3D scan small objects (less than 30cm), however, it does not mean that the peel 3d cannot capture small details on larger objects. Indeed, this 3D scanner can produce realistic and highly-detailed scans.
- It is hard to 3D scan thin objects (for example tree leaves or cactus pikes).
3D scan results: 4.5/5
Our goal was to verify the claims of peel 3d and challenge the limitations of the 3D scanner. In order to do that, we chose to 3D scan objects that peel 3d claimed should work, but we also attempted to 3D scan what peel 3d claimed to be hard or impossible to scan. Our 3D scan list:- Semi-rigid objects: a full body scan (190cm) and a head scan (30cm).
- A bigger industrial object: a full motorcycle (170cm).
- A smaller industrial object: a plastic coffee machine (40cm), with the particularity of having a transparent water container.
- Challenging items to test the limits of the peel 3d: a shiny lamp (50cm) and a black tee-shirt (50cm).
- Uniform surface
- Automatic shutter
- 1mm resolution (because a higher resolution requires a more powerful computer)
- Semi-rigid positioning for human anatomy (head and body)
- Shutter (ms) at 8 for dark surfaces like the lamp
- Textured surface such as the leather seat of the motorcycle
Body scan (190cm)
For our first scan, we wanted to try a full-body scan. We selected the default settings with semi-rigid positioning as per the manufacturer's advice. The peel 3d was easy to hold in hand, and the process of scanning was more simple than we expected. One observation we had is that the length of the cable between the scanner and the laptop could be longer than 4 meters, but the overall experience was comfortable and intuitive. [/et_pb_text][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2018/08/peel-3d-review-3D-body-scan.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="Our first 3D body scan result" title_text="Our first 3D body scan result" /][et_pb_text admin_label="CAPTION" background_layout="light" text_orientation="left"]Our first 3D body scan result
[/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2018/08/peel-3d-review-3D-body-scanning-session.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="Our model with the first 3D scan result we obtained." title_text="Our model with the first 3D scan result we obtained." /][et_pb_text admin_label="CAPTION" background_layout="light" text_orientation="left"]Our model with the first 3D scan result we obtained.
[/et_pb_text][et_pb_text admin_label="TEXT" background_layout="light" text_orientation="left"]- The 3D scan took 20 minutes and we were quite satisfied with the full-body 3D scan.
- The software took 10 minutes to process the scan, with an additional 10 minutes using the fill holes and water meshing tools. We acknowledged that the tutorial helps the user at every step, and that the software was easy-to-use for beginners. The only problem we had was that the 3D scanner lost focus quite a few times during the scan. We managed to regain the focus, even if the process required some patience, but for other 3D scans we used a lot of positional targets to help with this issue.
Head 3D scan (30cm)
We 3D scanned a human head to test the quality of the detail on a particular scan (with semi-rigid positioning). We managed to obtain good results on the first head-scan and we were pleasantly surprised that the processing and the editing steps were easy and quick. Our subject, Steve, has no hair, so it was perfect since the peel 3d doesn't easily 3D scan hair.- 3D scanning process: 5 minutes
- Meshing: 1 minute
- Watertight meshing and overall cleaning: 15 minutes
Motorcycle 3D scan (170cm)
We attempted to try a larger, industrial-grade 3D scan to assess the professional use of the peel 3d and the quality the user can expect to achieve. We scanned a Suzuki motorcycle belonging to the CEO at Aniwaa, Martin Lansard. We 3D scanned the motorcycle with the default settings of a uniform surface, apart from the seat, where we changed the setting to textured surface and it worked really well. We also used a number of positional targets to ensure that we didn't lose focus whilst completing the scan. [/et_pb_text][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2018/08/peel-3d-review-motorcycle-3D-scan-result.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="he 3D scan of the Suzuki, after running the watertight meshing tool" title_text="he 3D scan of the Suzuki, after running the watertight meshing tool" /][et_pb_text admin_label="CAPTION" background_layout="light" text_orientation="left"]The 3D scan of the Suzuki, after running the watertight meshing tool.
[/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2018/08/peel-3d-review-3d-scanning-motorcycle.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="3D scanning the Suzuki motorcycle." title_text="3D scanning the Suzuki motorcycle." /][et_pb_text admin_label="CAPTION" background_layout="light" text_orientation="left"]3D scanning the Suzuki motorcycle.
[/et_pb_text][et_pb_text admin_label="TEXT" background_layout="light" text_orientation="left"]- The scanning session took 30 minutes. We were satisfied with the time it took for a large and complex object. The meshing was almost instantaneous, but the watertight meshing took a further 10 minutes.
- For a first 3D scan of such a big object, we were happy with the results. However, surfaces that are reflective or transparent are difficult to 3D scan but, as mentioned, peel 3d is very clear about this aspect. A possible solution is to use a mattifying spray specifically for this use case, or if possible, paint on the scanned object to make it an easier target for the 3D scanner.
Coffee machine 3D scan (40cm)
- We 3D scanned a plastic coffee machine, with a transparent water container at the rear. Indeed, we wanted to scan a medium-sized object since professional users would likely use the peel 3d to scan objects of similar size for prototyping or design purposes.
- It took us 5 minutes to 3D scan the whole coffee machine, and 5 minutes to process and edit the image. We were really satisfied with the results. However, as expected, the 3D scanner didn’t detect the transparent surface of the water tank.
The coffee machine (on the left) and the transparent water container not appearing in the 3D scan (on the right).
[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_2"][et_pb_text admin_label="H3: Challenging 3D scans of small objects (50cm)" background_layout="light" text_orientation="left"]Challenging 3D scans of small objects (50cm)
After scanning a full body, a human head, a large object (a motorbike) and a small-medium object (coffee machine), we wanted to challenge the peel 3d by scanning more difficult objects.- The first object we 3D scanned had a shiny, reflective surface- a desktop lamp made in reflective metal- but it didn’t work at all. The 3D scanner simply didn’t pick up the object, even when we used the positioning tracker stickers.
- We 3D scanned a dark and matte surface of a black tee-shirt. The scan worked really well with the shutter set at 8ms. With some patience and the right settings, dark surfaces can be 3D scanned. It took 2 minutes to 3D scan the shirt, and 5 minutes to process in the software.
Aniwaa’s opinion: 4.5/5
After testing the peel 3d at Aniwaa’s office, we felt that the peel 3d exceeded our expectations. The 3D scanner is easy to use and the software is intuitive and fast, with a selection of software tools available to edit and prepare a good final mesh in a short amount of time. Our results were very satisfying even considering that we lacked a professional test lab with high-quality lighting for this review. We were not disappointed when the 3D scanner hit its limitations with some objects, as peel 3d had clearly identified these on their website. Our opinion on the 3D scanner is positive: peel 3d delivered on their promise in producing an affordable professional-grade 3D scanner. However, some adjustments and upgrades are possible:- The cable is a bit too short for larger objects that require the user to walk around the target.
- The watertight meshing tool is quite challenging to tweak, and this tool appeared to have some limitations on more detailed parts of a 3D scanned object.
Aniwaa team with the peel 3d scanner.
[/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_text admin_label="H3: Aniwaa’s opinion: 4.5/5" background_layout="light" text_orientation="left"]Conclusion and buying advice for peel 3d
peel 3d targets professionals on smaller budgets with this cost-effective handheld 3D scanner. The manufacturer claims that the user will achieve the quality of a professional-grade 3D scanner at an affordable price, and it is indeed the case. This 3D scanner is user-friendly, the overall process is fast and simple, and the software is easy to use with intuitive tools to get the most out of a 3D scan. The peel 3d remains cost-effective at its price of $5,900 compared to most high-end industrial scanners available on the market.[/et_pb_text][et_pb_text admin_label="Ratings Table" background_layout="light" text_orientation="left"]| Rating | ||
| Hardware and software first steps: |
4/5 |
|
| Experience: |
4.5/5 |
|
| Scan result: |
4.5/5 |
|
| Aniwaa’s opinion: | 4.5/5 | |
| FINAL RATING |
4.4/5 |
More 3D scanning and printing resources
- 3D scanner apps for smartphones are a great way to try out 3D scanning for free.
- We reference over 1,000 3D printers to fuel our 3D scanner comparison engine.
- What are the best 3D printers under $300?
| Brand: | RangeVision |
| Model: | Spectrum |
| Price: | €5,490 |
| Rating: | 4/5 |
Introduction
Today we are doing a hands-on review of the new RangeVision Spectrum. RangeVision is a Russian company with products available in more than 20 countries, through a dense network of resellers, the majority of them being in Europe and Asia. RangeVision has been selling professional 3D scanners for over a decade. In 2015, they introduced the affordable RangeVision Smart, an entry-level desktop 3D scanner. This product received a warm welcome from the community and made professional 3D scanning accessible to several new users, including museum conservationists, dentists, jewelers, and designers. Following this success, in 2017 RangeVision decided to design a more powerful structured light 3D scanner. The Spectrum is fitted with an upgraded video projector and USB 2.0 cameras and is already sold across the globe. [caption id="attachment_41884" align="aligncenter" width="600"]
The RangeVision Spectrum 3D scanner and automatic turntable.[/caption]
Today we met with Michal Vyplašil, a tech salesman from ABBAS, a 3D scanner reseller and distributor from the Czech Republic. ABBAS offers the whole RangeVision range as well as other brands, such as Artec. ABBAS delivers training and education sessions for every product sold, and have a very reactive support in Czech, Russian and of course English.
Michal came to Dassault Systèmes offices in Vélizy, a town near Paris, famous for its number of very large companies including PSA, Thalès, Bouygues and General Mills.
At Dassault Systèmes, the demo was hosted at the 3DExperience Lab, a laboratory that nurtures and empowers disruptive projects. The 3DExperience Lab is already home to several 3D printers (including an Ultimaker 2+ and a Markforged Mark One) and 3D scanners. Run by CAD and design experts, the 3DExperience Lab was the perfect place to conduct this hands-on demo.
Michal arrived by plane in Paris, with the Spectrum fitted inside a robust hard case along with all its accessories (excluding the tripod). Therefore, there was no unboxing, but we were able to witness the whole installation process.
[caption id="attachment_41878" align="aligncenter" width="470"]
The Spectrum's hard case and accessories.[/caption]
Discovering the RangeVision Spectrum 3D scanner
The RangeVision Spectrum features all the standard characteristics of a structured light desktop 3D scanner. Its main part is the 3D scanner head, a video projector attached to a rigid aluminum frame, and 2 cameras. [caption id="attachment_41885" align="aligncenter" width="600"]
One of the Spectrum's two USB cameras.[/caption]
Structured light 3D scanning technology consists in casting a specific light pattern onto the object to 3D scan. Then, the 3D scanner detects the light deformation from 2 different positions, thereby obtaining a precise triangulation and information on the object’s surface. Usually, more power and higher resolution (video projector and camera-wise) translate into better 3D scanning results.
The Spectrum boasts a maximum resolution of 0.07 mm and a maximum accuracy of 0.04 mm. Resolution can be defined as the 3D scanner’s sampling ability to capture a surface, like a grid; the smaller the grid, the better the resolution. Accuracy represents the distance between the measured specific point and its real-life position.
The Spectrum comes with a rugged hard case in which all of its accessories fit, except the tripod. The hard case contains the cables for the 3D scanner head: two USB 2.0 cables to connect the cameras, an HDMI cable for the video projector, and the AC power cable. The Automatic Turn Table (ATT), also included, comes with its own USB 2.0 cable and AC power cable.
[caption id="attachment_41873" align="aligncenter" width="600"]
The accessories that come with the RangeVision Spectrum.[/caption]
Additionally, an Allen key and calibration plates are also part of the package. The Allen key is required to attach the USB 2.0 cameras to the 3D scanner head frame.
[caption id="attachment_41879" align="aligncenter" width="600"]
One of the RangeVision Spectrum's calibration plates.[/caption]
At €5,490, the Spectrum fits nicely between the RangeVision Smart (€2,299) and the RangeVision Pro (over €8,000).
Overview of the RangeVision Spectrum
Setting up the RangeVision Spectrum 3D scanner is quite fast. In a few minutes, the cameras can be secured to the 3D scanner head. It is then possible to connect the tripod thanks to a standard camera screw. Therefore, the tripod is replaceable with any generic product if the specific use case requires more height or less footprint. Interestingly, RangeVision also sells a table-top tripod, ideal for attaching the 3D scanner to any table and for using the ATT. [caption id="attachment_41883" align="aligncenter" width="287"]
RangeVision's table-mount tripod.[/caption]
[caption id="attachment_41882" align="aligncenter" width="300"]
The Spectrum on the table-mount tripod.[/caption]
Note that users will need no less than 4 USB ports to connect both cameras, the USB stick with the software licenses and the ATT. To connect a mouse – a must-have for all 3D-related interactions – a USB hub or dock station is a necessity. Also, all of the cables quickly become cumbersome. Therefore, the cable sheaths that RangeVision provides are very useful.
The 3D scanner “head” itself is well-finished, while the video projector is securely encased under a closed plastic cover, which looks like the ones used for each USB 2.0 camera. The whole product feels sturdy and reliable.
It is interesting to note that the Spectrum is compatible with positioning markers, a true advantage for professionals. Indeed, this makes the 3D scanner suitable for large objects and repetitive shapes, which are usually a challenge. It also extends the capabilities to deal with hard-to-scan objects, such as reflective and/or transparent surfaces.
Testing the RangeVision Spectrum
Connecting everything takes about 5 minutes. This includes fixing the 3D scanner head onto the tripod and plugging the cables as well as launching the ScanCenter software. Note that the RangeVision software suite is still two separate programs: ScanCenter, to generate 3D scans, and ScanMerge, to align and merge 3D scans together to create a unique mesh. [caption id="attachment_41872" align="aligncenter" width="600"]
Preparation and alignment of a 3D scan RangeVision software.[/caption]
In the 2017.2 version of ScanCenter and ScanMerge used for the demo, several features were added:
- Users can indicate the ambient temperature to improve calibration accuracy
- Option to repair the model in the MeshFix
- Undo/redo actions added in ScanMerge
- New .rv3d format for ScanMerge
- Model export in .ptx format
Calibrating the RangeVision Spectrum and the automatic turntable.[/caption]
The calibration process is mostly automated, the software telling the user what to do with the calibration plate. It takes a dozen steps consisting in slightly moving the calibration plate in different orientations. Users must focus the cameras manually. Then, the system automatically adjusts and is ready to 3D scan.
[caption id="attachment_41870" align="aligncenter" width="600"]
Calibrating the 3D scanner with the software.[/caption]
Conclusion
For this hands-on demo, the test object is a plaster dental cast. Even if this white dental impression is indeed easy to capture for structured light 3D scanners, the results we obtained were highly detailed and very accurate thanks to its white, uniform texture. The fixing tools available in the ScanMerge toolbox are also a nice addition to the Spectrum capabilities. They were used to fill up holes and clean geometrical artefacts (small triangles unconnected to the main body of the object). In a few minutes, we obtained the 3D scan in ScanCenter, ready for visualization. We used ScanMerge’s auto-alignment (called registration) feature to assemble the two sets of dot clouds obtained from the dental model into a single orientated group. Then, it was possible to generate the closed mesh. We generated two meshes of the same 3D scan in two resolutions. The bigger file with the highest resolution is a 1 Gb STL, while the smaller one is 142 Mb. We used the free Meshlab decimation tool to reduce it to 28 Mb so that we could upload it on Sketchfab. ScanCenter also has a built-in feature to reduce model sizes. The processing speed was approximately 10 times longer for the more detailed mesh, taking approximately 3 minutes. For the small file, it took less than 20 seconds. In the picture below, we can see the difference between the two models, the high-resolution one being on the right. It has more details and less smoothing. [caption id="attachment_41881" align="aligncenter" width="600"]
Two different 3D scanning resolutions (high-res on the right) with the RangeVision Spectrum.[/caption]
Aniwaa’s opinion: 4/5
After some mixed impressions on the RangeVision Smart (very good hardware but unfinished software) we had the chance to perform some more testing after a major software upgrade which took our previous feedback into account. Since the Spectrum uses the same software suite, we were in known territory and had a good overall experience. Furthermore, a completely new version of ScanCenter and ScanMerge will be available mid-2018. This version will completely integrate both applications into one. RangeVision also announced that this major update, free for all users, will have extra features for an easier calibration process. Smoother 3D scan cleaning and preparation will also be available. In conclusion, we strongly recommend this 3D scanner to all types of users, from enthusiasts to professionals. The performance is on par with the best products of this category, and the price remains affordable for SME’s. The few competitors of the RangeVision Spectrum on same price level are the DAVID SLS-3 and the Open Technologies SIAB-FX. We carry out tests of 3D printers, 3D scanners and 3D filaments in our lab. Get in touch if you’d like us to review your products! [post_title] => [Hands-on] The RangeVision Spectrum, a desktop 3D scanner [post_excerpt] => [post_status] => publish [comment_status] => closed [ping_status] => closed [post_password] => [post_name] => rangevision-spectrum-review [to_ping] => [pinged] => [post_modified] => 2019-02-15 07:42:06 [post_modified_gmt] => 2019-02-15 06:42:06 [post_content_filtered] => [post_parent] => 0 [guid] => https://www.aniwaa.com/?p=42498 [menu_order] => 0 [post_type] => post [post_mime_type] => [comment_count] => 0 [filter] => raw ) [4] => WP_Post Object ( [ID] => 41389 [post_author] => 203 [post_date] => 2018-01-15 07:13:09 [post_date_gmt] => 2018-01-15 06:13:09 [post_content] => Disclaimer: the comments and opinions expressed in this review are the results of our own (limited!) experience with the product. As always, we try to provide context to give a fair overview of the product. We strive to remain impartial and unbiased, and we have not received any payment or compensation of any form for writing this article. The manufacturer came to the 3DExperience Lab in Dassault Systèmes offices to perform a demo of their Open Technologies SIAB-FX 3D scanner. Brand: Open Technologies Model: Scan in a Box - FX Price: €4,490 Rating: 4.5/5 [toc]Introduction
Today, we are doing a hands-on review of the new Open Technologies Scan in a Box – FX. Stefania Tosa and Stefano Capoferri, both sales managers at Open Technologies, came to Dassault Systèmes offices in Vélizy, a town near Paris. Vélizy is famous for being home to a number of very large companies, including PSA, Thalès, Bouygues and General Mills. Within Dassault Systèmes, the demo was hosted at the 3DExperience Lab, a laboratory with the goal of nurturing and empowering disruptive projects. The 3DExperience Lab is already equipped with several 3D printers (including an Ultimaker 3+ and a Markforged Mark One) and 3D scanners. Run by CAD and design experts, the 3DExperience Lab was the perfect place to conduct this hands-on demo. The Open Technologies Scan in a Box – FX, often called SIAB-FX, was sent to us a few days prior to the event by mail. Therefore, we were able to witness the full installation of the 3D scanner, including its unboxing.Discovering the Open Technologies Scan in a Box – FX
The Open Technologies SIAB-FX comes in a very large cardboard box, full of styrofoam. This primary packaging contains two smaller cardboard boxes. The first one includes the 3D scanner and its accessories, while the second box contains the automatic turntable. Note that this turntable is optional, available separately for €890. Both secondary packages boast a nice finish and thick foam protections. [caption id="attachment_41428" align="aligncenter" width="600"]
Unboxing of the SIAB-FX.[/caption]
The 3D scanner’s main packaging contains the following items:
- the 3D scanner head (made of a solid aluminum frame, a DELL video projector and two USB 3.0 cameras)
- a professional tripod
- all the cables (power and connectivity) and their sheaths
- a USB stick with IDEA 1.1 software
- an instructions manual
- the calibration plate with its support
The SIAB-FX 3D scanner accessories.[/caption]
We can’t help but notice that the calibration plate comes with a sturdy metal support, instead of the weak acrylic version available for the standard SIAB. Given the weight of the calibration plate, this is appreciable.
[caption id="attachment_41427" align="aligncenter" width="600"]
The Scan in a Box - FX's calibration plate and support stand.[/caption]
The SIAB-FX is the upgraded version of the SIAB. It offers a more powerful video projector, the Dell M115HD with a contrast ratio of 10,0000:1 and a 450 lumens image brightness. The ASUS S1 that comes with the SIAB offers only a 1000:1 ratio and a 200 lumens image brightness.
The IDEA software that Open Technologies provides with the SIAB-FX unlocks some nice functionalities:
- export atlas and triangular map texture
- convert from mesh to range images
- export RGB point clouds from mesh
Overview of the Open Technologies Scan in a Box - FX
After unboxing both packages, setting up the 3D scanner setup is quite fast. Note that users require no less than 4 USB ports to connect both cameras, the USB stick with the IDEA license and the ATT. To connect a mouse (a must-have for all 3D-related interactions), an auto-powered USB hub or a dock station is a necessity. [caption id="attachment_41423" align="aligncenter" width="600"]
Setting up the SIAB FX.[/caption]
The 3D scanner “head” itself has a great finish, with all the components robustly fixed on a curved, anodized aluminum bar. This feels sturdy and reliable. The little hooks to hold the USB cables in place are also a nice addition. The whole system is then fixed to the available tripod with a standard camera screw.
Testing the Open Technologies SIAB-FX
Connecting everything takes about 5 minutes; this includes fixing the 3D scanner head onto the tripod, plugging in the cables and starting up the IDEA software. In order to take advantage of the full IDEA capabilities linked to this SIAB-FX version, users must go through the licence manager and activate the FX modules. This includes the automatic alignment of 3D scans. [caption id="attachment_41426" align="aligncenter" width="600"]
The SIAB-FX 3D scanner on the tripod.[/caption]
[caption id="attachment_41424" align="aligncenter" width="600"]
The whole SIAB FX setup with the ATT.[/caption]
Once the SIAB-FX 3D scanner is attached to the tripod, the next step is the calibration process. This is only necessary if the default configuration doesn’t fit with the user's particular use case. By default, the SIAB-FX is configured for the medium FoV (250 mm), great for 3D scanning medium-size objects. Since the USB cameras focus on the object to 3D scan, their orientation defines the maximum Field Of View (FOV) of the capture.
Conclusion
During the hands-on demo, the test object was a plaster bas-relief. The result was quite impressive, with a lot of rich details and very good precision. In a few minutes, we obtained the dot cloud, ready for visualization. Thanks to the ATT, no additional alignment was necessary and it was possible to generate the mesh directly. [caption id="attachment_41419" align="aligncenter" width="480"]
The SIAB-FX at work.[/caption]
Since Open Technologies lent us the SIAB-FX, we were able to conduct additional tests with different configurations. In comparison with the SIAB, we noticed various improvements (speed, reliability) on the software side of things. Furthermore, with the special FX configurations, several different and interesting features are now available.
All of the following tests were conducted using the 250 mm configuration and calibration, the best fitting mode for capturing objects measuring less than 10 cm tall on the ATT.
A colored Mario piranha plant in plastic
This object is only 5 cm tall and in full color plastic, with a lot of intricacies and self-occluding parts. The result is quite amazing on the organic shape (the plant itself), but the flower pot which is pure geometric shapes wasn’t that great. In the end, it isn’t really an issue as such parts are easier to remodel (using the free Blender modeling tool, for example). [caption id="attachment_41425" align="aligncenter" width="600"]
Side by side comparison of the real object and its 3D capture.[/caption]
A white dental impression
This type of object, plaster-like, falls into the “easy to 3D scan” section. However, that means that the result must be detailed and very accurate. With the Open Technologies SIAB-FX, we obtained a very clean mesh. For this model we tested the automatic alignment feature of the IDEA software, in FX configuration. The alignment was done almost instantly.A plastic manatee tea infuser
This tea infuser is made from a monochrome soft plastic. It is full of holes, in order to let in water and sink. The result is very good and has many details.Aniwaa’s opinion: 4.5/5
After our first impression with the standard Open Technologies SIAB, we finally got the chance to test the SIAB-FX. It is an updated version, based on the same architecture. The IDEA software in its FX configuration is also a lot more powerful, and the generated meshes are of great quality. In the end, we strongly recommend this 3D scanner to all type of users, from wealthy enthusiasts to professionals. The performance is on par with the best products of this category. Also, the price stays affordable for SMEs. With a manufacturer price of €4,490 (not including the ATT or a hard case), the Open Technologies SIAB-FX is not cheap. However, it is definitely a very capable product, powered by good software. Finally, in the same price range, the SIAB-FX’s few competitors are the DAVID SLS-3 and the RangeVision Spectrum. We carry out tests of 3D printers and 3D scanners. Get in touch if you’d like us to review your products! [post_title] => [Hands-on] The Open Technologies Scan In a Box - FX, a desktop 3D scanner [post_excerpt] => [post_status] => publish [comment_status] => closed [ping_status] => closed [post_password] => [post_name] => hands-on-open-technologies-scan-in-a-box-siab-fx [to_ping] => [pinged] => [post_modified] => 2019-02-15 07:44:55 [post_modified_gmt] => 2019-02-15 06:44:55 [post_content_filtered] => [post_parent] => 0 [guid] => https://www.aniwaa.com/?p=41389 [menu_order] => 0 [post_type] => post [post_mime_type] => [comment_count] => 0 [filter] => raw ) [5] => WP_Post Object ( [ID] => 38514 [post_author] => 211 [post_date] => 2017-09-18 15:27:52 [post_date_gmt] => 2017-09-18 13:27:52 [post_content] => Disclaimer: the comments and opinions expressed in this review are the results of our own (limited!) experience with the product. As always, we try to provide context to give a fair overview of the product. We strive to remain impartial and unbiased and have not received any payment or compensation of any form for writing this article. The manufacturer lent us an Open Technologies Scan In a Box 3D scanner for free.| Brand | Open Technologies |
| Model | Scan In a Box |
| Price | €2,390 |
| Rating | 3.9/5 |
INTRODUCTION
Today, we‘re testing the Open Technologies Scan In a Box. We aim to give a fair evaluation of this 3D scanner through the 3D scanning of standard objects. Throughout this 3D scanner review, we will follow our standardized protocol to evaluate the performance of this product. First of all, Scan In a Box is a new brand created by Open Technologies, an industrial 3D scanner manufacturer based in Italy. Founded in 2001, Open Technologies introduced their very first scanner in 2005, the Optical RevEng LE. Their lineup also includes:- the CRONOS3D: a professional, user-friendly 3D scanning system
- the AURUM3D: a professional 3D scanning system created specifically to scan small details and complex shapes
- the STONE400: a high-definition, professional 3D copy system specific for the marble-working sector
- a Mount Fuji plush
- a soap dispenser
- a baguette (bread)
- a sheep plush
PACKAGING
Packaging rating: 4.5/5
-
Unboxing: simple packaging, with a separate box for the ATT
Open Technologies SIAB packaging.[/caption]
We started by opening the 3D scanner package and quickly found the calibration plate and starting guide under a layer of styrofoam. The large calibration plate (30 x 45 cm) offers three different patterns in order to handle all type of objects and stand of distance/field of view. It is made from plastic-coated acrylic covered with adhesive plastic on both sides, and it is quite heavy too.
Under this layer are the 3D scanner, the tripod, the connectivity cables and power cords.
[caption id="attachment_38525" align="aligncenter" width="300"]
Inside the Scan In A Box packaging.[/caption]
The 3D scanner is composed of an ASUS S1 200 lumens video projector and two USB cameras that are robustly fixed on a thick (and heavy) aluminum rail. Under the rail is a compatible camera screw slot for connecting to the quality tripod.
-
Open Technologies Scan In a Box instruction manual
Open Technologies Scan In A Box instruction manual.[/caption]
All of the most essential information is available, but the first impression is a complex mess- and it does not get better even after a few uses. There is the same confusion when dealing with the ATT instruction manual. The ATT manual does not clearly explain if the instructions are additional to the 3D scanner manual, or if they should be understood independently. At times, we were a bit lost due to unclear instructions that could have been formulated in a more straightforward manner.
In the end, it would have been better to describe in a few words how the 3D scanner and the ATT work together and what the software’s main functions are.
Thankfully, the online documentation covers all of the software’s functionalities and gives a lot of details regarding the 3D scanner’s parts, functions and calibration procedure. We know that professional 3D scanners are complex pieces of hardware and that their software is generally not very user-friendly. However, more emphasis on ease-of-use and discoverability would’ve been a great plus.
-
Accessories
Open Technologies Scan In A Box accessories[/caption]
- the instruction manual,
- connectivity cables (2 USB and one HDMI),
- the power cord,
- a USB stick for software installation,
- the calibration plate (along with its plastic supports),
- and the tripod with its protective cover.
OVERVIEW AND SETUP
Overview and setup rating: 3.7/5
-
Software - 4.5/5
Our SIAB 3D scanner setup.[/caption]
The very first step requires to install the software and the USB drivers from the USB stick. This might tamper with the ability for Open Technologies to always deliver the latest version of IDEA software in the future, but in our case everything went smoothly. In case of a new IDEA release, Open Technologies offers the latest version to all their users, free of charge and directly available for download on their website. Note that the software installer is not connected with the software licence and it is always possible to get a free 30 days trial in case you want to give it a try. The whole software installation took us less than 10 minutes, drivers included.
Once IDEA is launched, it is recommended to install the hardware in order to properly connect the 3D scanner to the computer. We also strongly recommend taking a look at the IDEA software online full manual.
-
Hardware - 3.5/5
The SIAB hardware with and without cables.[/caption]
The ATT is a solid metal cylinder with a power button and two connectivity slots: one for power (to plug into any AC outlet) and one for a standard USB cable.
Both the 3D scanner and the ATT require to be connected to a computer in order to work. The Open Technologies Scan In a Box 3D scanner itself uses 2 USB ports for the cameras, 1 HDMI port for the video projector and an AC outlet (optional, because the video projector and can temporarily work autonomously thanks to its internal battery). The ATT requires one USB port and its own AC outlet. Furthermore, the IDEA software requires the authentication USB stick to be connected in order to provide its full functionalities, but we noticed that meshing and editing tasks are still available without it.
That’s a total of 6 cables, requiring a computer with at least 4 USB ports. Even if solutions exist (cable sheath and use of a USB hub), it may make the installation of the 3D scanner a bit cumbersome and complex.
-
Getting started - 3/5
Hardware calibration for the SIAB.[/caption]
Note: the calibration panel is heavy, cumbersome and sits on a plastic square that is comparably too small/weak to handle the panel’s weight.
The ATT calibration takes less time. The main constraint is anticipating the maximum bounding box in which the object will stay when 3D scanned.
Once the calibration is performed, keeping the same conditions is recommended (lighting, distance, etc.). Indeed, changing the scan area and/or stand-off distance implicates realigning both cameras.
[caption id="attachment_38528" align="alignright" width="300"]
Calibrating the SIAB 3D scanner.[/caption]
Steps to start 3D scanning with the Open Technologies Scan In a Box and its ATT:
- Assembling the 3D scanner set on the tripod.
- Installing the IDEA software and drivers on a computer from the USB stick.
- Plugging in the two USB cables between the cameras and the computer.
- Connecting the HDMI cable between the video projector and the computer.
- Plugging in both power cables to the video projector and to the ATT.
- Configuring the computer display for the video projector.
- Calibrating the 3D scanner and the ATT.
EXPERIENCE
Experience rating: 3.75/5
-
Software - 3.5/5
Calibrating the 3D scanner and software.[/caption]
After clicking on the camera icon, the Scan In a Box initiates a 3D scan (with textures), creating a colored range image (quite similar to a dot cloud from a end user perspective). Adding more 3D Scans does not necessarily mean to increase the quality of the final result. We recommend to catch a number of acquisitions that is enough to cover all the details of the 3D scanned object. However there is no specific suggested number, it depends on the complexity of the objects. Anyway we found out that 3 to 4 captures (from different object's orientation) on a 18° degree step gives good results for full 360° 3D scans. It is possible to generate a 3D mesh once there is a sufficient amount of range images to perform their alignment.
The range images alignment is probably one of the most painful steps. The automatic function works poorly, and the system needs to be fed with correct reference points (three for a proper triangulation and alignment) before being of any use. This is due to the fact that there is actually no “automatic alignment” function in SIAB. The alignment operation is manual and you will need to find the three points reference for each. However, those points can be defined roughly and give satisfying results. The 'automatic alignment" will be offered in the upcoming SIAB-FX 3D scanner product and will be called “direct alignment”,
It took us some time to properly understand how to classify and multi-select the different range images. Almost 3-4 groups of dozens of range images are needed to obtain a fully-detailed 3D mesh. However, after a bit of practice it became easier.
[caption id="attachment_38541" align="aligncenter" width="300"]
Mesh generation from range images.[/caption]
Afterrange images alignment comes 3D mesh generation. This consists in automatically linking each dot with polygon faces (here, triangles) and edges.
Four different reconstruction profiles are available. Below are the descriptions from the Open Technologies website.
1/ Technical object 3D scan
[caption id="attachment_38534" align="aligncenter" width="300"]
SIAB design profile.[/caption]
“Profile made to maintain a high level of detail with a tolerance of 0.035mm. The expected resulting mesh will be composed of approximately 500 000 triangles.”
2/ Design object 3D scan
[caption id="attachment_38534" align="aligncenter" width="300"]
SIAB design profile.[/caption]
“Similar profile to Technical object, except it applies a stronger smoothing with a higher tolerance.”
3/ Small Artistic object 3D scan
[caption id="attachment_38535" align="aligncenter" width="300"]
SIAB artistic profile.[/caption]
“This profile has a very high detail with a small tolerance (0,010mm). It applies a light smoothing and automatically fills smallest holes. It has no limits in the triangles number and therefore does not applies an automatic decimation. These profiles achieve the higher detail level and precision on the mesh.”
4/ Sculpture object 3D scan
[caption id="attachment_38536" align="aligncenter" width="300"]
SIAB sculpture profile.[/caption]
“This mesh generation profile has a medium tolerance of 0.025mm, and keeps a high level of details. The default settings of the Sculpture profile does not apply an automatic mesh decimation.”
All of the parameters can be modified and fine-tuned to obtain the best results, and the predefined profiles are of great help. Due to the difficulty of choosing the right profile for new users, and since we required constant parameters for benchmarking purposes, we did all of our testing with the Design object profile.
Mesh generation is a time-consuming process that can take up to 10 minutes, and it takes a toll on the computer resources. We found that it was better to perform all of the capture steps first and to clean well the unnecessary data before going into mesh generation and settings.
The software offers a lot of different options such as hole-filling and mesh decimation for extra finishing. The functions work well but are slow and extremely demanding for the computer. We experienced a few IDEA software crashes, mainly caused by the sheer size of our first, non-optimized projects. During our testing experience, the completion indicator often gave false estimations and had a weird tendency of freezing around 41%.
Not many texture options in the IDEA software, but in our opinion, the Scan In a Box isn't the best at capturing colors anyways.
-
3D scanning - 4/5
- export atlas and triangular map texture,
- convert from mesh to range images,
- and export RGB point clouds from mesh.
3D SCAN RESULTS
3D scan results rating: 4/5
The Open Technologies Scan In A Box (like most 3D scanners) does not work well on black smooth surfaces. We got the bests results with uniform, white-ish models. We chose the models based on their geometries and textures in order to benchmark a variety of different use cases.1. Mount fuji plush
Fuji San- Texture by aniwaa on Sketchfab
2. Hand soap dispenser
[caption id="attachment_38542" align="alignnone" width="300"]
Hand soap dispenser 3D scan result.[/caption]
Soap dispenser by aniwaa on Sketchfab
3. Bread loaf - baguette bread
As French people, we always have a baguette nearby. We used this because of the complex structure of the bread and its inside. This 3D scan required us to perform several 360° captures in order to compose the final 3D mesh. This object has a wide range of colors from almost-black crust to the white of the flour. As a result, we did not obtain great texture. The geometry is of good quality with a lot of details.4. Sheep plush
This sheep plush is an interesting object to 3D scan. It has many challenging details and a difficult material to capture. Furthermore, it is quite large (30 cm long) hence requiring multiple repositionings to obtain a complete 360° 3D scan. The end result is a nice, although the capture of the floating scarf did not work. The cleaning and remeshing tools did a great job as it was possible to simply close and create the mesh manifold in just a few clicks.Open Technologies Scan In a Box: VALUE
Value rating: 4.5/5
Priced at €2,390 (without VAT and shipping), the Open Technologies Scan In a Box offers a very attractive value for professionals looking for an affordable yet powerful 3D scanner. The ATT (turntable) is available for €890, making it slightly expensive but we strongly recommend getting both. On the performance side, the Open Technologies Scan In a Box 3D scanner is capable of producing very high-quality meshes. Indeed it offers precision and detail, right on for most use cases (especially reverse engineering studies). On the downside, textures are blurry, black colors are not captured and the dedicated software tools are limited. Note that texture acquisition is indeed influenced by the light of the environment (not ideal during our test). We must also add that in our case, setting up the scanner was a bit time-consuming.CONCLUSION
Aniwaa's opinion rating: 3.9/5
Our overall rating reflects our experience with the Open Technologies Scan In a Box 3D scanner, in the specific use cases described.| Weight | Rating | |
| Packaging | 1 | 4.5/5 |
| Overview and setup | 2 | 3.7/5 |
| Experience | 2 | 3.75/5 |
| 3D scan results | 2 | 4/5 |
| Value | 1 | 4.5/5 |
| FINAL RATING | 3.9/5 |
PROS:
- Excellent price-to-performance ratio for meshes
- Manufacturing quality
- Accessories
CONS:
- Calibration process
- Requires a controlled environment to reach peak performance
- Very low texture quality
| Brand: | Shining 3D |
| Model: | EinScan-SP |
| Price: | $2,299 |
| Rating: | 4.4/5 |
INTRODUCTION
Today, we‘re testing the Shining 3D EinScan-SP, a desktop 3D scanner. This article aims to give a fair evaluation of this affordable 3D scanner through the 3D scanning of standard 3D objects. During this 3D scanner review, we will follow our standardized protocol to evaluate the performance of this product. Founded in 2004, Shining 3D is the #1 company on the Chinese stock exchange for the 3D digitizing and 3D printing industry. The company’s headquarters are located in Hangzhou, and there are branches in Shanghai, Beijing, Guangzhou, and several other major Chinese cities. Shining 3D became renowned for their offer of affordable yet efficient 3D scanners, starting with the Einscan-S desktop 3D scanner, which this EinScan-SP replaces. The added 'P' in EinScan-SP stands for Platinum. Shining 3D’s lineup of desktop 3D scanners is based on structured light technology. The basic principle: a video projector casts a light pattern on a 3D surface that modifies the pattern in a specific way. This deformation is captured by the sensor and allows the software to calculate the 3D surface’s topology and to create a 3D mesh. [caption id="" align="aligncenter" width="600"]
Structured light 3D scanning technology (animated).[/caption]
The GIF above displays the different steps for the 3D scanning process with structured light technology. The first image is black and white stripes, then red, green and finally blue before the automatic turntable rotates 20°, and the cycle restarts for another capture.
[caption id="" align="aligncenter" width="600"]

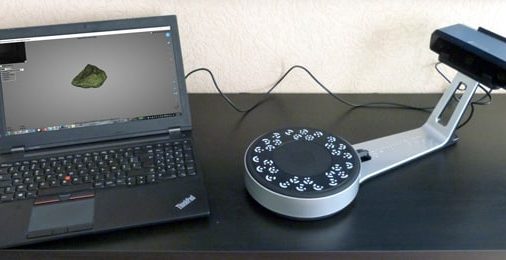

Our Shining 3D EinScan-SP 3D scanner setup.[/caption]
Shining 3D offers two relatively similar products that are based on the same design architecture: a fixed sensor which is also a projector, a solid frame, and an automatic turntable. At only $1,199, the all-black EinScan-SE (Elite) is cheaper than the EinScan-SP (Platinum), but it is two times slower. The EinScan-SE also provides a smaller 3D scanning volume, with only 200 x 200 x 200 mm for an automatic turntable 3D scan, and 700 x 700 x 700 mm for a manual 3D scan. For those interested in the technical characteristics, we wrote a side-by-side comparison of the EinScan 3D scanners.
Objects used for test 3D scans:
- a Totoro stuffed animal,
- a Bluetooth speaker,
- a 3D printed heart,
- and a rock.
PACKAGING
Packaging rating: 5/5
-
Unboxing: a nice packaging, with an extra cardboard for protection
The Shining 3D EinScan-SP packaging.[/caption]
The Shining 3D EinScan-SP is delivered in a thick transportation cardboard box which contains a secondary packaging cardboard box. The secondary packaging cardboard is nice-looking and comes with a plastic handle for transportation. The product and its accessories are well protected, but if you intend to move your EinScan-SP around often it would be wise to invest in a rigid transport case. Some competitors offer this for free, but for $2,299, a price including the automatic turntable, it is difficult to blame Shining 3D for this absence.
Every item neatly fits into a dedicated pocket-hole made inside a thick styrofoam and is further protected by a thin plastic wrapping.
The sensor itself is small, compact and only requires to be assembled with its fixing structure (the plastic trapezoid part visible at the center bottom of the picture) before being coupled to the 3D scanner frame. Note that thanks to this soft and flexible part, it is possible to connect the EinScan-SP to almost any tripod sold for regular photo cameras.
-
Instructions manual
-
Accessories
- the frame support,
- an AC adapter and power cable,
- a calibration panel with its support,
- and the quick start guide.
The Shining 3D EinScan-SP accessories.[/caption]
The calibration panel bears markers on one side while being totally white on the other, making it suitable for the calibration of the 3D scanner and for performing white balance adjustments.
OVERVIEW AND SETUP
Overview and setup rating: 4.9/5
-
Software - 5/5
EinScan 3D software, used for the whole 3D scanning process.[/caption]
No drivers or any other software were required and everything was working promptly. This is very appreciated given that 3D scanners are often complex to operate, especially for first-timers. The picture above shows the main software screen during a merging process. On the top left is a small frame which shows the object as the sensor sees it, while the red areas are signaled as being too bright for the ongoing settings. On the right is the toolbar that allows access to basic software functions:
- creating a new project,
- starting a 3D scan,
- realigning meshes,
- calibrating the white balance,
- and saving/exporting options.
-
Hardware - 5/5
Left: the complete 3D scanner. Right: the sensor.[/caption]
We noticed that the USB cable between the automatic turntable and the sensor has been poorly integrated into the design. However, this is not a big issue since it is possible to use a non-proprietary tripod with the sensor's standard photo camera screw.
-
Getting started - 4.75/5
- assembling the different components: frame, automatic turntable, sensor support and sensor;
- plugging in the two USB cables, one between the sensor and the automatic turntable, the other between the sensor and a computer;
- plugging in the power cable;
- installing the software and turning the sensor on with the little touch button on its back;
- running the EinScan software;
- following the step-by-step calibration function (and the white balance procedure);
- starting 3D scanning.
TheShining 3D EinScan-SP calibration process.[/caption]
The calibration step is available on the "Mode selection" panel, where it is possible to choose to 3D scan with or without the automatic turntable. The calibration process itself is well explained and linear but requires caution when positioning the heavy calibration plate. Three different orientations are required. It is recommended to launch the calibration procedure every time the 3D scanner is moved.
EXPERIENCE
Experience rating: 3/5
-
Software - 3/5
EinScan software use case configuration.[/caption]
The main configuration options revolve around finding the best lighting for a specific type of object or use case. Simply pick the best match and the software will optimize capture settings for the given conditions.
In the main panel frame, wide icons give a quick-look access to the main functions such as 3D capture, parameterization of the 3D scanner, re-meshing, save and export, etc.
It's impossible to launch the EinScan software without first connecting the EinScan-SP to the computer. This is very cumbersome because the 3D capture of the object is often not the most time-consuming step of the process- the mesh export and optimization usually takes longer.
To a certain degree, the software feels like a collection of functionalities glued together without a real backbone. For most use cases it does the job, and quite well, but as soon as we venture into uncharted space, it doesn’t go so well. This is mainly due to a flickering performance, even on a powerful laptop like we had.
[caption id="attachment_37713" align="aligncenter" width="253"]
EinScan software: integrated export to Sketchfab.[/caption]
When exporting, it is possible to choose between multiple file formats, including .ASC (whole), .ASC (separate), .STL, .PLY, .OBJ, .P3, and .3MF. It is even possible to export directly to Sketchfab through a dedicated interface included in the software. We tried to use this functionality, without success. As a result, we stuck to the .OBJ save and uploaded our 3D models directly through Sketchfab’s website.
-
3D scanning - 4.5/5
Totoro structured light 3D scanning process (animated).[/caption]
Since the standard workflow went very well (except for the small performance issues), we decided to test more demanding situations. We tried to recover a previously generated 3D scan to do some modifications. This won't work without first connecting and switching the EinScan-SP on. Using the software for this nonlinear workflow proved to be a lot less intuitive. Consequently, we had to tinker a bit in order to obtain good results.
3D SCANS RESULTS
3D scans results rating: 4/5
1. Totoro plush
This cute Totoro plush is an interesting object to 3D scan. Indeed, it is highly detailed with a difficult material and challenging details (including small hanging parts). The result is very satisfying with a nicely rendered fluffy texture and surprisingly good colors.Totoro- Light by aniwaa on Sketchfab
The software automatically aligned most of the meshes, but in some cases, we had to manually align them. The functionality is well-designed and the final 3D scan was completed and saved in a few clicks.2. Bluetooth speaker
This Bluetooth speaker is a very interesting object to 3D scan. Measuring approximately 50 x 50 x 250 mm, it is slightly larger than the recommended 3D scanning zone. [caption id="attachment_37717" align="alignnone" width="300"]
A 3D mesh of the Bluetooth speaker.[/caption]
After a few tries without markers, we decided to stick a little over 50 markers (Shining 3D provides 5000-6000 markers) on some on the most difficult surfaces, the reflective black ones. This improved the capture, although it was still impossible to obtain a watertight model without losing all mesh refinement and detail. However, we exported the file to SolidWorks and it proved to be a great reverse-engineering blueprint.
3. Heart
This 3D printed heart was made by the young start-up Biomodex, using a Stratasys J750 color 3D printer. It is roughly 150 mm tall and was scanned on its plastic support. We obtained this result with only one iteration and no modification to the original mesh. The resulting quality is very impressive, with a detailed mesh and clean textures.4. Rock
This rock is about 100 x 50 x 70 mm. It was chalk-like, with a lot of yellowish/greenish spots all around.RockSketchFab by aniwaa on Sketchfab
VALUE
Value rating: 4.5/5
Priced at $2,299, the Shining 3D EinScan-SP is definitively a very interesting product. This 3D scanner is $1,100 more expensive and twice as fast as the EinScan-SE (offered at $1,199). The EinScan-SP is almost as powerful as the EinScan-Pro+ which has an entry price tag of $5,698 with texture (color capabilities).CONCLUSION
Aniwaa's opinion rating: 4.4/5
Our overall rating reflects our experience with the Shining 3D EinScan-SP (Platinum) 3D scanner, in the specific uses cases described.| Weight | Rating | |
| Packaging | 1 | 5/5 |
| Overview and setup | 2 | 4.9/5 |
| Experience | 2 | 3.75/5 |
| 3D scan results | 2 | 4/5 |
| Value | 1 | 5/5 |
| FINAL RATING | 4.4/5 |
PROS:
- Price-to-performance ratio
- Manufacturing quality and included accessories
- Flexible and very capable for several different use cases
CONS:
- Software user experience
- Basic quality of generated textures
| Brand: | Creaform |
| Model: | HandySCAN 700 |
| Price: | > $50,000 |
| Rating: | 5/5 |
Introduction
Today, we are doing a hands-on review of the latest version of Creaform's first product, the HandySCAN 700. Creaform started in 2002 as a service bureau performing 3D scanning and reverse engineering services. The company launched its first hardware product, the HandySCAN in 2005, with a software which was then called VXscan. Creaform headquarters are based near Québec City, Canada. Creaform’s mission is to develop, manufacture and market cutting edge portable 3D measurement and analysis technologies that increase productivity. Through its expertise, Creaform helps companies from the manufacturing industry to create, simulate, verify, and collaborate in 3D. Creaform offers several portable industrial 3D scanners, including the HandySCAN, the HandyPROBE, the MetraSCAN and the MaxSHOT. [caption id="" align="aligncenter" width="600"]
The Creaform quality control solutions for every part size.[/caption]
Each 3D scanner is equipped to deal with a specific parts' size range, from small to big. These metrology-grade devices are suitable for almost all design and production related applications.
[caption id="" align="aligncenter" width="600"]
Mapping of the Creaform quality control solutions with their respective operating ranges.[/caption]
Creaform also offers a more affordable category of portable 3D scanners; the Go!SCAN 50 and the Go!Scan 20 which are not represented on this illustration. These two products are capable of producing full color 3D scans.
Discovering the Creaform HandySCAN 700
We have been invited by Creaform local team in Tokyo to visit their offices and perform a hands-on review of their lineup of portable 3D scanners, the MetraSCAN 750, the HandySCAN 700 and the Go!SCAN 50. This is the third article of this series. After the MetraSCAN 750 review and the Go!SCAN 50 review, we are now performing our hands-on test of the HandySCAN 700. [caption id="" align="aligncenter" width="600"]
The full setup of the Creaform HandySCAN 700 solution.[/caption]
The HandySCAN 700 is Creaform’s flagship metrology-grade portable 3D scanner. The HandySCAN 3D product line underwent a complete re-engineering in 2014. These metrology handheld 3D scanners have been optimized to meet the needs of product development and engineering professionals. The HandySCAN 3D are capable of quickly delivering accurate and high resolution 3D scans.
Creaform HandySCAN 3D handheld 3D scanners won the Red Dot Award for Product Design 2015. Counting about 5,000 entries from 2,000 participants each year, the Red Dot is awarded for international product design, communication design and design concept.
The Creaform’s HandySCAN 3D is available in two versions:
- HandySCAN 300, the most affordable version of the line up. It offers an accuracy up to 0.040 mm (0.0016 in.), a maximum resolution of 0.100 mm (0.0039 in.). Its top acquisition rate is 205,000 measurements/s, within a 3D scanning area of 225 x 250 mm (8.8 x 9.8 in.).
- HandySCAN 700 is the flagship 3D scanner of the HandySCAN family. It offers an accuracy up to 0.030 mm (0.0012 in.) and a maximum resolution of 0.050 mm (0.0020 in.). It's top acquisition rate is 480,000 measurements/s, within a 3D scanning area of 275 x 250 mm (10.8 x 9.8 in.).
The Creaform HandySCAN 700.[/caption]
The HandySCAN 700 has a very good quality and finish, on par with everyday consumer products. According to Creaform, the HandySCAN 700 characteristics have been drastically upgraded, compared to its predecessor :
- 40% more accurate
- 25 times faster with 7 laser crosses
- 50% smaller
- 35% lighter (weights 0.85 kg)
Getting started with the Creaform HandySCAN 700
-
Packaging
The Creaform HandySCAN 700.[/caption]
Included in the transport case is the connectivity cable of the device, which splits up as a connectivity cable to the computer and an alimentation cable. The connectivity cable plugs to USB 3.0 plug on a computer while the alimentation cable requires an AC plug.
The full case is easy to move around and can be held as a carry on luggage in airplanes.
[caption id="" align="alignleft" width="300"]
Calibration process of the Creaform HandySCAN 700.[/caption]
-
Calibration process
Testing the Creaform HandySCAN 700
[caption id="" align="alignright" width="300"]
The HandySCAN 700 in hand.[/caption]
The sensor itself weights only 0.85 kg (1.9 lbs.) and is very compact: 77 x 122 x 294 mm (3.0 x 4.8 x 11.6 in.). The distribution of weight is good, and the device well balanced.
The handle of the device is a bit square and quite large, while the height being restricted. Holding the Creaform HandySCAN feels like a small toy with its feather weight. However small hands might have a hard time grasping it firmly due to the thick handle.
The 4 multi-functional interface buttons are activated by a soft thumb touch; the bottom round one can start and stop the 3D scanning process, the two vertical buttons in the middle can zoom in and out of the 3D model or control the shutter speed of the cameras' and the top rectangular one toggles between different modes. Pressing the buttons while 3D scanning often requires to use your other hand or an extremely nimble thumb.
The HandySCAN 700 itself is connected to a computer via a USB 3.0 port. This protocol is required to deal with the massive amount of data transferred from the 3D scanner to the computer during a 3D scan.
[caption id="" align="alignleft" width="250"]
The HandySCAN 700 interface.[/caption]
There are two cables that come out of the 3D scanner. They quickly join in a unique one for most of their length, and then separate again into a USB connection for the computer, and an alimentation cable to be connected to a standard AC wall socket.
Compared to some competitors that rely on two cables all along that is a big advantage for mobility and flexibility while 3D scanning.
The laptop we used in this demonstration is the recommended computer provided by Creaform. This is a powerful HP laptop with a Windows 7 OS 64 bits, 32 Gb of RAM, an Intel Core i7 and a Nvidia Quadro K1100M GPU.
We do not recommend a less powerful configuration as 3D scanning is a very demanding process. Windows 10 is not officially supported yet but some Creaform clients use it successfully.
-
Reverse engineering use case
The Creaform HandySCAN 700 requires the use of markers.[/caption]
For testing the HandySCAN 700, we used the standard sample part provided by Creaform for their demonstration.
The part is a medium sized plastic part, very similar to a mechanical part. It is quite complex with a lot of features and small intricate details. It is also full of holes, a type of feature which is usually very challenging to 3D scan, as the software usually tries to fill them with geometries.
The only downside the 3D scanning process with the HandySCAN is that it is required to use Creaform targets to get the highest performance level. These targets also allows the user to move the part while scanning and to never lose track of it. The part was already equipped with several targets, patched all across its surface (14 targets in total).
The HandySCAN 700 can work in two different modes, the "Cross grid" and "Single beam" modes. The beams are in fact a single laser point moved very fast.
Cross grid mode is for faster data capture, while the single beam mode is used to go deeper into pockets and harder to reach areas. A standard 3D scan would begin with the Cross grid mode to acquire quickly the part, and the Single beam mode on a second step for very high precision 3D scan and details acquisition.
Cross grid mode uses 7 crosses with the HandySCAN 700; and only 3 crosses with the HandySCAN 300 (Single beam is not available), hence the performance and price difference.
[caption id="" align="aligncenter" width="500"]
The result of a 3D scan performed by the HandySCAN 700 in VXElements.[/caption]
We obtained in less than 5 minutes a very detailed 3D scan of the complex surface of the part. The targets are the white dots with black rims. You can see how they have been layout on all the surface of the part.
[caption id="" align="alignleft" width="200"]
The useful 3D scanning tree inside the VXElements software.[/caption]
The Creaform Software provided with the HandySCAN 700 is called VXElements. It can perform real-time fusion, which means that alignment and fusion of the 3D scans are automatically fused together to generate one unique mesh.
With VXElements advanced tracking algorithm it is possible to find back a part that has been moved, and to directly add data to the existing dot cloud. The 3D scanner captures the part in a specified resolution; specified in the software scanning panel.
The 3D scanner captures the part in a specified resolution; the parameter needs to be specified in the software scanning panel. When the operator chooses a specific capture resolution, it is possible to change it afterward in the software (like a RAW file of a photo). Therefore, the output resolution can also be edited according to the user needs.
The HandySCAN 700 maximum resolution is 0.050 mm (0.0020 in.).
At any given step of the 3D scanning proces,s it is possible to remove or add data, to obtain a more accurate and defined 3D data. It is also possible to select and delete erroneous data and targets, and even some missed frames, thanks to the very useful 3D scanning tree inside VXElements, a feature very similar to most CAD tools design tree.
VXelements is the basic capture package included with all Creaform 3D scanners. VXmodel, VXtrack, VXinspect and VXremote are software modules bringing in additional features (beyond data capture) and are sold separately.
VXinspect allows users to compare a CAD model to the scanned data, which is very useful for reverse engineering and metrology applications.
VXmodel is a post-treatment software that directly integrates into VXelements. VXmodel allows the finalization of 3D scan data to export it as a readable 3D file for 3D printing and CAD software (CATIA, SolidWorks, Inventor...)..
The VXtrack module has several applications like robot calibration and guidance, monitoring of complex assembly processes, real-time compensation of machining tool-generated errors and monitoring of deformations during testing and can be useful in various industries such as aerospace, automotive, robotics, biomechanics and non-destructive testing. We have not tried it during this review.
VXremote enables users to better visualize real-time scanned data and change parameters—even when they are far from their laptops. VXremote is particularly useful when scanning large objects or when the scanning has to be performed in constrained or remote areas. VXremote is compatible with Creaform-certified rugged tablets (available in 7" or 10" size). This add-on was not tested during this review.
Conclusion
Aniwaa's opinion: 5/5
The HandySCAN 700 is a reference among metrology-grade solution for professionals who work in demanding industrial environments. Yet, this handheld 3D scanner is remarkably light and easy to use, served by an efficient design and a great user interface. More specifically, the capture software called VXElement allows a lot of flexibility in the 3D scanning process. Generating files for inspection, CAD modeling or 3D printing is a breeze when you add VXinspect and VXmodel extension modules. However, this device is very expensive and will be out of reach for smaller companies or entry-level 3D scanner users. Regarding the 3D scanning performance, the HandySCAN 700 is simply the top performing portable 3D scanner we ever had the opportunity to test (and also the most expensive).We carry out tests of 3D printers, 3D scanners and 3D filaments in our lab in Tokyo. Get in touch if you’d like us to review your products!
[post_title] => [Hands-on] Test and review of the Creaform HandySCAN 700, a high end portable 3D scanner [post_excerpt] => [post_status] => publish [comment_status] => closed [ping_status] => closed [post_password] => [post_name] => hands-on-test-and-review-of-the-creaform-handyscan-700-a-high-end-portable-3d-scanner [to_ping] => [pinged] => [post_modified] => 2018-08-07 17:34:17 [post_modified_gmt] => 2018-08-07 15:34:17 [post_content_filtered] => [post_parent] => 0 [guid] => https://www.aniwaa.com/?p=29366 [menu_order] => 0 [post_type] => post [post_mime_type] => [comment_count] => 0 [filter] => raw ) [8] => WP_Post Object ( [ID] => 31030 [post_author] => 203 [post_date] => 2016-10-30 12:16:36 [post_date_gmt] => 2016-10-30 11:16:36 [post_content] => Disclaimer: the comments and opinions expressed in this hands-on review are the results of our own (limited!) experience with the product. As always, we try to provide context to give a fair overview of the product. We strive to remain impartial and unbiased, and we have not received any payment or compensation of any form for writing this article. Please get in touch if you would like to share feedback about your own experience with this product. Creaform invited us to test the Go!SCAN 50 in their offices in Tokyo, they organized the tests and supervised them.| Brand: | Creaform |
| Model: | Go!SCAN 50 |
| Price: | > $20,000 |
| Rating: | 5/5 |
Introduction
Creaform started in 2002 as a service bureau offering 3D scanning and reverse engineering services. The 3D scanner company launched its first hardware product, the HandySCAN, in 2005, with a software which was then called VXscan. Creaform headquarters are based near Québec City, Canada. Creaform’s mission is to develop, manufacture and market cutting-edge portable 3D measurement systems which increase productivity. Through its expertise, Creaform helps companies from the manufacturing industry to create, simulate, verify, and collaborate in 3D. In 2013, Creaform reported annual sales of around $52 million. Creaform lineup of portable industrial 3D scanners includes 5 different products. The Go!SCAN 3D, HandySCAN 3D, the HandyPROBE, the MetraSCAN 3D and the MaxSHOT. [caption id="" align="aligncenter" width="800"]
The Creaform portable 3D scanning solutions. Image by Creaform[/caption]
The most affordable portable 3D scanners offered by Creaform belong to the Go!SCAN 3D product line: the Go!SCAN 50 and the Go!Scan 20.
- The Go!SCAN 20 is suited for scanning small parts with intricate details, with a resolution of 0.100 mm (0.004 inches) within a 3D scanning area of 143 x 108 mm (5.6 x 4.3 inches). Hence the recommended part size is 0.05 – 0.5 m (2 – 20 inches). The Go!SCAN 20 has a slightly different design and color compared to the Go!SCAN 50.
- With its larger field of view, the Go!SCAN 50 is a good match for 3D scanning medium to large objects, with a recommended part size of 0.3 – 3.0 m (1 – 10 feet). The Go!SCAN 50 offers a 3D scanning area of 380 x 380 mm (15 in x 15 in), with a maximum resolution of 0.5 mm (0.020 inches).
Some popular uses cases for the Go!SCAN portable 3D scanners. Image by Creaform[/caption]
Today, we are doing a hands-on review of the fast and flexible Go!SCAN 50.
Discovering the Creaform Go!SCAN 50
We have been invited by the Creaform team in Tokyo to visit their office and perform a hands-on review of three of their portable 3D scanners, the MetraSCAN 750, the HandySCAN 700 and the Go!SCAN 50. This hands-on review focuses on the Creaform Go!SCAN 50. [caption id="" align="aligncenter" width="600"]
Our setup for testing the Creaform Go!SCAN 50.[/caption]
The Creaform Go!SCAN 50 is a portable solution for flexible 3D scanning. This portable 3D scanner uses the structured light 3D scanning technology. When switched on, the Go!SCAN 50 flashes a light which embeds a specific pattern. This pattern looks like some sort of a giant QR code cast on the object by a video projector. The topology of the part or object being captured causes the casted light to be deformed. The two cameras of the Go!SCAN 50 register this deformation and the software is then able to compute the 3D properties of the object. The data is captured as a colored dots cloud which is used to generate an accurate 3D mesh - basically several thousands of polygons in a 3-dimensional space, on which a texture mapping (the color) can be applied.
Getting started with the Creaform Go!SCAN 50
-
Packaging
The Creaform Go!SCAN 50 transport case.[/caption]
Included in the transport case is the connectivity cable of the device, which splits up as a connectivity cable to the computer and an alimentation cable. The connectivity cable plugs to USB 2.0 plug on a computer while the alimentation cable requires an AC plug.
-
Calibration process
Calibration of Creaform Go!SCAN 50.[/caption]
The calibration plate is a nice finished plain flat wooden box. It contains some warnings and a white area covered with several specifically placed targets. In total, the calibration process takes less than 2 minutes and simply requires the user to follow simple steps in the Creaform VXElements software (VXElements is the data acquisition platform for all Creaform scanners).
Testing the Creaform Go!SCAN 50
[caption id="" align="alignleft" width="300"]
Close up of the Creaform Go!SCAN 50 in hand.[/caption]
The sensor itself weights 950g and is quite compact: 150 x 171 x 251 mm (5.9 x 6.7 x 9.9 inches). The distribution of weight is ergonomic, with most of the heavy parts (color module, projector and one camera) positioned towards the bottom of the Go!SCAN 50.
The handle of the device is very comfortable and has a very ergonomic feel. However, if you intend on using the 3D scanner for long capture time, it is better if you have big hands since the handle itself is quite big.
The trigger-like button is activated by a soft touch with the index finger, to start and stop the 3D scanning process. The Go!SCAN 50 itself is connected to a computer via a USB 2.0 port.
There is only one cable coming out of the 3D scanner. This cable splits in two after a few meters, into a USB connection for the computer and an alimentation cable to be connected to a standard AC wall socket. Compared to some competitors which rely on two cables, the single cable is a big advantage for mobility and flexibility while 3D scanning.
The laptop we used in this demonstration is the recommended computer, provided in this test by Creaform. It's a powerful HP laptop with a Windows 7 OS 64 bits, 32 Gb of RAM, an Intel Core i7 and a Nvidia Quadro K1100M GPU.
We do not recommend a less powerful configuration, as 3D scanning requires a lot of computing power. Windows 10 is not officially supported yet but we heard that some Creaform customers use it successfully.
-
Reverse engineering use case
Reverse engineering use case with the Creaform Go!SCAN 50.[/caption]
The 3D scanning process with the Go!SCAN can work two different ways: with or without targets.
- Without targets: the Go!SCAN 50 uses the distinctive geometrical properties of the part to 3D localize the data it gradually generates. For tracking reasons, the 3D scanning process without targets has one restriction: the object must offer a distinctive feature or texture every 380 x 380 mm scanning area (like a hole, a bump, a groove,etc...). If that's not the case, VXElements is not capable of knowing the distinction between the different parts of the objects and where to spatially position them. A typical example of such a challenging part would be a long uniform pipe. For the same reason, issues may arise if a similar pattern is repeated several times on a larger scale.
- With the optional targets: it is possible to use targets to compensate for an object’s lack of distinctive features. The targets are small round stickers which can be placed on the surface of the object to be captured. The targets compatible with the Creaform Go!Scan 50 have a limited number of uses and do not come cheap (around $0.1 each). Note that the more accurateGo!SCAN 20, with its smaller field of view, works with smaller targets. It is recommended to position these targets every 20 - 100 mm (0.75 - 4 inches) to allow a good tracking for the Go!SCAN 50.
The useful 3D scanning tree inside the VXElements software.[/caption]
The Creaform Software called VXElements performs real-time fusion: the 3D scans are automatically fused together to generate one unique mesh.
Thanks to VXElements advanced tracking algorithm, it is possible to locate a part that has been moved, and to directly add data to the existing dots cloud.
The 3D scanner captures the part using the resolution specified in the software scanning panel. When the user chooses a specific capture resolution (let's say 1 mm), it is possible to change it afterwards in the software (like with a RAW file of a photo). Therefore, the output resolution can also be edited according to the user needs.
The Go!SCAN 50 is limited to a 0.5 mm maximum resolution. In any case, there is no interest to input in the software a lower value than this because it is its physical limit. Other Creaform 3D scanners can go lower however, as the Go!SCAN 20 which can reach 0.1 mm.
At any given step of the 3D scanning process, it is possible to remove or add data in order to obtain a more accurate and defined mesh. It is also possible to select and delete erroneous data and targets, and even some missed frames, thanks to the very useful 3D scanning tree inside VXElements, a feature very similar to most CAD tools design tree.
VXelements is the basic capture package included with all Creaform 3D scanners. VXmodel, VXtrack, VXinspect and VXremote are software modules bringing in additional features (beyond data capture) and are sold separately.
[caption id="" align="aligncenter" width="500"]
A 3D scan performed with targets, seen inside the VXElements interface.[/caption]
- VXinspect allows users to compare a CAD model to the scanned data, which is very useful for reverse engineering and metrology applications.
- VXmodel is a post-processing software that directly integrates into VXelements. VXmodel allows the finalization of 3D scan data to export it as a readable 3D file for 3D printing and CAD software (CATIA, SolidWorks, Inventor...)..
- The VXtrack tracking module has numerous applications such as calibration and capture guidance, monitoring of complex assembly processes, real-time compensation of machining tool-generated errors and monitoring of deformations during testing and can be useful in various industries such as aerospace, automotive, robotics, biomechanics and non-destructive testing. We have not tested it as it was mainly designed to be used with the Creaform MetraSCAN 3D scanners.
- VXremote enables users to visualize real-time scanned data and change parameters, even when they are far from the connected laptop. VXremote is particularly useful when scanning large objects or when the scanning operation has to be performed in constrained or remote areas. VXremote is compatible with Creaform-certified rugged tablets (available in 7" or 10" size).
-
3D face scanning
3D face scanning with the Go!SCAN 50.[/caption]
The texture of the 3D generated file is well detailed thanks to the Go!SCAN 50 sensor, which delivers a texture resolution between 50 and 150 dpi, coded in 24 Bits. Like all 3D scanners based on structured light, the Go!SCAN 50 does not work very well on hair, especially when they are dark and/or curly.
Tip: to deal with the challenging yet common use case of 3D scanning hair, it is recommended to apply water on them to make them appear as a "solid" block.
[caption id="" align="aligncenter" width="500"]
Close up of the 3D face scanning result with the Go!SCAN 50, inside VXElements.[/caption]
Conclusion
Aniwaa's opinion: 5/5
The Go!SCAN 50 is a flexible and rapid 3D scanning system, designed to address a wide range of professional needs, from industrial uses cases to more specific applications such as cultural heritage conservation, education, virtual reality, arts and even architecture. The 3D scanning process is fast and flexible thanks to the unique cable connecting the 3D scanner. The great features and user experience of VXElements play a huge part in the overall performance of the Go!SCAN 50. In our opinion, the software component is a key competitive advantage for the Go!Scan 50 when compared to its competitors. Our experience is however limited with this product and our rating only reflects the hands-on experience we add with the Go!SCAN 50, under the Ametek team supervision. The Go!SCAN 50 has very few competitors and for professional able to afford it this is one of the best option on the market. For people looking for a higher resolution on smaller objects the Go!SCAN 20 is also an interesting solution. When more performance is required, we recommend the HandySCAN 700 or the MetraSCAN 3D scanners, but these are more expensive. We carry out tests of 3D printers, 3D scanners and 3D filaments in our lab in Tokyo. Get in touch if you’d like us to review your products! [post_title] => [Hands-on] Test and review of the Creaform Go!SCAN 50, a professional-grade portable 3D scanner [post_excerpt] => [post_status] => publish [comment_status] => closed [ping_status] => closed [post_password] => [post_name] => hands-on-test-and-review-of-the-creaform-goscan-50-portable-3d-scanner [to_ping] => [pinged] => [post_modified] => 2019-02-15 07:29:23 [post_modified_gmt] => 2019-02-15 06:29:23 [post_content_filtered] => [post_parent] => 0 [guid] => https://www.aniwaa.com/?p=31030 [menu_order] => 0 [post_type] => post [post_mime_type] => [comment_count] => 0 [filter] => raw ) [9] => WP_Post Object ( [ID] => 30454 [post_author] => 203 [post_date] => 2016-09-19 09:20:12 [post_date_gmt] => 2016-09-19 07:20:12 [post_content] => Disclaimer: the comments and opinions expressed in this Artec Eva review are the results of our own (limited!) experience with the product. As always, we try to provide context to give a fair overview of the product. We strive to remain impartial and unbiased, and we have not received any payment or compensation of any form for writing this article. The Artec Eva we used for this test was lent to us by a Japanese lab for free, and Artec provided us with their Artec Studio 11 Ultimate software.| Brand: | Artec |
| Model: | Artec Eva |
| Price: | $19,800 |
| Rating: | 4.4/5 |
Artec Eva review: INTRODUCTION
The landscape of portable 3D scanners is pretty scarce. We wrote a full article on the topic here and listed only twenty different models. Among these 3D scanners brands, the two most established and biggest players in the industry are Creaform (from Canada) and Artec (from Luxembourg). Artec 3D company is an international group, headquartered in Luxembourg, with subsidiaries in the USA (Palo Alto) and Russia (Moscow). Artec has developed two well-known handheld 3D scanners, the Artec Eva (which we are testing today) and the Artec Spider, available in two versions (Artec Spider at $22,600 and Artec Space Spider at $27,600). The Spiders are the high-end products of the Artec product line, the Eva being the most affordable. In addition to these portable 3D scanners, Artec also offers a 3D body scanning booth and service called Shapify and Shapify Booth. Back to our test of the day! The Artec Eva is a versatile handheld 3D scanner, capable of 3D scanning a wide range of objects. In our experience, this portable 3D scanner gives the best results for Medium and Large objects (the Artec Spider is generally recommended for smaller size objects with intricate details). [caption id="" align="aligncenter" width="600"]
Artec Eva objects sizes compatibilities and uses cases.[/caption]
The 3D scanner we tested belongs to a university lab. It was originally an Artec Eva Lite, a lighter version of the Artec Eva without the texture/color scanning option, which was upgraded to an Artec Eva. The software we had, Artec Studio 9, was upgraded into the much more powerful Artec Studio 11 version for this test, thanks to Artec.
[caption id="" align="aligncenter" width="600"]
Our Artec Eva review setup. The coffee cup is an extra :).[/caption]
Objects used for test 3D scans: a human chest, a human foot, a human face, a shoe, a sheep plush, and a big suitcase.
PACKAGING
Packaging rating: 2.5/5
-
Unboxing: a simple cardboard case
Artec Eva review: the Artec Eva is delivered in a cardboard case.[/caption]
The Artec Eva is delivered in a rigid cardboard case, inside the shipping package. Please note that we have our Eva since 2014, so the design of the box has been now updated, as depicted in the picture below.
[caption id="" align="aligncenter" width="500"]
The new Artec Eva cardboard case. Picture by Artec.[/caption]
The rigid cardboard case is enough for storing the 3D scanner but for transporting it around, a rigid case is strongly needed. Artec sells theirs at a $400 price tag. Ouch! For the price tag of the Artec Eva, we think a proper case should be included and we reflected that in the Value section of our review. We bought a rigid case (the Trusco TAC-15) online for $120, which fits perfectly for the Artec Eva.
-
Instructions manual
-
Accessories
The Artec Eva inside its Trusco TAC-15 rigid case, with accessories.[/caption]
The Artec Eva is delivered with very little accessories. The only things provided in the box are an alimentation cable and a USB cable. Nothing more is needed to operate the 3D scanner.
Note that Artec sells those items for a very expensive price if they are broken or lost (USB cable at $30, Power supply at $140). In option, a battery pack is also available for an additional $850.
OVERVIEW AND SETUP
Overview and setup rating: 5/5
-
Software - 5/5
Artec Eva review: Artec Installation Center seen from my.artec3d.com panel.[/caption]
For this Artice Eva review, Artec provided us with their latest software, Artec Studio 11 Ultimate. As users of Artec Studio 9, we must say that the update to Artec Studio 11 version radically improves the user experience of the Artec Eva. Once the software had been installed and activated (just one additional click required in the Artec Installation Center), we were able to plug our Artec Eva and start the tests.
Note that Artec Studio 11 Ultimate requires a 64 bits Windows OS, and a powerful computer (see in Experience below for the exact description of our laptop).
-
Hardware - 5/5
The Artec Eva side view.[/caption]
The Eva is very conformable to hold with its smooth handle, and it offers a nice weight balance as long as it's held vertically. It rests nicely straight when not in use thanks to the discreet "feet" visible on the bottom right corner of the picture above. The Arte Eva weights 0.85 kg.
The provided cables (power and connectivity to the computer) are both long enough and of good quality. They are easy to connect and hold in place firmly once plugged.
[caption id="" align="aligncenter" width="600"]
POTUS Obama 3D scanned with Artec Eva. Picture by Artec.[/caption]
The Artec Eva relies on the white structured light scanning technology. A white pattern is projected on the object to 3D scan. Two cameras record the deformation of the pattern due to the object's shape, then the 3D scanner is able to compute the 3D surface. This technology is very effective (fast and accurate) but does not work under bright daylight (the casted structured light is dwarfed by the sun power).
However, it works outside has Artec demonstrated in one of their fossils' digitalization. The strong flashes of the structured light will also blind you if directly looked in the eye. That is why face scanning requires the user to close his or her eyes. The famous Obama 3D model was made from a 3D scan by the Artec Eva, which was then modified to integrate open eyes.
-
Getting started - 5/5
The Artec Eva back view. The top fan is visible, so is the double action button for starting and stopping 3D scans.[/caption]
Getting ready for your first scan once the software installed is really easy with the Artec Eva. You just have to plug the USB and alimentation cables, then launch Artec Studio 11.
On the left of the screen are several icons which trigger the different step of the 3D scanning process, from acquisition to publishing, going through all the preparation and optimization steps. The top one is used to start scanning in 3D (see the screenshot of Artec Studio 11 below).
Once the 3D scanner is connected, you can activate the preview mode and register the scans. This can be achieved by clicking the button in the software interface or directly from the Eva front top button, signaled with a small arrow, similar to a "Play" button.
A very important point: the Artec Eva does NOT require any calibration, a huge advantage compared to some of its competitors.
In the main Artec Studio 11 interface, the green bar acts as an indicator for finding the correct 3D scanning range. Too close or too far won't work: the user is required to stay within a fixed distance between 400 and 1000 mm of the object.
A few other options are also available at this point, among which:
- Capturing or not the texture of the 3D object.
- Using targets.
- Activating real-time fusion.
- Enabling automatic base removal.
Artec Eva review: Artec Studio 11 main interface.[/caption]
For our first tests, we used the default parameters and started 3D scanning a mid-sized sheep plush, the famous "Stanford sheep". We chose this object because it was easy to manipulate and with distinctive features and textures, knowing the wool texture would be challenging to capture. The Artec Eva did a great job, which is detailed in the Results section of this article.
[caption id="" align="aligncenter" width="600"]
Our first result with the Artec Eva and Artec Studio 11 Ultimate.[/caption]
The main steps for getting started with the Artec Eva are the following:
- Start Artec Studio 11.
- Plug in the 3D scanner.
- Activate the preview.
- Start 3D scanning.
- Perform the 3D scans cleaning, alignment and reconstruction.
- Save and/or publish the 3D models.
EXPERIENCE
Experience rating: 4.5/5
-
Software - 4.5/5
Artec Studio 11 Ultimate 3D software, used for reconstructing 3D models from multiple 3D scans.[/caption]
The Artec Studio 11 Ultimate software is really great. Compared to Studio 9, which we usually use, the gap is huge. Without entering too much into technical details, let's focus on two major improvements.
[caption id="" align="alignright" width="400"]
The Autopilot options for a faster reconstruction process.[/caption]
- Automatic base removal.
- Autopilot.
Manual alignment of two 3D scans inside Artec Studio 11 Ultimate.[/caption]
Some manipulations (such as pan and rotate for alignment of 3D scans) inside the software are not always intuitive and require the use of several different shortcuts. Of course, everything is explained during the tutorials but a few additional cues could still be useful to help non-expert users, such museum conservationists or doctors, who are not used to manipulating a 3D scanner and might have a hard time ramping up their 3D competencies.
-
3D scanning - 4.5/5
Characteristics of our laptop Windows computer. The minimal configuration for Artec Eva and Artec Studio 11.[/caption]
The 3D scanning process with the Artec Eva and Artec Studio 11 combination is very smooth, thanks to the effectiveness of the Autopilot mode. The Artec Eva is a quite ergonomic device, comfortable to hold and manipulate. After a few 3D scans, it is possible to anticipate the correct scanning pace to avoid a loss of focus from the 3D scanner, and also to anticipate what is the correct distance towards the subject or object, neither too close or far away.
The only flaw of this 3D scanning process is dealing with the cables. Several times we tangled them, walked on them and even 3D scanned them by inadvertence. We know the wireless connectivity and battery power are trades-off with dimensions and weight, but these are two important (and missing) features on a handheld 3D scanner. This is partially solved by Artec with their optional $850 battery pack option. That said, most portable 3D scanner is not fully wireless (see here for the complete list of wireless 3D scanners).
As with every 3D scanners that cost less than $100,000, there are some technical limitations. First, the level of details and hanging features which are very difficult to acquire. Dark, transparent and reflective object is also hard to 3D scan. This type of objects can be coated with non-reflective removable paint. On big objects, such as the suitcase we 3D scanned, the difficulties often arise from uniform surfaces, which prevent the software from doing a proper alignment. An option can be to use removable tape to create some distinctive features which can be captured more easily by the 3D scanner. All in all, our Artec Eva did a very decent job on most of those complex challenges, the suitcase 3D model pictured above and below is a very good example.
Artec Eva review: 3D SCAN RESULTS
3D scan results rating: 5/5
To evaluate the performance of the Artec Eva with its software Artec Studio 11 Ultimate, we conducted several 3D scanning tests, including human parts and small and big objects with various types of surface. We did not have the opportunity to test the Artec Eva performance for an industrial use case such as scanning a metal pipes or some technical part, but given our other tests we are pretty confident to say that as long the object does not have too small features (less than 5 cm) or a reflective/transparent surface, the result will be great.1. Human foot
Scanning in 3D the foot of a person standing is a popular use case for orthopedics and prosthetics applications. The 3D scan below was captured in less than a minute, with only 10 minutes of 3D preparation. The result is good. Note that a 360 degrees scan of a human part is very difficult as it requires the user to be completely still, which is a challenge even for a few seconds. The little glitches on the shin are due to the user's movement.2. Human face
We performed a 3D scan of our own head in less than 20 seconds. Reconstruction time took less than a minute. The result is very good, with a lot of details. Like all the 3D scanners based on structured light, the Artec Eva does not work very well on hair, especially when they are dark and/or curly. For dealing with such challenging use case Artec recommends to apply water on them and to raise the sensibility level in the software.3. Human torso
3D scanning human parts is a popular use case for the Artec Eva. It can be done for medical applications. The biggest challenge for the 3D scanner and software combination is to capture swiftly the 3D information, as any movement or breathing of the user can ruin the process. The result obtained (seen in Mesh lab) is clean and detailed. [caption id="" align="aligncenter" width="600"]
3D scan of a human torso (without texture), seen in Mesh Lab.[/caption]
4. Shoe
We decided to 3D scan our (worn out) Adidas Stan Smith shoe in order to test the Artec Eva on a medium-sized object. A white shoe is a challenging object to 3D scan, as the textures are uniform and the material a bit reflective. Inner parts and laces are also very difficult. In the end, the Artec Eva did a really good job with a quite detailed 3D model as a result.5. Standford sheep plush
We thought the Stanford sheep plush was an interesting object to 3D scan, as it is highly detailed with a difficult material and challenging details, including small hanging parts. The result is very satisfying with a nicely rendered wool and a realistic bandana! The Autopilot mode was a precious help to accelerate the process, but we had to manually align the 3D scans to get a full watertight mesh.6. Big suitcase
After performing several 3D scans of small objects we decided to test the Artec Eva performance on a big sized suitcase (1.2 x 0.8 x 0.6 meters) of dark blue color, with reflective features and small rubber wheels. This is a quite difficult object to 3D scan, and yet we obtained amazing mesh results. The colors are too dark, but that can be fixed with a little work on the texture file. Once again we had to manually align the 3D scans as the automatic feature did not manage to get it right. We also put some yellow tape on the back of the suitcase to have a few distinctive features in order to perform the alignment of the 10 different 3D scans we collected.VALUE
Value rating: 3.5/5
The Artec Eva and Artec Studio 11 Ultimate combination is very effective, offering an excellent user experience. For professionals who want a powerful and flexible portable 3D scanner, the Artec Eva is one of the best options on the market. However, at $19,800 (without counting a very powerful computer) this 3D scanner does not come cheap and that can be a serious turn down for small business and companies. We believe Artec could include in the Artec Eva package some of the optional equipment to make it more appealing, such as the rigid transport case and the battery pack.Artec Eva review: CONCLUSION
Aniwaa's opinion: 4.4/5
Our overall rating reflects our experience with the Artec Eva 3D scanner, in the specific uses cases described.| Weight | Rating | |
| Packaging | 1 | 2.5/5 |
| Overview and setup | 2 | 5/5 |
| Experience | 2 | 4.5/5 |
| 3D scan results | 2 | 5/5 |
| Value | 1 | 3.5/5 |
| FINAL RATING | 4.4/5 |
PROS:
- Overall performance and 3D scans quality (meshes)
- User experience of Artec Studio 11 Ultimate
- User experience of the Artec Eva
CONS:
- Price: definitely an expensive device, albeit a powerful one
- Connectivity and alimentation cables
| Brand: | Creaform |
| Model: | MetraSCAN 750 |
| Price: | > $50,000 |
| Rating: | 5/5 |
The Creaform quality control solutions for every part size.[/caption]
[caption id="" align="aligncenter" width="600"] Mapping of the Creaform quality control solutions with their respective operating ranges.[/caption]
Creaform also offers a more affordable range of portable 3D scanners: the Go!SCAN 50 and the Go!Scan 20.
Today, we are doing an hands-on review of the most powerful and flexible portable 3D scanning solution by Creaform, the MetraSCAN 750. The MetraSCAN 750 is an Optical CMM (Coordinate Measuring Machine) and is part of a full system, complete with the C-Track sensor.
Discovering the Creaform MetraSCAN 750 at the Creaform - AMETEK offices in Tokyo, Japan
We have been invited by the Creaform team in Tokyo to visit their offices and perform a hands-on review of three of their portable 3D scanners, the MetraSCAN 750, the HandySCAN 700 and the Go!SCAN 50. This review focuses on the MetraSCAN 750. [caption id="" align="aligncenter" width="600"]
The full setup of the Creaform MetraSCAN 750 solution.[/caption]
The Creaform MetraSCAN 750 is a complete solution for accurate 3D scanning. The minimal configuration includes the C-Track (the big sensor in the corner of the room), the C-Track Controller (The black box with a screen on last chair) and the MetraSCAN 750 itself, the portable sensor on the table. This system can be upgraded with the addition of the HandyPROBE (visible on the table). The bar held by the operator is used to perform the calibration of the C-Track.
[caption id="" align="aligncenter" width="500"]
The C-Track sensor.[/caption]
The C-Track sensor is used by the system to acquire the position of the MetraSCAN or the HandyPROBE. It is also capable of tracking the part itself in 3D space, when the part is equipped with markers (the recommended use case).
[caption id="" align="aligncenter" width="500"]
The C-Track Controller.[/caption]
This device is the C-Track Controller. It is an industrial-grade computer that coordinates all devices involved in a HandyPROBE or MetraSCAN 3D system. It is quite big and heavy but very quiet.
[caption id="" align="aligncenter" width="500"]
The MetraSCAN 750.[/caption]
The MetraSCAN 750 itself is the optical sensor at the heart of the measurement system. At the center of it stands the handle, surrounded by reflectors used by the C-Track to precisely locate the position of the device in space. The MetraSCAN itself casts lasers to 3D scan the parts (laser triangulation 3D scanning technology). It is equipped with multi-function buttons to achieve a number of functions:
1/ Launching the Smart Control (an interface containing all the major controls of the 3D scanning system) and activating software commands.
2/ Controlling the 3D display of the software, using the device as a 3D mouse (a function called 3D Display Control). In this mode, the MetraSCAN can be used to interact with the 3D model like you would do with a Nintendo Wiimote. This may sounds like a gadget feature but in fact it is a huge asset for a great user experience. This very interesting function allows to rotate, pan and zoom the 3D scan while holding and moving the 3D scanner.
The main evolutions of the Creaform MetraSCAN 750 compared to the previous version are:
- 1.5X more accurate
- 12X faster with 7 laser crosses
- 25% lighter (weights 1.38kg)
- 3D Scans any type of material, even black, multi colored and shiny surfaces
- Greater volume of 16.6 m3 (586 ft3)
- Sturdy design for shop-floor hardware reliability
- Multi-function buttons for easier interaction with the software
Close up of the HandyPROBE. It can be comfortably held two different ways.[/caption]
The HandyPROBE is an additional sensor, also used in combination with the C-Track. Is it possible to only buy the HandyPROBE and C-Track system, or the HandyPROBE along with the MetraSCAN.
The HandyPROBE is dedicated for precision measurement. The sensor only weights 0.5 kg and can be held in two different ways (cf. above pictures). Both the MetraSCAN and the HandyPROBE received a Red Dot Design award in 2016 for the quality of their design.
Getting started with the Creaform MetraSCAN 750
-
Packaging
The C-Track transport case.[/caption]
[caption id="" align="aligncenter" width="500"]
The MetraSCAN 750 transport case.[/caption]
-
Calibration process
Calibration of the C-Track.[/caption]
First the C-Track must be calibrated, a process achieved with the long vertical bar held by the operator.
[caption id="" align="aligncenter" width="500"]
Calibration of the C-Track with the MetraSCAN 750.[/caption]
On a second step, the C-Track must be calibrated with the MetraSCAN 750 itself. The interactions is a bit like playing a video game in 3D, where you must position the MetraSCAN in specific locations in the room.
[caption id="" align="aligncenter" width="500"]
Calibration of the MetraSCAN 750.[/caption]
The MetraSCAN 750 itself must been calibrated, with a custom made IR plate. Each calibration process takes around 5 minutes.
Testing the Creaform MetraSCAN 750
[caption id="" align="alignleft" width="300"]
The MetraSCAN 750 in hand.[/caption]
For this hands-on review, the Creaform team performed the setup of the C-Track and the MetraSCAN 750, along with the full calibration of the device. We were then allowed to directly hold in hand the MetraSCAN 750 to perform the 3D scan ourselves.
The MetraSCAN 750 is a sturdy product with a very nice finish. For an industrial-grade scanner, it looks really good and its ergonomics have been optimized. With a weight of 1.38 kg, it is not to heavy and can be comfortably held with one hand. The handle is quite big so it is easier to hold if you have big hands. The multi-functions button interface is positioned right above the handle, but manipulating them requires to hold the MetraSCAN from below with your over hand.
The cage-like structure that surrounds the handle must not be tampered with because it holds the optical reflectors used by the C-Track to locate the MetraSCAN.
-
Reverse engineering use case
Clutch and transmission housing side by side with the CAD model.[/caption]
After performing the full 3D scan of the part, the software can display the displacement values between the original CAD model and the generated 3D mesh from the scan. The MetraSCAN software (VXElements) is capable of producing a mesh in real time (real time fusion). The 3D scans are automatically stitched and fused together to create a unique 3D file. Even when you stop and resume 3D scanning of the same part, the software can realign automatically the newly generated data, and add details to an already existing geometry. All of these operations are fast and done automatically without any required action from the operator.
[caption id="" align="aligncenter" width="500"]
Measuring the offset between the CAD model and the real part inside VXElements software.[/caption]
The MetraSCAN can work in two different modes, the "cross grid" and "single beam" modes. The beams are in fact a single laser point moved very fast. The MetraSCAN can cast simultaneously 7 crosses, while the MetraSCAN 350 is capable of only 3.
Cross grid mode is for faster data capture, while the single beam mode is used to go deeper into pockets and harder to reach areas. A standard 3D scan would begin with the cross grid mode to acquire quickly the part, and the single beam mode on a second step for very high precision 3D scan and details acquisition.
[caption id="" align="aligncenter" width="500"]
The MetraSCAN 750 in use, with the 7 laser crosses mode.[/caption]
The MetraSCAN itself is connected to a computer via a USB 3 port. The laptop used in this demonstration is the recommended computer provided by Creaform. This is a powerful HP laptop with a Windows 7 OS 64 bits, 32 Gb of RAM and a Nvidia Quadro K1100M GPU. Windows 10 is not officially supported but some Creaform clients use it successfully.
[caption id="" align="aligncenter" width="500"]
The specific Ethernet to USB 3 adapter.[/caption]
-
Advanced 3D scanning use cases
3D scanning thin and reflective material with the MetraSCAN 750.[/caption]
We were then able to test another difficult use case. We scanned two objects made of different materials and textures. The white mouse is shiny with no asperities, the black box has a plastic grain and is matte.
[caption id="" align="aligncenter" width="500"]
Performance in very demanding scenario, 3D scanning black and white reflective objects.[/caption]
The results are once again amazing. Without any preparation, the generated mesh is dense and detailed, for both objects. This was made possible using what is called the HDR mode. In the VXElements software, a "lighting" parameter can be modified to optimize simultaneously the capture or dark and white objects.
[caption id="" align="aligncenter" width="500"]
Performance in very demanding scenario, 3D scanning black and white reflective objects. The result is amazing.[/caption]
Conclusion
Aniwaa's opinion: 5/5
The MetraSCAN 750 is a complete 3D scanning solution designed for industrial uses cases. This is the first time we had the opportunity to experience such a high-end 3D scanner. The user experience of the MetraSCAN is excellent, with fast and efficient software, and an ergonomic sensor. We particularly like the multifunction button interface, specifically the interaction modes where the MetraSCAN 750 can be used as a 3D mouse to manipulate the 3D files. The calibration of the whole system takes time but conducted step by step it is not a complicated process, and once done in a specific environment to does not need to be performed again. Regarding the 3D scanning performance, the MetraSCAN 750 is simply the best performing 3D scanner we ever had the opportunity to test (it's also among the most expensive!). It is fast and works on any parts and object. We carry out tests of 3D printers, 3D scanners and 3D filaments in our lab in Tokyo. Get in touch if you’d like us to review your products! [post_title] => [Hands-on] Test and review of the Creaform MetraSCAN 750, an optical CMM 3D scanner solution [post_excerpt] => [post_status] => publish [comment_status] => closed [ping_status] => closed [post_password] => [post_name] => hands-on-test-and-review-of-the-creaform-metrascan-750-an-optical-cmm-3d-scanner-solution [to_ping] => [pinged] => [post_modified] => 2019-02-15 07:32:42 [post_modified_gmt] => 2019-02-15 06:32:42 [post_content_filtered] => [post_parent] => 0 [guid] => https://www.aniwaa.com/?p=29333 [menu_order] => 0 [post_type] => post [post_mime_type] => [comment_count] => 0 [filter] => raw ) [11] => WP_Post Object ( [ID] => 28814 [post_author] => 203 [post_date] => 2016-05-09 09:21:57 [post_date_gmt] => 2016-05-09 07:21:57 [post_content] =>Disclaimer: the comments and opinions expressed in this review are the results of our own (limited!) experience with the product. As always, we try to provide context to give a fair overview of the product. We strive to remain impartial and unbiased, and we have not received any payment or compensation of any form for writing this article. RangeVision lend us a Smart 3D scanner for free.
This article was updated in January 2018 to reflect the evolutions of the RangeVision software (ScanCenter and MergeCenter) and their influence on the Smart's capabilities.| Brand: | RangeVision |
| Model: | Smart |
| Price: | $2,590 |
| Rating: |
INTRODUCTION
Today, we‘re testing the RangeVision Smart, a desktop 3D scanner. This article aims to give a fair evaluation of this affordable 3D scanner through the 3D scanning of standard 3D objects. RangeVision is a Russian company with products available in more than 20 countries, through a dense network of resellers, the majority of them being in Europe and Asia. RangeVision has been selling professional 3D scanners for more than a decade with their Standard Plus and Advanced lineups. RangeVision 3D scanners are based on structured light technology. The basic principle: a video projector casts a pattern on a 3D surface. The surfaces modifies the pattern in a specific way which is captured by 2 cameras. This pattern deformation allows the 3D scanner to calculate the 3D surface's topology and to create a 3D mesh. [caption id="" align="aligncenter" width="600"]
Our RangeVision Smart 3D scanner and automatic turntable setup.[/caption]
RangeVision recently introduced an affordable desktop 3D scanner called the Smart. The Smart is available in 3 colors: grey, red and yellow.
Objects used for tests 3D scans: a wooden hand (usually a drawing reference for art students), a hand, a shoe and a small figurine.
--------------------UPDATE 01/2018--------------------
Since our RangeVision Smart test, the manufacturer released several new versions of their software suite. Some significant changes were achieved following our feedback. The major changes notably include the following upgrades: ScanCenter 2016.3- Texture scanning for all models, including out-of-production 3D scanners
- Auto white balance for texture scanning
- Light filters check
- Improved markers algorithm
- Realign function for incorrect aligning with markers
- Improved performance and model visualization for low-end PC
- Improved frame-rate test
- Alarm sound for cameras warming up
- Show/hide scan in ScanCenter
- Clipping planes depending on FOV
- Auto turntable rotation direction set
- Auto display setting correction in OS
- Manuals download
- Auto groups registration
- Auto local registration
- Visualising sphere diameter while deleting markers
- Aligning by points
- Improved alignment and trimming by plane
- Fixed and improved Configuration Wizard
- Export to OBJ type 2
- Camera resolution selection
- Test scanning
- Test texture snap
- Indication of clipping planes
- New texturing
- Improved scanning with markers
- Automatic turntable calibration
- Font scaling
- Sped-up data loading
- Dynamic adjustment of mouse sensitivity
- New local scan registration
- New united model building method
- Trimming unnecessary fragments with part selection
- Trimming of underlying surfaces
- Model scaling
- Automatic calculation of camera frequency
- Automatic software update
- Developer feedback
- Calibration process in the software was improved and speeded up.
- Now the user can specify the ambient temperature to improve the accuracy of the calibration.
- Option to repair the model in the MeshFix added.
- Undo/redo actions added in the ScanMerge.
- New .rv3d format for the ScanMerge added.
- Model export in .ptx format added.
- Program performance and overall user experience were improved.
-------------------------------------------------------------
PACKAGING
Packaging rating: 5/5
-
Unboxing: a nice packaging, including a transport case
The RangeVision Smart packaging.[/caption]
The RangeVision Smart is delivered in a thick cardboard which contains a rigid transport case. The case has a nice aluminum finish and is quite strong. It is not often that such a case is included with an affordable product such as the Smart. Everything inside the box is protected by a thick foam, with the 3D scanner being well surrounded by this soft material.
-
Instructions manual
-
Accessories
OVERVIEW AND SETUP
Overview and setup rating: 2.5 3.5/5
-
Software -
24/5
--------------------UPDATE 01/2018--------------------
The full software package is now a lot smaller, weighing only 237 Mb, almost a 50% reduction. The new installation file also includes all the necessary drivers (cameras, automatic turn table, etc.) which allows for a simpler and faster installation.-------------------------------------------------------------
-
Hardware - 3.5/5
-
Getting started -
23/5
- Calibrate the 3D scanner.
- Position the object in front of the scanner, on the rotating table if you have one.
- Launch the scan function in the RangeVision ScanCenter which will capture one side of the object.
- Repeat the scan until you obtain scans from all the sides of the object (automatically done if you have the turntable).
- Import the 3D scans inside the RangeVision MergeCenter with the integrated function of ScanCenter.
- Align and run the registration function to obtain a simple 3D file from the multiple 3D scans.
--------------------UPDATE 01/2018--------------------
The video tutorials have been upgraded, which means less confusion. This recap of all the ScanCenter functions is very useful. Also, now it is mandatory for all RangeVision retailers to conduct training for new users. This way they can get all the basics and more in their native language or, at least, in English. The calibration process is made more intuitive thanks to functions being better annotated within the software. Also, all the buttons were grouped in a better, more logic way. [caption id="" align="aligncenter" width="600"]
A smoother calibration process.[/caption]
The calibration of the ATT can now be performed without a calibration plate, directly with the part to be 3D scanned.
[caption id="" align="aligncenter" width="600"]
ATT calibration performed directly with the 3D model.[/caption]
-------------------------------------------------------------
EXPERIENCE
Experience rating: 4/5
-
Software - 4/5
Aligning the meshes is easy for a simple object, for more complex ones it gets a bit tricky because the visibility is not optimal and the manipulation tool is only based on mouse buttons. A manipulation trihedron, like in most CAD software, would be very useful. Smoothing and hole filling tool should also be more complete and easier to use.
However, after some practice time, it gets easier to understand how everything works and the realign feature gets more effective.
--------------------UPDATE 01/2018--------------------
The undo feature has been successfully implemented, for a much better user experience. ScanCenter now boasts a dedicated set of tools for defining a parametric 3D scanning zone, depending on the specific use case. [caption id="" align="aligncenter" width="600"]
RangeVision ScanCenter 3D software cylinder acquisition parametrization.[/caption]
Cleaning tools of MergeCenter were also improved, notably with the ability to automatically remove a specific zone of all 3D scans, such as the ATT surface.
[caption id="" align="aligncenter" width="600"]
RangeVision MergeCenter automatic cleaning tools with surface selection and recognition.[/caption]
-------------------------------------------------------------
-
3D scanning - 4/5
3D scanning with the automatic turntable of the RangeVision Smart simplifies the whole experience and process.[/caption]
Without the turntable, the user is required to press the Scan button, then manually turn the object and repeat these steps until the object is scanned from all sides. 5 to 6 scans can be enough to provide a 360° model of the object.
The major constraint to 3D scanning with the Smart is to simultaneously use 4 different USB ports. One for each camera, one for the turntable and one for the Licence USB key. Only a few laptops are equipped with so many USB ports, and that would prevent you from to using an external USB mouse, which is more than helpful to do the merging operations.
The long warm-up time is also painful, we regularly experienced more than 12 minutes delay between the installation of the scanner and being able to start 3D scanning. The turntable works really well and for 360 degrees scans it is a great option. 3D scans are quick to perform, 12 captures being sufficient for a full 360, each capture takes less than 5 seconds. Like with all 3D scanners the Smart does not like shiny objects or dark ones. The use of a mattifier spray can solve this issue.
--------------------UPDATE 01/2018--------------------
The warm up process has been accelerated and is now less stringent, 5 minutes now being sufficient. RangeVision gave us some background on this important feature: warming up of cameras came from the professional 3D scanners and is needed for a stable temperature of sensors in it. The physical size of pixels depends on temperature. For the best possible results (accuracy-wise) it is recommended to wait until warming up is completed however it can be skipped once cameras temperature reach 40°C.-------------------------------------------------------------
3D SCANS RESULTS
3D scans results rating: 4/5
1. Wood hand model
[caption id="" align="aligncenter" width="600"]
3D scan of a wooden hand with the Smart.[/caption]
This hand is used as a reference for drawing. It is only made of one material, wood. A mono texture object is always simple to 3D scan. This object has a lot of details and a huge variety of depth (holes between the fingers) which are hard to scan. This object is 120 x 70 x 40 mm. We performed 8 different scans by manually moving the object.
Scan Wood Hand Model by aniwaa on Sketchfab
[caption id="" align="alignleft" width="300"]
3D scan of a human hand with the Rangevision smart 3D scanner.[/caption]
2. Human hand
We performed a scan of my own hand, with only 3 different captures. The result is good, even if it was difficult not to move the hand at all. Small offset stripes (due to the structured light technology) can be seen on the 3D model.4. Shoe
This leather sneaker is size 10. It is white and highly reflective, which makes it a very difficult object to scan. We performed 12 automatic 3D scans with the rotating table. The Field Of View of the scanner was a bit small compared to the scan of the shoe but the result is very good. Only the black sticker was not captured. [caption id="" align="aligncenter" width="600"]
3D scan of sneaker shoe.[/caption]
[caption id="" align="alignright" width="300"]
3D scan of a small figurine.[/caption]
5. Figurine
The figurine is a classic use case for evaluating 3D scanners. This one is quite complex with different colors and textures, and is has many details. We performed 12 automatic 3D scans with the rotating table. The result of this 3D scan is very good, with a nice level of details. On this model, the realignment function of the ScanMerge software performed nicely and swiftly. A better mesh could have been obtained by combining scans from the top and bottom of the object.--------------------UPDATE 01/2018--------------------
6. Mikhail Skobelev bust
This small sized statue is the portrait of Mikhail Skobelev, a famous Russian general. It is plaster made and, interestingly enough, the part was broken and then glued back together. On the high-resolution mesh (on the left), it is possible to see the small groove on the left lower part of the statue's support. [caption id="" align="aligncenter" width="600"]
Side by side models with two different export qualities.[/caption]
-------------------------------------------------------------
VALUE
Value rating: 4.5/5
The RangeVision Smart is a good desktop 3D scanner with an excellent price-to-performance ratio. It is one of the most affordable 3D scanners capable to delivering good and detailed results.CONCLUSION
Aniwaa's opinion rating: 4.1/5
Our overall rating reflects our experience with the RangeVision Smart 3D scanner, in the specific uses cases, we describe.| Weight | Rating | |
| Packaging | 1 | 5/5 |
| Overview and setup | 2 | 3.17/5 |
| Experience | 2 | 4/5 |
| 3D scan results | 2 | 4/5 |
| Value | 1 | 4.5/5 |
| FINAL RATING | 4.1/5 |
PROS
- Price to performance ratio
- Manufacturing quality and accessories
- Flexible and very capable for several different use cases
CONS
- Software is difficult to use and offers limited options
- Tedious setup and getting to use the 3D scanner
--------------------UPDATE 01/2018--------------------
After dramatic software improvements (ease of use, setup and automatic features) the RangeVision Smart anchors itself in the entry-level professional 3D scanners. One interesting alternative in the same price range is the Open Technologies Scan In A Box, which offers less accessories but a similar level of performance.
-------------------------------------------------------------
We carry out tests of 3D printers, 3D scanners and 3D filaments in our lab. Get in touch if you’d like us to review your products! [post_title] => [Review] The Rangevision Smart, an affordable desktop 3D scanner [post_excerpt] => [post_status] => publish [comment_status] => closed [ping_status] => closed [post_password] => [post_name] => our-test-and-review-of-the-smart-a-desktop-3d-scanner-by-rangevision [to_ping] => [pinged] => [post_modified] => 2019-01-24 23:09:10 [post_modified_gmt] => 2019-01-24 22:09:10 [post_content_filtered] => [post_parent] => 0 [guid] => https://www.aniwaa.com/?p=28814 [menu_order] => 0 [post_type] => post [post_mime_type] => [comment_count] => 0 [filter] => raw ) [12] => WP_Post Object ( [ID] => 27976 [post_author] => 203 [post_date] => 2016-03-11 07:25:34 [post_date_gmt] => 2016-03-11 06:25:34 [post_content] => Disclaimer: the comments and opinions expressed in this review are the results of our own (limited!) experience with the product. As always, we try to provide context to give a fair overview of the product. We strive to remain impartial and unbiased, and we have not received any payment or compensation of any form for writing this article. Fuel3D lend us a SCANIFY 3D scanner for free.| Brand: | Fuel3D |
| Model: | SCANIFY |
| Price: | $1,490 |
| Rating: | 3.6/5 |
INTRODUCTION
Today, we‘re going to test the Fuel3D SCANIFY, an entry-level portable 3D scanner. This article aims to evaluate the performance of this 3D scanner in action and to benchmark it against some of the most famous 3D scanners on the market. The SCANIFY is Fuel3D’s flagship model with a retail price of $1,490. We’ve been following Fuel3D for a few years now. This is one of the few startups in the 3D scanning/3D printing ecosystem which successfully raised money on Kickstarter ($325,343 to be exact) and actually managed to deliver a working product on time, the SCANIFY. It’s also interesting that this UK manufacturer is pretty much the only new company to focus solely on 3D scanners, while there’s been plenty of startups entering the 3D printing hardware space. A few weeks ago, we asked the Fuel3D team in the UK about testing their SCANIFY 3D scanner. We had already seen the scanner in action at the 3D Print Show in Paris last year, but we never had the opportunity to perform an in-depth test and review. We also wanted to benchmark the SCANIFY against other 3D scanners at various price points, so we performed several tests using 3D scanners we have access to in our testing lab. Useful resource: we’ve listed all the handheld 3D scanners currently available on the market in our top 20 portative 3D scanners list. Enough talk, let’s start this review now.PACKAGING
Packaging rating: 5/5
-
Unboxing: a nice packaging with thick foam and a well protected product
Fuel3D SCANIFY portative 3D scanner and its packaging[/caption]
-
Instructions manual
-
Accessories
OVERVIEW AND SETUP
Overview and setup rating: 3.5/5
-
Software - 4/5
The two faces on the left were scanned using the old version of the software, the two faces on the right were processed with the new software (2.1) using the cloud engine processing, with much more accurate results[/caption]
-
Hardware - 3/5
The 3D printed marker holder on the Zortrax M200[/caption]
EXPERIENCE
Experience rating: 3.5/5
-
Software - 4/5
-
3D scanning - 3/5
Illustration of the 3D scanning process with a photogrammetry device[/caption]
The process of scanning with the SCANIFY is similar to taking several pictures all around the subject. Then the software does all the job of reconstructing a 3D model from all this data. Between each capture, it is required to wait until the flashes cool off, which takes around 4-5 seconds. It can be quite frustrating when you have several shots to perform to fully capture an object in 3D. Working with good lighting conditions (uniform, not too many strong shadows) is helpful to obtain better results.
Regarding applications and use cases, Fuel3D recommends to use their scanner to capture 3D models of the following objects: low relief and sculptures, plants and flowers and human faces. The SCANIFY is not designed for other uses cases such as full body scanning, reverse engineering, etc. The use cases are pretty limited so you need to take that into account if you're considering purchasing a SCANIFY.
[caption id="" align="aligncenter" width="600"]
Recommended applications of the Fuel3D SCANIFY[/caption]
To capture the scans, the SCANIFY is required to have a good view of the marker, so before scanning, you need to make sure the markers are well positioned. This is kind of difficult to do because you need these markers to be visible by the cameras, while not to hiding the object you want to scan. At the same time, you need to find the optimal way to hold the scanner, check what it sees and verify the relative position of the marker towards the object. It definitely took us some time to practice and learn how to do this properly.
For face 3D scanning, the process is really intuitive with the marker holder and the fact that the capture is instantaneous (compared to face scanning using a structured light 3D scanner for example).
The scanner itself felt comfortable to hold with its very cool design and its 2 handles. The buttons on the top are used to capture the 3D scans. Pressing any of them takes the shot. It is also possible to hold the SCANIFY with only one hand in order to scan yourself (3D selfie!).
There is also a standard mount to easily connect it to a tripod. However, the proximity to the connectivity plugs makes it only compatible with smaller tripods (the connectivity slots for USB, power, and future extension plug are positioned right under the tripod mount slot).
[caption id="" align="aligncenter" width="600"]
The SCANIFY in hand and mounted on a tripod[/caption]
The scanner is portative but not wireless, as it has to be connected to the computer via USB and to a power plug to work. It’s possible to use the SCANIFY with a tablet for a wireless experience but we haven’t tested this configuration, called the mobile package. This mobile package retails for $50 and contains a battery pack, cables and 3D printable file for a windows tablet mount.
[caption id="" align="aligncenter" width="600"]
The wireless version of the SCANIFY with the mobile package[/caption]
3D SCANNING RESULTS
Scanning results rating: 3.5/5
A) 3D scanning human faces: SCANIFY vs Intel RealSense vs Einscan-Pro vs Artec Spider
Human face 3D scanning is one of the highlights of the SCANIFY. We’ve compared the results we obtained against face scans from other well-known 3D scanners that we've tested before. All these scans were performed under the same conditions, inside an office without specific lighting. We used the software provided by the respective manufacturers and did not perform any additional corrections, except the automatic ameliorations. [caption id="" align="aligncenter" width="600"]
Fuel3D SCANIFY[/caption]
[caption id="" align="aligncenter" width="600"]
Intel RealSense[/caption]
[caption id="" align="aligncenter" width="600"]
Shining 3D Einscan-Pro[/caption]
[caption id="" align="aligncenter" width="600"]
Artec Space Spider[/caption]
Fuel3D SCANIFY - $1,500 - 4/5
- Mesh Quality - 3/5: The mesh is really good in the center, the cheeks have less details and are more approximate.
- Texture Quality - 5/5: Excellent quality of the textures due to the technology and high resolution of the cameras.
Intel RealSense - $99 - 3/5
- Mesh Quality - 4/5: The mesh quality is really good. Dense and detailed.
- Texture Quality - 2/5: Texture quality is quite poor, the resolution of the sensor is limited to 640 x 480.
Shining 3D EinScan-Pro - from $3,999 - 4/5
- Mesh Quality - 4/5: High mesh quality, hair tends to degrade the performance.
- Texture Quality - 4/5: Good sensor quality. However, the color module is in option and costs an extra $700.
Artec Space Spider - $27,600 - 5/5
- Mesh Quality - 5/5: Excellent mesh resolution and accuracy.
- Texture Quality - 5/5: Texture is very detailed and high resolution. Colors are less realistic compared to the SCANIFY. The example is not very good as it is a picture we took with a smartphone of the computer screen.
B) 3D scanning a plush: SCANIFY vs Makerbot Digitizer
We wanted to test the SCANIFY on a small object and opted for 2 plushies. They are difficult to scan because of their specific texture. Totoro is a famous Miyazaki character, while Fuji-san is the little embodiment of Mount Fuji, the greatest sacred mountain in Japan. [caption id="" align="aligncenter" width="600"]
The two small plushes we 3D scanned. Totoro on the left, Fuji-san on the right[/caption]
[caption id="" align="aligncenter" width="600"]
3D scans of Totoro and Fuji-san plushes with the Fuel3D SCANIFY[/caption]
[caption id="" align="aligncenter" width="600"]
3D scans of Totoro and Fuji-san plushes with the MakerBot Digitizer[/caption]
Fuel3D SCANIFY - $1,500 - 3/5
- Mesh Quality - 2/5: Very good mesh quality on local parts of the object. Extremely difficult to obtain a full 360 scan.
- Texture Quality - 4/5: Very good quality of the textures due to the rendering technology and high resolution of the cameras.
MakerBot Digitizer - $799 - N/A
- Mesh Quality - 0.5/5: Difficult to recognize the shape of the plush.
- Texture Quality: No texture
VALUE
Value rating: 3/5
The Fuel3D SCANIFY is an interesting product but limited to very specific uses cases: face 3D scanning and low relief. For other situations, there are better (but more expensive) alternatives.CONCLUSION
Aniwaa's opinion rating: 3.5/5
Our overall rating reflects our experience with the Fuel3D SCANIFY 3D scanner, in the specific uses cases described.| Weight | Rating | |
| Packaging | 1 | 5/5 |
| Overview and setup | 2 | 3.5/5 |
| Experience | 2 | 3.5/5 |
| 3D scan results | 2 | 3.5/5 |
| Value | 1 | 3/5 |
| FINAL RATING | 3.6/5 |
| Brand: | Artec |
| Model: | Space Spider |
| Price: | $27,600 |
| Rating: | 4/5 |
Introduction
There are not many options on the market in the portable 3D scanner category. We wrote a full article on the topic here. Out of these twenty 3D scanners, the two most established manufacturers and biggest players in the industry are Creaform (from Canada) and Artec (from Luxembourg). Being regular Artec users ourselves (we use an Artec Eva Lite, the entry-level version of the Artec Eva, without color texture capabilities), we were excited to lay our eyes (and hands!) on the latest release from Artec, the Space Spider. The Artec Spider ($22,600) and Space Spider ($27,600) are the high-end products of the Artec product line. They are designed for high-precision scanning and perform very well on small to mid-size objects. For bigger objects and full body scan, the company offers other options, such as the Eva or the L2.
The Artec product line: each 3D scanner covers a specific size range.
To put the chart above in context, we've reached out to Artec and they mentioned that even if each product has a core application field and performs very well on a specific object size range, they are also versatile and can be used in many different situations.
As an example, the Eva has been used for quality inspection on much bigger objects such a bus with great results. As for the Space Spider, it was designed with metrology and reverse engineering applications in mind but can also be a powerful tool in various use cases.
Discovering the Artec Space Spider @ Data Design, Yokohama, Japan
So here I am, boarding the train from Tokyo to Yokohama on this cold Wednesday, February 9. We've heard and read of few things about the Space Spider since it was introduced on the market last year and we're quite curious to see for ourselves what this new standard in portable 3D scanners is all about. With a $27,600 price tag, this 3D scanner is not exactly cheap and finding one not so easy. After getting in touch with the manufacturer, we were introduced to an official Japanese reseller named Data Design, based in Yokohama (1 hour train south of Tokyo). Data Design offers full packages of industrial-grade solutions, including CAD/CAM software, 3D printers and 3D scanners. They carry the full Artec lineup, including the Shapify Booth for 3D bodyscanning. I had the pleasure to meet the Data Design team who not only greeted me with a warm welcome, but also deliver top advice - all in a perfect english (which is not common in Japan, and extremely nice for a gaijin like me!).Overview of the Space Spider
There it is, I finally have my hands on the Artec Space Spider. A few words of context first. The Space Spider bears its name because it was an upgrade of the existing Spider model. The Space Spider was specifically developed for NASA in order to be used in, well, space. The Space version offers better electronics for a fast start up (3 minutes against 30 minutes for the regular Spider). With this upgraded electronics, the operating temperature of the Space Spider is of only 36.6 degrees, much easier and faster to achieve, and to maintain. The 3D scanning technology of the Spider is based on blue LED structured light. This makes it possible to perform 3D scans outside, even if this is not the optimal scenario.
Artec Spider VS Artec Space Spider optimal operating temperature
The 3D scanner is connected to the computer by USB 3.0 (USB 2.0 is also OK) and it is also connected to a power plug. Note that this version can also operate on battery, but it is still not fully wireless (almost none of the existing portable 3D scanners are wireless).
In more than 50% of use cases, the Space Spider is used for metrology or reverse engineering applications. Other popular application fields include cultural heritage preservation and body parts scanning.
Testing the Artec Space Spider
The Artec Space Spider in hand
This 3D scanner is capable of producing 3D models with an amazing level of details of small and intricate objects. I was able to do some tests on a TV remote of dark color. The result is amazing (see pictures below). With a combination of only two 3D scans (one from the top and one from the bottom) the 3D mesh is really highly detailed and the texture are of great quality.
The Space Spider with TV remote on the manual turntable
I used a manual turntable for this scan. By holding the Space Spider steady in place and slowly turning the turntable by hand, the result was really good. The latest version of the Artec Studio 10 software (a lot easier to use and faster compared to the 9.2 version I have) performed well on a laptop equipped with 32Gb RAM and a Nvidia graphics card.
A remote control scanned with the Space Spider
The Sharp Fusion feature is amazing for smoothing out the mesh without losing any critical details. It's also interesting that the Space Spider is compatible with tripod installation. The handle is comfortable and ensures a very good grip. One downside I found is the balance of the scanner when held in hand. I found it a bit too heavy towards the bottom which tends to make the scanner slightly tilt if you don't compensate for it. The manufacturer mentioned it was actually designed this way on purpose since the Space Spider is often used to capture objects from above, so the scanner has to be tilted down anyway.
3D scanning my face with the Space Spider
On a second use case, a member of the Data Design team performed a 3D scan of my face. This scanner is not intended to be used this way (the performance on black hair is not very good) but I must say I was astonished by the results. The mesh came out detailed and clean, while the texture rendering was extremely precise and lifelike.
The face scan result
On these two use cases, it is the best performance I have seen so far using a portable 3D scanner.
Conclusion
Aniwaa's opinion: 4/5
In this price range, the Artec Space Spider has few competitors, mainly the Creaform Handyscan series (also handheld devices but more expensive). Compared to the Artec Eva, the Space Spider performance is a lot better, but again keep in mind each scanner is intended for different applications. If you don't need high-precision scanning than the Eva will likely be a better fit, as it's faster and offers a wider field of view (and it's also cheaper!). The upgraded hardware of the Space Spider allows for a fast warm up and a constant performance during operation, which is a key feature for metrology and reverse engineering applications. That said, the steep price hike between the Spider ($22,600) and the Space Spider ($27,600) may turn off some potential buyers. The recently introduced EinScan-Pro by Shining 3D could become an interesting alternative, for use cases when metrology-grade performance is not required. Sure, the overall performance is strongly in favor of the Space Spider but the EinScan-Pro has a smooth user experience and costs less than a third of the Spider. [caption id="" align="aligncenter" width="500"]
The Artec Space Spider from above.[/caption]
We carry out tests of 3D printers, 3D scanners and 3D filaments in our lab in Tokyo. Get in touch if you’d like us to review your products!
[post_title] => [Hands-on] The Artec Space Spider, a portable 3D scanner
[post_excerpt] =>
[post_status] => publish
[comment_status] => closed
[ping_status] => closed
[post_password] =>
[post_name] => a-hands-on-review-of-the-artec-space-spider
[to_ping] =>
[pinged] =>
[post_modified] => 2019-02-15 07:27:47
[post_modified_gmt] => 2019-02-15 06:27:47
[post_content_filtered] =>
[post_parent] => 0
[guid] => https://www.aniwaa.com/?p=27446
[menu_order] => 0
[post_type] => post
[post_mime_type] =>
[comment_count] => 0
[filter] => raw
)
[14] => WP_Post Object
(
[ID] => 27461
[post_author] => 203
[post_date] => 2016-02-10 04:59:12
[post_date_gmt] => 2016-02-10 03:59:12
[post_content] => Disclaimer: the comments and opinions expressed in this review are the results of our own (limited!) experience with the product. As always, we try to provide context to give a fair overview of the product. We strive to remain impartial and unbiased, and we have not received any payment or compensation of any form for writing this article. We have tested the Shining 3D EinScan-Pro during the Tokyo 3D Printing Show in 2016.
| Brand: | Shining 3D |
| Model: | EinScan-Pro |
| Price: | $4,500 |
| Rating: | 4.2/5 |
Introduction
You might not know this company yet, but Shining 3D is the #1 company on the Chinese stock exchange, for the 3D digitizing and 3D printing industry. Shining 3D was founded in 2004 and got listed on the stock market on August 8, 2014. The company's headquarter is located in Hangzhou and there are branches in Shanghai, Beijing, Nanjing, Guangzhou, Chengdu, and several other major Chinese cities. If you've heard about them already, it might be thanks to their Einstart-S or Einstart-L 3D printers or the recently introduced Einscan-S desktop 3D scanner. Indeed, Shining 3D boasts an impressive lineup of products, including industrial 3D printers and scanners.Discovering the Shining 3D EinScan-Pro at the 3D Printing Show Tokyo 2016
Their latest release is the Einscan-Pro: a mid-range handheld 3D scanner, designed for professional use. Introduced at CES 2016 in Las Vegas, this new addition to their portfolio was also showcased at the 3D Printing 2016 in Tokyo. We were at the Tokyo Big Sight event two weeks ago and we got the opportunity to test and try the new EinScan-Pro. Our feedback in one word: amazing.Overview of the Shining 3D EinScan-Pro
This 3D scanner is based on a structured white light scan technology. It is capable of producing detailed scans in several different modes: Handheld HD scan, Handheld Rapid Scan, Automatic Scan and Free Scan. The maximum scan accuracy can go up to 0.05 mm on a single scan with a specific configuration (Industrial package). Here are two useful links for more detailed characteristics: summarized performance review of the EinScan-Pro, for 3D scan samples by the EinScan-Pro.
The Shining 3D EinScan-Pro equipped with the color module
The EinScan-Pro is light (only 0.8 kg) and is available in several versions. The Basic package does not capture textures but costs only $4,000. Two upgrades are available, each for $700: the Color package which adds colors/texture capturing capabilities through a small side module (see picture above), and the Industrial package which adds an automatic turntable and a tripod to the package. Both bundles (Color and Industrial) can be combined for $1,400: a fully equipped Shining 3D EinScan-Pro costs $5,400. It is important to note that the price tag is far below those of direct competitors (Artec Eva or Creaform Go!Scan for examples).
The Shining 3D EinScan-Pro 3D scanning a statue
Testing the Shining 3D EinScan-Pro
I first was able to witness several free scan use case on a small statue (equipped with markers) and later on with a wood panel. Both results were really good and quite fast to produce. I also tested myself the scanner using this free scan mode. The EinScan-Pro is nice to hold and comfortable to operate. The software is fairly easy to use and provides a great user experience, for instance by automatically stitching the different 3D scans automatically to produce the final scan.
A 3D scan of Pierre-Antoine's face by the EinScan-Pro
The Shining 3D team then performed a 3D scan with me as the subject. In less than 2 minutes, a high-resolution scan of my face with textures was available. Note that The EinScan-Pro, like all 'affordable' structured light 3D scanners, have a very hard time dealing with hair.
The Einscan-Pro mounted on its tripod, performing a 3D scan of a triceratops (on the turntable).
My last test was performed on a small triceratops glossy plastic figurine. It only took two automated 3D scans to generate a great 3D model. The stitching and merging of the dots cloud and the generation of the textured polygons was quick and entirely automatic.
Result of the triceratops figurine 3D scan with the EinScan-Pro
One thing to keep in mind: like almost all structured light 3D scanners, the Einscan-Pro is not suitable for outdoor operations at it is affected by intense sources of light.
CONCLUSION
Aniwaa's opinion: 4.2/5
The Shining 3D EinScan-Pro is a powerful and versatile portable 3D scanner offering among the best price to performance ratio of the market. It is certainly one of the most promising handheld 3D scanners of 2016. It offers an amazing level of performance at a very reasonable price, as it's roughly three to four times cheaper than its closest competitors. The software is efficient and easy to use. For small to medium size companies looking to invest in a 3D scanning solution, we think it's a very interesting option to consider. The best uses cases for this portable 3D scanner are museum conservationism or design studios. We do not recommend it for full body 3D scanning, even if it gives good results for face 3D scanning. We carry out tests of 3D printers, 3D scanners and 3D filaments in our lab in Tokyo. Get in touch if you’d like us to review your products! [post_title] => [Hands-on] The Shining 3D EinScan-Pro, an affordable and powerful portable 3D scanner [post_excerpt] => [post_status] => publish [comment_status] => closed [ping_status] => closed [post_password] => [post_name] => a-hands-on-review-of-the-shining-3d-einscan-pro [to_ping] => [pinged] => [post_modified] => 2019-02-15 07:37:30 [post_modified_gmt] => 2019-02-15 06:37:30 [post_content_filtered] => [post_parent] => 0 [guid] => https://www.aniwaa.com/?p=27461 [menu_order] => 0 [post_type] => post [post_mime_type] => [comment_count] => 0 [filter] => raw ) )Array
(
[0] => WP_Post Object
(
[ID] => 59029
[post_author] => 203
[post_date] => 2019-09-03 23:06:54
[post_date_gmt] => 2019-09-03 21:06:54
[post_content] => [et_pb_section fullwidth="off" specialty="off" transparent_background="off" background_color="#007cb0" allow_player_pause="off" inner_shadow="off" parallax="off" parallax_method="off"][et_pb_row][et_pb_column type="4_4"][et_pb_text admin_label="H1 : Creaform HandySCAN BLACK Elite review (hands-on)" background_layout="dark" text_orientation="left"]
Creaform HandySCAN BLACK Elite review (hands-on)
[/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="2_3"][et_pb_text admin_label="Disclaimer" background_layout="light" text_orientation="left"]Disclaimer: the comments and opinions expressed in this Creaform HandySCAN BLACK Elite review are the results of our own (limited) experience with the product. As always, we try to provide context to give a fair overview of the product. We strive to remain impartial and unbiased, and we have not received any payment or compensation of any form for writing this review. We conducted our hands-on review within the kxiop Experience Center, and the 3D scanner was directly brought to us by a Creaform official reseller.[/et_pb_text][/et_pb_column][et_pb_column type="1_3"][et_pb_text admin_label="Creaform CTA" background_layout="light" text_orientation="left"]More information[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="4_4"][et_pb_image admin_label="Image: Banner" show_in_lightbox="off" url_new_window="on" animation="off" sticky="off" src="https://www.aniwaa.com/wp-content/uploads/2019/09/Banner-Hands-On-Creaform-HandySCAN-BLACK-review.jpg" alt="Creaform HandySCAN BLACK Elite review hands-on demo" title_text="Creaform HandySCAN BLACK Elite review hands-on demo" /][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_3"][et_pb_text admin_label="TOC" background_layout="light" text_orientation="left"]
[toc]
[/et_pb_text][et_pb_text admin_label="Responsive AdSense (automatic)" background_layout="light" text_orientation="left"][/et_pb_text][/et_pb_column][et_pb_column type="2_3"][et_pb_text admin_label="Introduction" background_layout="light" text_orientation="left"]Introduction
Today we are testing the Creaform HandySCAN BLACK Elite, the latest evolution of the HandySCAN 700 and HandySCAN 300. It is one of Creaform's flagship portable 3D scanners and offers a better performance than the HandySCAN BLACK.
The main differences between both 3D scanners are their acquisition speed (measurements per second) and their accuracy (both standard and volumetric). Hence, the HandySCAN BLACK Elite is 62,5% faster than the standard version and is also almost 30% more accurate.
| Accuracy | Volumetric accuracy | Scanning speed | |
|---|---|---|---|
| HandySCAN BLACK Elite | 0,025 mm | 0.020 mm + 0.040 mm/m | 1,300,000 measurements/second |
| HandySCAN BLACK | 0,035 mm | 0.020 mm + 0.060 mm/m | 800,000 measurements/second |
3D scanning technology
HandySCAN BLACK 3D scanners use blue light laser technology for enhanced accuracy. The Elite version works with 11 laser crosses generated by 2 laser sources. An additional single laser line mode is available for scanning intricate zones with low visibility. The HandySCAN BLACK Elite also relies on photogrammetry technology in order to position itself in space, with the help of targets (stickers). These markers can be placed either on the part itself or on its immediate surroundings.Certifications
The HandySCAN BLACK Elite has passed the VDI/VDE 2634 Part 3 acceptance test, and Creaform recently received ISO 17025 accreditation in the field of calibration, a world first for a handheld metrology solution.[/et_pb_text][et_pb_testimonial admin_label="FINAL RATING" url_new_window="on" quote_icon="off" use_background_color="on" background_color="#f5f5f5" background_layout="light" text_orientation="left"]FINAL RATING: 5/5
[/et_pb_testimonial][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off"][et_pb_fullwidth_header admin_label="H2: Packaging" title="Packaging: 5/5" background_layout="light" text_orientation="left" /][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="2_3"][et_pb_text admin_label="H3: Accessories/PC" background_layout="light" text_orientation="left"]All the hardware and material needed for the demonstration was brought by a Creaform reseller. This consisted of a rugged transportation case and a backpack containing a laptop and a few sample parts. The case firmly held the 3D scanner and its accessories in place. The full package (laptop, 3D scanner, and accessories) weighs under 10 kg and can be easily transported by a single person, even for plane travel.Accessories
So, what’s inside the box? The HandySCAN BLACK Elite comes with the following items :- One cable with two connectors; one for the USB 3.0 connection to the computer, one for the power cable
- A power cable with its integrated AC/DC converter
- A calibration plate
- Two sets of targets
- One USB key holding the VXElements software suite and license key
- Certification documentation (VDI/VDE 2634 Part 3 acceptance test)
Minimum PC requirements
A high-performance PC is required to use both the VXElements software suite and the HandySCAN BLACK Elite. For an optimal experience, Creaform recommends a certified laptop from HP, the Zbook G5 Mobile Workstation. It is from HP's most powerful product lineup and, priced at over $5,000, it is a real beast. This computer has the following specs:- Display: 17.3’’ LED FHD
- CPU: Intel Core TM i7 8850H
- Ram: 64 GB
- Hard drive: 1 TB SSD
- GPU: NVIDIA Quadro P5200
- OS: Windows 10 Pro x64
The HandySCAN BLACK Elite in its hardcase.
[/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off"][et_pb_fullwidth_header admin_label="H2: Overview and setup" title="Overview and setup: 5/5" background_layout="light" text_orientation="left" /][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="3_4"][et_pb_text admin_label="H3: Software" background_layout="light" text_orientation="left"]Software
The laptop we were provided with already had the software installed. Hence, we did not get to perform the installation ourselves. It only took a few seconds to start up the computer (thanks to the SSD) and directly start calibrating the 3D scanner after launching the VXElements software suite.[/et_pb_text][et_pb_image admin_label="Image: A screenshot from VXelements software" src="https://www.aniwaa.com/wp-content/uploads/2019/09/VXelements-screenshot-Creaform-review.jpg" alt="A screenshot from VXelements software" title_text="A screenshot from VXelements software" show_in_lightbox="off" url_new_window="on" animation="off" sticky="off" /][et_pb_text admin_label="H3: Hardware" background_layout="light" text_orientation="left"]Hardware
Setting up the hardware was super quick and convenient, as there is only one cable plugged into the 3D scanner. That single cable is a USB 3.0 cable with two connectors. The first one is used to connect the 3D scanner to the computer. The second one is used to plug in the power cable. Creaform also included a clever little plastic part that secures and holds the cable to the computer. Therefore, even if the user accidentally "tugs" on the scanner when using it, the USB cable won't get yanked out.[/et_pb_text][et_pb_image admin_label="Image: Safety holder (left) and cables" src="https://www.aniwaa.com/wp-content/uploads/2019/09/Creaform-HandySCAN-BLACK-review-setup.jpg" alt="Safety holder (left) and cables" title_text="Safety holder (left) and cables" show_in_lightbox="off" url_new_window="on" animation="off" sticky="off" /][et_pb_text admin_label="H3: Design" background_layout="light" text_orientation="left"]Design
The HandySCAN BLACK Elite is light and ergonomic. At only 0.940 kg (2.1 lbs), the scanner is so lightweight that it could even be concerning at first– it could be mistaken for a “cheap” product. However, after a few uses, this weight optimization starts to demonstrate its purpose and benefits. The 3D scanner is easy to manipulate and isn't tiring to move around, even with complex (unusual) arm movements. It truly is light and portable. Creaform's HandySCAN BLACK Elite boasts a clean, robust finishing. Everything exudes quality and rigor. For an industrial product, it even looks "beautiful". This attention to detail is similar to the feeling that Apple products give off. Even the camera PCBs are optimized and designed with aesthetics in mind. It’s no wonder this scanner received a RedDot Design Award.
When it comes to holding the scanner, product design is once again well thought out, despite the handle's compact size. There is room to fit three fingers around it, while the index finger is to be positioned on the scanner's side (as if you were holding a gun). The surface textures are grippy and a little squishy where needed.
Button interactions are done with the thumb, which won’t struggle finding its resting position and how to access the contextual 6-button interface. Contextual means that the functionalities are not hard-mapped in the buttons, but rather depend on the use case and what you are scanning. This enables an intuitive use and a lot of efficiency when performing 3D scans.[/et_pb_text][et_pb_image admin_label="Image: Holding position Aniwaa review Creaform HandySCAN BLACK Elite" src="https://www.aniwaa.com/wp-content/uploads/2019/09/Holding-position-Aniwaa-review-Creaform-HandySCAN-BLACK-Elite.jpg" alt="Holding position Aniwaa review Creaform HandySCAN BLACK Elite" title_text="Holding position Aniwaa review Creaform HandySCAN BLACK Elite" show_in_lightbox="off" url_new_window="on" animation="off" sticky="off" /][et_pb_text admin_label="H3: Getting started" background_layout="light" text_orientation="left"]
Getting started
As it is often the case, calibration is recommended. The software guides the user step-by-step directly on the computer screen. The calibration plate is the heaviest item of the package– it's even heavier than the HandySCAN BLACK Elite itself. This calibration process consists in 3D scanning the calibration plate from different distances and angles. The LED lighting on the back of the 3D scanner is of precious help. All in all, the process is very fast, and once complete, the software signals that it is ready to 3D scan.[/et_pb_text][et_pb_image admin_label="Image: Calibrating the HandySCAN BLACK" src="https://www.aniwaa.com/wp-content/uploads/2019/09/3D-scanner-calibration-plate-Creaform-review-Aniwaa.jpg" alt="Calibrating the HandySCAN BLACK" title_text="Calibrating the HandySCAN BLACK" show_in_lightbox="off" url_new_window="on" animation="off" sticky="off" /][/et_pb_column][et_pb_column type="1_4"][et_pb_text admin_label="Responsive AdSense (automatic)" background_layout="light" text_orientation="left"][/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off"][et_pb_fullwidth_header admin_label="H2: Experience" title="Experience: 5/5" background_layout="light" text_orientation="left" /][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="3_4"][et_pb_text admin_label="H3: Software/3D scanning" background_layout="light" text_orientation="left"]Software
The VXElements software suite offers a complete experience from the first steps of digitization to powerful and comprehensive reverse engineering capabilities.
A very interesting function allows users to easily compare a registered CAD model with a scan mesh to perform “on-the-go” metrological quality verifications. We also appreciate the ability to directly obtain a clean mesh, with the practical option to fine-tune its resolution.
3D scanning
Contrary to most 3D scanners, setting up the HandySCAN BLACK Elite really is a breeze, without any special lighting conditions required. Once the 3D scanner is connected and powered up and the software is running, you can instantly start 3D scanning. Two modes are available: with or without markers on the object to be scanned. We did not test the first mode, which offers a superior quality but at the cost of a slightly longer setup process. The device is light, with a very well-thought interface and ergonomics. It is possible to perform almost all the necessary manipulations directly from the sensor itself. We also very much appreciate the LED indicator on the 3D scanner's back; it changes colors to indicate if the 3D scan distance is optimal or not.Meshes and 3D models
Usually, 3D scanners produce a dot cloud, which is then transformed into a mesh, which is a number of triangles joined together by their corners and edges. The dots are indeed small, three-dimensional coordinates. The original dot cloud is of great importance, because each point is only acquired once, and the triangles' generation depend on the number and resolution of those original points. Here, Creaform got the idea of increasing the number of samples for each point. Hence, each time a single point on the surface is acquired, its accuracy increases. There are no oversampling issues associated with this technique, and one of its major advantages is the ability to directly generate a surface from the raw capture data. There is no more time lost in the mesh creation process, with long periods of waiting for the PC to compute the mesh, because it is generated straight away during the 3D scanning process. For someone used to the "traditional" 3D scanning process, the HandySCAN BLACK Elite's real-time mesh generation is truly astonishing.[/et_pb_text][et_pb_image admin_label="Image: Real-time mesh generation from raw data" src="https://www.aniwaa.com/wp-content/uploads/2019/09/Realtime-mesh-generation.jpg" alt="Real-time mesh generation from raw data" title_text="Real-time mesh generation from raw data" show_in_lightbox="off" url_new_window="on" animation="off" sticky="off" /][/et_pb_column][et_pb_column type="1_4"][et_pb_sidebar admin_label="Sidebar" orientation="left" area="sidebar-1" background_layout="light" /][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off"][et_pb_fullwidth_header admin_label="H2: 3D scan results" title="3D scan results: 5/5" background_layout="light" text_orientation="left" /][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="3_4"][et_pb_text admin_label="H3: 3D scan and reverse engineering of a saxophone mouthpiece" background_layout="light" text_orientation="left"]For this rating, we compared the HandySCAN BLACK's performance to similar 3D scanners. The Creaform demonstrator carried out scans of a few sample parts, where the HandySCAN BLACK Elite was able to deliver an amazing level of detail.
It was able to successfully capture tiny texts with letters smaller than 100 microns, and within a black matte part (which is usually a difficult color/texture to 3D scan).
For some parts, a manual turntable fitted with markers was used. It allowed to keep 3D scanning very quickly while standing in the same spot. We were able to see how the “small part 3D scanning” mode works, with a smooth step-by-step process specifically designed for such use cases.
We then performed a 3D scan ourselves, and chose an object that is difficult to 3D scan.
3D scan and reverse engineering of a saxophone mouthpiece
3D scanners tend to struggle a lot with shiny materials and thin parts. Therefore, to put the HandySCAN BLACK Elite to the test, we tried to capture a shiny, black saxophone mouthpiece. The mouthpiece also has a small, transparent plastic insert on one of its faces, intended for the teeth to rest. In less than a minute, we were able to capture most of the part's external geometry. It only took us a few more seconds to capture its interior, with all its complexity and intricate details. The raw mesh was then imported into VXmodel, a software that is entirely dedicated to reverse engineering applications. For first-time users, the software offers several simple tutorials in order to grasp its key concepts. To simplify, the basic steps are the following :- Clean the mesh (hole filling, decimation, and smoothing) and realign the reference axes
- Generate the surfaces with NURBS references and geometric primitives (planes, cylinders)
- Import the geometric references in a CAD software (in our case, SolidWorks 2019)
- Reconstruct the full CAD model thanks to the geometric references
We 3D printed the saxophone mouthpiece scan result.
[/et_pb_text][/et_pb_column][et_pb_column type="1_4"][et_pb_text admin_label="Responsive AdSense (automatic)" background_layout="light" text_orientation="left"][/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off"][et_pb_fullwidth_header admin_label="H2: Value" title="Value: 5/5" background_layout="light" text_orientation="left" /][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="1_2"][et_pb_text admin_label="H3: Value" background_layout="light" text_orientation="left"]The HandySCAN BLACK Elite is a game-changer in the 3D scanning and metrology industry. It delivers a powerful performance that reminds us of the Metrascan 750, but without all the hurdles (complex setup, number of parts and accessories, and large footprint). The overall capacity of the product is indeed amazing. It can 3D scan black and matte materials as well as shiny, mirror-like surfaces. The usual limitations linked to 3D scanners have been completely overcome. Perhaps this scanner's only negative aspect is the fact that markers (targets) must be placed on the object or its surroundings. Its resolution (both standard and volumetric) and accuracy are equal to those of sophisticated industrial systems that can easily cost two to three times more. Nevertheless, for applications where extreme resolution is required (under 10 microns), the HandySCAN BLACK won't be the sufficient. In terms of software, the VXElements suite is also on par. It is well-optimized, runs smoothly, and offers a lot of functions and capabilities, all while managing to be relatively intuitive. You will quickly be at ease with the software if you're familiar with 3D tools. If you have the budget, the Creaform HandySCAN BLACK Elite is simply the best product available on the market for this price range. Furthermore, it is an accessible tool suited for most operators who have some experience with 3D scanning. No particular expertise in metrology is required to take full advantage of its benefits.[/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_text admin_label="Ratings Table" background_layout="light" text_orientation="left"]| Weight | Rating | |
|---|---|---|
| Overview and setup | 2 | 5/5 |
| Experience | 2 | 5/5 |
| 3D scan results | 2 | 5/5 |
| Value | 1 | 5/5 |
| FINAL RATING | – | 5/5 |
More 3D scanning and printing resources
- Discover our list of the best handheld 3D scanners.
- 3D scanner apps for smartphones are a great way to try out 3D scanning for free.
- We reference over 1,000 3D printers to fuel our 3D scanner comparison engine.
Shining 3D EinScan Pro 2X Plus review
[/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="2_3"][et_pb_text admin_label="Disclaimer" background_layout="light" text_orientation="left"]Disclaimer: the comments and opinions expressed in this EinScan Pro 2X Plus review are the results of our own (limited) experience with the product. As always, we try to provide context to give a fair overview of the product. We strive to remain impartial and unbiased, and we have not received any payment or compensation of any form for writing this review. We conducted our hands-on review within kxiop Design Center and the 3D scanner was lent for free (along with a laptop) by Machines-3D.[/et_pb_text][/et_pb_column][et_pb_column type="1_3"][et_pb_text admin_label="Quote CTA" background_layout="light" text_orientation="left"]Contact us for a quote[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_3"][et_pb_text admin_label="TOC" background_layout="light" text_orientation="left"] [toc] [/et_pb_text][/et_pb_column][et_pb_column type="2_3"][et_pb_text admin_label="Introduction" background_layout="light" text_orientation="left"]Today we are testing the Shining 3D EinScan Pro 2X Plus, the latest evolution of the EinScan Pro and EinScan Pro Plus. It is the poster child of the family and offers a slightly better performance than the EinScan Pro 2X. The main difference between both 3D scanners is their scan area and stand-off distance; the EinScan Pro 2X Plus is more convenient for large objects. Also, the 2X comes in a light grey color while the 2X Plus is almost black.| Scan area (near) | Scan area (far) | Stand-off distance | |
|---|---|---|---|
| EinScan Pro 2X Plus | 208 x 136 mm | 312 x 204 mm | 510 mm |
| EinScan Pro 2X | 135 x 100 mm | 225 x 170 mm | 400 mm |
FINAL RATING: 4.4/5
[/et_pb_testimonial][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_3"][et_pb_text admin_label="Amazon card" background_layout="light" text_orientation="left"] [/et_pb_text][/et_pb_column][et_pb_column type="1_3"][et_pb_text admin_label="H2: PROS" background_layout="light" text_orientation="left"]PROS
- Intuitive and user-friendly (for a 3D scanner)
- Performance (quality and speed)
- Price
CONS
- Texture quality
- Few editing options within the software
Unboxing
We received the 3D scanner along with a powerful laptop computer (courtesy of Machines 3D) to conduct this test. Everything was well packaged and protected inside a single cardboard box. The EinScan Pro 2X Plus and all its accessories were contained within a single and robust plastic hard case. The full package, including the laptop, 3D scanner, and accessories, is quite heavy but stillweighs under 10 kg and can be easily transported by a single person.[/et_pb_text][/et_pb_column][et_pb_column type="1_4"][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_2"][et_pb_text admin_label="H3: Instruction Manual/Accessories" background_layout="light" text_orientation="left"]Instruction manual
For this review we did not use any manual and simply followed the software’s instructions directly displayed on the computer. 3D scanners are usually complex to operate, but with the EinScan Pro 2X Plus we were quickly able to perform 3D scans in a variety of configurations, including Fixed HD mode and Free mode.Accessories
For EinScan Pro 2X Plus review, we were provided with both the ”Professional” pack (includes a tripod and automatic turntable) and the “color” pack (includes the color sensor). Please note that we didn’t get the “HD Prime” pack, which is dedicated for the HD Handheld Mode. The 3D scanner comes with everything needed to use it, including :- One USB cable to connect the 3D scanner to the computer (USB 3.0)
- Two power cables
- A calibration plate
- An automatic turntable
- A tripod
- A color sensor
Minimum PC requirements
To run the software during our tests, Machines-3D provided us with a powerful gaming laptop, the ASUS ROG STRIX 15.6-inch. This computer boasts the following specs:- CPU : Intel Core i7-7700HQ @ 2.80GHz
- GPU : Nvidia GTX 1060
- Ram : 16 Gb
- OS : Windows 10 Pro x64
The EinScan Pro 2X Plus in its hardcase.
[/et_pb_text][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2019/05/Shining-3D-review-EinScan-Pro-2X-Plus.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="Pierre-Antoine EinScan Pro 2X Plus review Aniwaa" title_text="Pierre-Antoine EinScan Pro 2X Plus review Aniwaa" /][et_pb_text admin_label="Caption" background_layout="light" text_orientation="left"]Using the 2X Plus handheld 3D scanning mode.
[/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off"][et_pb_fullwidth_header admin_label="H2: Overview and setup" title="Overview and setup: 4/5" background_layout="light" text_orientation="left" /][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="3_4"][et_pb_text admin_label="H3: Software/Hardware" background_layout="light" text_orientation="left"]Software
The laptop we were provided with already had the software installed. Hence, we did not get to perform the installation ourselves. In comparison with older Shining 3D software, this piece of EXScan PRO software offers a new UI and simplified workflow. It allows for a fast 3D scanning experience with intuitive navigation.Hardware
Setting up the hardware was a breeze. There is one main USB 3.0 cable that connects the 3D scanner to the computer. Then there’s a power cable that plugs into that same USB cable (which has a specific power slot) from your power outlet. Hence, only one cable is plugged into the scanner– convenient! After setting up the 3D scanner we mounted the Color pack. This process was simple as well, only requiring you to plug in the small module on the 3D scanner’s side and locking it in place. Everything feels robust and sturdy once assembled. The last step consists in plugging the turntable into the USB port on the laptop, and connecting it to a power outlet with the dedicated adapter. Note that the turntable adapter and 3D scanner adapter are the same, which avoids any confusion. You need two USB ports to connect both the scanner’s USB cable and the turntable’s USB cable. Therefore you’ll need an extra USB port on your computer in order to plug in a mouse, which is highly recommended when interacting with 3D content.[/et_pb_text][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2019/05/EinScan-Pro-2X-Plus-review-tripod-with-color-module.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="Shining 3D EinScan Pro 2X Plus review: tripod and color module." title_text="Shining 3D EinScan Pro 2X Plus review: tripod and color module." /][et_pb_text admin_label="Caption" background_layout="light" text_orientation="left"]The Shining 3D EinScan Pro 2X Plus 3D scanner and tripod.
[/et_pb_text][/et_pb_column][et_pb_column type="1_4"][et_pb_text admin_label="Responsive AdSense (automatic)" background_layout="light" text_orientation="left"] [/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_2"][et_pb_text admin_label="H3: Getting started" background_layout="light" text_orientation="left"]Getting started
When in hand, the EinScan 2X Pro Plus feels robust and ergonomic. The product’s finish is clean and reinforces its sturdy, industrial look. The Start scanning button is well placed, as well as the other two smaller ones. In order to start 3D scanning, a short calibration setup is recommended. The process is very intuitive, and a step-by-step video is directly displayed via the software, without the need to access any YouTube tutorials on your browser. It first consists in 3D scanning the calibration plate at different distances and at different angles. The software then displays a “calibrating” message while it does its calculations (lasts several minutes) and provides the result in terms of pixels. Then, it calibrates white balance, which is almost instantaneous (you only need to turn the calibration plate over). Last but not least, it measures accuracy, which also requires a single step before displaying the result. We got 0.100106 mm on our first try. Once the calibration is complete, it is possible to choose a 3D scanning mode in the menu, and you can then directly start 3D scanning.[/et_pb_text][et_pb_text admin_label="Responsive AdSense (square)" background_layout="light" text_orientation="left"] [/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2019/05/EinScan-Pro-2X-Plus-review-in-action-tripod-turntable.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="The 3D scanner in action on its tripod and with the automatic turntable." title_text="The 3D scanner in action on its tripod and with the automatic turntable." /][et_pb_text admin_label="Caption" background_layout="light" text_orientation="left"]The 3D scanner in action with the automatic turntable.
[/et_pb_text][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2019/05/EinScan-Pro-2X-Plus-review-color-module-zoom.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="The Pro 2X Plus color module up close." title_text="The Pro 2X Plus color module up close." /][et_pb_text admin_label="Caption" background_layout="light" text_orientation="left"]The Pro 2X Plus color module up close.
[/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off"][et_pb_fullwidth_header admin_label="H2: Experience" title="Experience: 4/5" background_layout="light" text_orientation="left" /][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="2_3"][et_pb_text admin_label="H3: Software" background_layout="light" text_orientation="left"]Software
The software takes you through several steps to perform a 3D scan. The first step consists in choosing the 3D scanning method:- Fixed Scan
- Handheld HD Scan
- Handheld Rapid Scan
3D scanning
As usual with structured light 3D scanners, it is recommended to be in a room without direct sunlight, to make the 3D scanning process easier. We tested two of the three 3D scanning modes.[/et_pb_text][et_pb_text admin_label="YouTube video" background_layout="light" text_orientation="left"][/et_pb_text][/et_pb_column][et_pb_column type="1_3"][et_pb_sidebar admin_label="Sidebar" orientation="left" area="sidebar-1" background_layout="light" /][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_2"][et_pb_text admin_label="H4: Fixed scan" background_layout="light" text_orientation="left"]Fixed Scan
We used this mode to capture several small-sized objects, which all fit on the turntable. In some cases, we manually positioned the objects to capture specific parts without suffering from occlusion issues. The objects we tested were made of various textures (plastic, wood, metal, rubber…), with surfaces that were more or less complex. The turntable was of great help, and it allowed us to perform 3D scans in a matter of minutes. Once a 360° 3D scan is complete (which consists of 8-12 scans, merged together), the object must be flipped over in order to capture its lower, bottom structure. The number of stops the turntable does within its 360° rotation can be changed manually.[/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_text admin_label="H4: Handheld rapid scan" background_layout="light" text_orientation="left"]Handheld Rapid Scan
This mode was a bit more of a struggle, as it requires the 3D scanning operator (user) to move smoothly and steadily while standing at a constant, specific distance from the object. We used this mode to scan a few faces and obtained very good results in seconds. We also got interesting results while capturing limbs (hands and arms, feet and legs). In our opinion, this mode is best suited for 3D scanning large objects such as a car door or even a full scooter as demoed on Shining 3D’s website. One thing we noticed is that depending on the selected mode, the structured light cast by the scanner is not the same. For the Fixed Scan mode, the light is made of fine stripes, while for the Handheld Rapid Scan mode it’s a pixelated pattern.[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="2_3"][et_pb_text admin_label="H4: Meshes and 3D models" background_layout="light" text_orientation="left"]Meshes and 3D models
Once the 3D scanning is done, it is possible to create a mesh from the dot cloud by first choosing the type of mesh:- Open: open meshes are basically just surfaces and can be used to make digital assets, for reverse engineering, or for specific custom applications.
- Watertight: these meshes are fully-closed 3D models (required for applications such as 3D printing).
Dinosaur toy (plastic)
This white, silky plastic toy is roughly 150 x 100 x 50 mm. It doesn’t have any complex surfaces, but nonetheless its shape is difficult to fully capture because of occlusion (especially at the dinosaur’s neck and tail). The EinScan Pro 2X Plus did a very good job combining 20 scans into a single mesh. The object’s simple texture was well rendered and could be used to manually align the 3D scans if necessary (although most of the time EXScan PRO was able to do it by itself).[/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2019/05/EinScan-Pro-2X-Plus-review-dinosaur-toy-scan.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="EinScan Pro 2X Plus review: dinosaur toy 3D scan." title_text="EinScan Pro 2X Plus review: dinosaur toy 3D scan." /][et_pb_text admin_label="Caption" background_layout="light" text_orientation="left"]EinScan Pro 2X Plus review: dinosaur toy 3D scan.
[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_2"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2019/05/EinScan-Pro-2X-Plus-review-shoe-scan.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="EinScan Pro 2X Plus review: child's shoe 3D scan." title_text="EinScan Pro 2X Plus review: child's shoe 3D scan." /][et_pb_text admin_label="Caption" background_layout="light" text_orientation="left"]EinScan Pro 2X Plus review: child's shoe 3D scan.
[/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_text admin_label="H3: Shoe" background_layout="light" text_orientation="left"]Shoe
We used a small kid’s shoe (size 21 for Europeans) in order to grasp the 3D scanner’s ability to capture multi-material objects. The EinScan Pro 2X Plus did an excellent job at capturing the shoe, with only 2 complete 360° spins on the turntable. It even did a decent job at 3D scanning the inside of the shoe, which was filled with a striped repetitive pattern (known for being difficult to 3D scan).[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_2"][et_pb_text admin_label="H3: Saxophone mouthpiece" background_layout="light" text_orientation="left"]Saxophone mouthpiece
It is widely known that 3D scanners struggle a lot with shiny materials and thin parts. To put the EinScan Pro 2X Plus to the test, we tried to capture a metallic saxophone mouthpiece. It has also a small black matte plastic insert on one of its faces, making it even harder to scan. For this test the texture (color) capture was turned off. At first we did not obtain anything and finally resorted to one of the best kept secrets of the 3D scanning world– always have some toothpaste ready! We used a little mix of toothpaste and water to cover the mouthpiece and then 3D scanned it. Instantly, the software started displaying the captured surfaces. In the end the result was amazing: the shape of the mouthpiece was really well captured, and even had enough detail to allow for a later reverse engineering process.[/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2019/05/EinScan-Pro-2X-Plus-review-saxophone-mouthpiece.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="EinScan Pro 2X Plus review: saxophone mouthpiece 3D scan (right-hand image is a photo of the original object, not the scan result)." title_text="EinScan Pro 2X Plus review: saxophone mouthpiece 3D scan (right-hand image is a photo of the original object, not the scan result)." /][et_pb_text admin_label="Caption" background_layout="light" text_orientation="left"]EinScan Pro 2X Plus review: saxophone mouthpiece 3D scan (right-hand image is a photo of the original object, not the scan result).
[/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off"][et_pb_fullwidth_header admin_label="H2: Value" title="Value: 5/5" background_layout="light" text_orientation="left" /][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="1_2"][et_pb_text admin_label="H3: Value" background_layout="light" text_orientation="left"]The EinScan Pro 2X Plus is quite a unique offer on the market at the time of writing this review. It is affordable, offers modularity (with three scanning modes) and provides a professional-grade performance. For the most standard use cases such as dental, jewelry or design applications, you probably won’t need the color module. It could be interesting for e-commerce, e.g. posting 3D scans of products rather than simple pictures. However, compared to this scanner’s overall performance, its color capture is a tiny bit disappointing. The EXScan PRO software is perfect for beginners and people who don’t want to dive into complex functionalities. It does the job while keeping it simple.[/et_pb_text][et_pb_text admin_label="Amazon card" background_layout="light" text_orientation="left"] [/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_text admin_label="Ratings Table" background_layout="light" text_orientation="left"]| Weight | Rating | |
|---|---|---|
| Overview and setup | 2 | 5/5 |
| Experience | 2 | 4/5 |
| 3D scan results | 2 | 4/5 |
| Value | 1 | 5/5 |
| FINAL RATING | – | 4.4/5 |
More 3D scanning and printing resources
- 3D scanner apps for smartphones are a great way to try out 3D scanning for free.
- We reference over 1,000 3D printers to fuel our 3D scanner comparison engine.
- What are the best 3D printers under $300?
peel 3d review: a cost-effective handheld 3D scanner
[/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="1_3"][et_pb_text admin_label="TOC" background_layout="light" text_orientation="left"] [toc] [/et_pb_text][et_pb_text admin_label="Disclaimer" background_layout="light" text_orientation="left"] Disclaimer: the comments and opinions expressed in this review are the results of our own (limited) experience with the product. As always, we try to provide context to give a fair overview of the product. We strive to remain impartial and unbiased, and we have not received any payment or compensation of any form for writing this peel 3d review. [/et_pb_text][/et_pb_column][et_pb_column type="1_3"][et_pb_text admin_label="Introduction" background_layout="light" text_orientation="left"] peel 3d, which is a subsidiary of Creaform, is a Canadian company that operates in the 3D scanning industry and provides reverse engineering services. The goal of peel 3d is to manufacture cost-effective, high-quality handheld 3D scanners and therefore offer businesses the possibility of increasing productivity at an affordable price. Most high-end handheld industrial 3D scanners cost above $20,000. Thus, peel 3d wants to appeal to a wider range of customers with a more affordable price point of under $6,000 for their handheld 3D scanner. The peel 3d is an entry-level professional handheld 3d scanner suitable for reverse engineering, 3D body scanning, education, design and other applications. The device uses a white LED light to capture objects in 3D with structured light technology. Aniwaa has reviewed popular handheld 3D scanners before like the Artec Eva, the Creaform Go!SCAN 50, and the Shining 3D EinScan-Pro. Our aim in this review was to verify that the peel 3d is a 3D scanner that is ideally suitable, as the manufacturer claims, for a user with a restricted budget, minimal hands-on 3D scanning knowledge, and operating without a lab setup. [/et_pb_text][et_pb_testimonial admin_label="Testimonial" url_new_window="on" quote_icon="off" use_background_color="on" background_color="#f5f5f5" background_layout="light" text_orientation="left"]FINAL RATING: 4.5/5
[/et_pb_testimonial][/et_pb_column][et_pb_column type="1_3"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2018/08/peel-3d-review-3D-scanner.jpg" alt="The peel 3d is a affordable professional scanner." title_text="The peel 3d is a affordable professional scanner." show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" /][et_pb_text admin_label="Text" background_layout="light" text_orientation="left"] Before starting the review, we watched the tutorial videos produced by peel 3d and prepared a list of protocols and features we wanted to test. We experienced some issues with the hardware during the scan testing (caused by a power fluctuation) so we were not able to fully test the capabilities of the peel 3d or produce further detailed scans as we had planned [/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_3"][et_pb_text admin_label="YouTube video: peel 3d" background_layout="light" text_orientation="left"] [/et_pb_text][/et_pb_column][et_pb_column type="1_3"][et_pb_text admin_label="H2: PROS" background_layout="light" text_orientation="left"]PROS
- Fast software processing time
- Start-and-stop scan system
- User-friendly process
CONS
- Easy to lose track of the target
- Cable is too short for large scans
Hardware and software first steps rating: 4/5
Aniwaa’s office is based in Phnom Penh, Cambodia and even after a lengthy shipping journey from Canada, the product arrived in a professional-looking protective hard-plastic travel case which enables the user to transport the 3D scanner safely and easily. All of the accessories and the peel 3d scanner are neatly organized within the travel case, firmly positioned in foam padding. [/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2018/08/peel-3d-review-accessories.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="All the peel 3d accessories pictured are standard." title_text="All the peel 3d accessories pictured are standard." /][et_pb_text admin_label="CAPTION" background_layout="light" text_orientation="left"]All the peel 3d accessories pictured are standard.
[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_2"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2018/08/peel-3d-review-transport-case.jpg" alt="peel 3d travel case" title_text="peel 3d travel case" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" /][et_pb_text admin_label="CAPTION" background_layout="light" text_orientation="left"]peel 3d travel case.
[/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_text admin_label="Text" background_layout="light" text_orientation="left"]peel 3d hardware
Hands-on with the peel 3d
This 3D scanner looks professional and is easy to hold in our hands. The design is simple yet ergonomic. The device is well-balanced and fits well in the user’s hand. Its weight is reasonable (850g), not overly heavy but not light either.Accessories and documentation
The following items come with the peel 3d scanner:- One 4m cable to connect the 3D scanner to the computer (USB 2.0)
- Documentation of the basic process for scanning
- A power cable
- A USB key to install the peel 3d software
- Two boxes of 500 positioning targets each (1 regular, 1 super-adhesive)
- A calibration plate
Minimum PC requirements
peel 3d provided us with a laptop to run the software during our tests. (The peel 3d does not usually ship with a laptop!) The HP EliteBook Mobile Workstation has the following specs: 8570w - 15.6’’ - Core i7 3610QM - 8GB RAM - 750GB HDD graphic card. The specs fall within the range of the minimum PC requirements peel 3d suggest on their website to run the software: [/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2018/08/peel-3d-review-minimum-PC-requirements.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="off" alt="The minimum PC requirements to run the peel 3d software" title_text="The minimum PC requirements to run the peel 3d software" /][et_pb_text admin_label="CAPTION" background_layout="light" text_orientation="left"]The minimum PC requirements to run the peel 3d software.
[/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off"][et_pb_fullwidth_header admin_label="H2: peel 3d scanner review" title="peel 3d scanner review" background_layout="light" text_orientation="left" /][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="1_2"][et_pb_text admin_label="H3: peel 3d software" background_layout="light" text_orientation="left"]peel 3d software
First steps with the peel 3d software
The software was really easy to install. After inserting the USB key to the laptop, we selected “peel 3d”, entered the product serial number included with the key, and the software was effortlessly installed. The software is very user-friendly, and the technical terms are understandable with even minimal 3D scanning knowledge. There are many options within the software, but the layout remains simple and intuitive.- On the left side of the screen are the settings that the user will enter based on what is being 3D scanned.
- On the right side of the screen are the working platforms which show the 3D scanning process in real time.
- Towards the top of the software are the different tools used to enhance the scan results: meshing, texturing, cleaning, etc.
The layout of the peel 3d software.
[/et_pb_text][et_pb_text admin_label="Responsive AdSense (automatic)" background_layout="light" text_orientation="left"] [/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_2"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2018/08/peel-3d-review-calibration-process.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="Calibrating the peel 3d. " title_text="Calibrating the peel 3d. " /][et_pb_text admin_label="CAPTION" background_layout="light" text_orientation="left"]Calibrating the peel 3d.
[/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_text admin_label="H3: peel 3d calibration" background_layout="light" text_orientation="left"]peel 3d calibration
Calibrating the peel 3d was simple and fast. The calibration plate was placed on a flat surface and we followed the steps that were displayed at the bottom of the software on-screen. We tested the calibration process several times and it took less than a minute to accurately calibrate the peel 3d. [/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="2_3"][et_pb_text admin_label="Text: H3 Main features of the software" background_layout="light" text_orientation="left"]Main features of the software
The peel 3d software offers several main tools that are used to help users optimize their 3D scans. Start and stop system It is possible to pause and change the settings while 3D scanning, or to rest in case of long 3D scan sessions for bigger objects, and to resume scanning thereafter. Delete frames Some 3D scans can result in distorted images. This easy-to-use tool allows the user to correct the mistake, recognize the poorly-scanned frames, and delete them. Clean mesh This is an automatic cleaning tool that erases the small potential imperfections made within a 3D scan. Fill holes The image mesh may have some holes, big or small. It is always possible to rescan if needed, but thanks to this tool, it is possible to manually fill in the gaps. The tool is precise and fast. Watertight remesh This tool allows the user to automatically fill in all the holes of the model. It is less precise than manually filling in all the gaps and there is room for improvement, but it is still a great tool. Users should note that no printed manual is provided to explain the tools, but we used peel 3d’s YouTube tutorials to help us understand the software options, and we would suggest potential peel 3d users to do the same. [/et_pb_text][/et_pb_column][et_pb_column type="1_3"][et_pb_sidebar admin_label="Sidebar" orientation="left" area="sidebar-1" background_layout="light" /][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fullwidth="on" specialty="off"][et_pb_fullwidth_header admin_label="H2: Test peel 3d scanning " title="Test peel 3d scanning " background_layout="light" text_orientation="left" /][/et_pb_section][et_pb_section fullwidth="off" specialty="off"][et_pb_row][et_pb_column type="1_2"][et_pb_text admin_label="H3: peel 3d experience – 4.5/5" background_layout="light" text_orientation="left"]peel 3d experience: 4.5/5
Our experience with the software was very satisfying. It was user-friendly and the online tutorials are really comprehensive and helpful. Finally, the peel 3d software quickly processed the scans. The average scanning process from setup, to a final, edited and ready-for-export scan result was 25 minutes based on the 3D scans we completed.Summary of the steps
- Plug-and-play setup (1 minute)
- Calibration (1 minute, recommended after the scanner has been transported)
- Enter the desired settings (2 min)
- 3D scanning (from 5 to 20 minutes for larger objects)
- Texturing and meshing (1 to 5 minutes based on the size of the scan)
- Cleaning the mesh (on average 5 minutes)
- Watertight meshing (5 to 15 minutes based on the object)
- Export 3D file
Limitations
peel 3d makes the following limitations very clear on their website; these issues are common for many 3D scanners available in the market:- Hair, beard or fur are very hard or impossible to 3D scan. peel 3d claims it simply doesn’t work, and this is what we experienced when we tested scanning hair and beards. It is possible to sculpt hair on sculpting software such as Sculptris, which is the advice peel 3d gave us when we asked them for a solution.
- Very shiny/reflective surfaces are very hard or impossible to scan with the peel 3d. Gold, silver, and some metals are also difficult to capture, but not impossible to scan, which can be problematic for industrial objects (for example the silver engine of a 170 cm Suzuki Step motorcycle we scanned - see further below).
- It is not possible to 3D scan transparent objects.
- It is very hard to 3D scan small objects (less than 30cm), however, it does not mean that the peel 3d cannot capture small details on larger objects. Indeed, this 3D scanner can produce realistic and highly-detailed scans.
- It is hard to 3D scan thin objects (for example tree leaves or cactus pikes).
3D scan results: 4.5/5
Our goal was to verify the claims of peel 3d and challenge the limitations of the 3D scanner. In order to do that, we chose to 3D scan objects that peel 3d claimed should work, but we also attempted to 3D scan what peel 3d claimed to be hard or impossible to scan. Our 3D scan list:- Semi-rigid objects: a full body scan (190cm) and a head scan (30cm).
- A bigger industrial object: a full motorcycle (170cm).
- A smaller industrial object: a plastic coffee machine (40cm), with the particularity of having a transparent water container.
- Challenging items to test the limits of the peel 3d: a shiny lamp (50cm) and a black tee-shirt (50cm).
- Uniform surface
- Automatic shutter
- 1mm resolution (because a higher resolution requires a more powerful computer)
- Semi-rigid positioning for human anatomy (head and body)
- Shutter (ms) at 8 for dark surfaces like the lamp
- Textured surface such as the leather seat of the motorcycle
Body scan (190cm)
For our first scan, we wanted to try a full-body scan. We selected the default settings with semi-rigid positioning as per the manufacturer's advice. The peel 3d was easy to hold in hand, and the process of scanning was more simple than we expected. One observation we had is that the length of the cable between the scanner and the laptop could be longer than 4 meters, but the overall experience was comfortable and intuitive. [/et_pb_text][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2018/08/peel-3d-review-3D-body-scan.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="Our first 3D body scan result" title_text="Our first 3D body scan result" /][et_pb_text admin_label="CAPTION" background_layout="light" text_orientation="left"]Our first 3D body scan result
[/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2018/08/peel-3d-review-3D-body-scanning-session.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="Our model with the first 3D scan result we obtained." title_text="Our model with the first 3D scan result we obtained." /][et_pb_text admin_label="CAPTION" background_layout="light" text_orientation="left"]Our model with the first 3D scan result we obtained.
[/et_pb_text][et_pb_text admin_label="TEXT" background_layout="light" text_orientation="left"]- The 3D scan took 20 minutes and we were quite satisfied with the full-body 3D scan.
- The software took 10 minutes to process the scan, with an additional 10 minutes using the fill holes and water meshing tools. We acknowledged that the tutorial helps the user at every step, and that the software was easy-to-use for beginners. The only problem we had was that the 3D scanner lost focus quite a few times during the scan. We managed to regain the focus, even if the process required some patience, but for other 3D scans we used a lot of positional targets to help with this issue.
Head 3D scan (30cm)
We 3D scanned a human head to test the quality of the detail on a particular scan (with semi-rigid positioning). We managed to obtain good results on the first head-scan and we were pleasantly surprised that the processing and the editing steps were easy and quick. Our subject, Steve, has no hair, so it was perfect since the peel 3d doesn't easily 3D scan hair.- 3D scanning process: 5 minutes
- Meshing: 1 minute
- Watertight meshing and overall cleaning: 15 minutes
Motorcycle 3D scan (170cm)
We attempted to try a larger, industrial-grade 3D scan to assess the professional use of the peel 3d and the quality the user can expect to achieve. We scanned a Suzuki motorcycle belonging to the CEO at Aniwaa, Martin Lansard. We 3D scanned the motorcycle with the default settings of a uniform surface, apart from the seat, where we changed the setting to textured surface and it worked really well. We also used a number of positional targets to ensure that we didn't lose focus whilst completing the scan. [/et_pb_text][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2018/08/peel-3d-review-motorcycle-3D-scan-result.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="he 3D scan of the Suzuki, after running the watertight meshing tool" title_text="he 3D scan of the Suzuki, after running the watertight meshing tool" /][et_pb_text admin_label="CAPTION" background_layout="light" text_orientation="left"]The 3D scan of the Suzuki, after running the watertight meshing tool.
[/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_image admin_label="Image" src="https://www.aniwaa.com/wp-content/uploads/2018/08/peel-3d-review-3d-scanning-motorcycle.jpg" show_in_lightbox="off" url_new_window="on" animation="off" sticky="on" alt="3D scanning the Suzuki motorcycle." title_text="3D scanning the Suzuki motorcycle." /][et_pb_text admin_label="CAPTION" background_layout="light" text_orientation="left"]3D scanning the Suzuki motorcycle.
[/et_pb_text][et_pb_text admin_label="TEXT" background_layout="light" text_orientation="left"]- The scanning session took 30 minutes. We were satisfied with the time it took for a large and complex object. The meshing was almost instantaneous, but the watertight meshing took a further 10 minutes.
- For a first 3D scan of such a big object, we were happy with the results. However, surfaces that are reflective or transparent are difficult to 3D scan but, as mentioned, peel 3d is very clear about this aspect. A possible solution is to use a mattifying spray specifically for this use case, or if possible, paint on the scanned object to make it an easier target for the 3D scanner.
Coffee machine 3D scan (40cm)
- We 3D scanned a plastic coffee machine, with a transparent water container at the rear. Indeed, we wanted to scan a medium-sized object since professional users would likely use the peel 3d to scan objects of similar size for prototyping or design purposes.
- It took us 5 minutes to 3D scan the whole coffee machine, and 5 minutes to process and edit the image. We were really satisfied with the results. However, as expected, the 3D scanner didn’t detect the transparent surface of the water tank.
The coffee machine (on the left) and the transparent water container not appearing in the 3D scan (on the right).
[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row][et_pb_column type="1_2"][et_pb_text admin_label="H3: Challenging 3D scans of small objects (50cm)" background_layout="light" text_orientation="left"]Challenging 3D scans of small objects (50cm)
After scanning a full body, a human head, a large object (a motorbike) and a small-medium object (coffee machine), we wanted to challenge the peel 3d by scanning more difficult objects.- The first object we 3D scanned had a shiny, reflective surface- a desktop lamp made in reflective metal- but it didn’t work at all. The 3D scanner simply didn’t pick up the object, even when we used the positioning tracker stickers.
- We 3D scanned a dark and matte surface of a black tee-shirt. The scan worked really well with the shutter set at 8ms. With some patience and the right settings, dark surfaces can be 3D scanned. It took 2 minutes to 3D scan the shirt, and 5 minutes to process in the software.
Aniwaa’s opinion: 4.5/5
After testing the peel 3d at Aniwaa’s office, we felt that the peel 3d exceeded our expectations. The 3D scanner is easy to use and the software is intuitive and fast, with a selection of software tools available to edit and prepare a good final mesh in a short amount of time. Our results were very satisfying even considering that we lacked a professional test lab with high-quality lighting for this review. We were not disappointed when the 3D scanner hit its limitations with some objects, as peel 3d had clearly identified these on their website. Our opinion on the 3D scanner is positive: peel 3d delivered on their promise in producing an affordable professional-grade 3D scanner. However, some adjustments and upgrades are possible:- The cable is a bit too short for larger objects that require the user to walk around the target.
- The watertight meshing tool is quite challenging to tweak, and this tool appeared to have some limitations on more detailed parts of a 3D scanned object.
Aniwaa team with the peel 3d scanner.
[/et_pb_text][/et_pb_column][et_pb_column type="1_2"][et_pb_text admin_label="H3: Aniwaa’s opinion: 4.5/5" background_layout="light" text_orientation="left"]Conclusion and buying advice for peel 3d
peel 3d targets professionals on smaller budgets with this cost-effective handheld 3D scanner. The manufacturer claims that the user will achieve the quality of a professional-grade 3D scanner at an affordable price, and it is indeed the case. This 3D scanner is user-friendly, the overall process is fast and simple, and the software is easy to use with intuitive tools to get the most out of a 3D scan. The peel 3d remains cost-effective at its price of $5,900 compared to most high-end industrial scanners available on the market.[/et_pb_text][et_pb_text admin_label="Ratings Table" background_layout="light" text_orientation="left"]| Rating | ||
| Hardware and software first steps: |
4/5 |
|
| Experience: |
4.5/5 |
|
| Scan result: |
4.5/5 |
|
| Aniwaa’s opinion: | 4.5/5 | |
| FINAL RATING |
4.4/5 |
More 3D scanning and printing resources
- 3D scanner apps for smartphones are a great way to try out 3D scanning for free.
- We reference over 1,000 3D printers to fuel our 3D scanner comparison engine.
- What are the best 3D printers under $300?
| Brand: | RangeVision |
| Model: | Spectrum |
| Price: | €5,490 |
| Rating: | 4/5 |
Introduction
Today we are doing a hands-on review of the new RangeVision Spectrum. RangeVision is a Russian company with products available in more than 20 countries, through a dense network of resellers, the majority of them being in Europe and Asia. RangeVision has been selling professional 3D scanners for over a decade. In 2015, they introduced the affordable RangeVision Smart, an entry-level desktop 3D scanner. This product received a warm welcome from the community and made professional 3D scanning accessible to several new users, including museum conservationists, dentists, jewelers, and designers. Following this success, in 2017 RangeVision decided to design a more powerful structured light 3D scanner. The Spectrum is fitted with an upgraded video projector and USB 2.0 cameras and is already sold across the globe. [caption id="attachment_41884" align="aligncenter" width="600"] The RangeVision Spectrum 3D scanner and automatic turntable.[/caption]
Today we met with Michal Vyplašil, a tech salesman from ABBAS, a 3D scanner reseller and distributor from the Czech Republic. ABBAS offers the whole RangeVision range as well as other brands, such as Artec. ABBAS delivers training and education sessions for every product sold, and have a very reactive support in Czech, Russian and of course English.
Michal came to Dassault Systèmes offices in Vélizy, a town near Paris, famous for its number of very large companies including PSA, Thalès, Bouygues and General Mills.
At Dassault Systèmes, the demo was hosted at the 3DExperience Lab, a laboratory that nurtures and empowers disruptive projects. The 3DExperience Lab is already home to several 3D printers (including an Ultimaker 2+ and a Markforged Mark One) and 3D scanners. Run by CAD and design experts, the 3DExperience Lab was the perfect place to conduct this hands-on demo.
Michal arrived by plane in Paris, with the Spectrum fitted inside a robust hard case along with all its accessories (excluding the tripod). Therefore, there was no unboxing, but we were able to witness the whole installation process.
[caption id="attachment_41878" align="aligncenter" width="470"] The Spectrum's hard case and accessories.[/caption]
Discovering the RangeVision Spectrum 3D scanner
The RangeVision Spectrum features all the standard characteristics of a structured light desktop 3D scanner. Its main part is the 3D scanner head, a video projector attached to a rigid aluminum frame, and 2 cameras. [caption id="attachment_41885" align="aligncenter" width="600"] One of the Spectrum's two USB cameras.[/caption]
Structured light 3D scanning technology consists in casting a specific light pattern onto the object to 3D scan. Then, the 3D scanner detects the light deformation from 2 different positions, thereby obtaining a precise triangulation and information on the object’s surface. Usually, more power and higher resolution (video projector and camera-wise) translate into better 3D scanning results.
The Spectrum boasts a maximum resolution of 0.07 mm and a maximum accuracy of 0.04 mm. Resolution can be defined as the 3D scanner’s sampling ability to capture a surface, like a grid; the smaller the grid, the better the resolution. Accuracy represents the distance between the measured specific point and its real-life position.
The Spectrum comes with a rugged hard case in which all of its accessories fit, except the tripod. The hard case contains the cables for the 3D scanner head: two USB 2.0 cables to connect the cameras, an HDMI cable for the video projector, and the AC power cable. The Automatic Turn Table (ATT), also included, comes with its own USB 2.0 cable and AC power cable.
[caption id="attachment_41873" align="aligncenter" width="600"] The accessories that come with the RangeVision Spectrum.[/caption]
Additionally, an Allen key and calibration plates are also part of the package. The Allen key is required to attach the USB 2.0 cameras to the 3D scanner head frame.
[caption id="attachment_41879" align="aligncenter" width="600"] One of the RangeVision Spectrum's calibration plates.[/caption]
At €5,490, the Spectrum fits nicely between the RangeVision Smart (€2,299) and the RangeVision Pro (over €8,000).
Overview of the RangeVision Spectrum
Setting up the RangeVision Spectrum 3D scanner is quite fast. In a few minutes, the cameras can be secured to the 3D scanner head. It is then possible to connect the tripod thanks to a standard camera screw. Therefore, the tripod is replaceable with any generic product if the specific use case requires more height or less footprint. Interestingly, RangeVision also sells a table-top tripod, ideal for attaching the 3D scanner to any table and for using the ATT. [caption id="attachment_41883" align="aligncenter" width="287"] RangeVision's table-mount tripod.[/caption]
[caption id="attachment_41882" align="aligncenter" width="300"] The Spectrum on the table-mount tripod.[/caption]
Note that users will need no less than 4 USB ports to connect both cameras, the USB stick with the software licenses and the ATT. To connect a mouse – a must-have for all 3D-related interactions – a USB hub or dock station is a necessity. Also, all of the cables quickly become cumbersome. Therefore, the cable sheaths that RangeVision provides are very useful.
The 3D scanner “head” itself is well-finished, while the video projector is securely encased under a closed plastic cover, which looks like the ones used for each USB 2.0 camera. The whole product feels sturdy and reliable.
It is interesting to note that the Spectrum is compatible with positioning markers, a true advantage for professionals. Indeed, this makes the 3D scanner suitable for large objects and repetitive shapes, which are usually a challenge. It also extends the capabilities to deal with hard-to-scan objects, such as reflective and/or transparent surfaces.
Testing the RangeVision Spectrum
Connecting everything takes about 5 minutes. This includes fixing the 3D scanner head onto the tripod and plugging the cables as well as launching the ScanCenter software. Note that the RangeVision software suite is still two separate programs: ScanCenter, to generate 3D scans, and ScanMerge, to align and merge 3D scans together to create a unique mesh. [caption id="attachment_41872" align="aligncenter" width="600"] Preparation and alignment of a 3D scan RangeVision software.[/caption]
In the 2017.2 version of ScanCenter and ScanMerge used for the demo, several features were added:
- Users can indicate the ambient temperature to improve calibration accuracy
- Option to repair the model in the MeshFix
- Undo/redo actions added in ScanMerge
- New .rv3d format for ScanMerge
- Model export in .ptx format
Calibrating the RangeVision Spectrum and the automatic turntable.[/caption]
The calibration process is mostly automated, the software telling the user what to do with the calibration plate. It takes a dozen steps consisting in slightly moving the calibration plate in different orientations. Users must focus the cameras manually. Then, the system automatically adjusts and is ready to 3D scan.
[caption id="attachment_41870" align="aligncenter" width="600"] Calibrating the 3D scanner with the software.[/caption]
Conclusion
For this hands-on demo, the test object is a plaster dental cast. Even if this white dental impression is indeed easy to capture for structured light 3D scanners, the results we obtained were highly detailed and very accurate thanks to its white, uniform texture. The fixing tools available in the ScanMerge toolbox are also a nice addition to the Spectrum capabilities. They were used to fill up holes and clean geometrical artefacts (small triangles unconnected to the main body of the object). In a few minutes, we obtained the 3D scan in ScanCenter, ready for visualization. We used ScanMerge’s auto-alignment (called registration) feature to assemble the two sets of dot clouds obtained from the dental model into a single orientated group. Then, it was possible to generate the closed mesh. We generated two meshes of the same 3D scan in two resolutions. The bigger file with the highest resolution is a 1 Gb STL, while the smaller one is 142 Mb. We used the free Meshlab decimation tool to reduce it to 28 Mb so that we could upload it on Sketchfab. ScanCenter also has a built-in feature to reduce model sizes. The processing speed was approximately 10 times longer for the more detailed mesh, taking approximately 3 minutes. For the small file, it took less than 20 seconds. In the picture below, we can see the difference between the two models, the high-resolution one being on the right. It has more details and less smoothing. [caption id="attachment_41881" align="aligncenter" width="600"] Two different 3D scanning resolutions (high-res on the right) with the RangeVision Spectrum.[/caption]
Aniwaa’s opinion: 4/5
After some mixed impressions on the RangeVision Smart (very good hardware but unfinished software) we had the chance to perform some more testing after a major software upgrade which took our previous feedback into account. Since the Spectrum uses the same software suite, we were in known territory and had a good overall experience. Furthermore, a completely new version of ScanCenter and ScanMerge will be available mid-2018. This version will completely integrate both applications into one. RangeVision also announced that this major update, free for all users, will have extra features for an easier calibration process. Smoother 3D scan cleaning and preparation will also be available. In conclusion, we strongly recommend this 3D scanner to all types of users, from enthusiasts to professionals. The performance is on par with the best products of this category, and the price remains affordable for SME’s. The few competitors of the RangeVision Spectrum on same price level are the DAVID SLS-3 and the Open Technologies SIAB-FX. We carry out tests of 3D printers, 3D scanners and 3D filaments in our lab. Get in touch if you’d like us to review your products! [post_title] => [Hands-on] The RangeVision Spectrum, a desktop 3D scanner [post_excerpt] => [post_status] => publish [comment_status] => closed [ping_status] => closed [post_password] => [post_name] => rangevision-spectrum-review [to_ping] => [pinged] => [post_modified] => 2019-02-15 07:42:06 [post_modified_gmt] => 2019-02-15 06:42:06 [post_content_filtered] => [post_parent] => 0 [guid] => https://www.aniwaa.com/?p=42498 [menu_order] => 0 [post_type] => post [post_mime_type] => [comment_count] => 0 [filter] => raw ) [4] => WP_Post Object ( [ID] => 41389 [post_author] => 203 [post_date] => 2018-01-15 07:13:09 [post_date_gmt] => 2018-01-15 06:13:09 [post_content] => Disclaimer: the comments and opinions expressed in this review are the results of our own (limited!) experience with the product. As always, we try to provide context to give a fair overview of the product. We strive to remain impartial and unbiased, and we have not received any payment or compensation of any form for writing this article. The manufacturer came to the 3DExperience Lab in Dassault Systèmes offices to perform a demo of their Open Technologies SIAB-FX 3D scanner. Brand: Open Technologies Model: Scan in a Box - FX Price: €4,490 Rating: 4.5/5 [toc]Introduction
Today, we are doing a hands-on review of the new Open Technologies Scan in a Box – FX. Stefania Tosa and Stefano Capoferri, both sales managers at Open Technologies, came to Dassault Systèmes offices in Vélizy, a town near Paris. Vélizy is famous for being home to a number of very large companies, including PSA, Thalès, Bouygues and General Mills. Within Dassault Systèmes, the demo was hosted at the 3DExperience Lab, a laboratory with the goal of nurturing and empowering disruptive projects. The 3DExperience Lab is already equipped with several 3D printers (including an Ultimaker 3+ and a Markforged Mark One) and 3D scanners. Run by CAD and design experts, the 3DExperience Lab was the perfect place to conduct this hands-on demo. The Open Technologies Scan in a Box – FX, often called SIAB-FX, was sent to us a few days prior to the event by mail. Therefore, we were able to witness the full installation of the 3D scanner, including its unboxing.Discovering the Open Technologies Scan in a Box – FX
The Open Technologies SIAB-FX comes in a very large cardboard box, full of styrofoam. This primary packaging contains two smaller cardboard boxes. The first one includes the 3D scanner and its accessories, while the second box contains the automatic turntable. Note that this turntable is optional, available separately for €890. Both secondary packages boast a nice finish and thick foam protections. [caption id="attachment_41428" align="aligncenter" width="600"] Unboxing of the SIAB-FX.[/caption]
The 3D scanner’s main packaging contains the following items:
- the 3D scanner head (made of a solid aluminum frame, a DELL video projector and two USB 3.0 cameras)
- a professional tripod
- all the cables (power and connectivity) and their sheaths
- a USB stick with IDEA 1.1 software
- an instructions manual
- the calibration plate with its support
The SIAB-FX 3D scanner accessories.[/caption]
We can’t help but notice that the calibration plate comes with a sturdy metal support, instead of the weak acrylic version available for the standard SIAB. Given the weight of the calibration plate, this is appreciable.
[caption id="attachment_41427" align="aligncenter" width="600"] The Scan in a Box - FX's calibration plate and support stand.[/caption]
The SIAB-FX is the upgraded version of the SIAB. It offers a more powerful video projector, the Dell M115HD with a contrast ratio of 10,0000:1 and a 450 lumens image brightness. The ASUS S1 that comes with the SIAB offers only a 1000:1 ratio and a 200 lumens image brightness.
The IDEA software that Open Technologies provides with the SIAB-FX unlocks some nice functionalities:
- export atlas and triangular map texture
- convert from mesh to range images
- export RGB point clouds from mesh
Overview of the Open Technologies Scan in a Box - FX
After unboxing both packages, setting up the 3D scanner setup is quite fast. Note that users require no less than 4 USB ports to connect both cameras, the USB stick with the IDEA license and the ATT. To connect a mouse (a must-have for all 3D-related interactions), an auto-powered USB hub or a dock station is a necessity. [caption id="attachment_41423" align="aligncenter" width="600"] Setting up the SIAB FX.[/caption]
The 3D scanner “head” itself has a great finish, with all the components robustly fixed on a curved, anodized aluminum bar. This feels sturdy and reliable. The little hooks to hold the USB cables in place are also a nice addition. The whole system is then fixed to the available tripod with a standard camera screw.
Testing the Open Technologies SIAB-FX
Connecting everything takes about 5 minutes; this includes fixing the 3D scanner head onto the tripod, plugging in the cables and starting up the IDEA software. In order to take advantage of the full IDEA capabilities linked to this SIAB-FX version, users must go through the licence manager and activate the FX modules. This includes the automatic alignment of 3D scans. [caption id="attachment_41426" align="aligncenter" width="600"] The SIAB-FX 3D scanner on the tripod.[/caption]
[caption id="attachment_41424" align="aligncenter" width="600"] The whole SIAB FX setup with the ATT.[/caption]
Once the SIAB-FX 3D scanner is attached to the tripod, the next step is the calibration process. This is only necessary if the default configuration doesn’t fit with the user's particular use case. By default, the SIAB-FX is configured for the medium FoV (250 mm), great for 3D scanning medium-size objects. Since the USB cameras focus on the object to 3D scan, their orientation defines the maximum Field Of View (FOV) of the capture.
Conclusion
During the hands-on demo, the test object was a plaster bas-relief. The result was quite impressive, with a lot of rich details and very good precision. In a few minutes, we obtained the dot cloud, ready for visualization. Thanks to the ATT, no additional alignment was necessary and it was possible to generate the mesh directly. [caption id="attachment_41419" align="aligncenter" width="480"] The SIAB-FX at work.[/caption]
Since Open Technologies lent us the SIAB-FX, we were able to conduct additional tests with different configurations. In comparison with the SIAB, we noticed various improvements (speed, reliability) on the software side of things. Furthermore, with the special FX configurations, several different and interesting features are now available.
All of the following tests were conducted using the 250 mm configuration and calibration, the best fitting mode for capturing objects measuring less than 10 cm tall on the ATT.
A colored Mario piranha plant in plastic
This object is only 5 cm tall and in full color plastic, with a lot of intricacies and self-occluding parts. The result is quite amazing on the organic shape (the plant itself), but the flower pot which is pure geometric shapes wasn’t that great. In the end, it isn’t really an issue as such parts are easier to remodel (using the free Blender modeling tool, for example). [caption id="attachment_41425" align="aligncenter" width="600"] Side by side comparison of the real object and its 3D capture.[/caption]
A white dental impression
This type of object, plaster-like, falls into the “easy to 3D scan” section. However, that means that the result must be detailed and very accurate. With the Open Technologies SIAB-FX, we obtained a very clean mesh. For this model we tested the automatic alignment feature of the IDEA software, in FX configuration. The alignment was done almost instantly.A plastic manatee tea infuser
This tea infuser is made from a monochrome soft plastic. It is full of holes, in order to let in water and sink. The result is very good and has many details.Aniwaa’s opinion: 4.5/5
After our first impression with the standard Open Technologies SIAB, we finally got the chance to test the SIAB-FX. It is an updated version, based on the same architecture. The IDEA software in its FX configuration is also a lot more powerful, and the generated meshes are of great quality. In the end, we strongly recommend this 3D scanner to all type of users, from wealthy enthusiasts to professionals. The performance is on par with the best products of this category. Also, the price stays affordable for SMEs. With a manufacturer price of €4,490 (not including the ATT or a hard case), the Open Technologies SIAB-FX is not cheap. However, it is definitely a very capable product, powered by good software. Finally, in the same price range, the SIAB-FX’s few competitors are the DAVID SLS-3 and the RangeVision Spectrum. We carry out tests of 3D printers and 3D scanners. Get in touch if you’d like us to review your products! [post_title] => [Hands-on] The Open Technologies Scan In a Box - FX, a desktop 3D scanner [post_excerpt] => [post_status] => publish [comment_status] => closed [ping_status] => closed [post_password] => [post_name] => hands-on-open-technologies-scan-in-a-box-siab-fx [to_ping] => [pinged] => [post_modified] => 2019-02-15 07:44:55 [post_modified_gmt] => 2019-02-15 06:44:55 [post_content_filtered] => [post_parent] => 0 [guid] => https://www.aniwaa.com/?p=41389 [menu_order] => 0 [post_type] => post [post_mime_type] => [comment_count] => 0 [filter] => raw ) [5] => WP_Post Object ( [ID] => 38514 [post_author] => 211 [post_date] => 2017-09-18 15:27:52 [post_date_gmt] => 2017-09-18 13:27:52 [post_content] => Disclaimer: the comments and opinions expressed in this review are the results of our own (limited!) experience with the product. As always, we try to provide context to give a fair overview of the product. We strive to remain impartial and unbiased and have not received any payment or compensation of any form for writing this article. The manufacturer lent us an Open Technologies Scan In a Box 3D scanner for free.| Brand | Open Technologies |
| Model | Scan In a Box |
| Price | €2,390 |
| Rating | 3.9/5 |
INTRODUCTION
Today, we‘re testing the Open Technologies Scan In a Box. We aim to give a fair evaluation of this 3D scanner through the 3D scanning of standard objects. Throughout this 3D scanner review, we will follow our standardized protocol to evaluate the performance of this product. First of all, Scan In a Box is a new brand created by Open Technologies, an industrial 3D scanner manufacturer based in Italy. Founded in 2001, Open Technologies introduced their very first scanner in 2005, the Optical RevEng LE. Their lineup also includes:- the CRONOS3D: a professional, user-friendly 3D scanning system
- the AURUM3D: a professional 3D scanning system created specifically to scan small details and complex shapes
- the STONE400: a high-definition, professional 3D copy system specific for the marble-working sector
- a Mount Fuji plush
- a soap dispenser
- a baguette (bread)
- a sheep plush
PACKAGING
Packaging rating: 4.5/5
-
Unboxing: simple packaging, with a separate box for the ATT
Open Technologies SIAB packaging.[/caption]
We started by opening the 3D scanner package and quickly found the calibration plate and starting guide under a layer of styrofoam. The large calibration plate (30 x 45 cm) offers three different patterns in order to handle all type of objects and stand of distance/field of view. It is made from plastic-coated acrylic covered with adhesive plastic on both sides, and it is quite heavy too.
Under this layer are the 3D scanner, the tripod, the connectivity cables and power cords.
[caption id="attachment_38525" align="aligncenter" width="300"] Inside the Scan In A Box packaging.[/caption]
The 3D scanner is composed of an ASUS S1 200 lumens video projector and two USB cameras that are robustly fixed on a thick (and heavy) aluminum rail. Under the rail is a compatible camera screw slot for connecting to the quality tripod.
-
Open Technologies Scan In a Box instruction manual
Open Technologies Scan In A Box instruction manual.[/caption]
All of the most essential information is available, but the first impression is a complex mess- and it does not get better even after a few uses. There is the same confusion when dealing with the ATT instruction manual. The ATT manual does not clearly explain if the instructions are additional to the 3D scanner manual, or if they should be understood independently. At times, we were a bit lost due to unclear instructions that could have been formulated in a more straightforward manner.
In the end, it would have been better to describe in a few words how the 3D scanner and the ATT work together and what the software’s main functions are.
Thankfully, the online documentation covers all of the software’s functionalities and gives a lot of details regarding the 3D scanner’s parts, functions and calibration procedure. We know that professional 3D scanners are complex pieces of hardware and that their software is generally not very user-friendly. However, more emphasis on ease-of-use and discoverability would’ve been a great plus.
-
Accessories
Open Technologies Scan In A Box accessories[/caption]
- the instruction manual,
- connectivity cables (2 USB and one HDMI),
- the power cord,
- a USB stick for software installation,
- the calibration plate (along with its plastic supports),
- and the tripod with its protective cover.
OVERVIEW AND SETUP
Overview and setup rating: 3.7/5
-
Software - 4.5/5
Our SIAB 3D scanner setup.[/caption]
The very first step requires to install the software and the USB drivers from the USB stick. This might tamper with the ability for Open Technologies to always deliver the latest version of IDEA software in the future, but in our case everything went smoothly. In case of a new IDEA release, Open Technologies offers the latest version to all their users, free of charge and directly available for download on their website. Note that the software installer is not connected with the software licence and it is always possible to get a free 30 days trial in case you want to give it a try. The whole software installation took us less than 10 minutes, drivers included.
Once IDEA is launched, it is recommended to install the hardware in order to properly connect the 3D scanner to the computer. We also strongly recommend taking a look at the IDEA software online full manual.
-
Hardware - 3.5/5
The SIAB hardware with and without cables.[/caption]
The ATT is a solid metal cylinder with a power button and two connectivity slots: one for power (to plug into any AC outlet) and one for a standard USB cable.
Both the 3D scanner and the ATT require to be connected to a computer in order to work. The Open Technologies Scan In a Box 3D scanner itself uses 2 USB ports for the cameras, 1 HDMI port for the video projector and an AC outlet (optional, because the video projector and can temporarily work autonomously thanks to its internal battery). The ATT requires one USB port and its own AC outlet. Furthermore, the IDEA software requires the authentication USB stick to be connected in order to provide its full functionalities, but we noticed that meshing and editing tasks are still available without it.
That’s a total of 6 cables, requiring a computer with at least 4 USB ports. Even if solutions exist (cable sheath and use of a USB hub), it may make the installation of the 3D scanner a bit cumbersome and complex.
-
Getting started - 3/5
Hardware calibration for the SIAB.[/caption]
Note: the calibration panel is heavy, cumbersome and sits on a plastic square that is comparably too small/weak to handle the panel’s weight.
The ATT calibration takes less time. The main constraint is anticipating the maximum bounding box in which the object will stay when 3D scanned.
Once the calibration is performed, keeping the same conditions is recommended (lighting, distance, etc.). Indeed, changing the scan area and/or stand-off distance implicates realigning both cameras.
[caption id="attachment_38528" align="alignright" width="300"] Calibrating the SIAB 3D scanner.[/caption]
Steps to start 3D scanning with the Open Technologies Scan In a Box and its ATT:
- Assembling the 3D scanner set on the tripod.
- Installing the IDEA software and drivers on a computer from the USB stick.
- Plugging in the two USB cables between the cameras and the computer.
- Connecting the HDMI cable between the video projector and the computer.
- Plugging in both power cables to the video projector and to the ATT.
- Configuring the computer display for the video projector.
- Calibrating the 3D scanner and the ATT.
EXPERIENCE
Experience rating: 3.75/5
-
Software - 3.5/5
Calibrating the 3D scanner and software.[/caption]
After clicking on the camera icon, the Scan In a Box initiates a 3D scan (with textures), creating a colored range image (quite similar to a dot cloud from a end user perspective). Adding more 3D Scans does not necessarily mean to increase the quality of the final result. We recommend to catch a number of acquisitions that is enough to cover all the details of the 3D scanned object. However there is no specific suggested number, it depends on the complexity of the objects. Anyway we found out that 3 to 4 captures (from different object's orientation) on a 18° degree step gives good results for full 360° 3D scans. It is possible to generate a 3D mesh once there is a sufficient amount of range images to perform their alignment.
The range images alignment is probably one of the most painful steps. The automatic function works poorly, and the system needs to be fed with correct reference points (three for a proper triangulation and alignment) before being of any use. This is due to the fact that there is actually no “automatic alignment” function in SIAB. The alignment operation is manual and you will need to find the three points reference for each. However, those points can be defined roughly and give satisfying results. The 'automatic alignment" will be offered in the upcoming SIAB-FX 3D scanner product and will be called “direct alignment”,
It took us some time to properly understand how to classify and multi-select the different range images. Almost 3-4 groups of dozens of range images are needed to obtain a fully-detailed 3D mesh. However, after a bit of practice it became easier.
[caption id="attachment_38541" align="aligncenter" width="300"] Mesh generation from range images.[/caption]
Afterrange images alignment comes 3D mesh generation. This consists in automatically linking each dot with polygon faces (here, triangles) and edges.
Four different reconstruction profiles are available. Below are the descriptions from the Open Technologies website.
1/ Technical object 3D scan
[caption id="attachment_38534" align="aligncenter" width="300"] SIAB design profile.[/caption]
“Profile made to maintain a high level of detail with a tolerance of 0.035mm. The expected resulting mesh will be composed of approximately 500 000 triangles.”
2/ Design object 3D scan
[caption id="attachment_38534" align="aligncenter" width="300"] SIAB design profile.[/caption]
“Similar profile to Technical object, except it applies a stronger smoothing with a higher tolerance.”
3/ Small Artistic object 3D scan
[caption id="attachment_38535" align="aligncenter" width="300"] SIAB artistic profile.[/caption]
“This profile has a very high detail with a small tolerance (0,010mm). It applies a light smoothing and automatically fills smallest holes. It has no limits in the triangles number and therefore does not applies an automatic decimation. These profiles achieve the higher detail level and precision on the mesh.”
4/ Sculpture object 3D scan
[caption id="attachment_38536" align="aligncenter" width="300"] SIAB sculpture profile.[/caption]
“This mesh generation profile has a medium tolerance of 0.025mm, and keeps a high level of details. The default settings of the Sculpture profile does not apply an automatic mesh decimation.”
All of the parameters can be modified and fine-tuned to obtain the best results, and the predefined profiles are of great help. Due to the difficulty of choosing the right profile for new users, and since we required constant parameters for benchmarking purposes, we did all of our testing with the Design object profile.
Mesh generation is a time-consuming process that can take up to 10 minutes, and it takes a toll on the computer resources. We found that it was better to perform all of the capture steps first and to clean well the unnecessary data before going into mesh generation and settings.
The software offers a lot of different options such as hole-filling and mesh decimation for extra finishing. The functions work well but are slow and extremely demanding for the computer. We experienced a few IDEA software crashes, mainly caused by the sheer size of our first, non-optimized projects. During our testing experience, the completion indicator often gave false estimations and had a weird tendency of freezing around 41%.
Not many texture options in the IDEA software, but in our opinion, the Scan In a Box isn't the best at capturing colors anyways.
-
3D scanning - 4/5
- export atlas and triangular map texture,
- convert from mesh to range images,
- and export RGB point clouds from mesh.
3D SCAN RESULTS
3D scan results rating: 4/5
The Open Technologies Scan In A Box (like most 3D scanners) does not work well on black smooth surfaces. We got the bests results with uniform, white-ish models. We chose the models based on their geometries and textures in order to benchmark a variety of different use cases.1. Mount fuji plush
Fuji San- Texture by aniwaa on Sketchfab
2. Hand soap dispenser
[caption id="attachment_38542" align="alignnone" width="300"] Hand soap dispenser 3D scan result.[/caption]
Soap dispenser by aniwaa on Sketchfab
3. Bread loaf - baguette bread
As French people, we always have a baguette nearby. We used this because of the complex structure of the bread and its inside. This 3D scan required us to perform several 360° captures in order to compose the final 3D mesh. This object has a wide range of colors from almost-black crust to the white of the flour. As a result, we did not obtain great texture. The geometry is of good quality with a lot of details.4. Sheep plush
This sheep plush is an interesting object to 3D scan. It has many challenging details and a difficult material to capture. Furthermore, it is quite large (30 cm long) hence requiring multiple repositionings to obtain a complete 360° 3D scan. The end result is a nice, although the capture of the floating scarf did not work. The cleaning and remeshing tools did a great job as it was possible to simply close and create the mesh manifold in just a few clicks.Open Technologies Scan In a Box: VALUE
Value rating: 4.5/5
Priced at €2,390 (without VAT and shipping), the Open Technologies Scan In a Box offers a very attractive value for professionals looking for an affordable yet powerful 3D scanner. The ATT (turntable) is available for €890, making it slightly expensive but we strongly recommend getting both. On the performance side, the Open Technologies Scan In a Box 3D scanner is capable of producing very high-quality meshes. Indeed it offers precision and detail, right on for most use cases (especially reverse engineering studies). On the downside, textures are blurry, black colors are not captured and the dedicated software tools are limited. Note that texture acquisition is indeed influenced by the light of the environment (not ideal during our test). We must also add that in our case, setting up the scanner was a bit time-consuming.CONCLUSION
Aniwaa's opinion rating: 3.9/5
Our overall rating reflects our experience with the Open Technologies Scan In a Box 3D scanner, in the specific use cases described.| Weight | Rating | |
| Packaging | 1 | 4.5/5 |
| Overview and setup | 2 | 3.7/5 |
| Experience | 2 | 3.75/5 |
| 3D scan results | 2 | 4/5 |
| Value | 1 | 4.5/5 |
| FINAL RATING | 3.9/5 |
PROS:
- Excellent price-to-performance ratio for meshes
- Manufacturing quality
- Accessories
CONS:
- Calibration process
- Requires a controlled environment to reach peak performance
- Very low texture quality
| Brand: | Shining 3D |
| Model: | EinScan-SP |
| Price: | $2,299 |
| Rating: | 4.4/5 |
INTRODUCTION
Today, we‘re testing the Shining 3D EinScan-SP, a desktop 3D scanner. This article aims to give a fair evaluation of this affordable 3D scanner through the 3D scanning of standard 3D objects. During this 3D scanner review, we will follow our standardized protocol to evaluate the performance of this product. Founded in 2004, Shining 3D is the #1 company on the Chinese stock exchange for the 3D digitizing and 3D printing industry. The company’s headquarters are located in Hangzhou, and there are branches in Shanghai, Beijing, Guangzhou, and several other major Chinese cities. Shining 3D became renowned for their offer of affordable yet efficient 3D scanners, starting with the Einscan-S desktop 3D scanner, which this EinScan-SP replaces. The added 'P' in EinScan-SP stands for Platinum. Shining 3D’s lineup of desktop 3D scanners is based on structured light technology. The basic principle: a video projector casts a light pattern on a 3D surface that modifies the pattern in a specific way. This deformation is captured by the sensor and allows the software to calculate the 3D surface’s topology and to create a 3D mesh. [caption id="" align="aligncenter" width="600"] Structured light 3D scanning technology (animated).[/caption]
The GIF above displays the different steps for the 3D scanning process with structured light technology. The first image is black and white stripes, then red, green and finally blue before the automatic turntable rotates 20°, and the cycle restarts for another capture.
[caption id="" align="aligncenter" width="600"] Our Shining 3D EinScan-SP 3D scanner setup.[/caption]
Shining 3D offers two relatively similar products that are based on the same design architecture: a fixed sensor which is also a projector, a solid frame, and an automatic turntable. At only $1,199, the all-black EinScan-SE (Elite) is cheaper than the EinScan-SP (Platinum), but it is two times slower. The EinScan-SE also provides a smaller 3D scanning volume, with only 200 x 200 x 200 mm for an automatic turntable 3D scan, and 700 x 700 x 700 mm for a manual 3D scan. For those interested in the technical characteristics, we wrote a side-by-side comparison of the EinScan 3D scanners.
Objects used for test 3D scans:
- a Totoro stuffed animal,
- a Bluetooth speaker,
- a 3D printed heart,
- and a rock.
PACKAGING
Packaging rating: 5/5
-
Unboxing: a nice packaging, with an extra cardboard for protection
The Shining 3D EinScan-SP packaging.[/caption]
The Shining 3D EinScan-SP is delivered in a thick transportation cardboard box which contains a secondary packaging cardboard box. The secondary packaging cardboard is nice-looking and comes with a plastic handle for transportation. The product and its accessories are well protected, but if you intend to move your EinScan-SP around often it would be wise to invest in a rigid transport case. Some competitors offer this for free, but for $2,299, a price including the automatic turntable, it is difficult to blame Shining 3D for this absence.
Every item neatly fits into a dedicated pocket-hole made inside a thick styrofoam and is further protected by a thin plastic wrapping.
The sensor itself is small, compact and only requires to be assembled with its fixing structure (the plastic trapezoid part visible at the center bottom of the picture) before being coupled to the 3D scanner frame. Note that thanks to this soft and flexible part, it is possible to connect the EinScan-SP to almost any tripod sold for regular photo cameras.
-
Instructions manual
-
Accessories
- the frame support,
- an AC adapter and power cable,
- a calibration panel with its support,
- and the quick start guide.
The Shining 3D EinScan-SP accessories.[/caption]
The calibration panel bears markers on one side while being totally white on the other, making it suitable for the calibration of the 3D scanner and for performing white balance adjustments.
OVERVIEW AND SETUP
Overview and setup rating: 4.9/5
-
Software - 5/5
EinScan 3D software, used for the whole 3D scanning process.[/caption]
No drivers or any other software were required and everything was working promptly. This is very appreciated given that 3D scanners are often complex to operate, especially for first-timers. The picture above shows the main software screen during a merging process. On the top left is a small frame which shows the object as the sensor sees it, while the red areas are signaled as being too bright for the ongoing settings. On the right is the toolbar that allows access to basic software functions:
- creating a new project,
- starting a 3D scan,
- realigning meshes,
- calibrating the white balance,
- and saving/exporting options.
-
Hardware - 5/5
Left: the complete 3D scanner. Right: the sensor.[/caption]
We noticed that the USB cable between the automatic turntable and the sensor has been poorly integrated into the design. However, this is not a big issue since it is possible to use a non-proprietary tripod with the sensor's standard photo camera screw.
-
Getting started - 4.75/5
- assembling the different components: frame, automatic turntable, sensor support and sensor;
- plugging in the two USB cables, one between the sensor and the automatic turntable, the other between the sensor and a computer;
- plugging in the power cable;
- installing the software and turning the sensor on with the little touch button on its back;
- running the EinScan software;
- following the step-by-step calibration function (and the white balance procedure);
- starting 3D scanning.
TheShining 3D EinScan-SP calibration process.[/caption]
The calibration step is available on the "Mode selection" panel, where it is possible to choose to 3D scan with or without the automatic turntable. The calibration process itself is well explained and linear but requires caution when positioning the heavy calibration plate. Three different orientations are required. It is recommended to launch the calibration procedure every time the 3D scanner is moved.
EXPERIENCE
Experience rating: 3/5
-
Software - 3/5
EinScan software use case configuration.[/caption]
The main configuration options revolve around finding the best lighting for a specific type of object or use case. Simply pick the best match and the software will optimize capture settings for the given conditions.
In the main panel frame, wide icons give a quick-look access to the main functions such as 3D capture, parameterization of the 3D scanner, re-meshing, save and export, etc.
It's impossible to launch the EinScan software without first connecting the EinScan-SP to the computer. This is very cumbersome because the 3D capture of the object is often not the most time-consuming step of the process- the mesh export and optimization usually takes longer.
To a certain degree, the software feels like a collection of functionalities glued together without a real backbone. For most use cases it does the job, and quite well, but as soon as we venture into uncharted space, it doesn’t go so well. This is mainly due to a flickering performance, even on a powerful laptop like we had.
[caption id="attachment_37713" align="aligncenter" width="253"] EinScan software: integrated export to Sketchfab.[/caption]
When exporting, it is possible to choose between multiple file formats, including .ASC (whole), .ASC (separate), .STL, .PLY, .OBJ, .P3, and .3MF. It is even possible to export directly to Sketchfab through a dedicated interface included in the software. We tried to use this functionality, without success. As a result, we stuck to the .OBJ save and uploaded our 3D models directly through Sketchfab’s website.
-
3D scanning - 4.5/5
Totoro structured light 3D scanning process (animated).[/caption]
Since the standard workflow went very well (except for the small performance issues), we decided to test more demanding situations. We tried to recover a previously generated 3D scan to do some modifications. This won't work without first connecting and switching the EinScan-SP on. Using the software for this nonlinear workflow proved to be a lot less intuitive. Consequently, we had to tinker a bit in order to obtain good results.
3D SCANS RESULTS
3D scans results rating: 4/5
1. Totoro plush
This cute Totoro plush is an interesting object to 3D scan. Indeed, it is highly detailed with a difficult material and challenging details (including small hanging parts). The result is very satisfying with a nicely rendered fluffy texture and surprisingly good colors.Totoro- Light by aniwaa on Sketchfab
The software automatically aligned most of the meshes, but in some cases, we had to manually align them. The functionality is well-designed and the final 3D scan was completed and saved in a few clicks.2. Bluetooth speaker
This Bluetooth speaker is a very interesting object to 3D scan. Measuring approximately 50 x 50 x 250 mm, it is slightly larger than the recommended 3D scanning zone. [caption id="attachment_37717" align="alignnone" width="300"] A 3D mesh of the Bluetooth speaker.[/caption]
After a few tries without markers, we decided to stick a little over 50 markers (Shining 3D provides 5000-6000 markers) on some on the most difficult surfaces, the reflective black ones. This improved the capture, although it was still impossible to obtain a watertight model without losing all mesh refinement and detail. However, we exported the file to SolidWorks and it proved to be a great reverse-engineering blueprint.
3. Heart
This 3D printed heart was made by the young start-up Biomodex, using a Stratasys J750 color 3D printer. It is roughly 150 mm tall and was scanned on its plastic support. We obtained this result with only one iteration and no modification to the original mesh. The resulting quality is very impressive, with a detailed mesh and clean textures.4. Rock
This rock is about 100 x 50 x 70 mm. It was chalk-like, with a lot of yellowish/greenish spots all around.RockSketchFab by aniwaa on Sketchfab
VALUE
Value rating: 4.5/5
Priced at $2,299, the Shining 3D EinScan-SP is definitively a very interesting product. This 3D scanner is $1,100 more expensive and twice as fast as the EinScan-SE (offered at $1,199). The EinScan-SP is almost as powerful as the EinScan-Pro+ which has an entry price tag of $5,698 with texture (color capabilities).CONCLUSION
Aniwaa's opinion rating: 4.4/5
Our overall rating reflects our experience with the Shining 3D EinScan-SP (Platinum) 3D scanner, in the specific uses cases described.| Weight | Rating | |
| Packaging | 1 | 5/5 |
| Overview and setup | 2 | 4.9/5 |
| Experience | 2 | 3.75/5 |
| 3D scan results | 2 | 4/5 |
| Value | 1 | 5/5 |
| FINAL RATING | 4.4/5 |
PROS:
- Price-to-performance ratio
- Manufacturing quality and included accessories
- Flexible and very capable for several different use cases
CONS:
- Software user experience
- Basic quality of generated textures
| Brand: | Creaform |
| Model: | HandySCAN 700 |
| Price: | > $50,000 |
| Rating: | 5/5 |
Introduction
Today, we are doing a hands-on review of the latest version of Creaform's first product, the HandySCAN 700. Creaform started in 2002 as a service bureau performing 3D scanning and reverse engineering services. The company launched its first hardware product, the HandySCAN in 2005, with a software which was then called VXscan. Creaform headquarters are based near Québec City, Canada. Creaform’s mission is to develop, manufacture and market cutting edge portable 3D measurement and analysis technologies that increase productivity. Through its expertise, Creaform helps companies from the manufacturing industry to create, simulate, verify, and collaborate in 3D. Creaform offers several portable industrial 3D scanners, including the HandySCAN, the HandyPROBE, the MetraSCAN and the MaxSHOT. [caption id="" align="aligncenter" width="600"] The Creaform quality control solutions for every part size.[/caption]
Each 3D scanner is equipped to deal with a specific parts' size range, from small to big. These metrology-grade devices are suitable for almost all design and production related applications.
[caption id="" align="aligncenter" width="600"] Mapping of the Creaform quality control solutions with their respective operating ranges.[/caption]
Creaform also offers a more affordable category of portable 3D scanners; the Go!SCAN 50 and the Go!Scan 20 which are not represented on this illustration. These two products are capable of producing full color 3D scans.
Discovering the Creaform HandySCAN 700
We have been invited by Creaform local team in Tokyo to visit their offices and perform a hands-on review of their lineup of portable 3D scanners, the MetraSCAN 750, the HandySCAN 700 and the Go!SCAN 50. This is the third article of this series. After the MetraSCAN 750 review and the Go!SCAN 50 review, we are now performing our hands-on test of the HandySCAN 700. [caption id="" align="aligncenter" width="600"] The full setup of the Creaform HandySCAN 700 solution.[/caption]
The HandySCAN 700 is Creaform’s flagship metrology-grade portable 3D scanner. The HandySCAN 3D product line underwent a complete re-engineering in 2014. These metrology handheld 3D scanners have been optimized to meet the needs of product development and engineering professionals. The HandySCAN 3D are capable of quickly delivering accurate and high resolution 3D scans.
Creaform HandySCAN 3D handheld 3D scanners won the Red Dot Award for Product Design 2015. Counting about 5,000 entries from 2,000 participants each year, the Red Dot is awarded for international product design, communication design and design concept.
The Creaform’s HandySCAN 3D is available in two versions:
- HandySCAN 300, the most affordable version of the line up. It offers an accuracy up to 0.040 mm (0.0016 in.), a maximum resolution of 0.100 mm (0.0039 in.). Its top acquisition rate is 205,000 measurements/s, within a 3D scanning area of 225 x 250 mm (8.8 x 9.8 in.).
- HandySCAN 700 is the flagship 3D scanner of the HandySCAN family. It offers an accuracy up to 0.030 mm (0.0012 in.) and a maximum resolution of 0.050 mm (0.0020 in.). It's top acquisition rate is 480,000 measurements/s, within a 3D scanning area of 275 x 250 mm (10.8 x 9.8 in.).
The Creaform HandySCAN 700.[/caption]
The HandySCAN 700 has a very good quality and finish, on par with everyday consumer products. According to Creaform, the HandySCAN 700 characteristics have been drastically upgraded, compared to its predecessor :
- 40% more accurate
- 25 times faster with 7 laser crosses
- 50% smaller
- 35% lighter (weights 0.85 kg)
Getting started with the Creaform HandySCAN 700
-
Packaging
The Creaform HandySCAN 700.[/caption]
Included in the transport case is the connectivity cable of the device, which splits up as a connectivity cable to the computer and an alimentation cable. The connectivity cable plugs to USB 3.0 plug on a computer while the alimentation cable requires an AC plug.
The full case is easy to move around and can be held as a carry on luggage in airplanes.
[caption id="" align="alignleft" width="300"] Calibration process of the Creaform HandySCAN 700.[/caption]
-
Calibration process
Testing the Creaform HandySCAN 700
[caption id="" align="alignright" width="300"] The HandySCAN 700 in hand.[/caption]
The sensor itself weights only 0.85 kg (1.9 lbs.) and is very compact: 77 x 122 x 294 mm (3.0 x 4.8 x 11.6 in.). The distribution of weight is good, and the device well balanced.
The handle of the device is a bit square and quite large, while the height being restricted. Holding the Creaform HandySCAN feels like a small toy with its feather weight. However small hands might have a hard time grasping it firmly due to the thick handle.
The 4 multi-functional interface buttons are activated by a soft thumb touch; the bottom round one can start and stop the 3D scanning process, the two vertical buttons in the middle can zoom in and out of the 3D model or control the shutter speed of the cameras' and the top rectangular one toggles between different modes. Pressing the buttons while 3D scanning often requires to use your other hand or an extremely nimble thumb.
The HandySCAN 700 itself is connected to a computer via a USB 3.0 port. This protocol is required to deal with the massive amount of data transferred from the 3D scanner to the computer during a 3D scan.
[caption id="" align="alignleft" width="250"] The HandySCAN 700 interface.[/caption]
There are two cables that come out of the 3D scanner. They quickly join in a unique one for most of their length, and then separate again into a USB connection for the computer, and an alimentation cable to be connected to a standard AC wall socket.
Compared to some competitors that rely on two cables all along that is a big advantage for mobility and flexibility while 3D scanning.
The laptop we used in this demonstration is the recommended computer provided by Creaform. This is a powerful HP laptop with a Windows 7 OS 64 bits, 32 Gb of RAM, an Intel Core i7 and a Nvidia Quadro K1100M GPU.
We do not recommend a less powerful configuration as 3D scanning is a very demanding process. Windows 10 is not officially supported yet but some Creaform clients use it successfully.
-
Reverse engineering use case
The Creaform HandySCAN 700 requires the use of markers.[/caption]
For testing the HandySCAN 700, we used the standard sample part provided by Creaform for their demonstration.
The part is a medium sized plastic part, very similar to a mechanical part. It is quite complex with a lot of features and small intricate details. It is also full of holes, a type of feature which is usually very challenging to 3D scan, as the software usually tries to fill them with geometries.
The only downside the 3D scanning process with the HandySCAN is that it is required to use Creaform targets to get the highest performance level. These targets also allows the user to move the part while scanning and to never lose track of it. The part was already equipped with several targets, patched all across its surface (14 targets in total).
The HandySCAN 700 can work in two different modes, the "Cross grid" and "Single beam" modes. The beams are in fact a single laser point moved very fast.
Cross grid mode is for faster data capture, while the single beam mode is used to go deeper into pockets and harder to reach areas. A standard 3D scan would begin with the Cross grid mode to acquire quickly the part, and the Single beam mode on a second step for very high precision 3D scan and details acquisition.
Cross grid mode uses 7 crosses with the HandySCAN 700; and only 3 crosses with the HandySCAN 300 (Single beam is not available), hence the performance and price difference.
[caption id="" align="aligncenter" width="500"] The result of a 3D scan performed by the HandySCAN 700 in VXElements.[/caption]
We obtained in less than 5 minutes a very detailed 3D scan of the complex surface of the part. The targets are the white dots with black rims. You can see how they have been layout on all the surface of the part.
[caption id="" align="alignleft" width="200"] The useful 3D scanning tree inside the VXElements software.[/caption]
The Creaform Software provided with the HandySCAN 700 is called VXElements. It can perform real-time fusion, which means that alignment and fusion of the 3D scans are automatically fused together to generate one unique mesh.
With VXElements advanced tracking algorithm it is possible to find back a part that has been moved, and to directly add data to the existing dot cloud. The 3D scanner captures the part in a specified resolution; specified in the software scanning panel.
The 3D scanner captures the part in a specified resolution; the parameter needs to be specified in the software scanning panel. When the operator chooses a specific capture resolution, it is possible to change it afterward in the software (like a RAW file of a photo). Therefore, the output resolution can also be edited according to the user needs.
The HandySCAN 700 maximum resolution is 0.050 mm (0.0020 in.).
At any given step of the 3D scanning proces,s it is possible to remove or add data, to obtain a more accurate and defined 3D data. It is also possible to select and delete erroneous data and targets, and even some missed frames, thanks to the very useful 3D scanning tree inside VXElements, a feature very similar to most CAD tools design tree.
VXelements is the basic capture package included with all Creaform 3D scanners. VXmodel, VXtrack, VXinspect and VXremote are software modules bringing in additional features (beyond data capture) and are sold separately.
VXinspect allows users to compare a CAD model to the scanned data, which is very useful for reverse engineering and metrology applications.
VXmodel is a post-treatment software that directly integrates into VXelements. VXmodel allows the finalization of 3D scan data to export it as a readable 3D file for 3D printing and CAD software (CATIA, SolidWorks, Inventor...)..
The VXtrack module has several applications like robot calibration and guidance, monitoring of complex assembly processes, real-time compensation of machining tool-generated errors and monitoring of deformations during testing and can be useful in various industries such as aerospace, automotive, robotics, biomechanics and non-destructive testing. We have not tried it during this review.
VXremote enables users to better visualize real-time scanned data and change parameters—even when they are far from their laptops. VXremote is particularly useful when scanning large objects or when the scanning has to be performed in constrained or remote areas. VXremote is compatible with Creaform-certified rugged tablets (available in 7" or 10" size). This add-on was not tested during this review.
Conclusion
Aniwaa's opinion: 5/5
The HandySCAN 700 is a reference among metrology-grade solution for professionals who work in demanding industrial environments. Yet, this handheld 3D scanner is remarkably light and easy to use, served by an efficient design and a great user interface. More specifically, the capture software called VXElement allows a lot of flexibility in the 3D scanning process. Generating files for inspection, CAD modeling or 3D printing is a breeze when you add VXinspect and VXmodel extension modules. However, this device is very expensive and will be out of reach for smaller companies or entry-level 3D scanner users. Regarding the 3D scanning performance, the HandySCAN 700 is simply the top performing portable 3D scanner we ever had the opportunity to test (and also the most expensive).We carry out tests of 3D printers, 3D scanners and 3D filaments in our lab in Tokyo. Get in touch if you’d like us to review your products!
[post_title] => [Hands-on] Test and review of the Creaform HandySCAN 700, a high end portable 3D scanner [post_excerpt] => [post_status] => publish [comment_status] => closed [ping_status] => closed [post_password] => [post_name] => hands-on-test-and-review-of-the-creaform-handyscan-700-a-high-end-portable-3d-scanner [to_ping] => [pinged] => [post_modified] => 2018-08-07 17:34:17 [post_modified_gmt] => 2018-08-07 15:34:17 [post_content_filtered] => [post_parent] => 0 [guid] => https://www.aniwaa.com/?p=29366 [menu_order] => 0 [post_type] => post [post_mime_type] => [comment_count] => 0 [filter] => raw ) [8] => WP_Post Object ( [ID] => 31030 [post_author] => 203 [post_date] => 2016-10-30 12:16:36 [post_date_gmt] => 2016-10-30 11:16:36 [post_content] => Disclaimer: the comments and opinions expressed in this hands-on review are the results of our own (limited!) experience with the product. As always, we try to provide context to give a fair overview of the product. We strive to remain impartial and unbiased, and we have not received any payment or compensation of any form for writing this article. Please get in touch if you would like to share feedback about your own experience with this product. Creaform invited us to test the Go!SCAN 50 in their offices in Tokyo, they organized the tests and supervised them.| Brand: | Creaform |
| Model: | Go!SCAN 50 |
| Price: | > $20,000 |
| Rating: | 5/5 |
Introduction
Creaform started in 2002 as a service bureau offering 3D scanning and reverse engineering services. The 3D scanner company launched its first hardware product, the HandySCAN, in 2005, with a software which was then called VXscan. Creaform headquarters are based near Québec City, Canada. Creaform’s mission is to develop, manufacture and market cutting-edge portable 3D measurement systems which increase productivity. Through its expertise, Creaform helps companies from the manufacturing industry to create, simulate, verify, and collaborate in 3D. In 2013, Creaform reported annual sales of around $52 million. Creaform lineup of portable industrial 3D scanners includes 5 different products. The Go!SCAN 3D, HandySCAN 3D, the HandyPROBE, the MetraSCAN 3D and the MaxSHOT. [caption id="" align="aligncenter" width="800"] The Creaform portable 3D scanning solutions. Image by Creaform[/caption]
The most affordable portable 3D scanners offered by Creaform belong to the Go!SCAN 3D product line: the Go!SCAN 50 and the Go!Scan 20.
- The Go!SCAN 20 is suited for scanning small parts with intricate details, with a resolution of 0.100 mm (0.004 inches) within a 3D scanning area of 143 x 108 mm (5.6 x 4.3 inches). Hence the recommended part size is 0.05 – 0.5 m (2 – 20 inches). The Go!SCAN 20 has a slightly different design and color compared to the Go!SCAN 50.
- With its larger field of view, the Go!SCAN 50 is a good match for 3D scanning medium to large objects, with a recommended part size of 0.3 – 3.0 m (1 – 10 feet). The Go!SCAN 50 offers a 3D scanning area of 380 x 380 mm (15 in x 15 in), with a maximum resolution of 0.5 mm (0.020 inches).
Some popular uses cases for the Go!SCAN portable 3D scanners. Image by Creaform[/caption]
Today, we are doing a hands-on review of the fast and flexible Go!SCAN 50.
Discovering the Creaform Go!SCAN 50
We have been invited by the Creaform team in Tokyo to visit their office and perform a hands-on review of three of their portable 3D scanners, the MetraSCAN 750, the HandySCAN 700 and the Go!SCAN 50. This hands-on review focuses on the Creaform Go!SCAN 50. [caption id="" align="aligncenter" width="600"] Our setup for testing the Creaform Go!SCAN 50.[/caption]
The Creaform Go!SCAN 50 is a portable solution for flexible 3D scanning. This portable 3D scanner uses the structured light 3D scanning technology. When switched on, the Go!SCAN 50 flashes a light which embeds a specific pattern. This pattern looks like some sort of a giant QR code cast on the object by a video projector. The topology of the part or object being captured causes the casted light to be deformed. The two cameras of the Go!SCAN 50 register this deformation and the software is then able to compute the 3D properties of the object. The data is captured as a colored dots cloud which is used to generate an accurate 3D mesh - basically several thousands of polygons in a 3-dimensional space, on which a texture mapping (the color) can be applied.
Getting started with the Creaform Go!SCAN 50
-
Packaging
The Creaform Go!SCAN 50 transport case.[/caption]
Included in the transport case is the connectivity cable of the device, which splits up as a connectivity cable to the computer and an alimentation cable. The connectivity cable plugs to USB 2.0 plug on a computer while the alimentation cable requires an AC plug.
-
Calibration process
Calibration of Creaform Go!SCAN 50.[/caption]
The calibration plate is a nice finished plain flat wooden box. It contains some warnings and a white area covered with several specifically placed targets. In total, the calibration process takes less than 2 minutes and simply requires the user to follow simple steps in the Creaform VXElements software (VXElements is the data acquisition platform for all Creaform scanners).
Testing the Creaform Go!SCAN 50
[caption id="" align="alignleft" width="300"] Close up of the Creaform Go!SCAN 50 in hand.[/caption]
The sensor itself weights 950g and is quite compact: 150 x 171 x 251 mm (5.9 x 6.7 x 9.9 inches). The distribution of weight is ergonomic, with most of the heavy parts (color module, projector and one camera) positioned towards the bottom of the Go!SCAN 50.
The handle of the device is very comfortable and has a very ergonomic feel. However, if you intend on using the 3D scanner for long capture time, it is better if you have big hands since the handle itself is quite big.
The trigger-like button is activated by a soft touch with the index finger, to start and stop the 3D scanning process. The Go!SCAN 50 itself is connected to a computer via a USB 2.0 port.
There is only one cable coming out of the 3D scanner. This cable splits in two after a few meters, into a USB connection for the computer and an alimentation cable to be connected to a standard AC wall socket. Compared to some competitors which rely on two cables, the single cable is a big advantage for mobility and flexibility while 3D scanning.
The laptop we used in this demonstration is the recommended computer, provided in this test by Creaform. It's a powerful HP laptop with a Windows 7 OS 64 bits, 32 Gb of RAM, an Intel Core i7 and a Nvidia Quadro K1100M GPU.
We do not recommend a less powerful configuration, as 3D scanning requires a lot of computing power. Windows 10 is not officially supported yet but we heard that some Creaform customers use it successfully.
-
Reverse engineering use case
Reverse engineering use case with the Creaform Go!SCAN 50.[/caption]
The 3D scanning process with the Go!SCAN can work two different ways: with or without targets.
- Without targets: the Go!SCAN 50 uses the distinctive geometrical properties of the part to 3D localize the data it gradually generates. For tracking reasons, the 3D scanning process without targets has one restriction: the object must offer a distinctive feature or texture every 380 x 380 mm scanning area (like a hole, a bump, a groove,etc...). If that's not the case, VXElements is not capable of knowing the distinction between the different parts of the objects and where to spatially position them. A typical example of such a challenging part would be a long uniform pipe. For the same reason, issues may arise if a similar pattern is repeated several times on a larger scale.
- With the optional targets: it is possible to use targets to compensate for an object’s lack of distinctive features. The targets are small round stickers which can be placed on the surface of the object to be captured. The targets compatible with the Creaform Go!Scan 50 have a limited number of uses and do not come cheap (around $0.1 each). Note that the more accurateGo!SCAN 20, with its smaller field of view, works with smaller targets. It is recommended to position these targets every 20 - 100 mm (0.75 - 4 inches) to allow a good tracking for the Go!SCAN 50.
The useful 3D scanning tree inside the VXElements software.[/caption]
The Creaform Software called VXElements performs real-time fusion: the 3D scans are automatically fused together to generate one unique mesh.
Thanks to VXElements advanced tracking algorithm, it is possible to locate a part that has been moved, and to directly add data to the existing dots cloud.
The 3D scanner captures the part using the resolution specified in the software scanning panel. When the user chooses a specific capture resolution (let's say 1 mm), it is possible to change it afterwards in the software (like with a RAW file of a photo). Therefore, the output resolution can also be edited according to the user needs.
The Go!SCAN 50 is limited to a 0.5 mm maximum resolution. In any case, there is no interest to input in the software a lower value than this because it is its physical limit. Other Creaform 3D scanners can go lower however, as the Go!SCAN 20 which can reach 0.1 mm.
At any given step of the 3D scanning process, it is possible to remove or add data in order to obtain a more accurate and defined mesh. It is also possible to select and delete erroneous data and targets, and even some missed frames, thanks to the very useful 3D scanning tree inside VXElements, a feature very similar to most CAD tools design tree.
VXelements is the basic capture package included with all Creaform 3D scanners. VXmodel, VXtrack, VXinspect and VXremote are software modules bringing in additional features (beyond data capture) and are sold separately.
[caption id="" align="aligncenter" width="500"] A 3D scan performed with targets, seen inside the VXElements interface.[/caption]
- VXinspect allows users to compare a CAD model to the scanned data, which is very useful for reverse engineering and metrology applications.
- VXmodel is a post-processing software that directly integrates into VXelements. VXmodel allows the finalization of 3D scan data to export it as a readable 3D file for 3D printing and CAD software (CATIA, SolidWorks, Inventor...)..
- The VXtrack tracking module has numerous applications such as calibration and capture guidance, monitoring of complex assembly processes, real-time compensation of machining tool-generated errors and monitoring of deformations during testing and can be useful in various industries such as aerospace, automotive, robotics, biomechanics and non-destructive testing. We have not tested it as it was mainly designed to be used with the Creaform MetraSCAN 3D scanners.
- VXremote enables users to visualize real-time scanned data and change parameters, even when they are far from the connected laptop. VXremote is particularly useful when scanning large objects or when the scanning operation has to be performed in constrained or remote areas. VXremote is compatible with Creaform-certified rugged tablets (available in 7" or 10" size).
-
3D face scanning
3D face scanning with the Go!SCAN 50.[/caption]
The texture of the 3D generated file is well detailed thanks to the Go!SCAN 50 sensor, which delivers a texture resolution between 50 and 150 dpi, coded in 24 Bits. Like all 3D scanners based on structured light, the Go!SCAN 50 does not work very well on hair, especially when they are dark and/or curly.
Tip: to deal with the challenging yet common use case of 3D scanning hair, it is recommended to apply water on them to make them appear as a "solid" block.
[caption id="" align="aligncenter" width="500"] Close up of the 3D face scanning result with the Go!SCAN 50, inside VXElements.[/caption]
Conclusion
Aniwaa's opinion: 5/5
The Go!SCAN 50 is a flexible and rapid 3D scanning system, designed to address a wide range of professional needs, from industrial uses cases to more specific applications such as cultural heritage conservation, education, virtual reality, arts and even architecture. The 3D scanning process is fast and flexible thanks to the unique cable connecting the 3D scanner. The great features and user experience of VXElements play a huge part in the overall performance of the Go!SCAN 50. In our opinion, the software component is a key competitive advantage for the Go!Scan 50 when compared to its competitors. Our experience is however limited with this product and our rating only reflects the hands-on experience we add with the Go!SCAN 50, under the Ametek team supervision. The Go!SCAN 50 has very few competitors and for professional able to afford it this is one of the best option on the market. For people looking for a higher resolution on smaller objects the Go!SCAN 20 is also an interesting solution. When more performance is required, we recommend the HandySCAN 700 or the MetraSCAN 3D scanners, but these are more expensive. We carry out tests of 3D printers, 3D scanners and 3D filaments in our lab in Tokyo. Get in touch if you’d like us to review your products! [post_title] => [Hands-on] Test and review of the Creaform Go!SCAN 50, a professional-grade portable 3D scanner [post_excerpt] => [post_status] => publish [comment_status] => closed [ping_status] => closed [post_password] => [post_name] => hands-on-test-and-review-of-the-creaform-goscan-50-portable-3d-scanner [to_ping] => [pinged] => [post_modified] => 2019-02-15 07:29:23 [post_modified_gmt] => 2019-02-15 06:29:23 [post_content_filtered] => [post_parent] => 0 [guid] => https://www.aniwaa.com/?p=31030 [menu_order] => 0 [post_type] => post [post_mime_type] => [comment_count] => 0 [filter] => raw ) [9] => WP_Post Object ( [ID] => 30454 [post_author] => 203 [post_date] => 2016-09-19 09:20:12 [post_date_gmt] => 2016-09-19 07:20:12 [post_content] => Disclaimer: the comments and opinions expressed in this Artec Eva review are the results of our own (limited!) experience with the product. As always, we try to provide context to give a fair overview of the product. We strive to remain impartial and unbiased, and we have not received any payment or compensation of any form for writing this article. The Artec Eva we used for this test was lent to us by a Japanese lab for free, and Artec provided us with their Artec Studio 11 Ultimate software.| Brand: | Artec |
| Model: | Artec Eva |
| Price: | $19,800 |
| Rating: | 4.4/5 |
Artec Eva review: INTRODUCTION
The landscape of portable 3D scanners is pretty scarce. We wrote a full article on the topic here and listed only twenty different models. Among these 3D scanners brands, the two most established and biggest players in the industry are Creaform (from Canada) and Artec (from Luxembourg). Artec 3D company is an international group, headquartered in Luxembourg, with subsidiaries in the USA (Palo Alto) and Russia (Moscow). Artec has developed two well-known handheld 3D scanners, the Artec Eva (which we are testing today) and the Artec Spider, available in two versions (Artec Spider at $22,600 and Artec Space Spider at $27,600). The Spiders are the high-end products of the Artec product line, the Eva being the most affordable. In addition to these portable 3D scanners, Artec also offers a 3D body scanning booth and service called Shapify and Shapify Booth. Back to our test of the day! The Artec Eva is a versatile handheld 3D scanner, capable of 3D scanning a wide range of objects. In our experience, this portable 3D scanner gives the best results for Medium and Large objects (the Artec Spider is generally recommended for smaller size objects with intricate details). [caption id="" align="aligncenter" width="600"] Artec Eva objects sizes compatibilities and uses cases.[/caption]
The 3D scanner we tested belongs to a university lab. It was originally an Artec Eva Lite, a lighter version of the Artec Eva without the texture/color scanning option, which was upgraded to an Artec Eva. The software we had, Artec Studio 9, was upgraded into the much more powerful Artec Studio 11 version for this test, thanks to Artec.
[caption id="" align="aligncenter" width="600"] Our Artec Eva review setup. The coffee cup is an extra :).[/caption]
Objects used for test 3D scans: a human chest, a human foot, a human face, a shoe, a sheep plush, and a big suitcase.
PACKAGING
Packaging rating: 2.5/5
-
Unboxing: a simple cardboard case
Artec Eva review: the Artec Eva is delivered in a cardboard case.[/caption]
The Artec Eva is delivered in a rigid cardboard case, inside the shipping package. Please note that we have our Eva since 2014, so the design of the box has been now updated, as depicted in the picture below.
[caption id="" align="aligncenter" width="500"] The new Artec Eva cardboard case. Picture by Artec.[/caption]
The rigid cardboard case is enough for storing the 3D scanner but for transporting it around, a rigid case is strongly needed. Artec sells theirs at a $400 price tag. Ouch! For the price tag of the Artec Eva, we think a proper case should be included and we reflected that in the Value section of our review. We bought a rigid case (the Trusco TAC-15) online for $120, which fits perfectly for the Artec Eva.
-
Instructions manual
-
Accessories
The Artec Eva inside its Trusco TAC-15 rigid case, with accessories.[/caption]
The Artec Eva is delivered with very little accessories. The only things provided in the box are an alimentation cable and a USB cable. Nothing more is needed to operate the 3D scanner.
Note that Artec sells those items for a very expensive price if they are broken or lost (USB cable at $30, Power supply at $140). In option, a battery pack is also available for an additional $850.
OVERVIEW AND SETUP
Overview and setup rating: 5/5
-
Software - 5/5
Artec Eva review: Artec Installation Center seen from my.artec3d.com panel.[/caption]
For this Artice Eva review, Artec provided us with their latest software, Artec Studio 11 Ultimate. As users of Artec Studio 9, we must say that the update to Artec Studio 11 version radically improves the user experience of the Artec Eva. Once the software had been installed and activated (just one additional click required in the Artec Installation Center), we were able to plug our Artec Eva and start the tests.
Note that Artec Studio 11 Ultimate requires a 64 bits Windows OS, and a powerful computer (see in Experience below for the exact description of our laptop).
-
Hardware - 5/5
The Artec Eva side view.[/caption]
The Eva is very conformable to hold with its smooth handle, and it offers a nice weight balance as long as it's held vertically. It rests nicely straight when not in use thanks to the discreet "feet" visible on the bottom right corner of the picture above. The Arte Eva weights 0.85 kg.
The provided cables (power and connectivity to the computer) are both long enough and of good quality. They are easy to connect and hold in place firmly once plugged.
[caption id="" align="aligncenter" width="600"] POTUS Obama 3D scanned with Artec Eva. Picture by Artec.[/caption]
The Artec Eva relies on the white structured light scanning technology. A white pattern is projected on the object to 3D scan. Two cameras record the deformation of the pattern due to the object's shape, then the 3D scanner is able to compute the 3D surface. This technology is very effective (fast and accurate) but does not work under bright daylight (the casted structured light is dwarfed by the sun power).
However, it works outside has Artec demonstrated in one of their fossils' digitalization. The strong flashes of the structured light will also blind you if directly looked in the eye. That is why face scanning requires the user to close his or her eyes. The famous Obama 3D model was made from a 3D scan by the Artec Eva, which was then modified to integrate open eyes.
-
Getting started - 5/5
The Artec Eva back view. The top fan is visible, so is the double action button for starting and stopping 3D scans.[/caption]
Getting ready for your first scan once the software installed is really easy with the Artec Eva. You just have to plug the USB and alimentation cables, then launch Artec Studio 11.
On the left of the screen are several icons which trigger the different step of the 3D scanning process, from acquisition to publishing, going through all the preparation and optimization steps. The top one is used to start scanning in 3D (see the screenshot of Artec Studio 11 below).
Once the 3D scanner is connected, you can activate the preview mode and register the scans. This can be achieved by clicking the button in the software interface or directly from the Eva front top button, signaled with a small arrow, similar to a "Play" button.
A very important point: the Artec Eva does NOT require any calibration, a huge advantage compared to some of its competitors.
In the main Artec Studio 11 interface, the green bar acts as an indicator for finding the correct 3D scanning range. Too close or too far won't work: the user is required to stay within a fixed distance between 400 and 1000 mm of the object.
A few other options are also available at this point, among which:
- Capturing or not the texture of the 3D object.
- Using targets.
- Activating real-time fusion.
- Enabling automatic base removal.
Artec Eva review: Artec Studio 11 main interface.[/caption]
For our first tests, we used the default parameters and started 3D scanning a mid-sized sheep plush, the famous "Stanford sheep". We chose this object because it was easy to manipulate and with distinctive features and textures, knowing the wool texture would be challenging to capture. The Artec Eva did a great job, which is detailed in the Results section of this article.
[caption id="" align="aligncenter" width="600"] Our first result with the Artec Eva and Artec Studio 11 Ultimate.[/caption]
The main steps for getting started with the Artec Eva are the following:
- Start Artec Studio 11.
- Plug in the 3D scanner.
- Activate the preview.
- Start 3D scanning.
- Perform the 3D scans cleaning, alignment and reconstruction.
- Save and/or publish the 3D models.
EXPERIENCE
Experience rating: 4.5/5
-
Software - 4.5/5
Artec Studio 11 Ultimate 3D software, used for reconstructing 3D models from multiple 3D scans.[/caption]
The Artec Studio 11 Ultimate software is really great. Compared to Studio 9, which we usually use, the gap is huge. Without entering too much into technical details, let's focus on two major improvements.
[caption id="" align="alignright" width="400"] The Autopilot options for a faster reconstruction process.[/caption]
- Automatic base removal.
- Autopilot.
Manual alignment of two 3D scans inside Artec Studio 11 Ultimate.[/caption]
Some manipulations (such as pan and rotate for alignment of 3D scans) inside the software are not always intuitive and require the use of several different shortcuts. Of course, everything is explained during the tutorials but a few additional cues could still be useful to help non-expert users, such museum conservationists or doctors, who are not used to manipulating a 3D scanner and might have a hard time ramping up their 3D competencies.
-
3D scanning - 4.5/5
Characteristics of our laptop Windows computer. The minimal configuration for Artec Eva and Artec Studio 11.[/caption]
The 3D scanning process with the Artec Eva and Artec Studio 11 combination is very smooth, thanks to the effectiveness of the Autopilot mode. The Artec Eva is a quite ergonomic device, comfortable to hold and manipulate. After a few 3D scans, it is possible to anticipate the correct scanning pace to avoid a loss of focus from the 3D scanner, and also to anticipate what is the correct distance towards the subject or object, neither too close or far away.
The only flaw of this 3D scanning process is dealing with the cables. Several times we tangled them, walked on them and even 3D scanned them by inadvertence. We know the wireless connectivity and battery power are trades-off with dimensions and weight, but these are two important (and missing) features on a handheld 3D scanner. This is partially solved by Artec with their optional $850 battery pack option. That said, most portable 3D scanner is not fully wireless (see here for the complete list of wireless 3D scanners).
As with every 3D scanners that cost less than $100,000, there are some technical limitations. First, the level of details and hanging features which are very difficult to acquire. Dark, transparent and reflective object is also hard to 3D scan. This type of objects can be coated with non-reflective removable paint. On big objects, such as the suitcase we 3D scanned, the difficulties often arise from uniform surfaces, which prevent the software from doing a proper alignment. An option can be to use removable tape to create some distinctive features which can be captured more easily by the 3D scanner. All in all, our Artec Eva did a very decent job on most of those complex challenges, the suitcase 3D model pictured above and below is a very good example.
Artec Eva review: 3D SCAN RESULTS
3D scan results rating: 5/5
To evaluate the performance of the Artec Eva with its software Artec Studio 11 Ultimate, we conducted several 3D scanning tests, including human parts and small and big objects with various types of surface. We did not have the opportunity to test the Artec Eva performance for an industrial use case such as scanning a metal pipes or some technical part, but given our other tests we are pretty confident to say that as long the object does not have too small features (less than 5 cm) or a reflective/transparent surface, the result will be great.1. Human foot
Scanning in 3D the foot of a person standing is a popular use case for orthopedics and prosthetics applications. The 3D scan below was captured in less than a minute, with only 10 minutes of 3D preparation. The result is good. Note that a 360 degrees scan of a human part is very difficult as it requires the user to be completely still, which is a challenge even for a few seconds. The little glitches on the shin are due to the user's movement.2. Human face
We performed a 3D scan of our own head in less than 20 seconds. Reconstruction time took less than a minute. The result is very good, with a lot of details. Like all the 3D scanners based on structured light, the Artec Eva does not work very well on hair, especially when they are dark and/or curly. For dealing with such challenging use case Artec recommends to apply water on them and to raise the sensibility level in the software.3. Human torso
3D scanning human parts is a popular use case for the Artec Eva. It can be done for medical applications. The biggest challenge for the 3D scanner and software combination is to capture swiftly the 3D information, as any movement or breathing of the user can ruin the process. The result obtained (seen in Mesh lab) is clean and detailed. [caption id="" align="aligncenter" width="600"] 3D scan of a human torso (without texture), seen in Mesh Lab.[/caption]
4. Shoe
We decided to 3D scan our (worn out) Adidas Stan Smith shoe in order to test the Artec Eva on a medium-sized object. A white shoe is a challenging object to 3D scan, as the textures are uniform and the material a bit reflective. Inner parts and laces are also very difficult. In the end, the Artec Eva did a really good job with a quite detailed 3D model as a result.5. Standford sheep plush
We thought the Stanford sheep plush was an interesting object to 3D scan, as it is highly detailed with a difficult material and challenging details, including small hanging parts. The result is very satisfying with a nicely rendered wool and a realistic bandana! The Autopilot mode was a precious help to accelerate the process, but we had to manually align the 3D scans to get a full watertight mesh.6. Big suitcase
After performing several 3D scans of small objects we decided to test the Artec Eva performance on a big sized suitcase (1.2 x 0.8 x 0.6 meters) of dark blue color, with reflective features and small rubber wheels. This is a quite difficult object to 3D scan, and yet we obtained amazing mesh results. The colors are too dark, but that can be fixed with a little work on the texture file. Once again we had to manually align the 3D scans as the automatic feature did not manage to get it right. We also put some yellow tape on the back of the suitcase to have a few distinctive features in order to perform the alignment of the 10 different 3D scans we collected.VALUE
Value rating: 3.5/5
The Artec Eva and Artec Studio 11 Ultimate combination is very effective, offering an excellent user experience. For professionals who want a powerful and flexible portable 3D scanner, the Artec Eva is one of the best options on the market. However, at $19,800 (without counting a very powerful computer) this 3D scanner does not come cheap and that can be a serious turn down for small business and companies. We believe Artec could include in the Artec Eva package some of the optional equipment to make it more appealing, such as the rigid transport case and the battery pack.Artec Eva review: CONCLUSION
Aniwaa's opinion: 4.4/5
Our overall rating reflects our experience with the Artec Eva 3D scanner, in the specific uses cases described.| Weight | Rating | |
| Packaging | 1 | 2.5/5 |
| Overview and setup | 2 | 5/5 |
| Experience | 2 | 4.5/5 |
| 3D scan results | 2 | 5/5 |
| Value | 1 | 3.5/5 |
| FINAL RATING | 4.4/5 |
PROS:
- Overall performance and 3D scans quality (meshes)
- User experience of Artec Studio 11 Ultimate
- User experience of the Artec Eva
CONS:
- Price: definitely an expensive device, albeit a powerful one
- Connectivity and alimentation cables
| Brand: | Creaform |
| Model: | MetraSCAN 750 |
| Price: | > $50,000 |
| Rating: | 5/5 |
The Creaform quality control solutions for every part size.[/caption]
[caption id="" align="aligncenter" width="600"] Mapping of the Creaform quality control solutions with their respective operating ranges.[/caption]
Creaform also offers a more affordable range of portable 3D scanners: the Go!SCAN 50 and the Go!Scan 20.
Today, we are doing an hands-on review of the most powerful and flexible portable 3D scanning solution by Creaform, the MetraSCAN 750. The MetraSCAN 750 is an Optical CMM (Coordinate Measuring Machine) and is part of a full system, complete with the C-Track sensor.
Discovering the Creaform MetraSCAN 750 at the Creaform - AMETEK offices in Tokyo, Japan
We have been invited by the Creaform team in Tokyo to visit their offices and perform a hands-on review of three of their portable 3D scanners, the MetraSCAN 750, the HandySCAN 700 and the Go!SCAN 50. This review focuses on the MetraSCAN 750. [caption id="" align="aligncenter" width="600"] The full setup of the Creaform MetraSCAN 750 solution.[/caption]
The Creaform MetraSCAN 750 is a complete solution for accurate 3D scanning. The minimal configuration includes the C-Track (the big sensor in the corner of the room), the C-Track Controller (The black box with a screen on last chair) and the MetraSCAN 750 itself, the portable sensor on the table. This system can be upgraded with the addition of the HandyPROBE (visible on the table). The bar held by the operator is used to perform the calibration of the C-Track.
[caption id="" align="aligncenter" width="500"] The C-Track sensor.[/caption]
The C-Track sensor is used by the system to acquire the position of the MetraSCAN or the HandyPROBE. It is also capable of tracking the part itself in 3D space, when the part is equipped with markers (the recommended use case).
[caption id="" align="aligncenter" width="500"] The C-Track Controller.[/caption]
This device is the C-Track Controller. It is an industrial-grade computer that coordinates all devices involved in a HandyPROBE or MetraSCAN 3D system. It is quite big and heavy but very quiet.
[caption id="" align="aligncenter" width="500"] The MetraSCAN 750.[/caption]
The MetraSCAN 750 itself is the optical sensor at the heart of the measurement system. At the center of it stands the handle, surrounded by reflectors used by the C-Track to precisely locate the position of the device in space. The MetraSCAN itself casts lasers to 3D scan the parts (laser triangulation 3D scanning technology). It is equipped with multi-function buttons to achieve a number of functions:
1/ Launching the Smart Control (an interface containing all the major controls of the 3D scanning system) and activating software commands.
2/ Controlling the 3D display of the software, using the device as a 3D mouse (a function called 3D Display Control). In this mode, the MetraSCAN can be used to interact with the 3D model like you would do with a Nintendo Wiimote. This may sounds like a gadget feature but in fact it is a huge asset for a great user experience. This very interesting function allows to rotate, pan and zoom the 3D scan while holding and moving the 3D scanner.
The main evolutions of the Creaform MetraSCAN 750 compared to the previous version are:
- 1.5X more accurate
- 12X faster with 7 laser crosses
- 25% lighter (weights 1.38kg)
- 3D Scans any type of material, even black, multi colored and shiny surfaces
- Greater volume of 16.6 m3 (586 ft3)
- Sturdy design for shop-floor hardware reliability
- Multi-function buttons for easier interaction with the software
Close up of the HandyPROBE. It can be comfortably held two different ways.[/caption]
The HandyPROBE is an additional sensor, also used in combination with the C-Track. Is it possible to only buy the HandyPROBE and C-Track system, or the HandyPROBE along with the MetraSCAN.
The HandyPROBE is dedicated for precision measurement. The sensor only weights 0.5 kg and can be held in two different ways (cf. above pictures). Both the MetraSCAN and the HandyPROBE received a Red Dot Design award in 2016 for the quality of their design.
Getting started with the Creaform MetraSCAN 750
-
Packaging
The C-Track transport case.[/caption]
[caption id="" align="aligncenter" width="500"] The MetraSCAN 750 transport case.[/caption]
-
Calibration process
Calibration of the C-Track.[/caption]
First the C-Track must be calibrated, a process achieved with the long vertical bar held by the operator.
[caption id="" align="aligncenter" width="500"] Calibration of the C-Track with the MetraSCAN 750.[/caption]
On a second step, the C-Track must be calibrated with the MetraSCAN 750 itself. The interactions is a bit like playing a video game in 3D, where you must position the MetraSCAN in specific locations in the room.
[caption id="" align="aligncenter" width="500"] Calibration of the MetraSCAN 750.[/caption]
The MetraSCAN 750 itself must been calibrated, with a custom made IR plate. Each calibration process takes around 5 minutes.
Testing the Creaform MetraSCAN 750
[caption id="" align="alignleft" width="300"] The MetraSCAN 750 in hand.[/caption]
For this hands-on review, the Creaform team performed the setup of the C-Track and the MetraSCAN 750, along with the full calibration of the device. We were then allowed to directly hold in hand the MetraSCAN 750 to perform the 3D scan ourselves.
The MetraSCAN 750 is a sturdy product with a very nice finish. For an industrial-grade scanner, it looks really good and its ergonomics have been optimized. With a weight of 1.38 kg, it is not to heavy and can be comfortably held with one hand. The handle is quite big so it is easier to hold if you have big hands. The multi-functions button interface is positioned right above the handle, but manipulating them requires to hold the MetraSCAN from below with your over hand.
The cage-like structure that surrounds the handle must not be tampered with because it holds the optical reflectors used by the C-Track to locate the MetraSCAN.
-
Reverse engineering use case
Clutch and transmission housing side by side with the CAD model.[/caption]
After performing the full 3D scan of the part, the software can display the displacement values between the original CAD model and the generated 3D mesh from the scan. The MetraSCAN software (VXElements) is capable of producing a mesh in real time (real time fusion). The 3D scans are automatically stitched and fused together to create a unique 3D file. Even when you stop and resume 3D scanning of the same part, the software can realign automatically the newly generated data, and add details to an already existing geometry. All of these operations are fast and done automatically without any required action from the operator.
[caption id="" align="aligncenter" width="500"] Measuring the offset between the CAD model and the real part inside VXElements software.[/caption]
The MetraSCAN can work in two different modes, the "cross grid" and "single beam" modes. The beams are in fact a single laser point moved very fast. The MetraSCAN can cast simultaneously 7 crosses, while the MetraSCAN 350 is capable of only 3.
Cross grid mode is for faster data capture, while the single beam mode is used to go deeper into pockets and harder to reach areas. A standard 3D scan would begin with the cross grid mode to acquire quickly the part, and the single beam mode on a second step for very high precision 3D scan and details acquisition.
[caption id="" align="aligncenter" width="500"] The MetraSCAN 750 in use, with the 7 laser crosses mode.[/caption]
The MetraSCAN itself is connected to a computer via a USB 3 port. The laptop used in this demonstration is the recommended computer provided by Creaform. This is a powerful HP laptop with a Windows 7 OS 64 bits, 32 Gb of RAM and a Nvidia Quadro K1100M GPU. Windows 10 is not officially supported but some Creaform clients use it successfully.
[caption id="" align="aligncenter" width="500"] The specific Ethernet to USB 3 adapter.[/caption]
-
Advanced 3D scanning use cases
3D scanning thin and reflective material with the MetraSCAN 750.[/caption]
We were then able to test another difficult use case. We scanned two objects made of different materials and textures. The white mouse is shiny with no asperities, the black box has a plastic grain and is matte.
[caption id="" align="aligncenter" width="500"] Performance in very demanding scenario, 3D scanning black and white reflective objects.[/caption]
The results are once again amazing. Without any preparation, the generated mesh is dense and detailed, for both objects. This was made possible using what is called the HDR mode. In the VXElements software, a "lighting" parameter can be modified to optimize simultaneously the capture or dark and white objects.
[caption id="" align="aligncenter" width="500"] Performance in very demanding scenario, 3D scanning black and white reflective objects. The result is amazing.[/caption]
Conclusion
Aniwaa's opinion: 5/5
The MetraSCAN 750 is a complete 3D scanning solution designed for industrial uses cases. This is the first time we had the opportunity to experience such a high-end 3D scanner. The user experience of the MetraSCAN is excellent, with fast and efficient software, and an ergonomic sensor. We particularly like the multifunction button interface, specifically the interaction modes where the MetraSCAN 750 can be used as a 3D mouse to manipulate the 3D files. The calibration of the whole system takes time but conducted step by step it is not a complicated process, and once done in a specific environment to does not need to be performed again. Regarding the 3D scanning performance, the MetraSCAN 750 is simply the best performing 3D scanner we ever had the opportunity to test (it's also among the most expensive!). It is fast and works on any parts and object. We carry out tests of 3D printers, 3D scanners and 3D filaments in our lab in Tokyo. Get in touch if you’d like us to review your products! [post_title] => [Hands-on] Test and review of the Creaform MetraSCAN 750, an optical CMM 3D scanner solution [post_excerpt] => [post_status] => publish [comment_status] => closed [ping_status] => closed [post_password] => [post_name] => hands-on-test-and-review-of-the-creaform-metrascan-750-an-optical-cmm-3d-scanner-solution [to_ping] => [pinged] => [post_modified] => 2019-02-15 07:32:42 [post_modified_gmt] => 2019-02-15 06:32:42 [post_content_filtered] => [post_parent] => 0 [guid] => https://www.aniwaa.com/?p=29333 [menu_order] => 0 [post_type] => post [post_mime_type] => [comment_count] => 0 [filter] => raw ) [11] => WP_Post Object ( [ID] => 28814 [post_author] => 203 [post_date] => 2016-05-09 09:21:57 [post_date_gmt] => 2016-05-09 07:21:57 [post_content] =>Disclaimer: the comments and opinions expressed in this review are the results of our own (limited!) experience with the product. As always, we try to provide context to give a fair overview of the product. We strive to remain impartial and unbiased, and we have not received any payment or compensation of any form for writing this article. RangeVision lend us a Smart 3D scanner for free.
This article was updated in January 2018 to reflect the evolutions of the RangeVision software (ScanCenter and MergeCenter) and their influence on the Smart's capabilities.| Brand: | RangeVision |
| Model: | Smart |
| Price: | $2,590 |
| Rating: |
INTRODUCTION
Today, we‘re testing the RangeVision Smart, a desktop 3D scanner. This article aims to give a fair evaluation of this affordable 3D scanner through the 3D scanning of standard 3D objects. RangeVision is a Russian company with products available in more than 20 countries, through a dense network of resellers, the majority of them being in Europe and Asia. RangeVision has been selling professional 3D scanners for more than a decade with their Standard Plus and Advanced lineups. RangeVision 3D scanners are based on structured light technology. The basic principle: a video projector casts a pattern on a 3D surface. The surfaces modifies the pattern in a specific way which is captured by 2 cameras. This pattern deformation allows the 3D scanner to calculate the 3D surface's topology and to create a 3D mesh. [caption id="" align="aligncenter" width="600"] Our RangeVision Smart 3D scanner and automatic turntable setup.[/caption]
RangeVision recently introduced an affordable desktop 3D scanner called the Smart. The Smart is available in 3 colors: grey, red and yellow.
Objects used for tests 3D scans: a wooden hand (usually a drawing reference for art students), a hand, a shoe and a small figurine.
--------------------UPDATE 01/2018--------------------
Since our RangeVision Smart test, the manufacturer released several new versions of their software suite. Some significant changes were achieved following our feedback. The major changes notably include the following upgrades: ScanCenter 2016.3- Texture scanning for all models, including out-of-production 3D scanners
- Auto white balance for texture scanning
- Light filters check
- Improved markers algorithm
- Realign function for incorrect aligning with markers
- Improved performance and model visualization for low-end PC
- Improved frame-rate test
- Alarm sound for cameras warming up
- Show/hide scan in ScanCenter
- Clipping planes depending on FOV
- Auto turntable rotation direction set
- Auto display setting correction in OS
- Manuals download
- Auto groups registration
- Auto local registration
- Visualising sphere diameter while deleting markers
- Aligning by points
- Improved alignment and trimming by plane
- Fixed and improved Configuration Wizard
- Export to OBJ type 2
- Camera resolution selection
- Test scanning
- Test texture snap
- Indication of clipping planes
- New texturing
- Improved scanning with markers
- Automatic turntable calibration
- Font scaling
- Sped-up data loading
- Dynamic adjustment of mouse sensitivity
- New local scan registration
- New united model building method
- Trimming unnecessary fragments with part selection
- Trimming of underlying surfaces
- Model scaling
- Automatic calculation of camera frequency
- Automatic software update
- Developer feedback
- Calibration process in the software was improved and speeded up.
- Now the user can specify the ambient temperature to improve the accuracy of the calibration.
- Option to repair the model in the MeshFix added.
- Undo/redo actions added in the ScanMerge.
- New .rv3d format for the ScanMerge added.
- Model export in .ptx format added.
- Program performance and overall user experience were improved.
-------------------------------------------------------------
PACKAGING
Packaging rating: 5/5
-
Unboxing: a nice packaging, including a transport case
The RangeVision Smart packaging.[/caption]
The RangeVision Smart is delivered in a thick cardboard which contains a rigid transport case. The case has a nice aluminum finish and is quite strong. It is not often that such a case is included with an affordable product such as the Smart. Everything inside the box is protected by a thick foam, with the 3D scanner being well surrounded by this soft material.
-
Instructions manual
-
Accessories
OVERVIEW AND SETUP
Overview and setup rating: 2.5 3.5/5
-
Software -
24/5
--------------------UPDATE 01/2018--------------------
The full software package is now a lot smaller, weighing only 237 Mb, almost a 50% reduction. The new installation file also includes all the necessary drivers (cameras, automatic turn table, etc.) which allows for a simpler and faster installation.-------------------------------------------------------------
-
Hardware - 3.5/5
-
Getting started -
23/5
- Calibrate the 3D scanner.
- Position the object in front of the scanner, on the rotating table if you have one.
- Launch the scan function in the RangeVision ScanCenter which will capture one side of the object.
- Repeat the scan until you obtain scans from all the sides of the object (automatically done if you have the turntable).
- Import the 3D scans inside the RangeVision MergeCenter with the integrated function of ScanCenter.
- Align and run the registration function to obtain a simple 3D file from the multiple 3D scans.
--------------------UPDATE 01/2018--------------------
The video tutorials have been upgraded, which means less confusion. This recap of all the ScanCenter functions is very useful. Also, now it is mandatory for all RangeVision retailers to conduct training for new users. This way they can get all the basics and more in their native language or, at least, in English. The calibration process is made more intuitive thanks to functions being better annotated within the software. Also, all the buttons were grouped in a better, more logic way. [caption id="" align="aligncenter" width="600"] A smoother calibration process.[/caption]
The calibration of the ATT can now be performed without a calibration plate, directly with the part to be 3D scanned.
[caption id="" align="aligncenter" width="600"] ATT calibration performed directly with the 3D model.[/caption]
-------------------------------------------------------------
EXPERIENCE
Experience rating: 4/5
-
Software - 4/5
Aligning the meshes is easy for a simple object, for more complex ones it gets a bit tricky because the visibility is not optimal and the manipulation tool is only based on mouse buttons. A manipulation trihedron, like in most CAD software, would be very useful. Smoothing and hole filling tool should also be more complete and easier to use.
However, after some practice time, it gets easier to understand how everything works and the realign feature gets more effective.
--------------------UPDATE 01/2018--------------------
The undo feature has been successfully implemented, for a much better user experience. ScanCenter now boasts a dedicated set of tools for defining a parametric 3D scanning zone, depending on the specific use case. [caption id="" align="aligncenter" width="600"] RangeVision ScanCenter 3D software cylinder acquisition parametrization.[/caption]
Cleaning tools of MergeCenter were also improved, notably with the ability to automatically remove a specific zone of all 3D scans, such as the ATT surface.
[caption id="" align="aligncenter" width="600"] RangeVision MergeCenter automatic cleaning tools with surface selection and recognition.[/caption]
-------------------------------------------------------------
-
3D scanning - 4/5
3D scanning with the automatic turntable of the RangeVision Smart simplifies the whole experience and process.[/caption]
Without the turntable, the user is required to press the Scan button, then manually turn the object and repeat these steps until the object is scanned from all sides. 5 to 6 scans can be enough to provide a 360° model of the object.
The major constraint to 3D scanning with the Smart is to simultaneously use 4 different USB ports. One for each camera, one for the turntable and one for the Licence USB key. Only a few laptops are equipped with so many USB ports, and that would prevent you from to using an external USB mouse, which is more than helpful to do the merging operations.
The long warm-up time is also painful, we regularly experienced more than 12 minutes delay between the installation of the scanner and being able to start 3D scanning. The turntable works really well and for 360 degrees scans it is a great option. 3D scans are quick to perform, 12 captures being sufficient for a full 360, each capture takes less than 5 seconds. Like with all 3D scanners the Smart does not like shiny objects or dark ones. The use of a mattifier spray can solve this issue.
--------------------UPDATE 01/2018--------------------
The warm up process has been accelerated and is now less stringent, 5 minutes now being sufficient. RangeVision gave us some background on this important feature: warming up of cameras came from the professional 3D scanners and is needed for a stable temperature of sensors in it. The physical size of pixels depends on temperature. For the best possible results (accuracy-wise) it is recommended to wait until warming up is completed however it can be skipped once cameras temperature reach 40°C.-------------------------------------------------------------
3D SCANS RESULTS
3D scans results rating: 4/5
1. Wood hand model
[caption id="" align="aligncenter" width="600"] 3D scan of a wooden hand with the Smart.[/caption]
This hand is used as a reference for drawing. It is only made of one material, wood. A mono texture object is always simple to 3D scan. This object has a lot of details and a huge variety of depth (holes between the fingers) which are hard to scan. This object is 120 x 70 x 40 mm. We performed 8 different scans by manually moving the object.
Scan Wood Hand Model by aniwaa on Sketchfab
[caption id="" align="alignleft" width="300"] 3D scan of a human hand with the Rangevision smart 3D scanner.[/caption]
2. Human hand
We performed a scan of my own hand, with only 3 different captures. The result is good, even if it was difficult not to move the hand at all. Small offset stripes (due to the structured light technology) can be seen on the 3D model.4. Shoe
This leather sneaker is size 10. It is white and highly reflective, which makes it a very difficult object to scan. We performed 12 automatic 3D scans with the rotating table. The Field Of View of the scanner was a bit small compared to the scan of the shoe but the result is very good. Only the black sticker was not captured. [caption id="" align="aligncenter" width="600"] 3D scan of sneaker shoe.[/caption]
[caption id="" align="alignright" width="300"] 3D scan of a small figurine.[/caption]
5. Figurine
The figurine is a classic use case for evaluating 3D scanners. This one is quite complex with different colors and textures, and is has many details. We performed 12 automatic 3D scans with the rotating table. The result of this 3D scan is very good, with a nice level of details. On this model, the realignment function of the ScanMerge software performed nicely and swiftly. A better mesh could have been obtained by combining scans from the top and bottom of the object.--------------------UPDATE 01/2018--------------------
6. Mikhail Skobelev bust
This small sized statue is the portrait of Mikhail Skobelev, a famous Russian general. It is plaster made and, interestingly enough, the part was broken and then glued back together. On the high-resolution mesh (on the left), it is possible to see the small groove on the left lower part of the statue's support. [caption id="" align="aligncenter" width="600"] Side by side models with two different export qualities.[/caption]
-------------------------------------------------------------
VALUE
Value rating: 4.5/5
The RangeVision Smart is a good desktop 3D scanner with an excellent price-to-performance ratio. It is one of the most affordable 3D scanners capable to delivering good and detailed results.CONCLUSION
Aniwaa's opinion rating: 4.1/5
Our overall rating reflects our experience with the RangeVision Smart 3D scanner, in the specific uses cases, we describe.| Weight | Rating | |
| Packaging | 1 | 5/5 |
| Overview and setup | 2 | 3.17/5 |
| Experience | 2 | 4/5 |
| 3D scan results | 2 | 4/5 |
| Value | 1 | 4.5/5 |
| FINAL RATING | 4.1/5 |
PROS
- Price to performance ratio
- Manufacturing quality and accessories
- Flexible and very capable for several different use cases
CONS
- Software is difficult to use and offers limited options
- Tedious setup and getting to use the 3D scanner
--------------------UPDATE 01/2018--------------------
After dramatic software improvements (ease of use, setup and automatic features) the RangeVision Smart anchors itself in the entry-level professional 3D scanners. One interesting alternative in the same price range is the Open Technologies Scan In A Box, which offers less accessories but a similar level of performance.
-------------------------------------------------------------
We carry out tests of 3D printers, 3D scanners and 3D filaments in our lab. Get in touch if you’d like us to review your products! [post_title] => [Review] The Rangevision Smart, an affordable desktop 3D scanner [post_excerpt] => [post_status] => publish [comment_status] => closed [ping_status] => closed [post_password] => [post_name] => our-test-and-review-of-the-smart-a-desktop-3d-scanner-by-rangevision [to_ping] => [pinged] => [post_modified] => 2019-01-24 23:09:10 [post_modified_gmt] => 2019-01-24 22:09:10 [post_content_filtered] => [post_parent] => 0 [guid] => https://www.aniwaa.com/?p=28814 [menu_order] => 0 [post_type] => post [post_mime_type] => [comment_count] => 0 [filter] => raw ) [12] => WP_Post Object ( [ID] => 27976 [post_author] => 203 [post_date] => 2016-03-11 07:25:34 [post_date_gmt] => 2016-03-11 06:25:34 [post_content] => Disclaimer: the comments and opinions expressed in this review are the results of our own (limited!) experience with the product. As always, we try to provide context to give a fair overview of the product. We strive to remain impartial and unbiased, and we have not received any payment or compensation of any form for writing this article. Fuel3D lend us a SCANIFY 3D scanner for free.| Brand: | Fuel3D |
| Model: | SCANIFY |
| Price: | $1,490 |
| Rating: | 3.6/5 |
INTRODUCTION
Today, we‘re going to test the Fuel3D SCANIFY, an entry-level portable 3D scanner. This article aims to evaluate the performance of this 3D scanner in action and to benchmark it against some of the most famous 3D scanners on the market. The SCANIFY is Fuel3D’s flagship model with a retail price of $1,490. We’ve been following Fuel3D for a few years now. This is one of the few startups in the 3D scanning/3D printing ecosystem which successfully raised money on Kickstarter ($325,343 to be exact) and actually managed to deliver a working product on time, the SCANIFY. It’s also interesting that this UK manufacturer is pretty much the only new company to focus solely on 3D scanners, while there’s been plenty of startups entering the 3D printing hardware space. A few weeks ago, we asked the Fuel3D team in the UK about testing their SCANIFY 3D scanner. We had already seen the scanner in action at the 3D Print Show in Paris last year, but we never had the opportunity to perform an in-depth test and review. We also wanted to benchmark the SCANIFY against other 3D scanners at various price points, so we performed several tests using 3D scanners we have access to in our testing lab. Useful resource: we’ve listed all the handheld 3D scanners currently available on the market in our top 20 portative 3D scanners list. Enough talk, let’s start this review now.PACKAGING
Packaging rating: 5/5
-
Unboxing: a nice packaging with thick foam and a well protected product
Fuel3D SCANIFY portative 3D scanner and its packaging[/caption]
-
Instructions manual
-
Accessories
OVERVIEW AND SETUP
Overview and setup rating: 3.5/5
-
Software - 4/5
The two faces on the left were scanned using the old version of the software, the two faces on the right were processed with the new software (2.1) using the cloud engine processing, with much more accurate results[/caption]
-
Hardware - 3/5
The 3D printed marker holder on the Zortrax M200[/caption]
EXPERIENCE
Experience rating: 3.5/5
-
Software - 4/5
-
3D scanning - 3/5
Illustration of the 3D scanning process with a photogrammetry device[/caption]
The process of scanning with the SCANIFY is similar to taking several pictures all around the subject. Then the software does all the job of reconstructing a 3D model from all this data. Between each capture, it is required to wait until the flashes cool off, which takes around 4-5 seconds. It can be quite frustrating when you have several shots to perform to fully capture an object in 3D. Working with good lighting conditions (uniform, not too many strong shadows) is helpful to obtain better results.
Regarding applications and use cases, Fuel3D recommends to use their scanner to capture 3D models of the following objects: low relief and sculptures, plants and flowers and human faces. The SCANIFY is not designed for other uses cases such as full body scanning, reverse engineering, etc. The use cases are pretty limited so you need to take that into account if you're considering purchasing a SCANIFY.
[caption id="" align="aligncenter" width="600"] Recommended applications of the Fuel3D SCANIFY[/caption]
To capture the scans, the SCANIFY is required to have a good view of the marker, so before scanning, you need to make sure the markers are well positioned. This is kind of difficult to do because you need these markers to be visible by the cameras, while not to hiding the object you want to scan. At the same time, you need to find the optimal way to hold the scanner, check what it sees and verify the relative position of the marker towards the object. It definitely took us some time to practice and learn how to do this properly.
For face 3D scanning, the process is really intuitive with the marker holder and the fact that the capture is instantaneous (compared to face scanning using a structured light 3D scanner for example).
The scanner itself felt comfortable to hold with its very cool design and its 2 handles. The buttons on the top are used to capture the 3D scans. Pressing any of them takes the shot. It is also possible to hold the SCANIFY with only one hand in order to scan yourself (3D selfie!).
There is also a standard mount to easily connect it to a tripod. However, the proximity to the connectivity plugs makes it only compatible with smaller tripods (the connectivity slots for USB, power, and future extension plug are positioned right under the tripod mount slot).
[caption id="" align="aligncenter" width="600"] The SCANIFY in hand and mounted on a tripod[/caption]
The scanner is portative but not wireless, as it has to be connected to the computer via USB and to a power plug to work. It’s possible to use the SCANIFY with a tablet for a wireless experience but we haven’t tested this configuration, called the mobile package. This mobile package retails for $50 and contains a battery pack, cables and 3D printable file for a windows tablet mount.
[caption id="" align="aligncenter" width="600"] The wireless version of the SCANIFY with the mobile package[/caption]
3D SCANNING RESULTS
Scanning results rating: 3.5/5
A) 3D scanning human faces: SCANIFY vs Intel RealSense vs Einscan-Pro vs Artec Spider
Human face 3D scanning is one of the highlights of the SCANIFY. We’ve compared the results we obtained against face scans from other well-known 3D scanners that we've tested before. All these scans were performed under the same conditions, inside an office without specific lighting. We used the software provided by the respective manufacturers and did not perform any additional corrections, except the automatic ameliorations. [caption id="" align="aligncenter" width="600"] Fuel3D SCANIFY[/caption]
[caption id="" align="aligncenter" width="600"] Intel RealSense[/caption]
[caption id="" align="aligncenter" width="600"] Shining 3D Einscan-Pro[/caption]
[caption id="" align="aligncenter" width="600"] Artec Space Spider[/caption]
Fuel3D SCANIFY - $1,500 - 4/5
- Mesh Quality - 3/5: The mesh is really good in the center, the cheeks have less details and are more approximate.
- Texture Quality - 5/5: Excellent quality of the textures due to the technology and high resolution of the cameras.
Intel RealSense - $99 - 3/5
- Mesh Quality - 4/5: The mesh quality is really good. Dense and detailed.
- Texture Quality - 2/5: Texture quality is quite poor, the resolution of the sensor is limited to 640 x 480.
Shining 3D EinScan-Pro - from $3,999 - 4/5
- Mesh Quality - 4/5: High mesh quality, hair tends to degrade the performance.
- Texture Quality - 4/5: Good sensor quality. However, the color module is in option and costs an extra $700.
Artec Space Spider - $27,600 - 5/5
- Mesh Quality - 5/5: Excellent mesh resolution and accuracy.
- Texture Quality - 5/5: Texture is very detailed and high resolution. Colors are less realistic compared to the SCANIFY. The example is not very good as it is a picture we took with a smartphone of the computer screen.
B) 3D scanning a plush: SCANIFY vs Makerbot Digitizer
We wanted to test the SCANIFY on a small object and opted for 2 plushies. They are difficult to scan because of their specific texture. Totoro is a famous Miyazaki character, while Fuji-san is the little embodiment of Mount Fuji, the greatest sacred mountain in Japan. [caption id="" align="aligncenter" width="600"] The two small plushes we 3D scanned. Totoro on the left, Fuji-san on the right[/caption]
[caption id="" align="aligncenter" width="600"] 3D scans of Totoro and Fuji-san plushes with the Fuel3D SCANIFY[/caption]
[caption id="" align="aligncenter" width="600"] 3D scans of Totoro and Fuji-san plushes with the MakerBot Digitizer[/caption]
Fuel3D SCANIFY - $1,500 - 3/5
- Mesh Quality - 2/5: Very good mesh quality on local parts of the object. Extremely difficult to obtain a full 360 scan.
- Texture Quality - 4/5: Very good quality of the textures due to the rendering technology and high resolution of the cameras.
MakerBot Digitizer - $799 - N/A
- Mesh Quality - 0.5/5: Difficult to recognize the shape of the plush.
- Texture Quality: No texture
VALUE
Value rating: 3/5
The Fuel3D SCANIFY is an interesting product but limited to very specific uses cases: face 3D scanning and low relief. For other situations, there are better (but more expensive) alternatives.CONCLUSION
Aniwaa's opinion rating: 3.5/5
Our overall rating reflects our experience with the Fuel3D SCANIFY 3D scanner, in the specific uses cases described.| Weight | Rating | |
| Packaging | 1 | 5/5 |
| Overview and setup | 2 | 3.5/5 |
| Experience | 2 | 3.5/5 |
| 3D scan results | 2 | 3.5/5 |
| Value | 1 | 3/5 |
| FINAL RATING | 3.6/5 |
| Brand: | Artec |
| Model: | Space Spider |
| Price: | $27,600 |
| Rating: | 4/5 |
Introduction
There are not many options on the market in the portable 3D scanner category. We wrote a full article on the topic here. Out of these twenty 3D scanners, the two most established manufacturers and biggest players in the industry are Creaform (from Canada) and Artec (from Luxembourg). Being regular Artec users ourselves (we use an Artec Eva Lite, the entry-level version of the Artec Eva, without color texture capabilities), we were excited to lay our eyes (and hands!) on the latest release from Artec, the Space Spider. The Artec Spider ($22,600) and Space Spider ($27,600) are the high-end products of the Artec product line. They are designed for high-precision scanning and perform very well on small to mid-size objects. For bigger objects and full body scan, the company offers other options, such as the Eva or the L2.
The Artec product line: each 3D scanner covers a specific size range.
To put the chart above in context, we've reached out to Artec and they mentioned that even if each product has a core application field and performs very well on a specific object size range, they are also versatile and can be used in many different situations.
As an example, the Eva has been used for quality inspection on much bigger objects such a bus with great results. As for the Space Spider, it was designed with metrology and reverse engineering applications in mind but can also be a powerful tool in various use cases.
Discovering the Artec Space Spider @ Data Design, Yokohama, Japan
So here I am, boarding the train from Tokyo to Yokohama on this cold Wednesday, February 9. We've heard and read of few things about the Space Spider since it was introduced on the market last year and we're quite curious to see for ourselves what this new standard in portable 3D scanners is all about. With a $27,600 price tag, this 3D scanner is not exactly cheap and finding one not so easy. After getting in touch with the manufacturer, we were introduced to an official Japanese reseller named Data Design, based in Yokohama (1 hour train south of Tokyo). Data Design offers full packages of industrial-grade solutions, including CAD/CAM software, 3D printers and 3D scanners. They carry the full Artec lineup, including the Shapify Booth for 3D bodyscanning. I had the pleasure to meet the Data Design team who not only greeted me with a warm welcome, but also deliver top advice - all in a perfect english (which is not common in Japan, and extremely nice for a gaijin like me!).Overview of the Space Spider
There it is, I finally have my hands on the Artec Space Spider. A few words of context first. The Space Spider bears its name because it was an upgrade of the existing Spider model. The Space Spider was specifically developed for NASA in order to be used in, well, space. The Space version offers better electronics for a fast start up (3 minutes against 30 minutes for the regular Spider). With this upgraded electronics, the operating temperature of the Space Spider is of only 36.6 degrees, much easier and faster to achieve, and to maintain. The 3D scanning technology of the Spider is based on blue LED structured light. This makes it possible to perform 3D scans outside, even if this is not the optimal scenario.
Artec Spider VS Artec Space Spider optimal operating temperature
The 3D scanner is connected to the computer by USB 3.0 (USB 2.0 is also OK) and it is also connected to a power plug. Note that this version can also operate on battery, but it is still not fully wireless (almost none of the existing portable 3D scanners are wireless).
In more than 50% of use cases, the Space Spider is used for metrology or reverse engineering applications. Other popular application fields include cultural heritage preservation and body parts scanning.
Testing the Artec Space Spider
The Artec Space Spider in hand
This 3D scanner is capable of producing 3D models with an amazing level of details of small and intricate objects. I was able to do some tests on a TV remote of dark color. The result is amazing (see pictures below). With a combination of only two 3D scans (one from the top and one from the bottom) the 3D mesh is really highly detailed and the texture are of great quality.
The Space Spider with TV remote on the manual turntable
I used a manual turntable for this scan. By holding the Space Spider steady in place and slowly turning the turntable by hand, the result was really good. The latest version of the Artec Studio 10 software (a lot easier to use and faster compared to the 9.2 version I have) performed well on a laptop equipped with 32Gb RAM and a Nvidia graphics card.
A remote control scanned with the Space Spider
The Sharp Fusion feature is amazing for smoothing out the mesh without losing any critical details. It's also interesting that the Space Spider is compatible with tripod installation. The handle is comfortable and ensures a very good grip. One downside I found is the balance of the scanner when held in hand. I found it a bit too heavy towards the bottom which tends to make the scanner slightly tilt if you don't compensate for it. The manufacturer mentioned it was actually designed this way on purpose since the Space Spider is often used to capture objects from above, so the scanner has to be tilted down anyway.
3D scanning my face with the Space Spider
On a second use case, a member of the Data Design team performed a 3D scan of my face. This scanner is not intended to be used this way (the performance on black hair is not very good) but I must say I was astonished by the results. The mesh came out detailed and clean, while the texture rendering was extremely precise and lifelike.
The face scan result
On these two use cases, it is the best performance I have seen so far using a portable 3D scanner.
Conclusion
Aniwaa's opinion: 4/5
In this price range, the Artec Space Spider has few competitors, mainly the Creaform Handyscan series (also handheld devices but more expensive). Compared to the Artec Eva, the Space Spider performance is a lot better, but again keep in mind each scanner is intended for different applications. If you don't need high-precision scanning than the Eva will likely be a better fit, as it's faster and offers a wider field of view (and it's also cheaper!). The upgraded hardware of the Space Spider allows for a fast warm up and a constant performance during operation, which is a key feature for metrology and reverse engineering applications. That said, the steep price hike between the Spider ($22,600) and the Space Spider ($27,600) may turn off some potential buyers. The recently introduced EinScan-Pro by Shining 3D could become an interesting alternative, for use cases when metrology-grade performance is not required. Sure, the overall performance is strongly in favor of the Space Spider but the EinScan-Pro has a smooth user experience and costs less than a third of the Spider. [caption id="" align="aligncenter" width="500"] The Artec Space Spider from above.[/caption]
We carry out tests of 3D printers, 3D scanners and 3D filaments in our lab in Tokyo. Get in touch if you’d like us to review your products!
[post_title] => [Hands-on] The Artec Space Spider, a portable 3D scanner
[post_excerpt] =>
[post_status] => publish
[comment_status] => closed
[ping_status] => closed
[post_password] =>
[post_name] => a-hands-on-review-of-the-artec-space-spider
[to_ping] =>
[pinged] =>
[post_modified] => 2019-02-15 07:27:47
[post_modified_gmt] => 2019-02-15 06:27:47
[post_content_filtered] =>
[post_parent] => 0
[guid] => https://www.aniwaa.com/?p=27446
[menu_order] => 0
[post_type] => post
[post_mime_type] =>
[comment_count] => 0
[filter] => raw
)
[14] => WP_Post Object
(
[ID] => 27461
[post_author] => 203
[post_date] => 2016-02-10 04:59:12
[post_date_gmt] => 2016-02-10 03:59:12
[post_content] => Disclaimer: the comments and opinions expressed in this review are the results of our own (limited!) experience with the product. As always, we try to provide context to give a fair overview of the product. We strive to remain impartial and unbiased, and we have not received any payment or compensation of any form for writing this article. We have tested the Shining 3D EinScan-Pro during the Tokyo 3D Printing Show in 2016.
| Brand: | Shining 3D |
| Model: | EinScan-Pro |
| Price: | $4,500 |
| Rating: | 4.2/5 |
Introduction
You might not know this company yet, but Shining 3D is the #1 company on the Chinese stock exchange, for the 3D digitizing and 3D printing industry. Shining 3D was founded in 2004 and got listed on the stock market on August 8, 2014. The company's headquarter is located in Hangzhou and there are branches in Shanghai, Beijing, Nanjing, Guangzhou, Chengdu, and several other major Chinese cities. If you've heard about them already, it might be thanks to their Einstart-S or Einstart-L 3D printers or the recently introduced Einscan-S desktop 3D scanner. Indeed, Shining 3D boasts an impressive lineup of products, including industrial 3D printers and scanners.Discovering the Shining 3D EinScan-Pro at the 3D Printing Show Tokyo 2016
Their latest release is the Einscan-Pro: a mid-range handheld 3D scanner, designed for professional use. Introduced at CES 2016 in Las Vegas, this new addition to their portfolio was also showcased at the 3D Printing 2016 in Tokyo. We were at the Tokyo Big Sight event two weeks ago and we got the opportunity to test and try the new EinScan-Pro. Our feedback in one word: amazing.Overview of the Shining 3D EinScan-Pro
This 3D scanner is based on a structured white light scan technology. It is capable of producing detailed scans in several different modes: Handheld HD scan, Handheld Rapid Scan, Automatic Scan and Free Scan. The maximum scan accuracy can go up to 0.05 mm on a single scan with a specific configuration (Industrial package). Here are two useful links for more detailed characteristics: summarized performance review of the EinScan-Pro, for 3D scan samples by the EinScan-Pro.
The Shining 3D EinScan-Pro equipped with the color module
The EinScan-Pro is light (only 0.8 kg) and is available in several versions. The Basic package does not capture textures but costs only $4,000. Two upgrades are available, each for $700: the Color package which adds colors/texture capturing capabilities through a small side module (see picture above), and the Industrial package which adds an automatic turntable and a tripod to the package. Both bundles (Color and Industrial) can be combined for $1,400: a fully equipped Shining 3D EinScan-Pro costs $5,400. It is important to note that the price tag is far below those of direct competitors (Artec Eva or Creaform Go!Scan for examples).
The Shining 3D EinScan-Pro 3D scanning a statue
Testing the Shining 3D EinScan-Pro
I first was able to witness several free scan use case on a small statue (equipped with markers) and later on with a wood panel. Both results were really good and quite fast to produce. I also tested myself the scanner using this free scan mode. The EinScan-Pro is nice to hold and comfortable to operate. The software is fairly easy to use and provides a great user experience, for instance by automatically stitching the different 3D scans automatically to produce the final scan.
A 3D scan of Pierre-Antoine's face by the EinScan-Pro
The Shining 3D team then performed a 3D scan with me as the subject. In less than 2 minutes, a high-resolution scan of my face with textures was available. Note that The EinScan-Pro, like all 'affordable' structured light 3D scanners, have a very hard time dealing with hair.
The Einscan-Pro mounted on its tripod, performing a 3D scan of a triceratops (on the turntable).
My last test was performed on a small triceratops glossy plastic figurine. It only took two automated 3D scans to generate a great 3D model. The stitching and merging of the dots cloud and the generation of the textured polygons was quick and entirely automatic.
Result of the triceratops figurine 3D scan with the EinScan-Pro
One thing to keep in mind: like almost all structured light 3D scanners, the Einscan-Pro is not suitable for outdoor operations at it is affected by intense sources of light.
CONCLUSION
Aniwaa's opinion: 4.2/5
The Shining 3D EinScan-Pro is a powerful and versatile portable 3D scanner offering among the best price to performance ratio of the market. It is certainly one of the most promising handheld 3D scanners of 2016. It offers an amazing level of performance at a very reasonable price, as it's roughly three to four times cheaper than its closest competitors. The software is efficient and easy to use. For small to medium size companies looking to invest in a 3D scanning solution, we think it's a very interesting option to consider. The best uses cases for this portable 3D scanner are museum conservationism or design studios. We do not recommend it for full body 3D scanning, even if it gives good results for face 3D scanning. We carry out tests of 3D printers, 3D scanners and 3D filaments in our lab in Tokyo. Get in touch if you’d like us to review your products! [post_title] => [Hands-on] The Shining 3D EinScan-Pro, an affordable and powerful portable 3D scanner [post_excerpt] => [post_status] => publish [comment_status] => closed [ping_status] => closed [post_password] => [post_name] => a-hands-on-review-of-the-shining-3d-einscan-pro [to_ping] => [pinged] => [post_modified] => 2019-02-15 07:37:30 [post_modified_gmt] => 2019-02-15 06:37:30 [post_content_filtered] => [post_parent] => 0 [guid] => https://www.aniwaa.com/?p=27461 [menu_order] => 0 [post_type] => post [post_mime_type] => [comment_count] => 0 [filter] => raw ) )
We review 3D scanners on a regular basis in our testing lab. We believe hands-on 3D scanner reviews are valuable and allow us to share first-hand, unbiased experience with our readers.
Our reviews follow a strict test protocol designed to provide a fair benchmark to evaluate each product. We cover various aspects of the product experience, from unboxing and setting up the 3D scanner to evaluating the 3D scan quality and testing various features of the product, including the 3D scanning software. We score 3D scanners on a 5-point scale on each aspect to calculate the overall rating.
Our reviews follow a strict test protocol designed to provide a fair benchmark to evaluate each product. We cover various aspects of the product experience, from unboxing and setting up the 3D scanner to evaluating the 3D scan quality and testing various features of the product, including the 3D scanning software. We score 3D scanners on a 5-point scale on each aspect to calculate the overall rating.
![[Hands-on] Creaform HandySCAN BLACK Elite review](https://www.aniwaa.com/wp-content/uploads/2019/09/Featured-image-Creaform-HandySCAN-BLACK-Elite-review.jpg)
[Hands-on] Creaform HandySCAN BLACK Elite review
Published on: September 3, 2019
By Pierre-Antoine Arrighi
The HandySCAN BLACK Elite delivers a powerful performance all while being intuitive to use. Read our Creaform HandySCAN BLACK Elite review for more info.
Read more
Shining 3D EinScan Pro 2X Plus review
Published on: May 23, 2019
By Pierre-Antoine Arrighi
The EinScan Pro 2X Plus is a handheld 3D scanner for professionals that offers great value and performance. Read our EinScan Pro 2X Plus review here!
Read more
peel 3d review: a cost-effective handheld 3D scanner
Published on: August 3, 2018
By Steve Noble
The peel 3d is a affordable professional handheld 3d scanner. Read more about our peel 3d sacnner review to discover its pros and cons.
Read more![[Hands-on] The RangeVision Spectrum, a desktop 3D scanner](https://www.aniwaa.com/wp-content/uploads/2018/02/Featured-image-RangeVision-Spectrum-hands-on-review-Aniwaa.jpg)
[Hands-on] The RangeVision Spectrum, a desktop 3D scanner
Published on: February 22, 2018
By Pierre-Antoine Arrighi
The RangeVision Spectrum is a professional desktop 3D scanner by Russian manufacturer RangeVision. Read our hands-on review to find out more about this RangeVision 3D scanner.
Read more![[Hands-on] The Open Technologies Scan In a Box - FX, a desktop 3D scanner](https://www.aniwaa.com/wp-content/uploads/2017/12/Featured-Image-Aniwaa-review-Open-Technologies-Scan-in-a-box-fx-3d-scanner-COM.jpg)
[Hands-on] The Open Technologies Scan In a Box – FX, a desktop 3D scanner
Published on: January 15, 2018
By Pierre-Antoine Arrighi
The Open Technologies SIAB-FX (Scan in a Box - FX) is a professional desktop 3D scanner. We had the chance to try it out! See our hands-on SIAB-FX review.
Read more![[Review] Scan In a Box, an affordable yet professional desktop 3D scanner by Open Technologies](https://www.aniwaa.com/wp-content/uploads/2017/09/Featured-Image-Aniwaa-review-scaninabox-3d-scanner-COM.jpg)
[Review] Scan In a Box, an affordable yet professional desktop 3D scanner by Open Technologies
Published on: September 18, 2017
By Ludivine Cherdo
The Open Technologies Scan In a Box is a desktop 3D printer geared towards professional users. Find out more in our comprehensive review of the SIAB.
Read more![[Review] The Shining 3D EinScan-SP, an easy to use and powerful desktop 3D scanner](https://www.aniwaa.com/wp-content/uploads/2017/07/Featured-Image-Aniwaa-test-shining-3d-einscan-sp-COM.jpg)
[Review] The Shining 3D EinScan-SP, an easy to use and powerful desktop 3D scanner
Published on: September 5, 2017
By Pierre-Antoine Arrighi
The Shining 3D EinScan-SP is an affordable yet powerful desktop 3D scanner. Read our in-depth review for more details about our experience and tests.
Read more![[Hands-on] Test and review of the Creaform HandySCAN 700, a high end portable 3D scanner](https://www.aniwaa.com/wp-content/uploads/2016/06/Featured-Image-Aniwaa-Test-Creaform-Handyscan-700-US.jpg)
[Hands-on] Test and review of the Creaform HandySCAN 700, a high end portable 3D scanner
Published on: April 10, 2017
By Pierre-Antoine Arrighi
The Creaform HandySCAN 700 is a metrology grade solution for professionals who work in industrial environments. Yet, it is remarkably light and easy to use.
Read more![[Hands-on] Test and review of the Creaform Go!SCAN 50, a professional-grade portable 3D scanner](https://www.aniwaa.com/wp-content/uploads/2016/10/Featured-Aniwaa-Creaform-Go-scan-50-COM.jpg)
[Hands-on] Test and review of the Creaform Go!SCAN 50, a professional-grade portable 3D scanner
Published on: October 30, 2016
By Pierre-Antoine Arrighi
The Creaform Go!SCAN 50 is a quick and accurate portable 3D scanner. It can use targets for an increased performance. Discover our review.
Read more![[Review] The Artec Eva, a powerful handheld 3D scanner](https://www.aniwaa.com/wp-content/uploads/2016/09/Featured-Image-Artec-Eva-review-COM-light.jpg)
[Review] The Artec Eva, a powerful handheld 3D scanner
Published on: September 19, 2016
By Pierre-Antoine Arrighi
Artec Eva review: the Eva has is able to produce detailed 3D scans of almost all types of objects. We praise its intuitive and efficient software.
Read more![[Hands-on] Test and review of the Creaform MetraSCAN 750, an optical CMM 3D scanner solution](https://www.aniwaa.com/wp-content/uploads/2016/06/Featured-Image-Aniwaa-Test-Creaform-Metrascan-US.jpg)
[Hands-on] Test and review of the Creaform MetraSCAN 750, an optical CMM 3D scanner solution
Published on: June 17, 2016
By Pierre-Antoine Arrighi
The user experience of the Creaform MetraSCAN 750 was really excellent, with a fast and efficient software, and an ergonomic sensor.
Read more![[Review] The Rangevision Smart, an affordable desktop 3D scanner](https://www.aniwaa.com/wp-content/uploads/2016/05/aniwaa-review-rangevision-smart-3d-scanner-featured-COM.jpg)
[Review] The Rangevision Smart, an affordable desktop 3D scanner
Published on: May 9, 2016
By Pierre-Antoine Arrighi
RangeVision Smart 3D scanner extensive test. We carry hands-on tests of 3D printers, 3D scanners and 3D filaments in our lab in Tokyo.
Read more![[Review] The Fuel3D SCANIFY, a lightweight portable 3D scanner](https://www.aniwaa.com/wp-content/uploads/2016/03/Aniwaa-test-fuel3d-scanify-tested-20-featured.jpg)
[Review] The Fuel3D SCANIFY, a lightweight portable 3D scanner
Published on: March 11, 2016
By Pierre-Antoine Arrighi
Today we‘re going to test the Fuel3D SCANIFY, an entry-level portable 3D scanner. This article aims to evaluate the performance of this 3D scanner in action
Read more![[Hands-on] The Artec Space Spider, a portable 3D scanner](https://www.aniwaa.com/wp-content/uploads/2016/06/Aniwaa-Featured-test-Artec-Space-Spider-Review-COM.jpg)
[Hands-on] The Artec Space Spider, a portable 3D scanner
Published on: February 19, 2016
By Pierre-Antoine Arrighi
The Artec Spider ($22,600) and Artec Space Spider ($27,600) are the high-end products of Artec product line. They are designed for high-precision scanning
Read more![[Hands-on] The Shining 3D EinScan-Pro, an affordable and powerful portable 3D scanner](https://www.aniwaa.com/wp-content/uploads/2016/06/Aniwaa-Featured-test-shining-3d-einscan-pro-Review-COM.jpg)
[Hands-on] The Shining 3D EinScan-Pro, an affordable and powerful portable 3D scanner
Published on: February 10, 2016
By Pierre-Antoine Arrighi
We were at Tokyo Big Sight event two weeks ago and we got the opportunity to test and try the new Shining 3D EinScan-Pro. Our feedback in one word: amazing.
Read more
